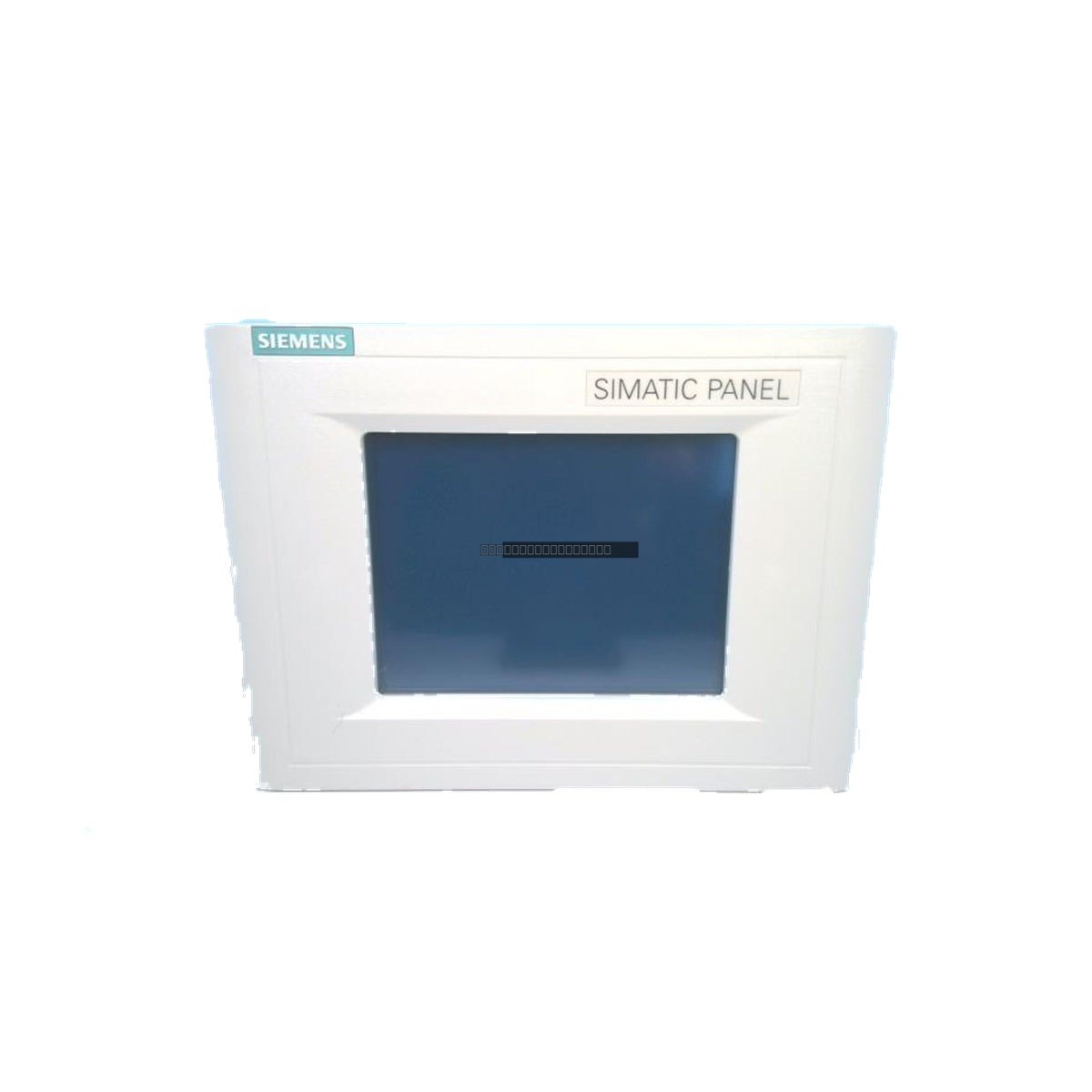

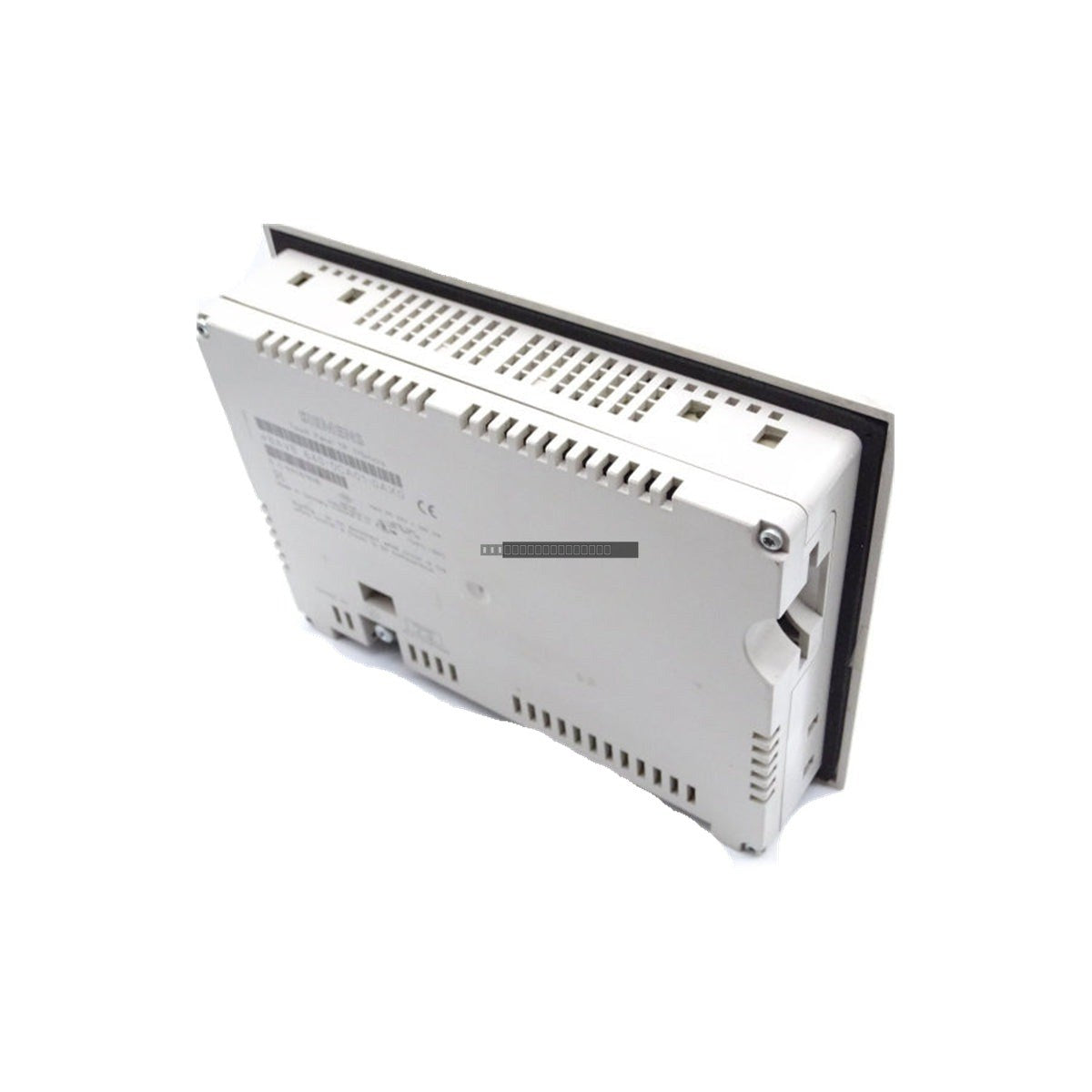

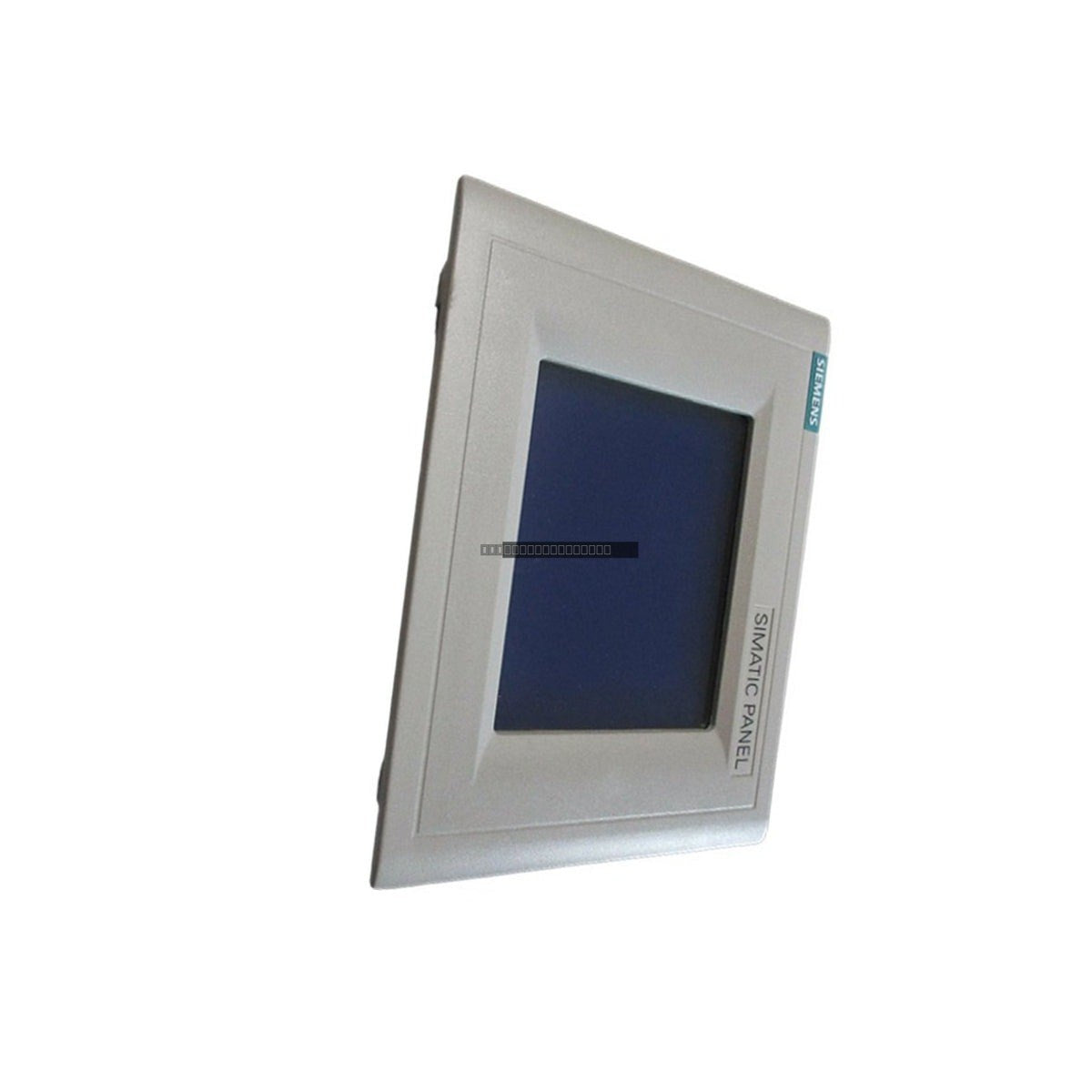

The Siemens 6AV6640-0CA01-0AX0 is a SIMATIC TP170 Micro touch panel engineered for seamless integration with SIMATIC S7-200 PLC systems. This operator interface unit features a 5.7-inch blue mode STN display, providing clear visualization for small-scale automation tasks. Designed for compact control environments, this device has reached its end-of-lifecycle status as of October 1, 2018, and is officially discontinued by the manufacturer.
Features
- Optimized for SIMATIC S7-200 series controllers.
- 5.7-inch STN display with high-contrast blue mode visualization.
- Intuitive touch-screen interface for efficient operator control.
- Configurable using WinCC flexible 2004 Micro software.
- Compact hardware form factor suitable for panel-mount installation.
Applications
This touch panel is specifically intended for HMI (Human-Machine Interface) applications in industrial automation where S7-200 controllers are deployed. It serves as a reliable interface for monitoring process variables, setting parameters, and managing machine diagnostics in small-to-medium manufacturing processes.
Technical Specifications
| Model Number |
6AV6640-0CA01-0AX0 |
| Manufacturer |
Siemens |
| Display Type |
STN (Blue Mode) |
| Display Size |
5.7 inches |
| Compatibility |
SIMATIC S7-200 |
| Configuration Software |
WinCC flexible 2004 Micro |
| Status |
Discontinued |
Installation Guidelines
- Ensure the panel is mounted in a clean, dry environment with adequate ventilation to prevent overheating.
- Use a properly sized cutout in the enclosure door to ensure a secure, sealed fit.
- Verify that the power supply meets the specified voltage requirements for the TP170 unit before connection.
- Handle the touch screen with care; avoid using sharp objects that could damage the overlay.
- Ensure the unit is properly grounded to the enclosure frame to mitigate potential EMI interference.
- Always power down the system before disconnecting or servicing the communication cables.
FAQ
Is the 6AV6640-0CA01-0AX0 still in production?
No, this model was officially discontinued by Siemens as of October 1, 2018. It is now considered a legacy spare part.
What software is required to configure this panel?
This unit is configured using the WinCC flexible 2004 Micro software package.
Is this panel compatible with S7-300 or S7-1200 series?
The TP170 Micro is designed specifically for the S7-200 architecture. It is not natively compatible with later S7-300 or S7-1200 series controllers.
