Description

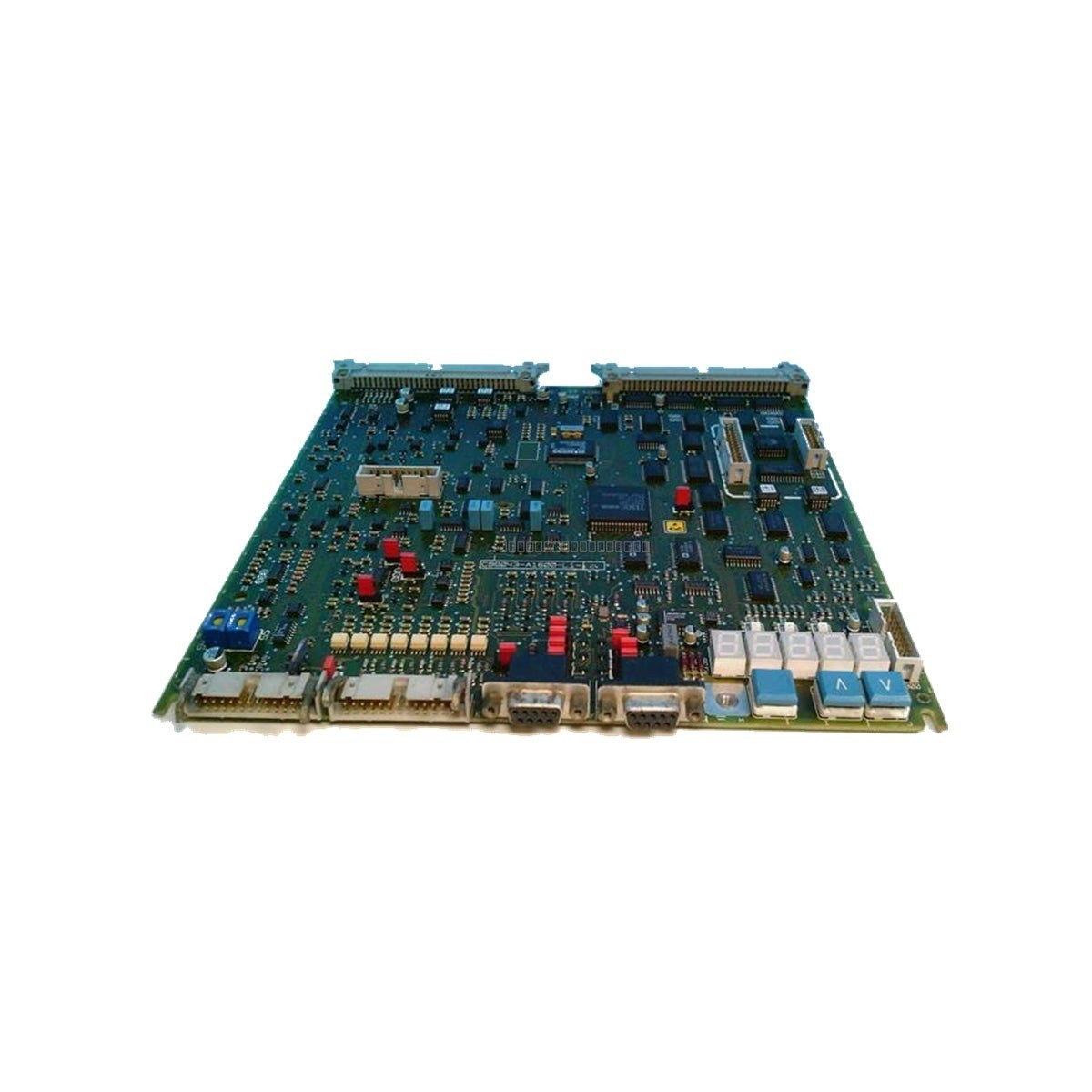

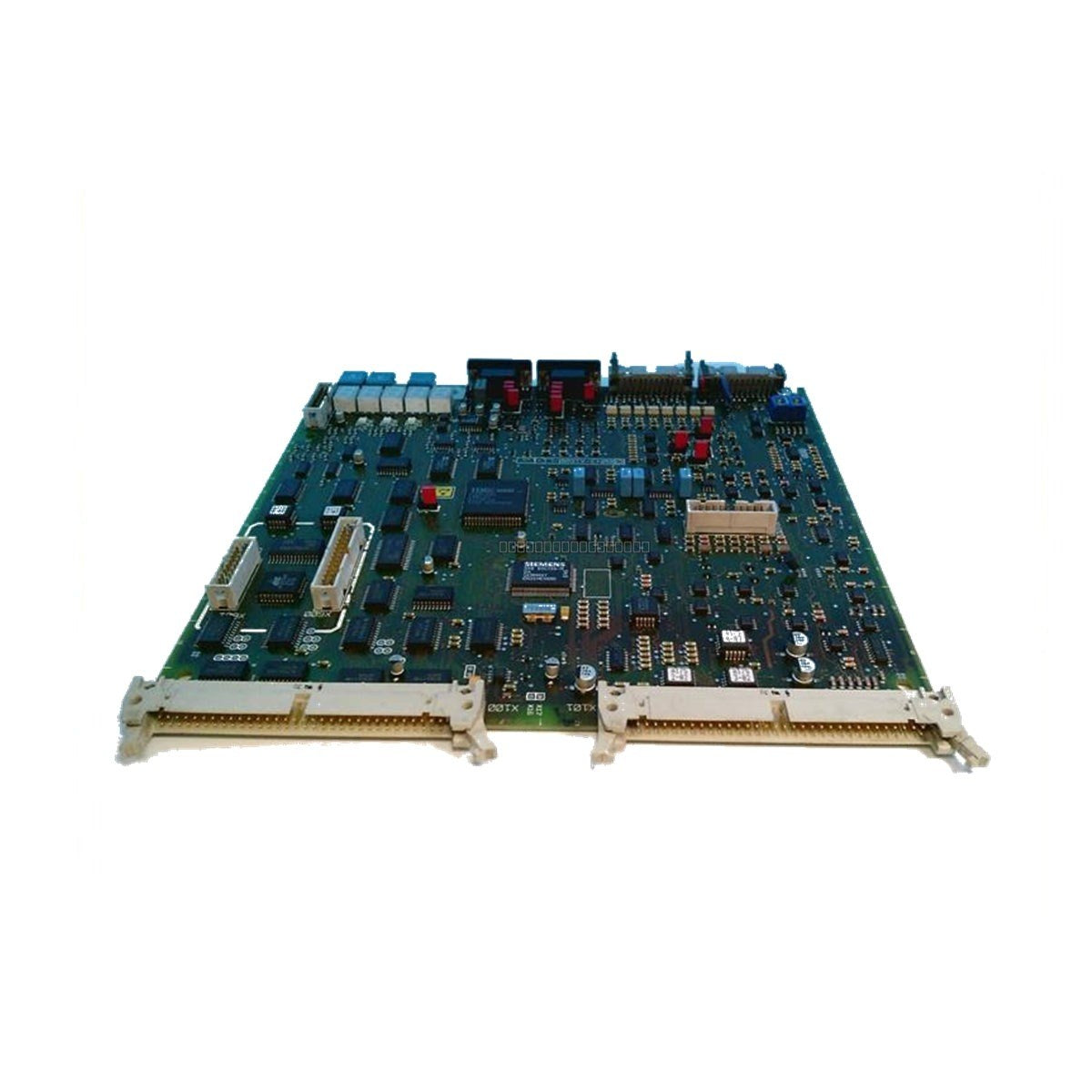

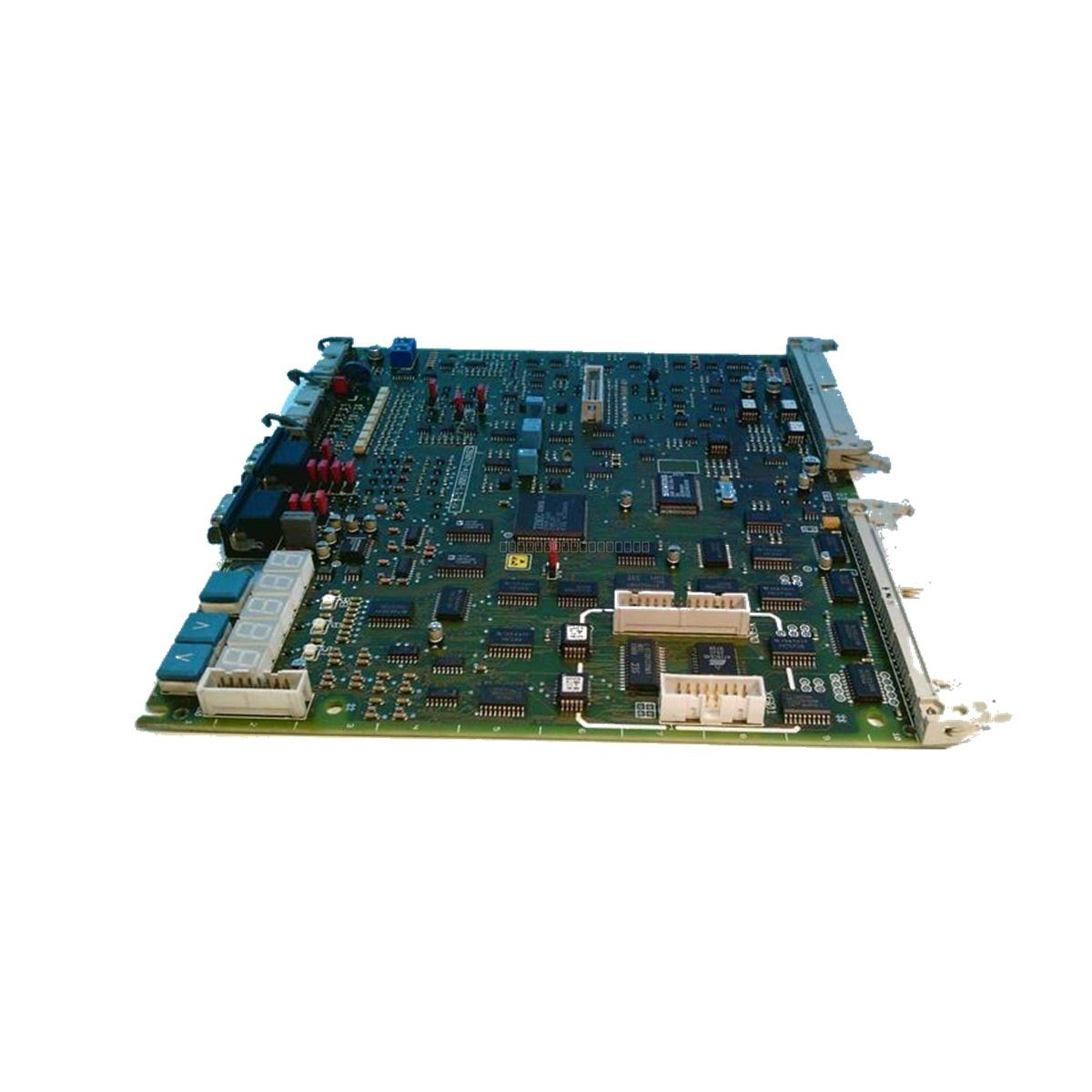

The Siemens C98043-A1600-L1-17 (also identified as C98043A1600L117) is a high-performance control and inverter power board designed for the SIMOREG K series DC converters. This 32-bit microcontroller-based module manages critical switching logic and power distribution for large-scale industrial drives. It is engineered for demanding applications such as steel rolling mills, mining hoists, and harbor crane systems, where precise torque control and reliable high-current management are required. By maintaining DC link integrity and providing rapid signal processing, this board serves as a core component in legacy motor control architectures.
Features
- Advanced 32-bit microcontroller-based control logic for high-speed processing.
- Integrated gate-drive circuitry for power section management of SIMOREG K converters.
- Multi-layer PCB design for optimized heat dissipation and signal isolation.
- Robust construction designed to withstand industrial electromagnetic interference and high-vibration environments.
- Supports rated currents up to 1,600 A.
Applications
This control board is intended for use in heavy-duty industrial drive systems, specifically within the SIMOREG K series. Typical applications include:
- Steel and metal processing plants (rolling mills).
- Mining and material handling (hoists and conveyors).
- Large-scale harbor crane systems.
- Legacy DC motor control and power conversion systems.
Technical Specifications
| Model |
C98043-A1600-L1-17 |
| Series |
SIMOREG K |
| Input Voltage |
380 V to 500 VAC, 50/60 Hz |
| DC Link Voltage |
400 V to 560 VDC |
| Rated Current |
1,600 A |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-25 to 70 deg C |
| Humidity |
Max 95 percent non-condensing |
| Vibration Resistance |
5 to 150 Hz |
Installation Guidelines
-
ESD Protection: Always use an anti-static wrist strap and handle the board by its edges to prevent electrostatic discharge damage to sensitive components.
-
Power Down: Ensure all power to the SIMOREG K drive is completely disconnected and the DC link capacitors are fully discharged before attempting to install or remove the board.
-
Mounting: Ensure the board is securely seated in the designated slot within the drive housing. Verify that all connector pins are aligned correctly to prevent bending or short-circuiting.
-
Environment: Ensure the installation area is free from conductive dust and excessive moisture. Maintain adequate clearance for airflow to prevent overheating.
-
Grounding: Verify that the drive chassis is properly grounded according to local electrical codes to mitigate EMI effects.
FAQ
Is this board compatible with all SIMOREG K converters?
This board is specific to the C98043-A1600-L1-17 configuration. Please verify your existing part number and drive model to ensure full compatibility with your specific SIMOREG K system.
What should I do if the board displays a fault?
Check the diagnostic LEDs on the drive interface and consult the SIMOREG K technical manual for the specific error code. Ensure all cable connections to the board are tight and free from corrosion.
