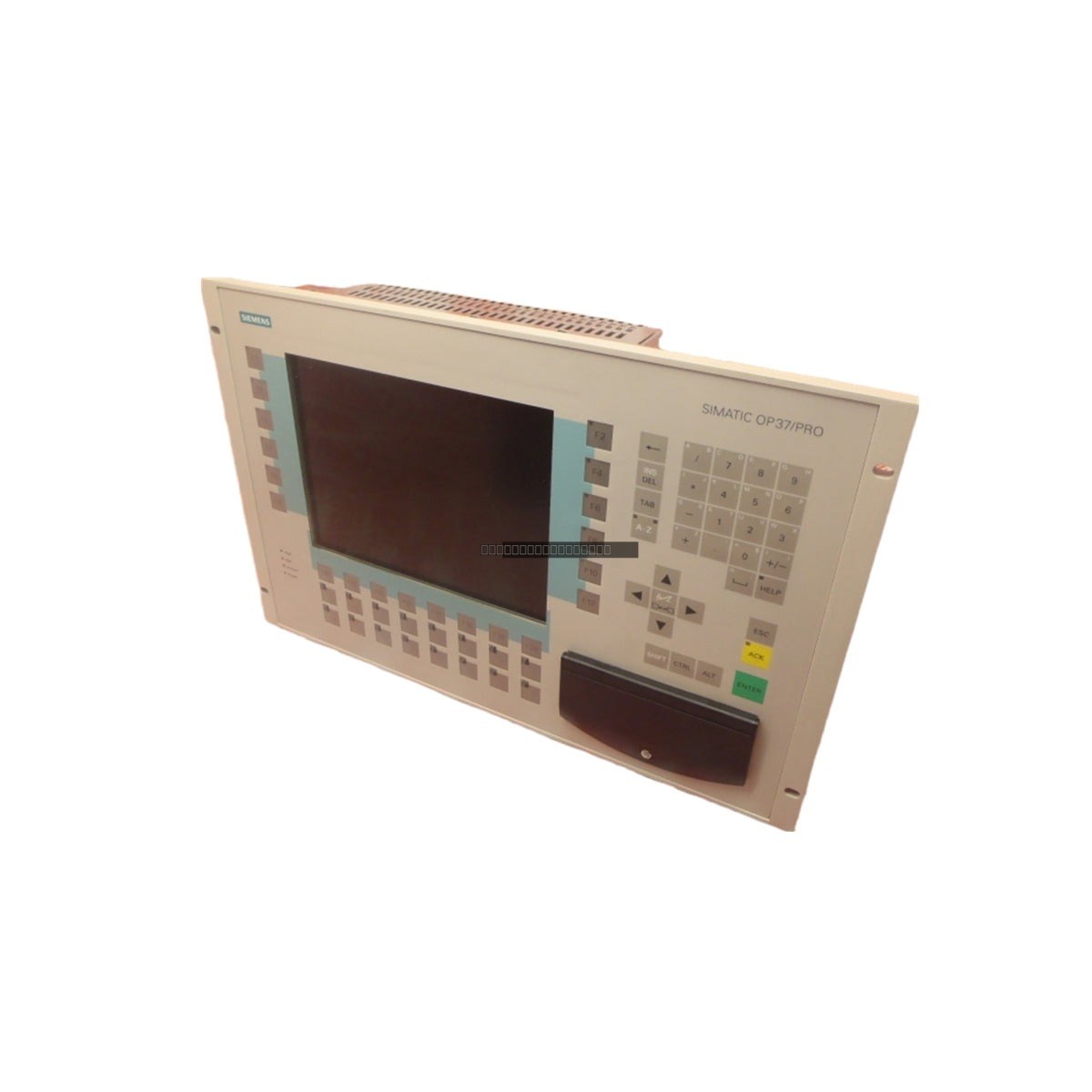

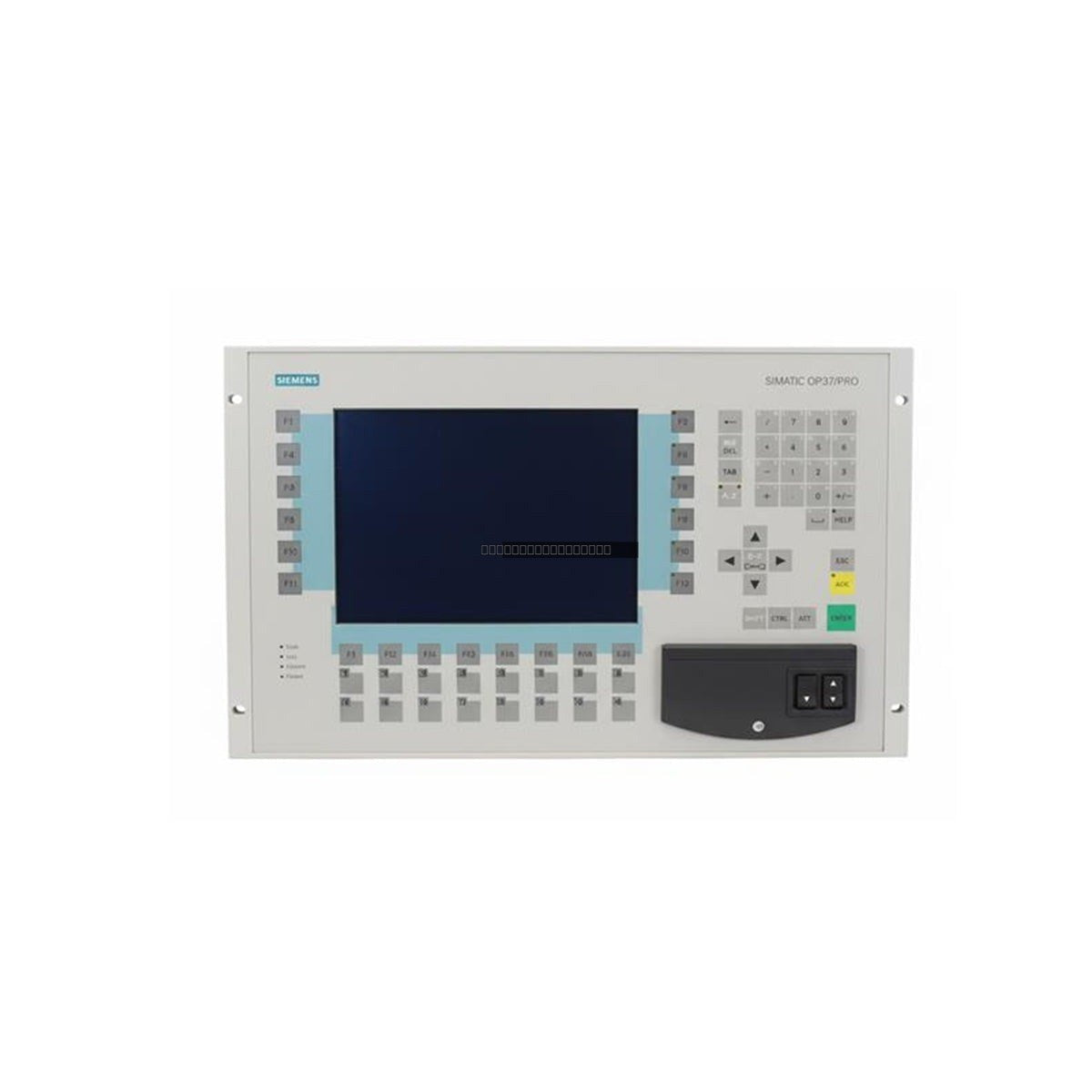

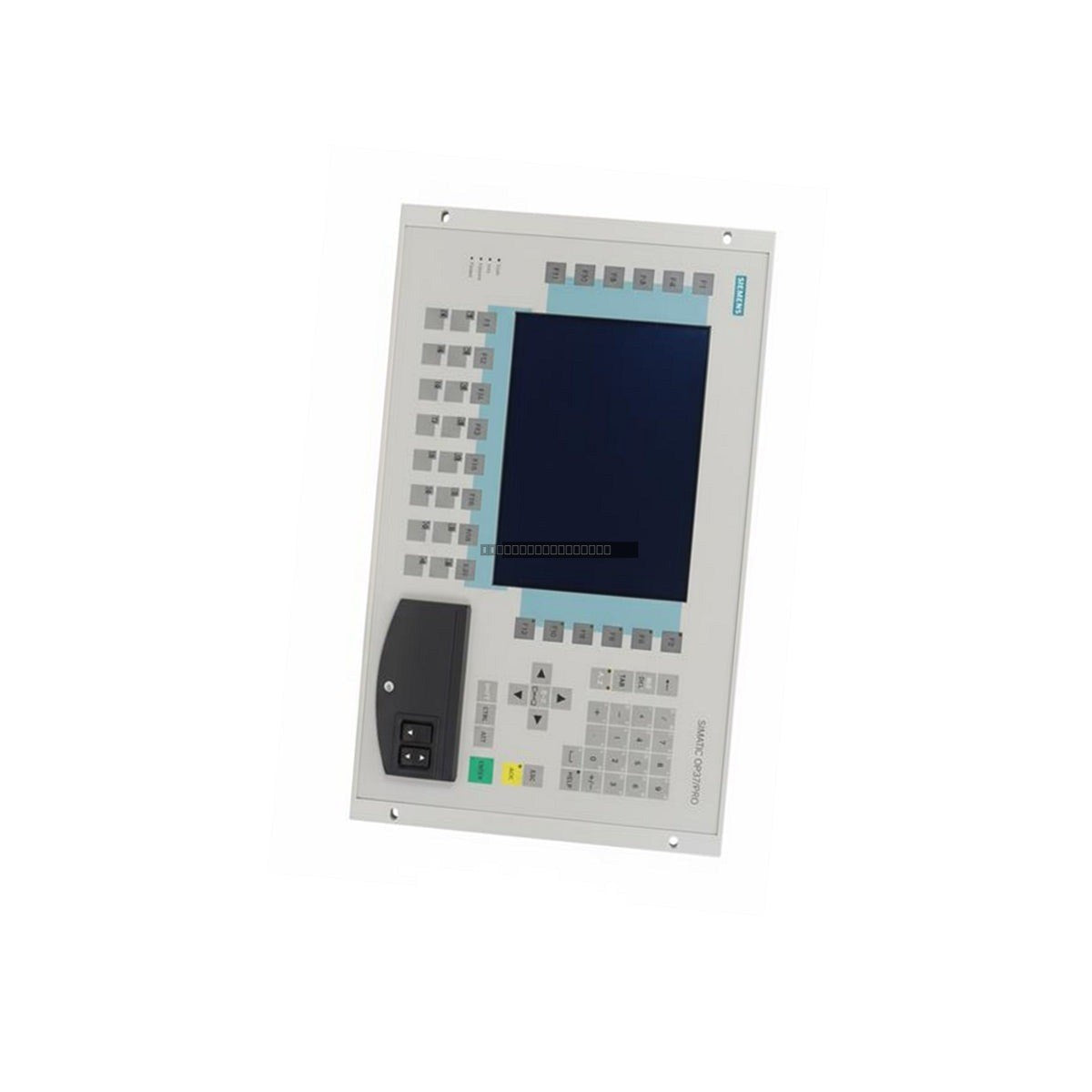

The Siemens 6AV6541-0AA05-2BB0 is a robust operator interface panel engineered for the Simatic S5 HMI environment. This OP37/PRO terminal provides advanced visualization and control capabilities, featuring a 10-inch color display designed for demanding industrial environments. It serves as a critical bridge between operators and complex automation processes, facilitating real-time monitoring, alarm management, and parameter adjustments to maintain high production standards.
Features
- High-resolution 10-inch color industrial display for clear process visualization.
- Integrated 32 MB RAM and 2.1 GB storage capacity for project files, recipes, and historical data.
- Optimized for seamless communication with the Simatic S5 PLC controller family.
- Engineered for reliability in harsh shop-floor conditions.
- Responsive input handling for low-latency command execution.
Applications
This operator panel is widely utilized in sectors requiring precise process control and diagnostic oversight, including automotive manufacturing, chemical processing, and energy management systems. It is ideal for applications where dynamic trend data, alarm logging, and audit-ready process documentation are essential.
Technical Specifications
| Model |
6AV6541-0AA05-2BB0 |
| Brand |
Siemens |
| Series |
Simatic S5 |
| Display |
10-inch Color |
| Memory |
32 MB RAM |
| Storage |
2.1 GB Hard Disk/Floppy |
| Power Supply |
24 VDC Nominal |
| Operating Temperature |
0 to 50 degC |
Installation Guidelines
- Ensure the panel is mounted in a location that allows for adequate ventilation to maintain operating temperatures below 50 degC.
- Verify the 24 VDC power supply polarity before connection to prevent damage to internal circuitry.
- Use shielded communication cables to minimize EMI interference when connecting to the Simatic S5 controller.
- Always power down the unit before performing maintenance or removing the device from the panel cutout.
- Ensure the mounting gasket is properly seated to maintain the required environmental protection rating.
FAQ
Is this unit compatible with modern S7 controllers?
The OP37/PRO is specifically designed for the Simatic S5 environment. While it excels in S5 applications, please consult your system integrator regarding compatibility with newer S7 architectures.
What is the primary storage medium for this device?
This model includes a 2.1 GB hard disk/floppy drive configuration, providing sufficient capacity for extensive project files and historical logging requirements.
