Description

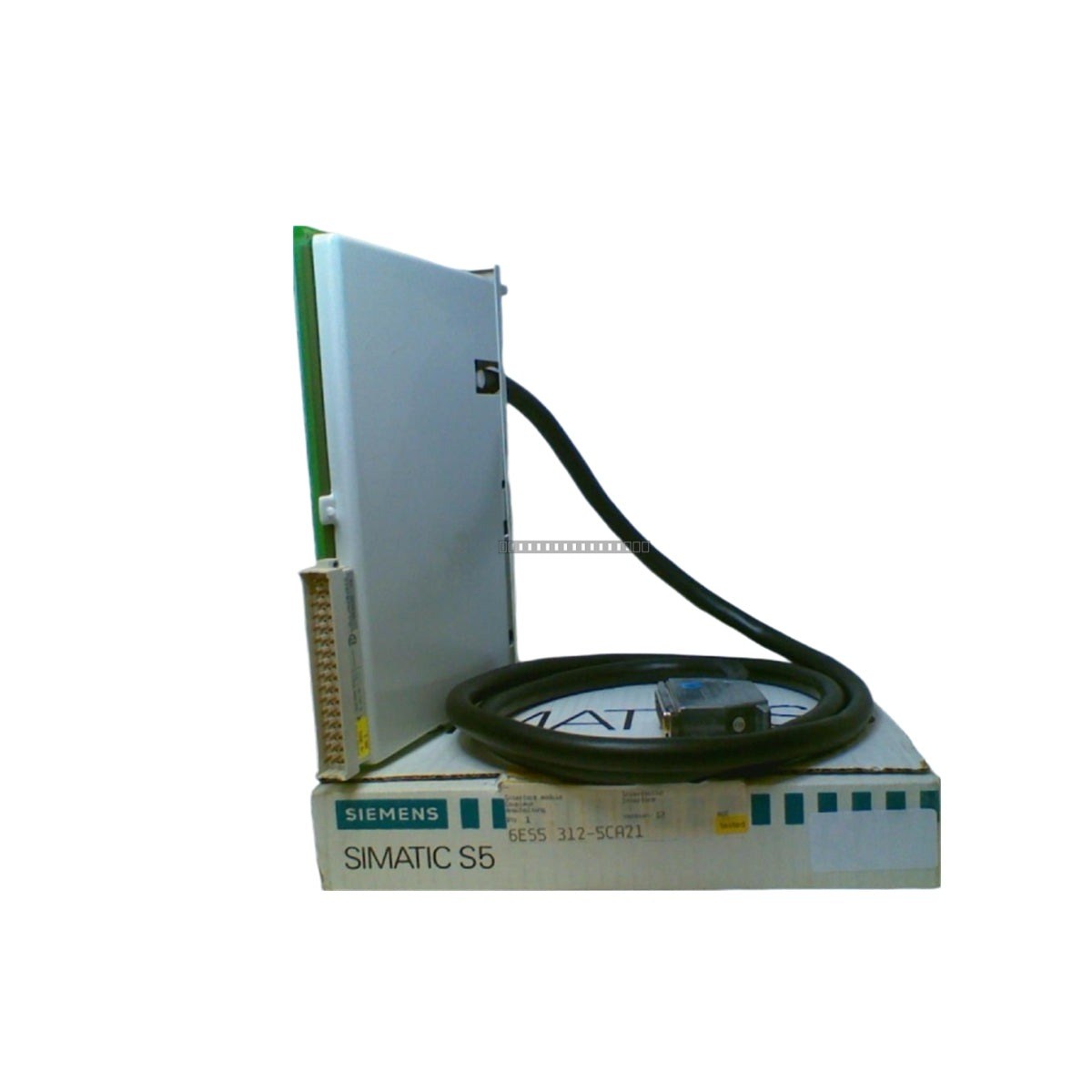

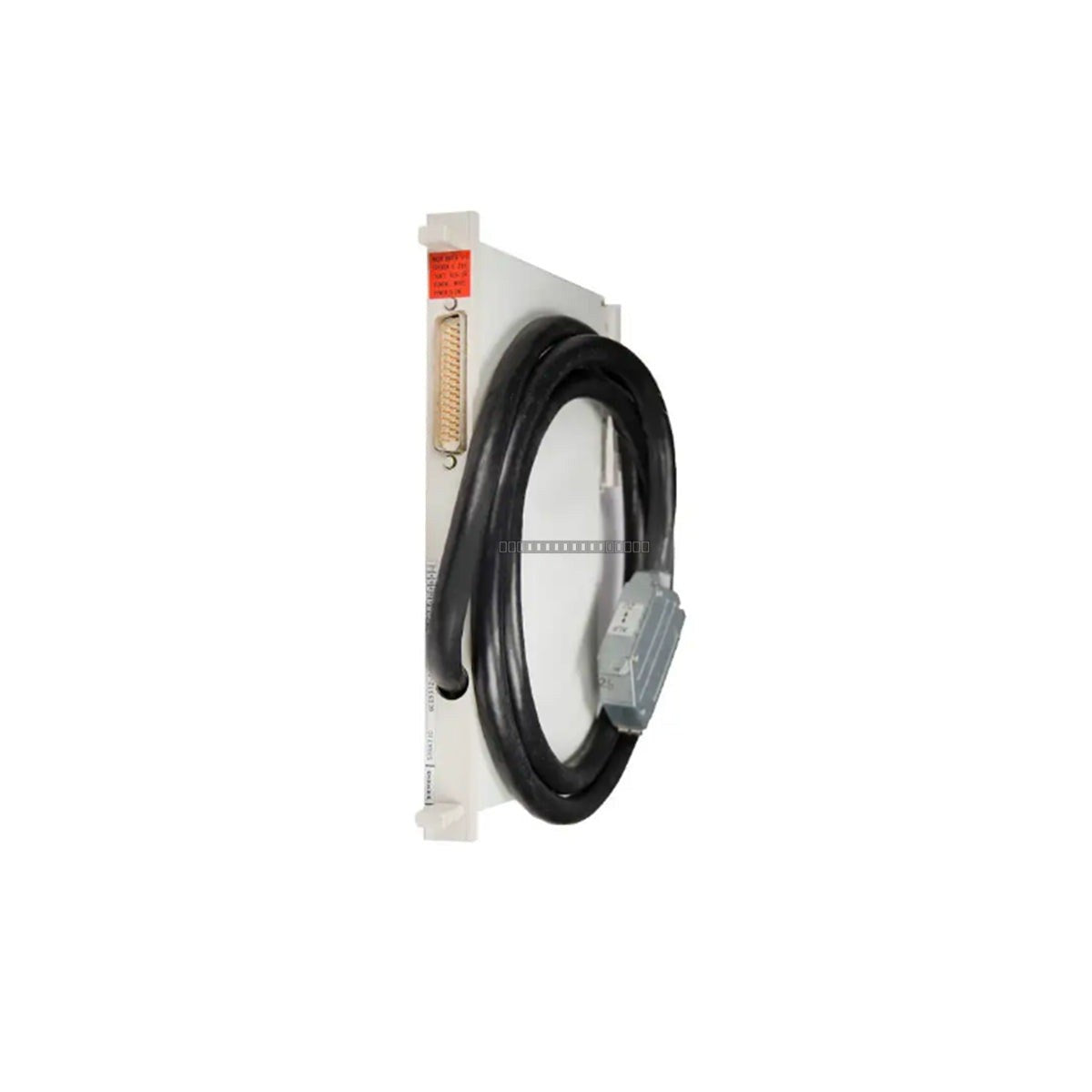

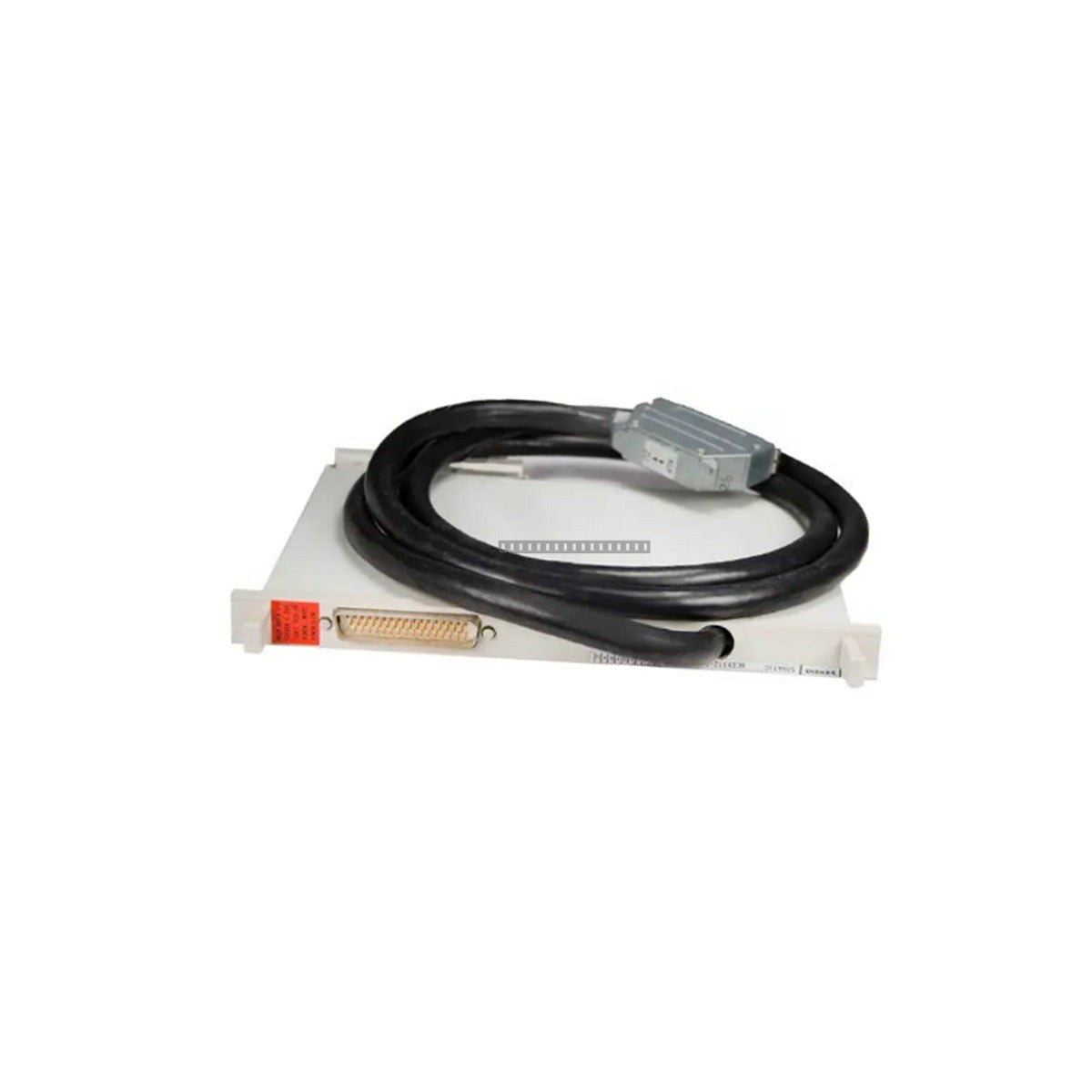

The Siemens 6ES5312-5CA21 is an expansion unit interface module engineered for the Simatic S5-135/155 automation series. This module acts as a vital bridge for centralized configuration, facilitating reliable interconnection between central controllers and expansion units. It supports communication distances of up to 200 meters, ensuring consistent data transmission and synchronization across distributed automation architectures in demanding industrial environments.
Features
- Designed for seamless integration with Simatic S5-135/155 rack-mounted systems.
- Supports high-speed data transmission over distances up to 200 meters.
- Provides signal buffering and electrical isolation to mitigate ground loop interference.
- Compact, hardware-efficient design powered directly via the host rack backplane.
- Includes a 1.5-meter cable for immediate cabinet-level installation.
Applications
This interface module is typically utilized in large-scale industrial control systems, including mineral processing plants, heavy manufacturing facilities, and power utility substations. It is essential for extending the physical footprint of S5 control systems while maintaining deterministic performance and signal integrity.
Technical Specifications
| Model |
6ES5312-5CA21 |
| Product Family |
Simatic S5-135/155 |
| Maximum Distance |
200 meters |
| Operating Temperature |
0 to 60 degC |
| Power Source |
S5 backplane |
| Included Cable |
1.5 meters |
Installation Guidelines
- Ensure the control system is powered down before inserting or removing the module from the rack.
- Verify that the module is correctly seated in the S5 rack backplane to ensure proper electrical contact.
- Route communication cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal quality.
- Handle the module using standard ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
- Confirm that the total cable length does not exceed the 200-meter limit for the specific configuration.
FAQ
What is the primary function of the 6ES5312-5CA21?
This module serves as an interface for connecting expansion racks to a primary Siemens S5-135/155 controller, allowing for the extension of the control bus up to 200 meters.
Does this module require an external power supply?
No, the module is designed to be powered directly by the host rack backplane, which helps keep the enclosure profile compact and reduces heat generation.
