Description

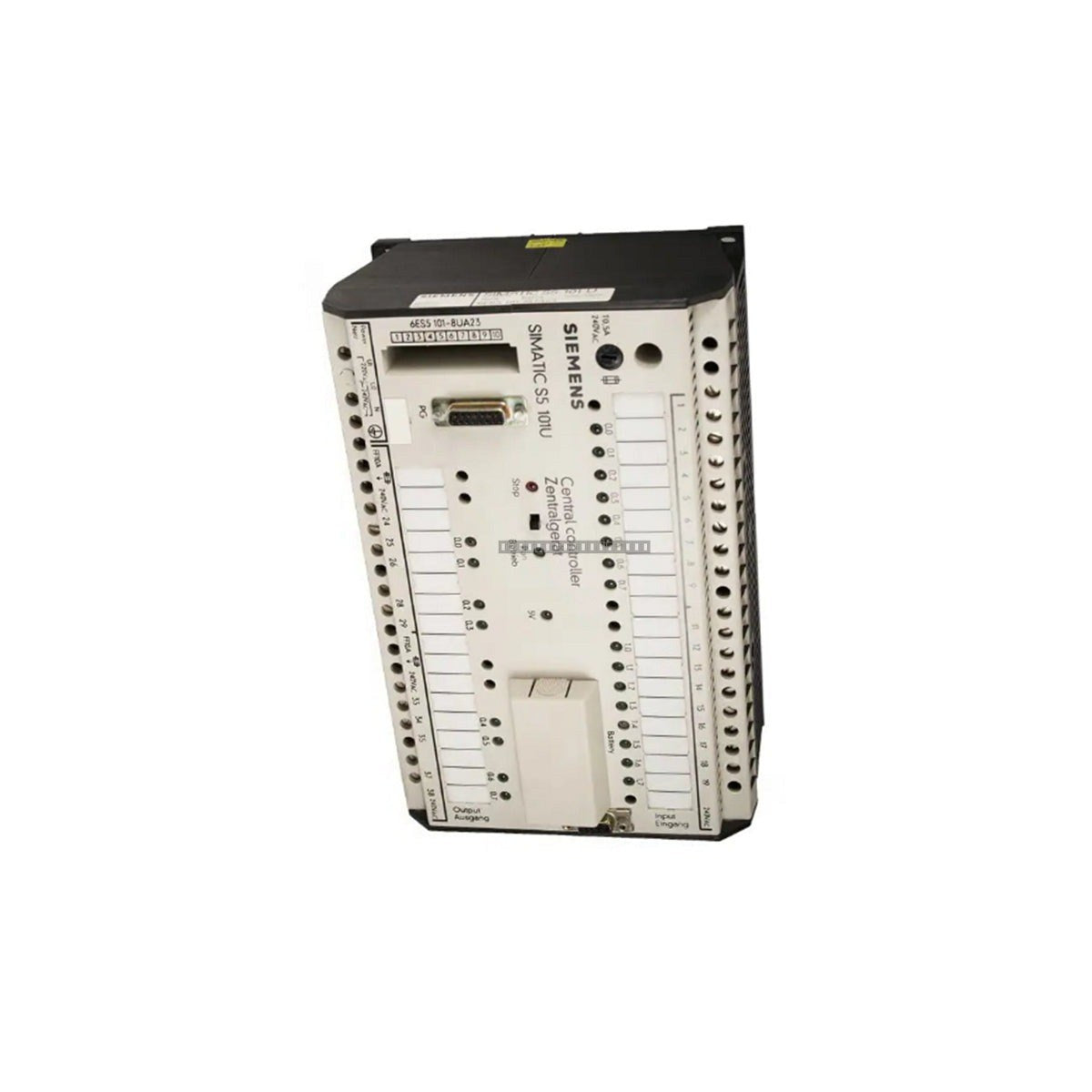

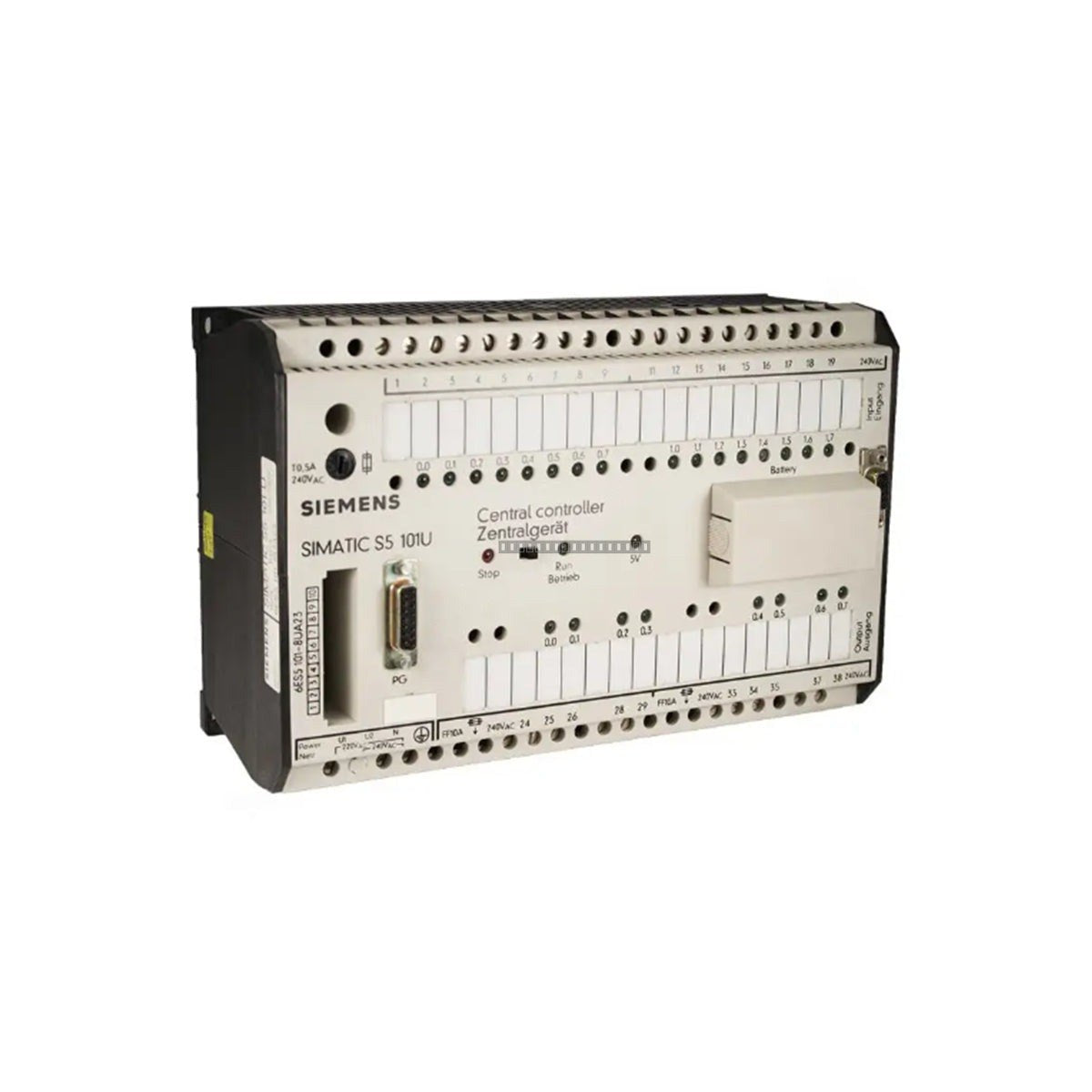

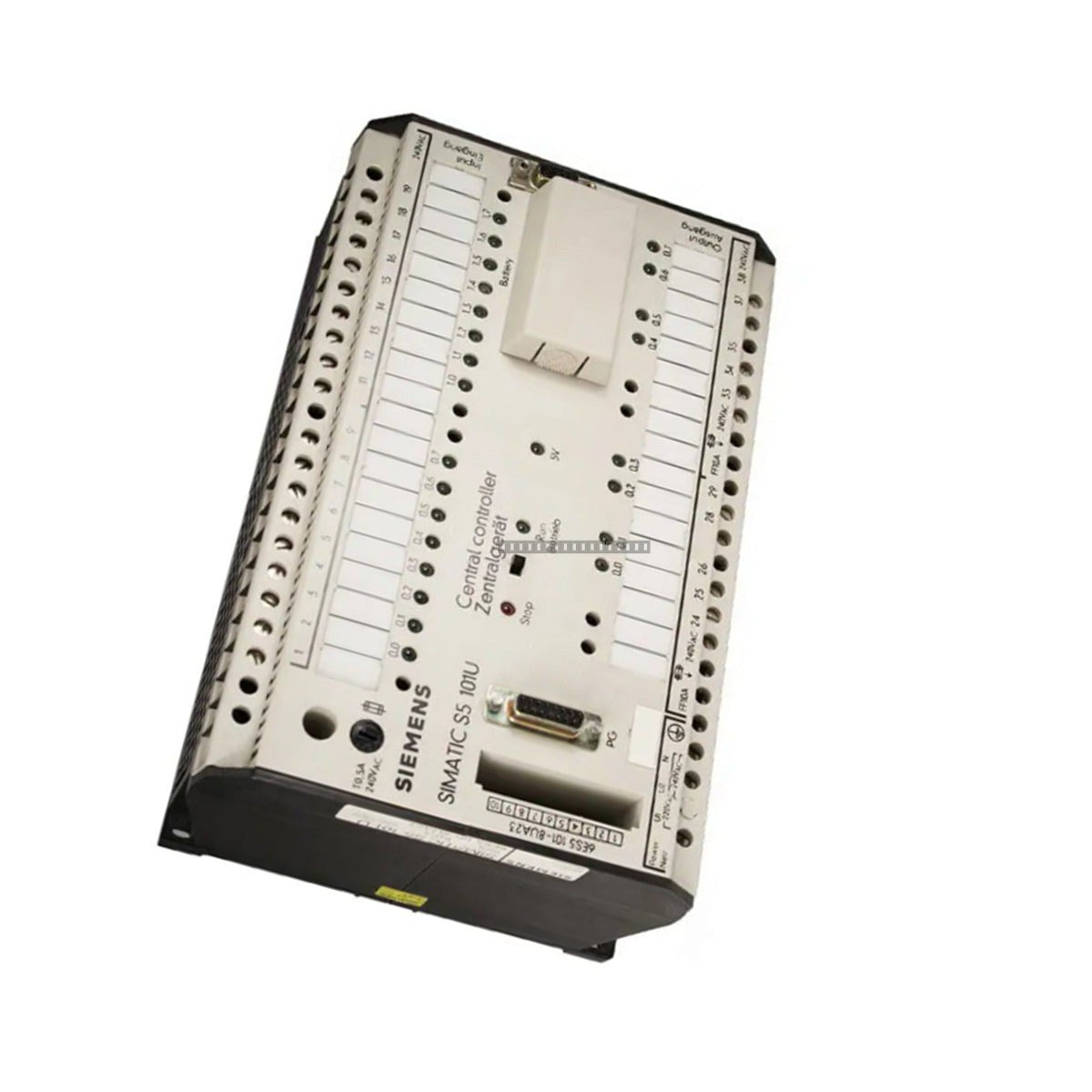

The Siemens 6ES5101-8UA23 is a central controller module (Zentralgeraet) designed for the Simatic S5-101U automation system. This compact unit serves as the primary processing core for standalone machinery, integrating logic execution, system memory, and localized I/O management into a single hardware footprint. It is engineered for deterministic binary processing, making it suitable for legacy automation environments such as material handling, conveyor systems, and auxiliary plant ventilation.
Features
- Integrated micro-sequencer optimized for high-speed boolean operations, timers, and counters.
- Direct backplane mapping of digital and analog signals to internal process image registers.
- Galvanic isolation via high-frequency optocouplers to mitigate electrical noise and supply voltage interference.
- Onboard programming interface for direct connection to S5 programming units or operator panels.
- Compact design suitable for space-constrained control cabinets.
Applications
This controller is widely utilized in legacy industrial sectors including raw material processing, mining conveyor control, and power plant auxiliary systems where the S5-101U framework remains the established control standard.
Technical Specifications
| Model |
6ES5101-8UA23 |
| Series |
Simatic S5-101U |
| Operating Temperature |
0 to 55 deg C |
| Power Consumption |
15 W |
| Interface |
Built-in Programming Port |
Installation Guidelines
- Ensure the control cabinet power is fully disconnected before inserting or removing the module to prevent electrical damage.
- Mount the module in a clean, dry environment with adequate ventilation to maintain operating temperatures below 55 deg C.
- Use shielded cables for all I/O connections to minimize EMI/RFI interference.
- Ensure proper chassis grounding to the cabinet backplane to maintain the integrity of the galvanic isolation.
- Handle the module using ESD-safe practices to protect internal logic components.
FAQ
Is this module compatible with other S5 series systems?
The 6ES5101-8UA23 is specifically designed for the S5-101U series. Compatibility with other S5 series (such as S5-115U or S5-135U) is not supported due to differences in backplane architecture and instruction sets.
Does this unit require a separate power supply?
The unit requires a compatible power supply input as specified by the S5-101U system requirements. Please verify your rack power distribution before installation.
