Description

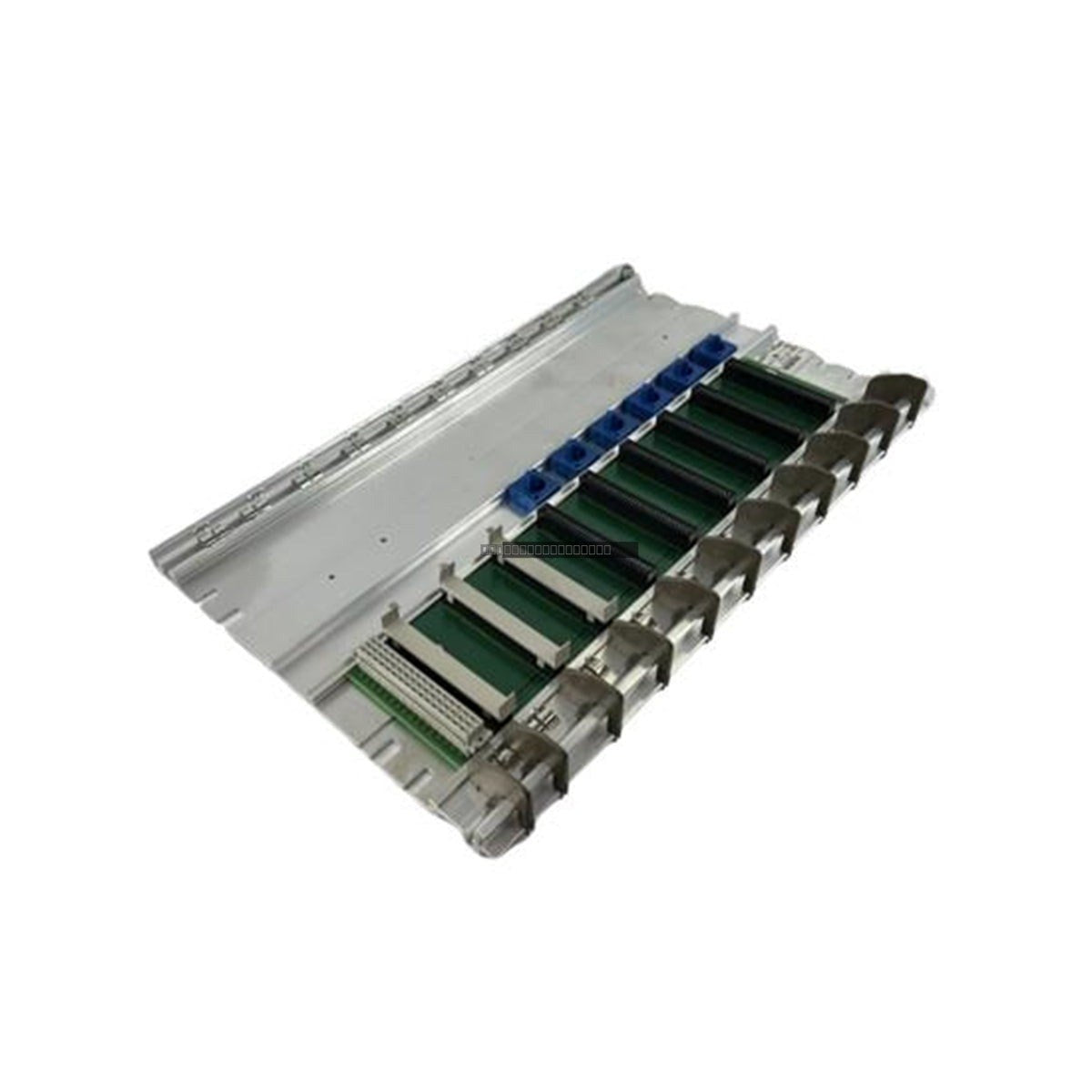

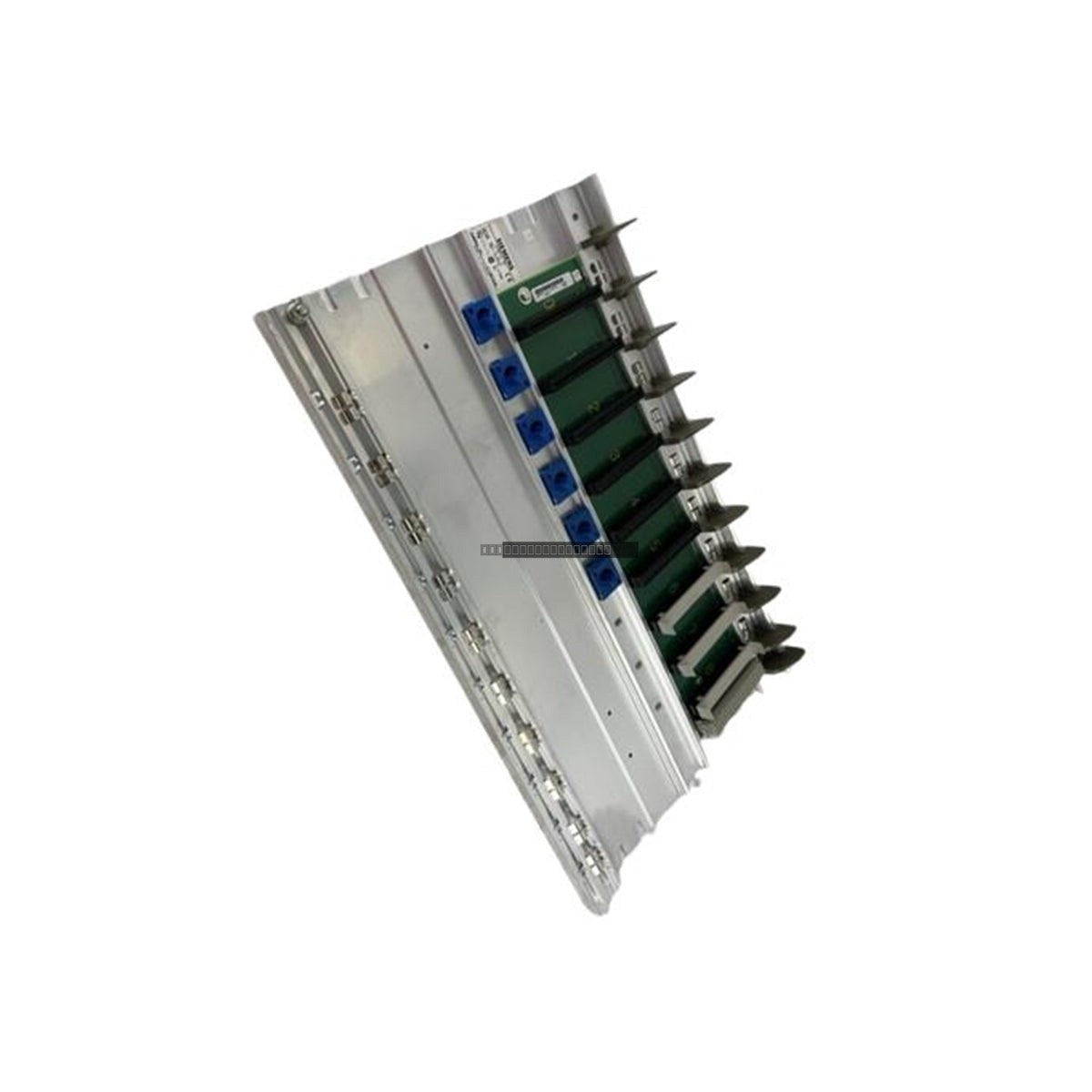

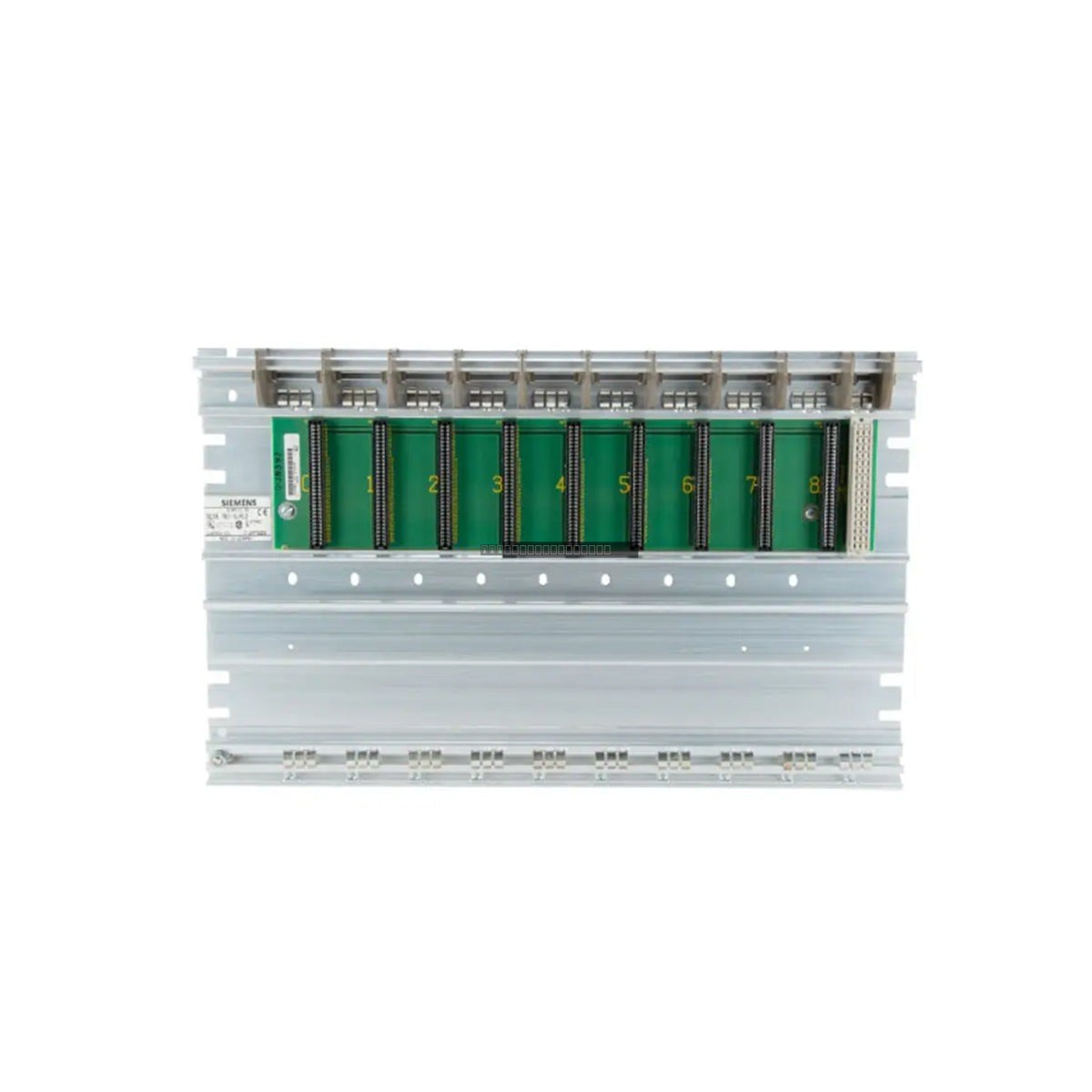

The Siemens 6ES5701-1LA12 is a 9-slot expansion rack engineered for the Simatic S5-115U and S5-115F programmable logic controller systems. This unit provides the necessary mechanical and electrical infrastructure to extend the capacity of the central controller by housing additional I/O, communication, or processing modules. It is specifically designed to maintain reliable backplane communication and power distribution in demanding industrial environments, ensuring consistent performance for safety-instrumented and standard automation applications.
Features
- Nine integrated slots for versatile module configuration in S5-115U/F systems.
- Gold-plated backplane connectors to minimize oxidation and ensure long-term signal integrity.
- Robust mechanical design featuring secure slide guides and screw-down retention to withstand high-vibration environments.
- Optimized power bus layout to prevent localized current bottlenecks when using high-density I/O modules.
- Designed for central expansion, supporting deterministic data transmission across the backplane.
Applications
This expansion rack is widely utilized in heavy-duty industrial sectors, including power generation, mining, and oil and gas refining. It is ideal for upgrading legacy Simatic S5 installations that require additional I/O density while maintaining the strict timing requirements of the S5-115F safety series.
Technical Specifications
| Model |
6ES5701-1LA12 |
| Series |
Simatic S5 (115U / 115F) |
| Slot Capacity |
9 Slots |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Relative Humidity |
95% (non-condensing) |
Installation Guidelines
- Ensure the rack is mounted in a clean, dry environment within an appropriately rated control cabinet.
- Always disconnect all power sources before inserting or removing any modules from the backplane.
- Use caution when handling the backplane connectors; keep the interface free of dust, debris, or moisture to prevent contact failure.
- Verify that all modules are properly seated and secured using the integrated screw retention blocks to mitigate the effects of mechanical vibration.
- Ensure adequate ventilation around the rack to maintain operating temperatures within the specified 0-60 deg C range.
FAQ
Is this rack compatible with both S5-115U and S5-115F systems? Yes, the 6ES5701-1LA12 is designed to support both standard S5-115U and safety-related S5-115F configurations.
Does this rack include power supply modules? No, this is the physical and electrical expansion rack. Power supply units and I/O modules must be ordered separately.
