Description

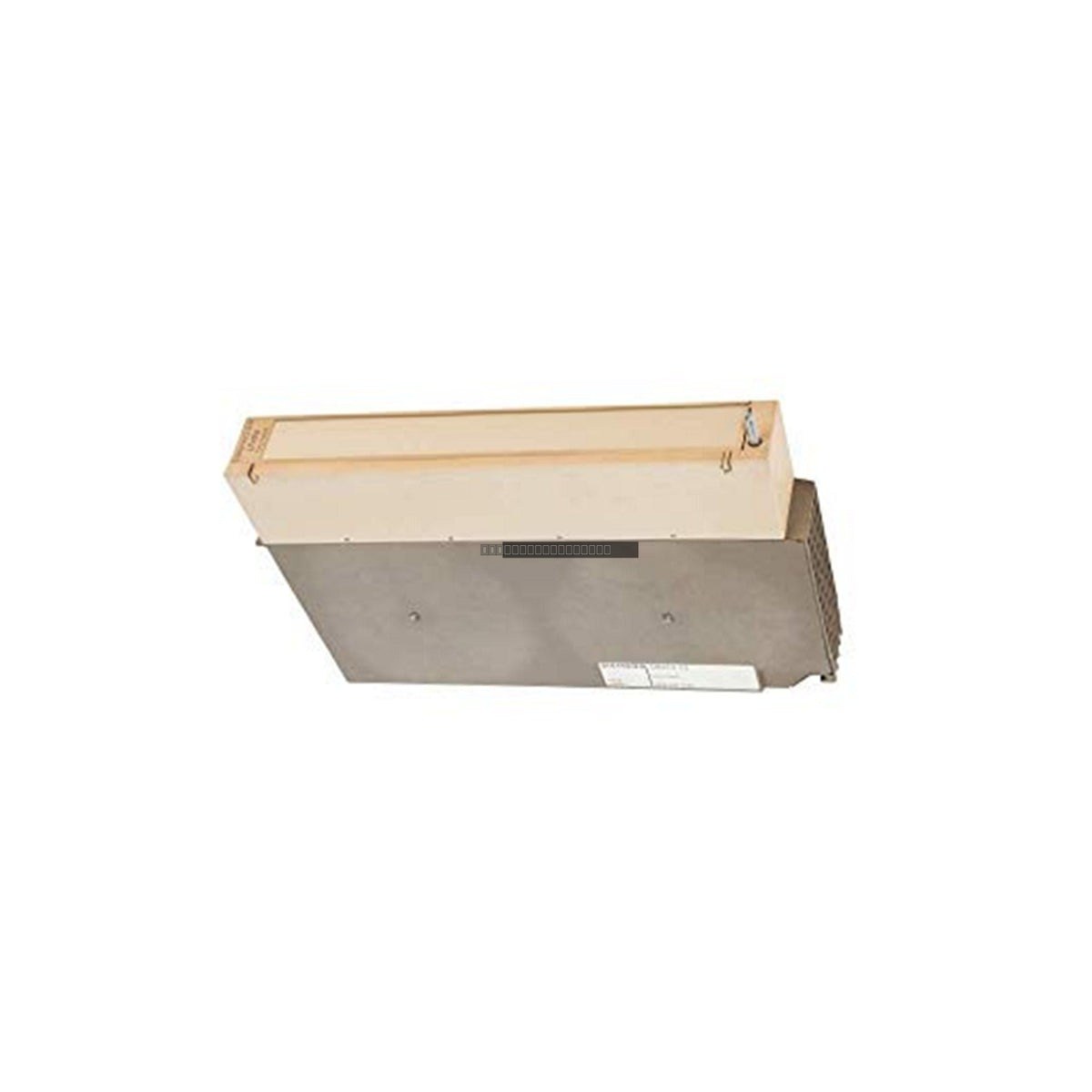

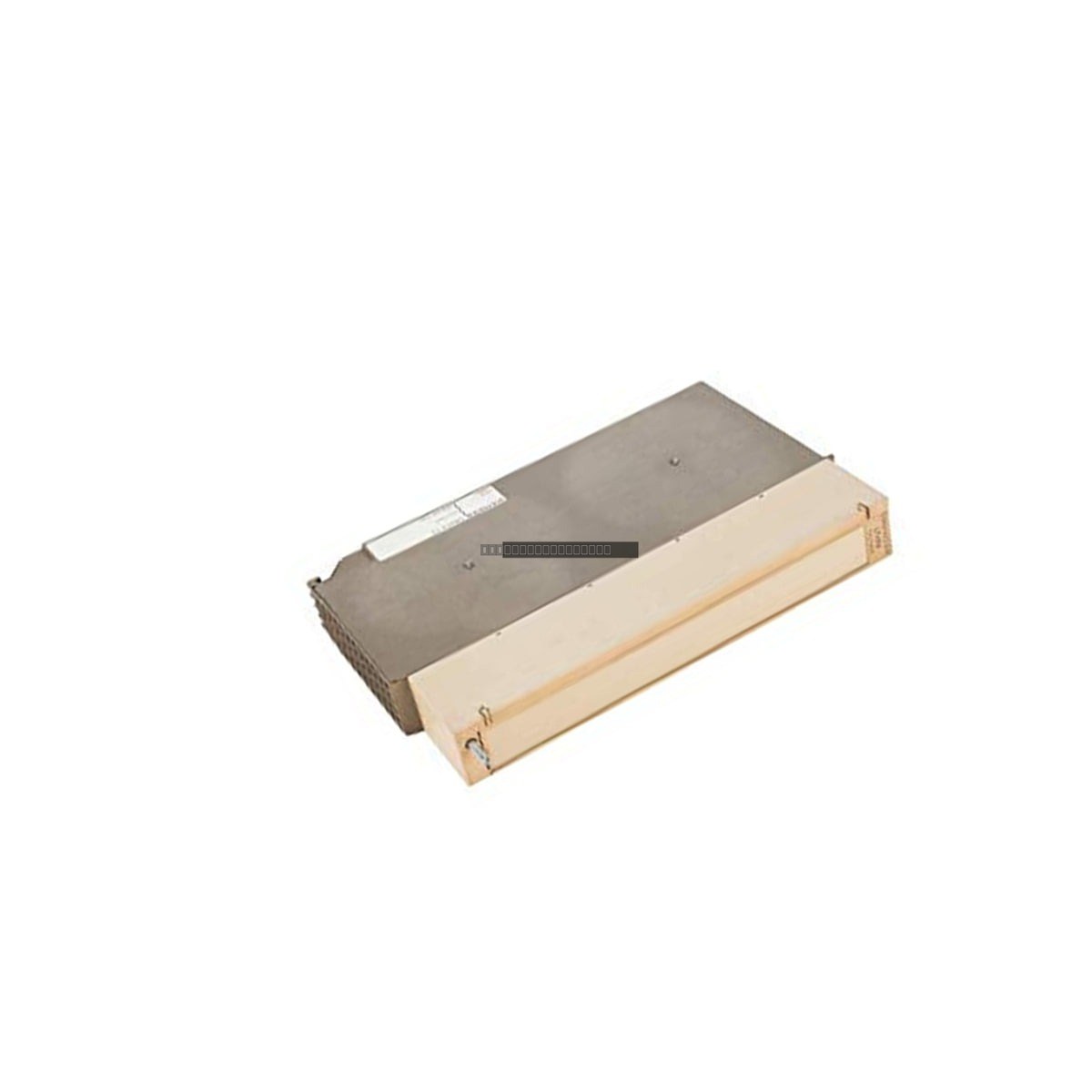

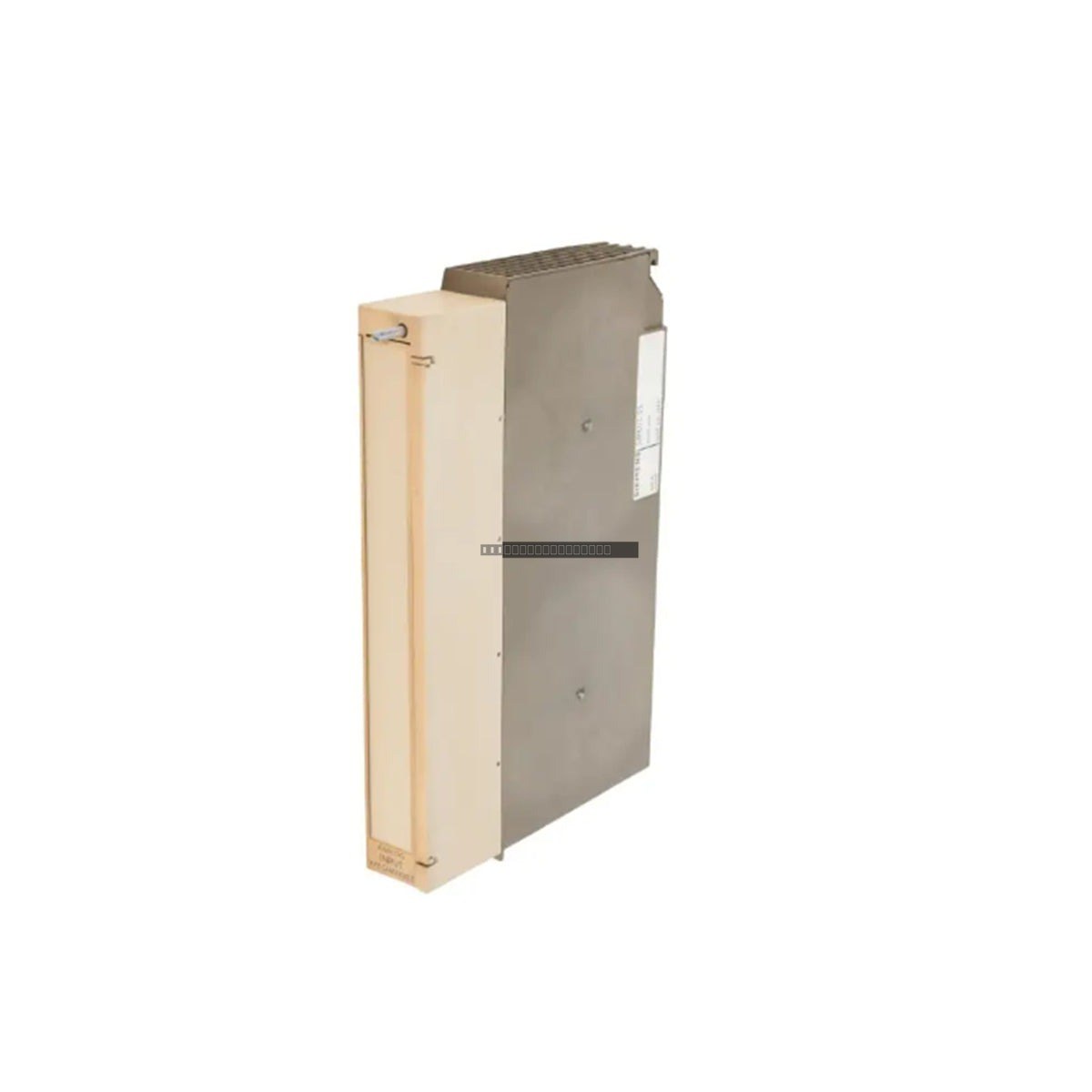

The Siemens 6ES5 465-7LA11 is a specialized analog input module engineered for the SIMATIC S5-115U PLC platform. This unit provides 16 non-floating input channels, allowing for the centralized collection of sensor data in demanding industrial environments. It is specifically designed to interface with field instrumentation, feeding analog signals into the S5 controller to maintain precise process loop control and operational consistency in heavy-duty applications.
Features
- 16-channel analog input capacity for high-density signal monitoring.
- Non-floating architecture requiring a common reference potential.
- Requires external measuring range sub-modules for signal scaling and adaptation.
- Optimized for integration with the Siemens S5-115U backplane bus.
- Robust design suited for continuous operation in harsh manufacturing conditions.
Applications
This module is widely utilized in process automation sectors, including thermal power generation, petroleum refining, and large-scale mining operations. It is intended for systems requiring reliable, high-density analog signal acquisition for monitoring variables such as pressure, temperature, or flow within a standard S5-115U rack configuration.
Technical Specifications
| Model |
6ES5 465-7LA11 |
| Series |
SIMATIC S5-115U |
| Channel Count |
16 |
| Isolation |
Non-floating (Common Reference) |
| Power Consumption |
3.8 W |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the S5-115U rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the appropriate measuring range sub-modules are correctly seated before deployment to ensure accurate signal scaling.
- Maintain proper grounding of the S5 backplane to minimize common-mode noise interference on the non-floating inputs.
- Route field wiring away from high-voltage power lines to maintain signal integrity.
- Ensure adequate ventilation within the cabinet to stay within the 0 to 60 deg C operating range.
FAQ
Does this module include the required measuring range sub-modules?
No, the 6ES5 465-7LA11 requires separate measuring range sub-modules to function. These must be selected based on your specific voltage or current signal requirements.
Is this module isolated?
No, this is a non-floating module, meaning all 16 channels share a common reference potential.
