Description

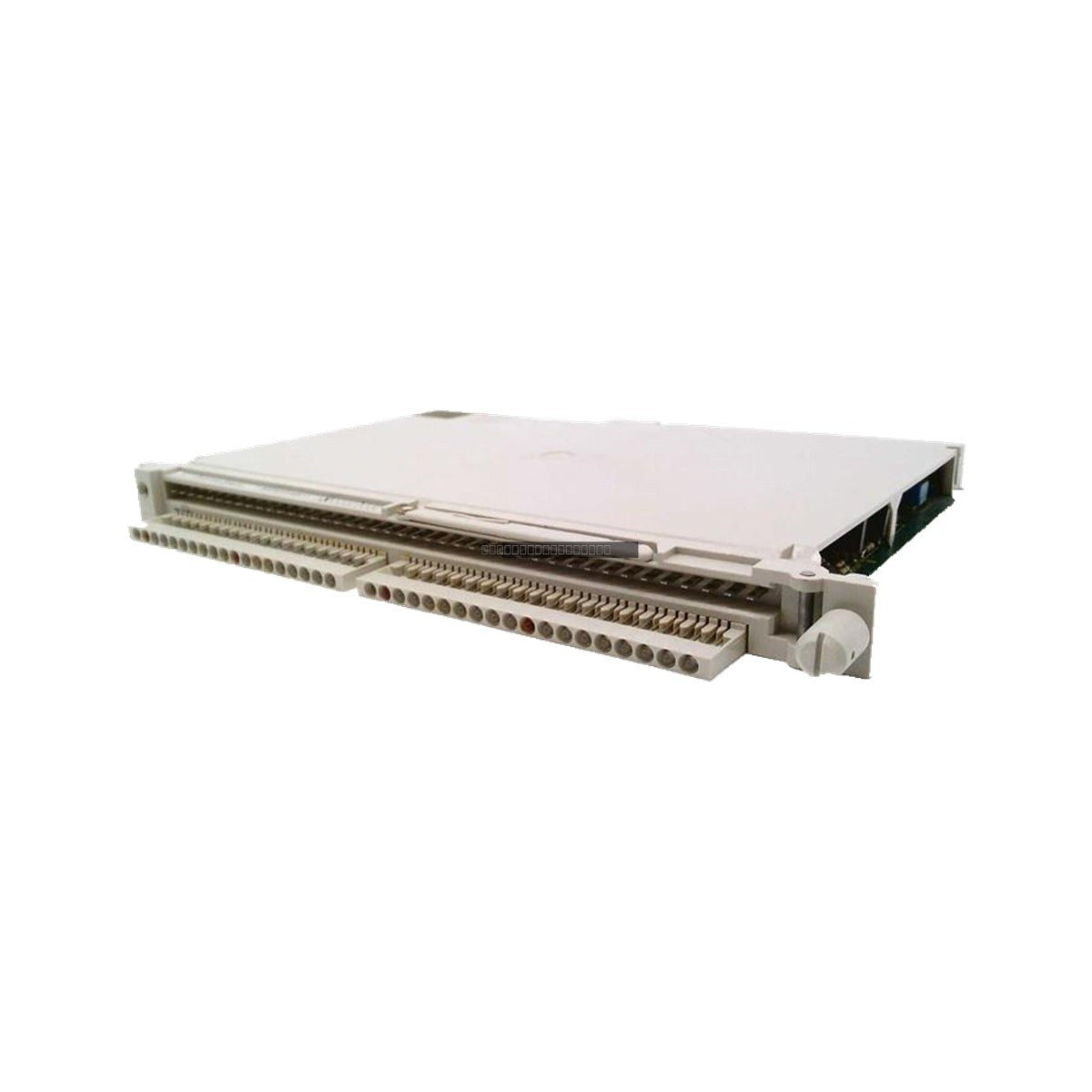

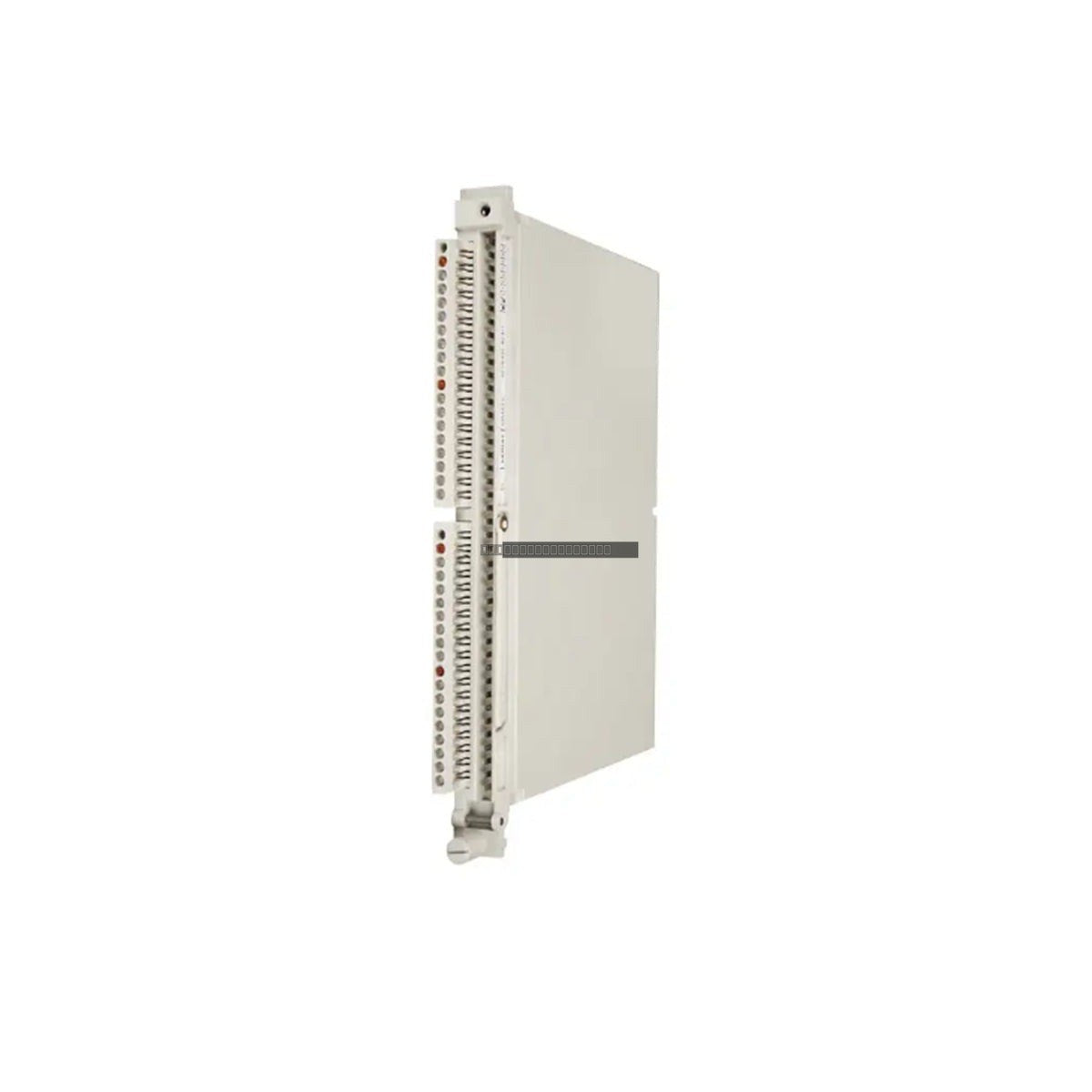

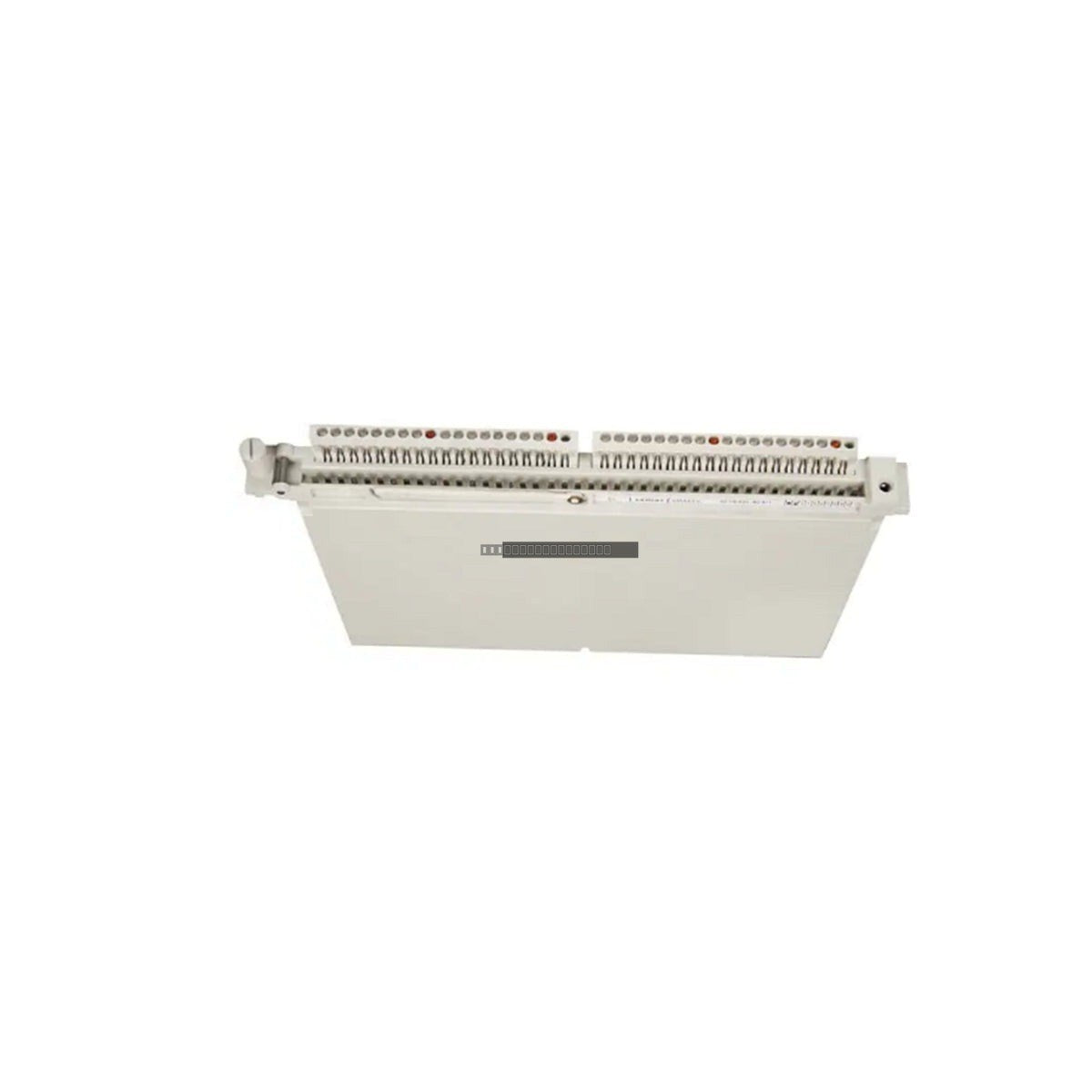

The Siemens 6ES5451-4UA11 is a high-density digital output module designed for use within the Simatic S5-135 and S5-155 PLC architectures. This module serves as a critical interface between the central processing unit and external field actuators, providing reliable discrete control for complex industrial automation tasks. It is optimized for applications requiring high-throughput switching, such as automotive manufacturing, petrochemical processing, and continuous metal casting operations.
Features
- 32 independent output channels for high-density discrete control.
- Solid-state switching architecture utilizing power transistors for long-term reliability and high-speed response.
- Optocoupler isolation on every channel to protect backplane logic from inductive spikes and electrical noise.
- Integrated reverse polarity protection and freewheeling diodes to manage inductive energy during switching.
- Onboard diagnostic capabilities allowing the host CPU to monitor driver state and bus health.
- Front-facing terminal connector block for organized field wiring and maintenance.
Applications
This module is engineered for demanding industrial environments where precise synchronization of actuators is required. Typical applications include driving solenoids, contactors, relays, and optical indicator banks in automated production lines and process control systems.
Technical Specifications
| Model |
6ES5451-4UA11 |
| Product Family |
Simatic S5-135/155 |
| Number of Outputs |
32 Channels |
| Rated Load Voltage |
24 VDC |
| Galvanic Isolation |
Yes (via optocouplers) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
Installation Guidelines
- Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
- Verify that the module is fully seated in the rack slot and the front-facing terminal connector is securely locked.
- Use shielded cabling for field connections to minimize EMI/RFI interference in high-noise industrial environments.
- Maintain proper ventilation within the control cabinet to ensure operating temperatures remain within the 0 to 60 deg C range.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
FAQ
What is the primary function of the 6ES5451-4UA11?
This module acts as a digital output interface for the Siemens Simatic S5-135/155 PLC, allowing the controller to drive 32 discrete 24 VDC loads such as solenoids and contactors.
Does this module require external power for the outputs?
Yes, the module is designed for 24 VDC nominal load voltage. Please refer to the specific Simatic S5 system manual for power supply wiring requirements to the output terminals.
How is the module protected against electrical noise?
The module features optocoupler isolation for each channel, which provides galvanic separation between the field wiring and the PLC backplane, effectively blocking inductive voltage spikes.
