Description

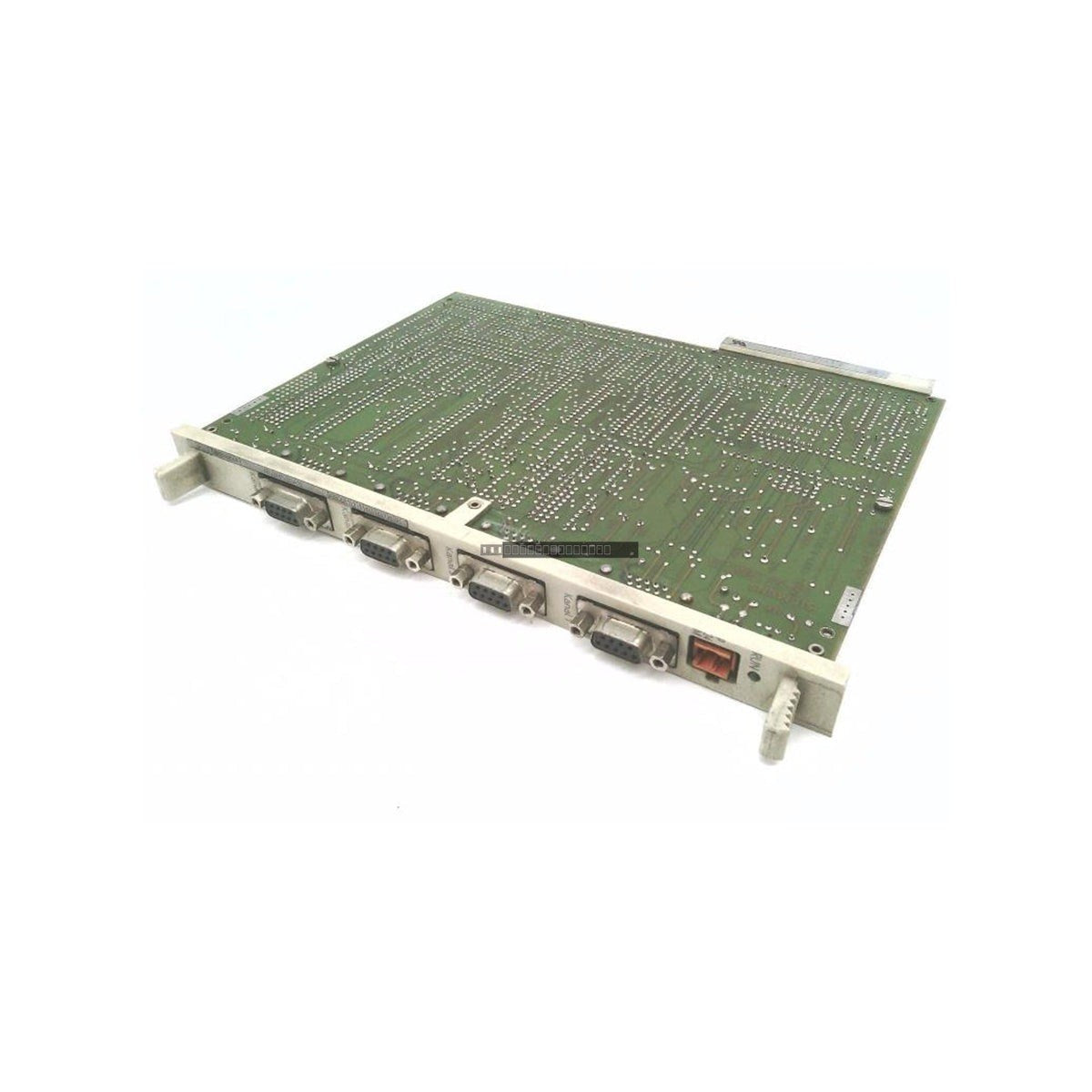

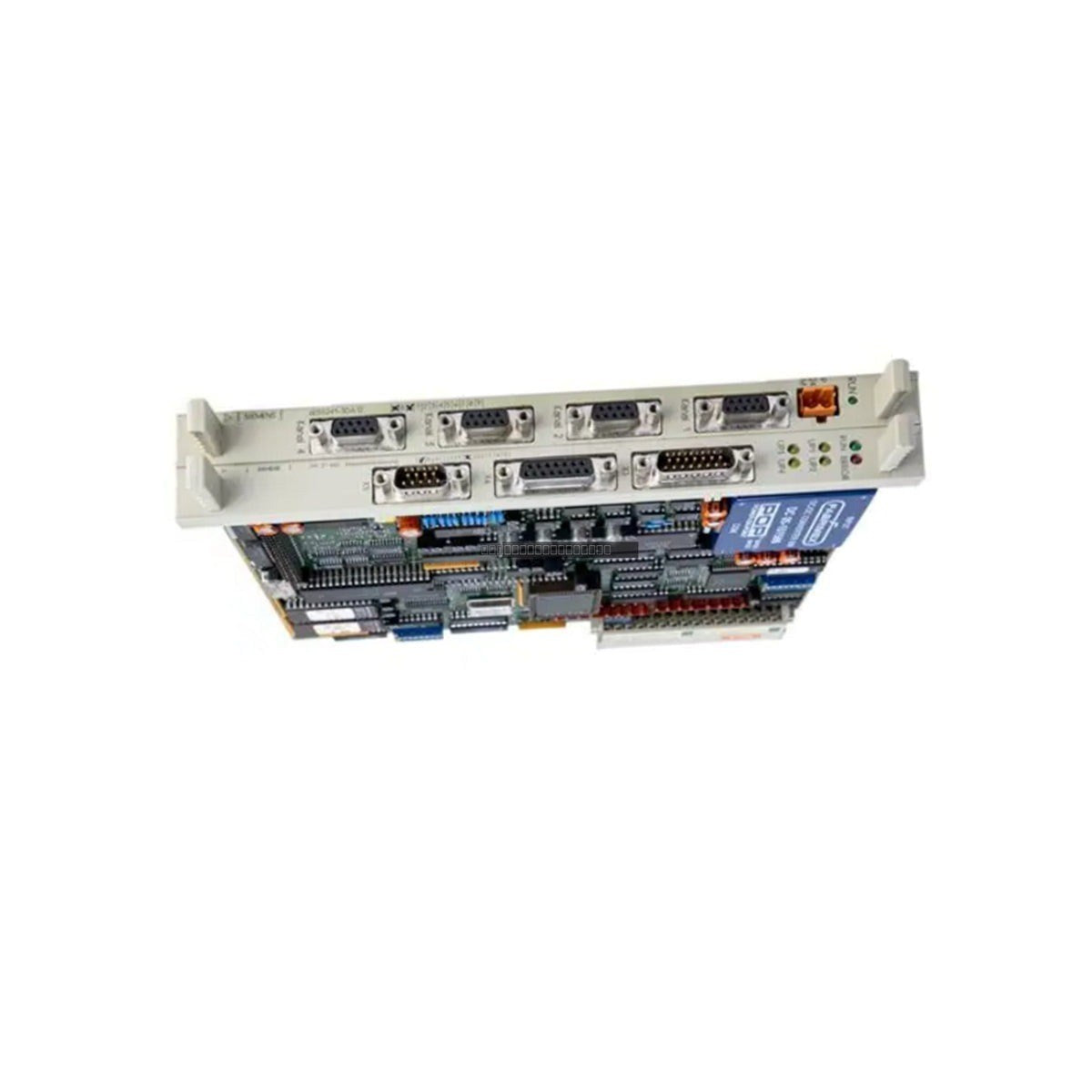

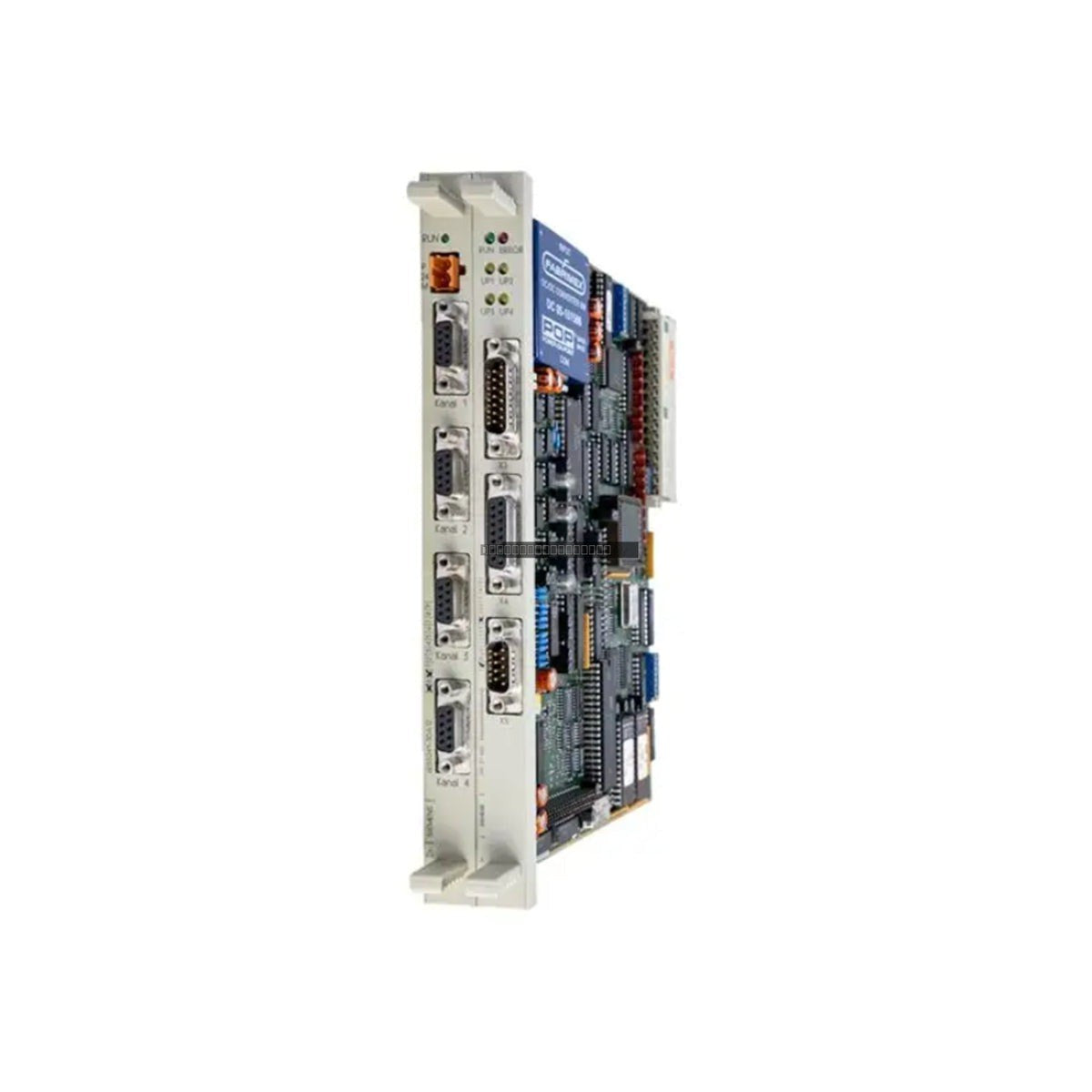

The Siemens 6ES5241-3DA12 is an ultrasonic position decoder module designed for the legacy SIMATIC S5 automation platform. This IP 241 interface module serves as a critical component for processing signals from ultrasonic transducers, converting acoustic feedback into reliable digital positioning data. It is widely utilized in industrial applications where precise distance measurement is required, such as automated warehousing, material handling systems, and heavy manufacturing environments.
Features
- Designed for seamless integration into the SIMATIC S5 rack-based backplane architecture.
- Converts high-frequency ultrasonic signals into accurate position metrics for the central processor.
- Optimized single-slot design to maximize available space within the S5 rack.
- Integrated diagnostic registers for real-time monitoring of sensor signal integrity.
- Designed to operate effectively in demanding industrial environments, including steel and automotive sectors.
Applications
This module is primarily used in legacy S5 control systems to support:
- Automated storage and retrieval systems (AS/RS).
- Distance monitoring and object positioning in heavy manufacturing.
- Material handling telemetry synchronization.
- Industrial stamping and processing lines requiring acoustic-based feedback.
Technical Specifications
| Model |
6ES5241-3DA12 |
| Brand |
Siemens |
| Series |
SIMATIC S5 IP 241 |
| Module Type |
Ultrasonic Position Decoder |
| Power Consumption |
3.5 W |
| Operating Temperature |
0 to 55 deg C |
Installation Guidelines
- Ensure the S5 rack power supply is fully de-energized before inserting or removing the module to prevent electrical damage.
- Verify that the module is firmly seated into the backplane connector to ensure stable communication with the CPU.
- Use shielded cabling for ultrasonic transducer connections to minimize interference from high-EMI industrial sources.
- Ensure proper ventilation within the control cabinet to maintain operating temperatures within the specified 0 to 55 deg C range.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
FAQ
Is the 6ES5241-3DA12 compatible with modern S7 systems? No, this module is specifically engineered for the SIMATIC S5 architecture and is not directly compatible with S7 backplanes.
What is the primary function of this module? It acts as a signal processor that interprets ultrasonic transducer inputs to provide accurate mechanical position data to the S5 controller.
