Description

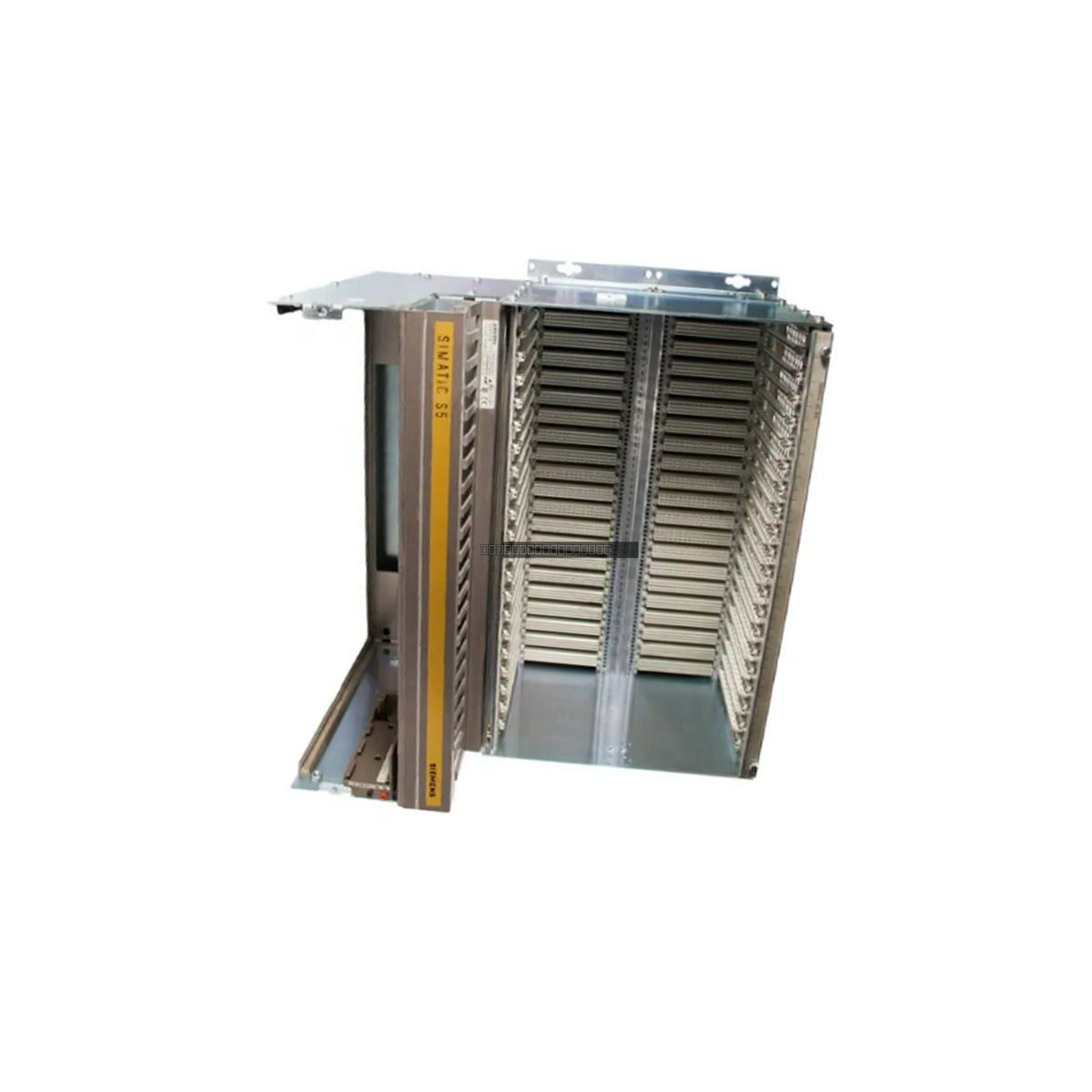

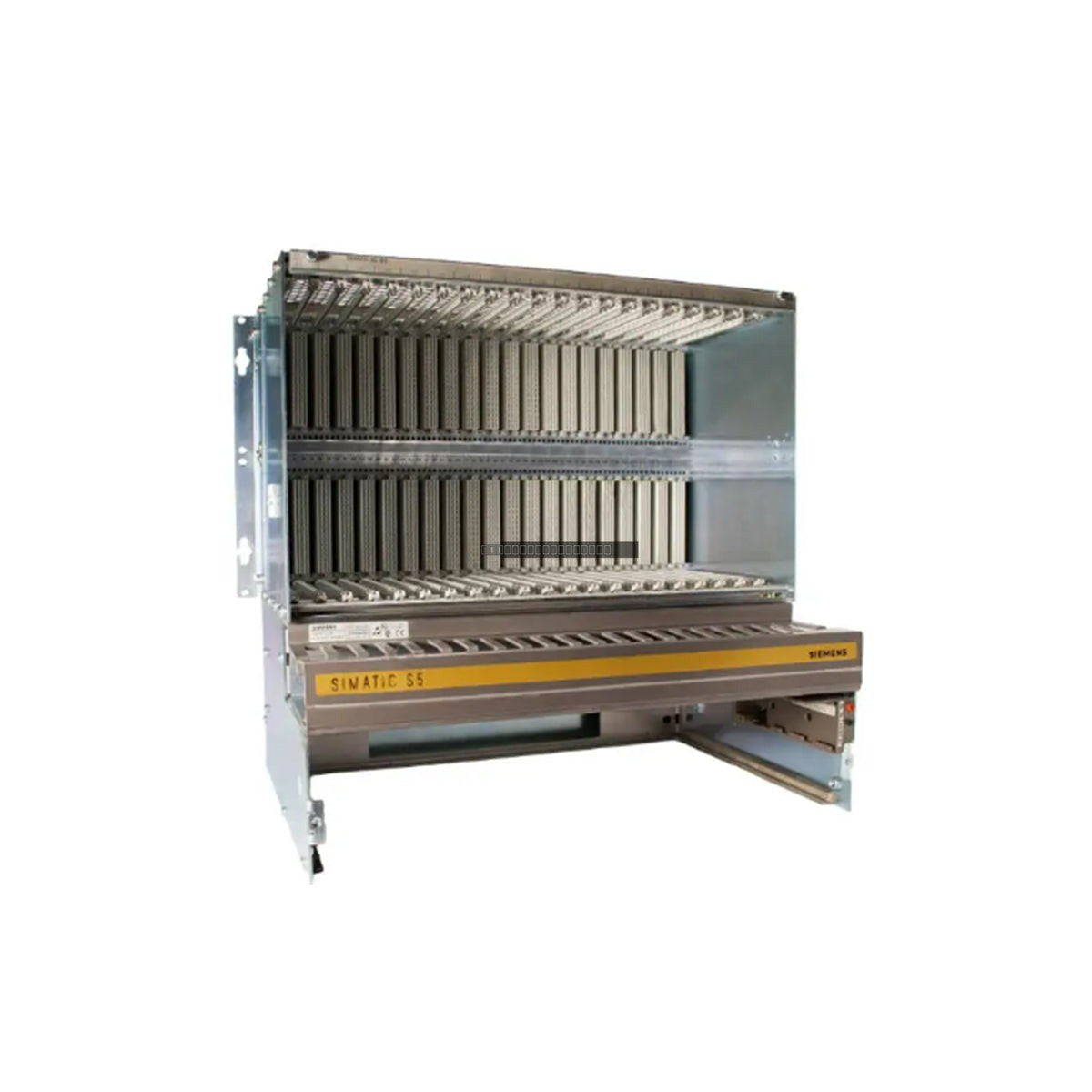

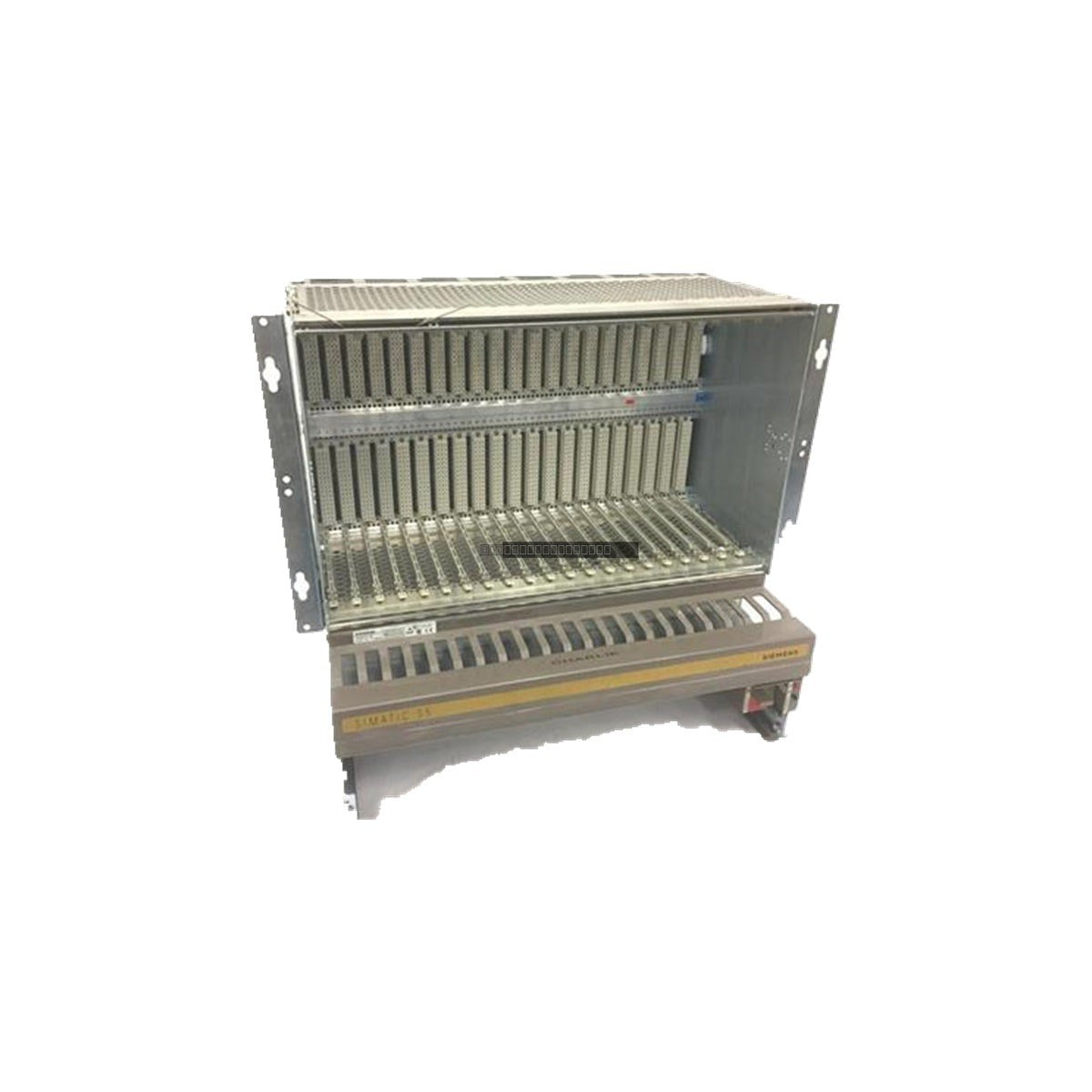

The Siemens 6ES5185-3UA13 (EU185) is a high-capacity 21-slot expansion subrack designed for the Simatic S5-135U and S5-155U programmable logic controller systems. This robust chassis provides the necessary physical mounting and backplane communication infrastructure to extend I/O capabilities in large-scale industrial automation environments. Featuring an integrated 110/230 VAC power supply, the unit delivers stable, regulated power directly to the backplane, supporting high-density configurations of digital, analog, and communication modules without overloading the primary controller rack.
Features
- 21-slot capacity for extensive I/O and communication module integration.
- Integrated multi-voltage power supply (110/230 VAC selectable).
- Designed for seamless integration with Simatic S5-135U and S5-155U systems.
- Heavy-duty aluminum alloy construction for structural integrity and EMI shielding.
- Parallel bus architecture ensuring deterministic signal timing and high-speed data transfer.
Applications
This expansion subrack is engineered for critical industrial infrastructures requiring high-density I/O, including thermal power plants, oil and gas refining units, and heavy manufacturing control systems. It is ideal for system expansion or as a direct replacement for legacy S5 rack hardware to maintain operational continuity.
Technical Specifications
| Model |
6ES5185-3UA13 |
| System Family |
Simatic S5-135U / S5-155U |
| Slot Count |
21 |
| Input Voltage |
110 VAC / 230 VAC |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Relative Humidity |
95 percent (non-condensing) |
Installation Guidelines
- Ensure the subrack is mounted in a clean, dry, and vibration-free environment within an industrial cabinet.
- Verify that the power supply input voltage selector is correctly set to match the local supply (110 VAC or 230 VAC) before applying power.
- Always power down the system before inserting or removing modules to prevent electrical damage to the backplane connectors.
- Ensure proper grounding of the chassis to the cabinet frame to maintain EMI protection and safety.
- Maintain adequate clearance around the unit to allow for natural convection cooling.
FAQ
Is this subrack compatible with all S5 modules?
The 6ES5185-3UA13 is designed for standard Simatic S5-135U/155U modules. Please verify the physical form factor and electrical requirements of your specific I/O modules against the S5 system documentation.
Does this unit require an external power supply?
No, this unit features an integrated power supply that accepts 110/230 VAC line power and converts it to the required internal DC bus voltages.
