Description

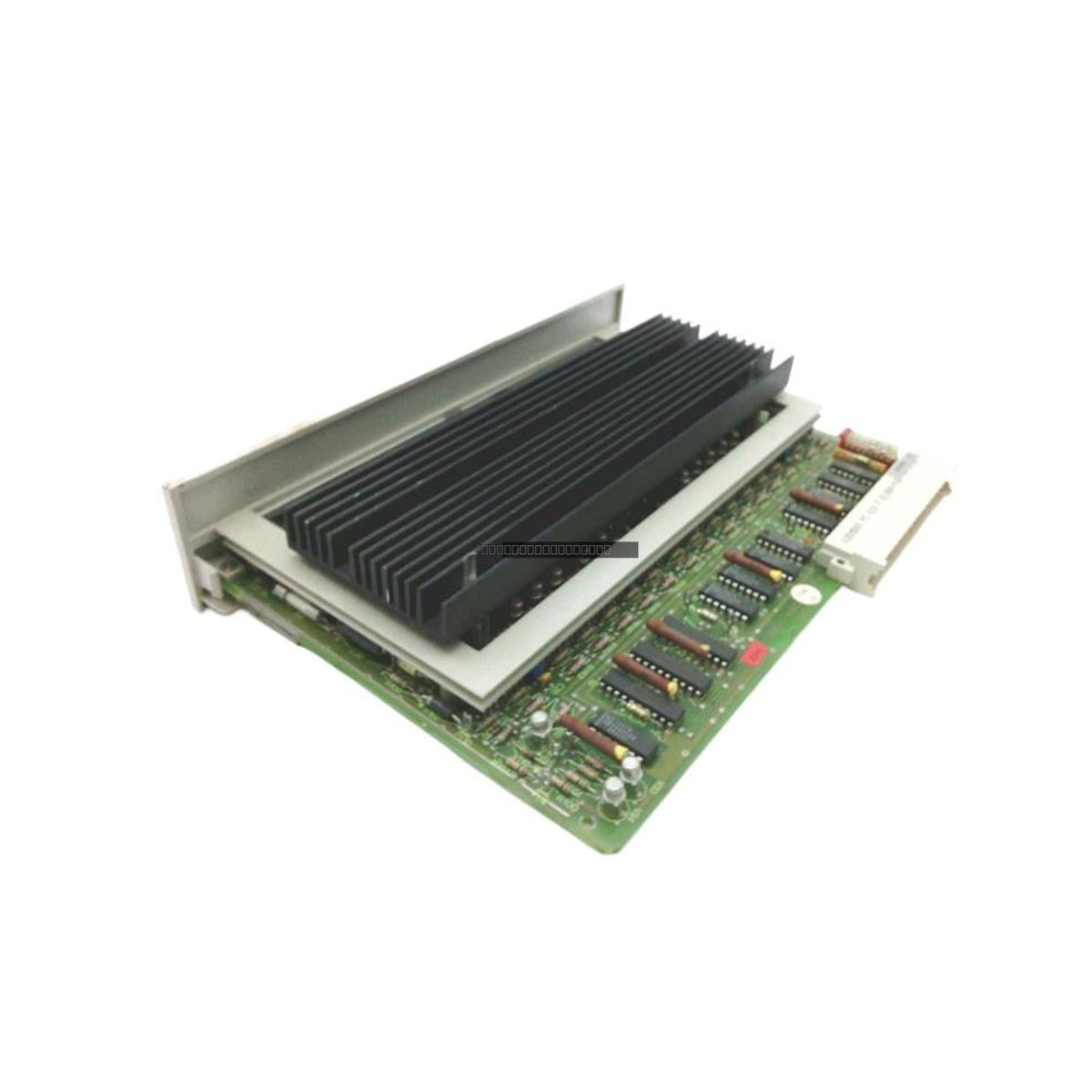

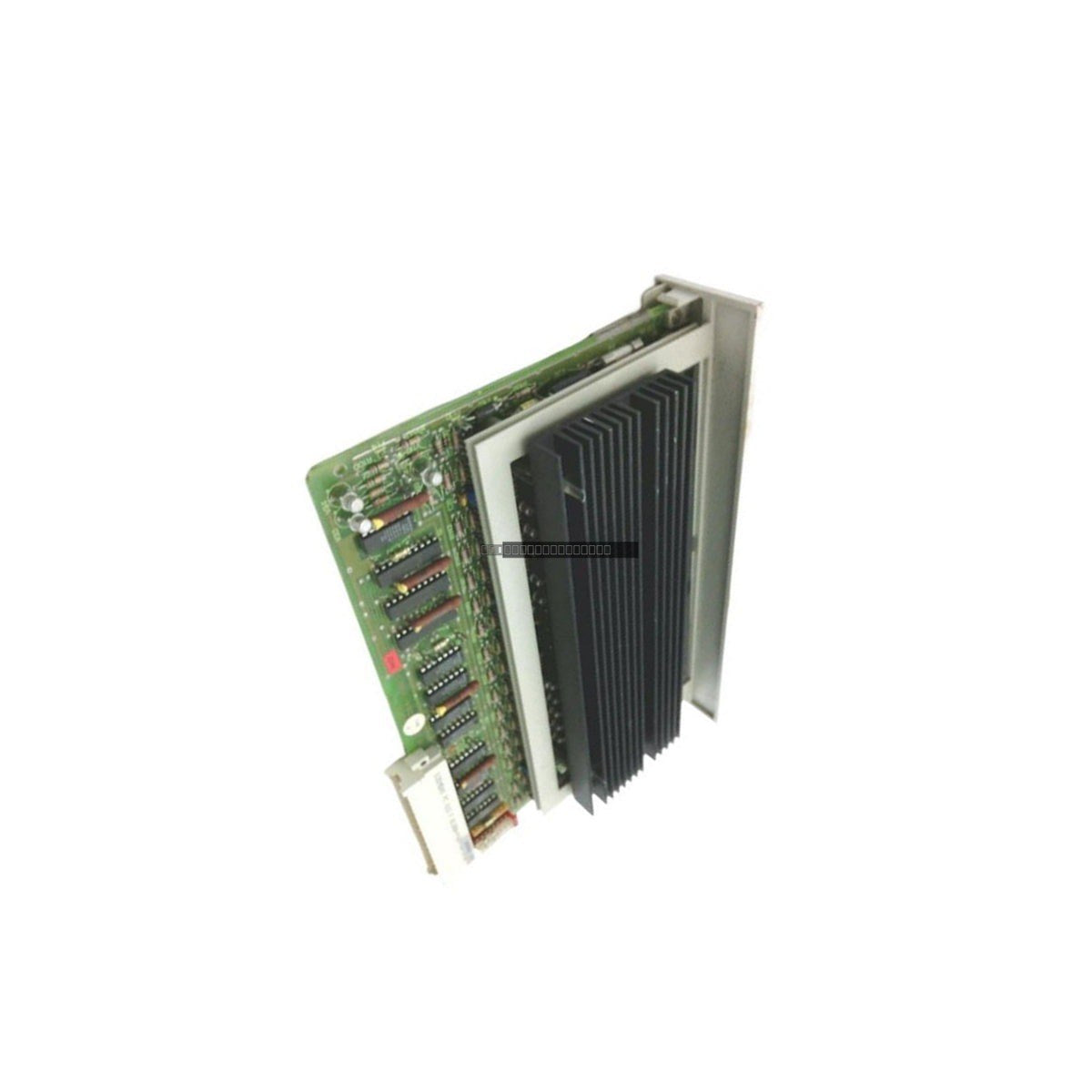

The Siemens Simatic S5 6ES5444-5AA11 is a ruggedized digital output interface module engineered for high-capacity Simatic S5-130 and S5-150 programmable logic controller environments. This module provides 16 discrete, isolated semiconductor output channels capable of switching substantial field loads directly from internal logic commands. Designed for heavy industrial automation, including automotive assembly, mining, and petrochemical refining, it ensures reliable signal execution and diagnostic efficiency.
Features
- 16 discrete, isolated semiconductor output channels.
- High-capacity switching: Supports up to 2 A continuous current per channel at 24 VDC.
- Galvanic isolation: Optocoupled barrier between the logic backplane and field-side connections to mitigate electrical noise.
- Integrated protection: Built-in electronic short-circuit and thermal overload protection for each channel.

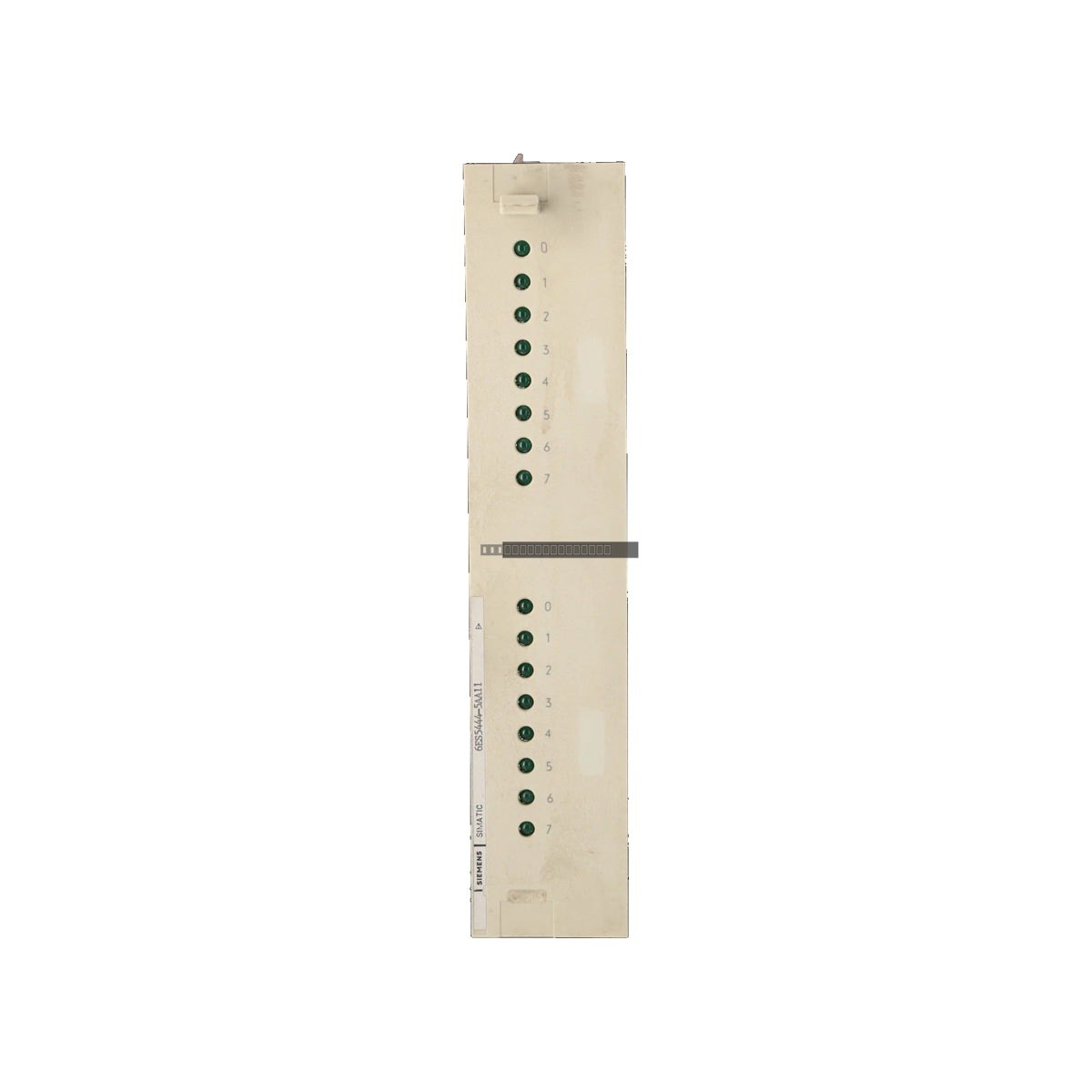

- Diagnostic feedback: Front-panel LED array for real-time channel state verification and rapid fault tracing.
- Rugged construction: Designed to withstand elevated vibration profiles and harsh industrial electromagnetic environments.
Applications
This module is suitable for driving high-current field actuators such as large solenoid valves, contactors, and motor starters directly, often eliminating the need for interposing relays. It is a standard component for S5-130/150 rack-based control systems in demanding industrial environments.
Technical Specifications
| Model |
6ES5444-5AA11 |
| System Compatibility |
Siemens Simatic S5-130/150 |
| Output Channels |
16 discrete |
| Voltage Rating |
24 VDC nominal |
| Current Rating |
2 A maximum per channel |
| Protection |
Electronic short-circuit and thermal overload |
| Power Consumption |
15 W typical internal bus draw |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
- Verify that the module is fully seated in the backplane slot and secured with the designated locking mechanisms.
- Use shielded cabling for field connections to maintain electromagnetic compatibility (EMC) in high-noise environments.
- Ensure adequate ventilation within the control cabinet to maintain operating temperatures below 60 deg C.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal circuit components.
- Check field wiring polarity against the module terminal map before applying power to prevent output stage damage.
FAQ
Does this module require interposing relays for solenoid valves?
No, the 6ES5444-5AA11 is designed to handle up to 2 A per channel, allowing for direct connection to most standard inductive loads like solenoid valves and contactors without external relays.
What is the primary function of the front-panel LEDs?
The LEDs provide visual confirmation of the individual channel states, allowing maintenance personnel to quickly identify active outputs and troubleshoot wiring or load faults directly at the rack.
