Description

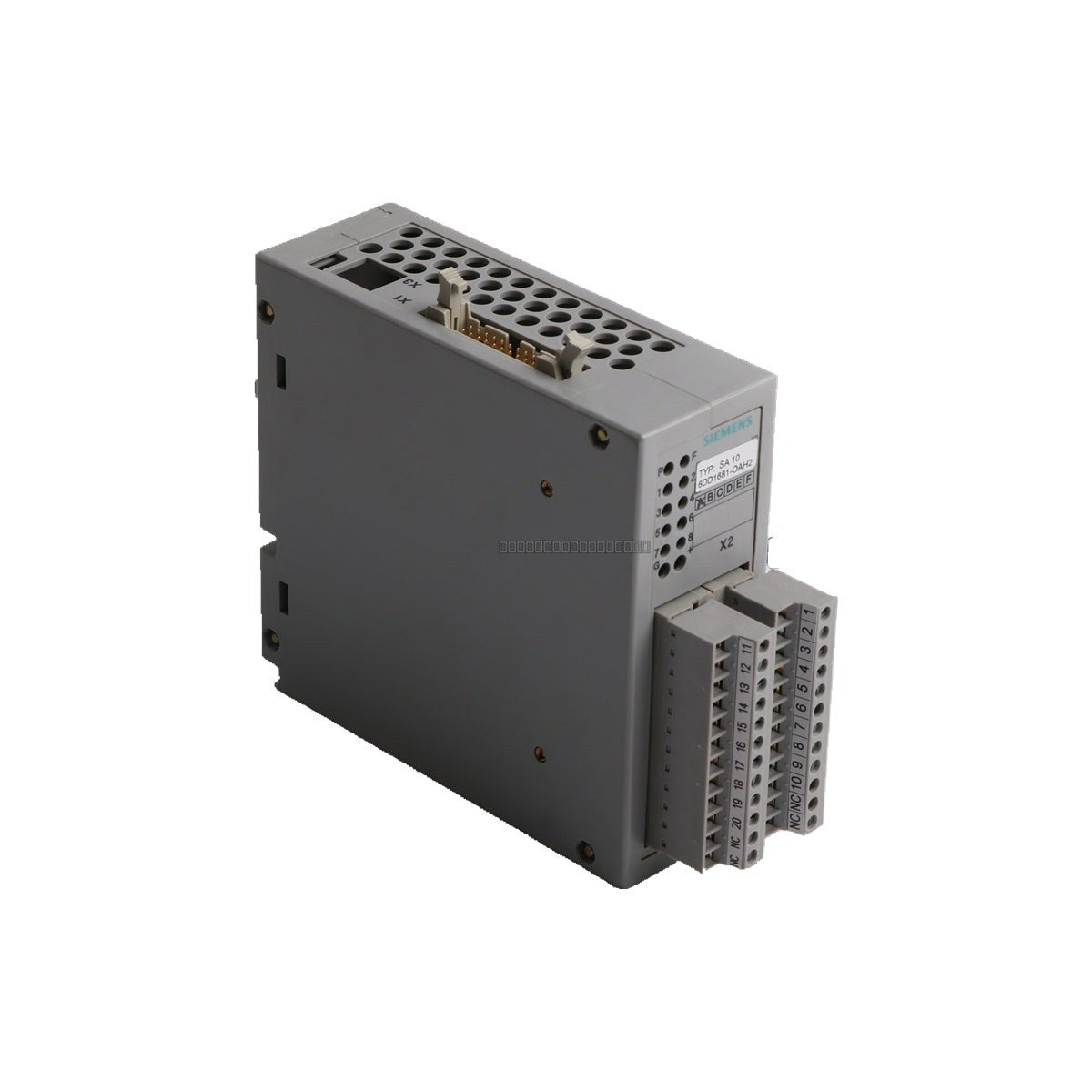

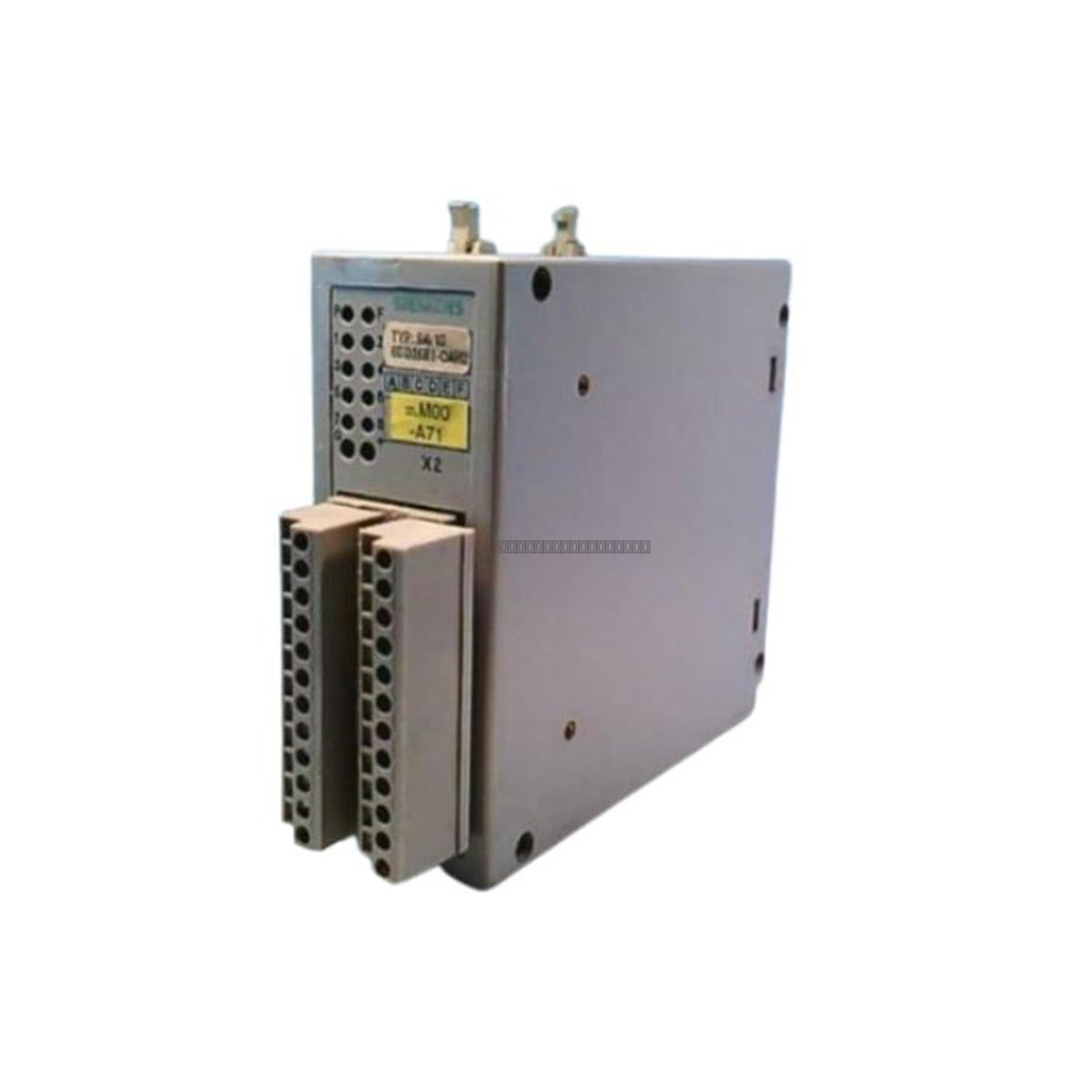

The Siemens 6DD1681-0AH2, also identified as the SA10 interface module, is a specialized component designed for use within the Siemens SYMADIN industrial automation ecosystem. This module facilitates precise signal interfacing, supporting both positive and negative voltage ranges from 0 to 10V. It serves as a critical link for signal conditioning and integration in legacy control architectures requiring high-reliability analog signal processing.
Features
- Designed for integration with SYMADIN control systems.
- Supports bipolar analog signal processing (0-10V range).
- Compact form factor for efficient rack space utilization.
- Engineered for industrial environments requiring stable signal conversion.
Applications
This module is typically utilized in industrial automation systems where SYMADIN-based controllers require analog interface capabilities. It is commonly found in legacy manufacturing lines, motion control setups, and process automation systems where precise voltage-based signal monitoring or control is mandatory.
Technical Specifications
| Product Model |
6DD1681-0AH2 |
| Spare Model |
SA10 |
| Manufacturer |
Siemens |
| Signal Range |
0-10V (Positive/Negative) |
| Weight |
0.26 kg |
Installation Guidelines
- Ensure the control rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the module is securely seated in the designated slot to ensure proper backplane communication.
- Use shielded cabling for all analog signal connections to minimize electromagnetic interference (EMI) and signal noise.
- Maintain proper ventilation within the control cabinet to prevent overheating during continuous operation.
- Handle with electrostatic discharge (ESD) precautions; use a grounded wrist strap when handling internal electronic components.
FAQ
What is the primary function of the 6DD1681-0AH2?
The 6DD1681-0AH2 is an interface module designed to handle 0-10V positive and negative analog signals within the Siemens SYMADIN system architecture.
Is this module compatible with modern S7 series PLCs?
This module is specifically designed for the SYMADIN system. It is generally not directly compatible with modern S7 series hardware without specific interface bridges or legacy system integration protocols.
