Description

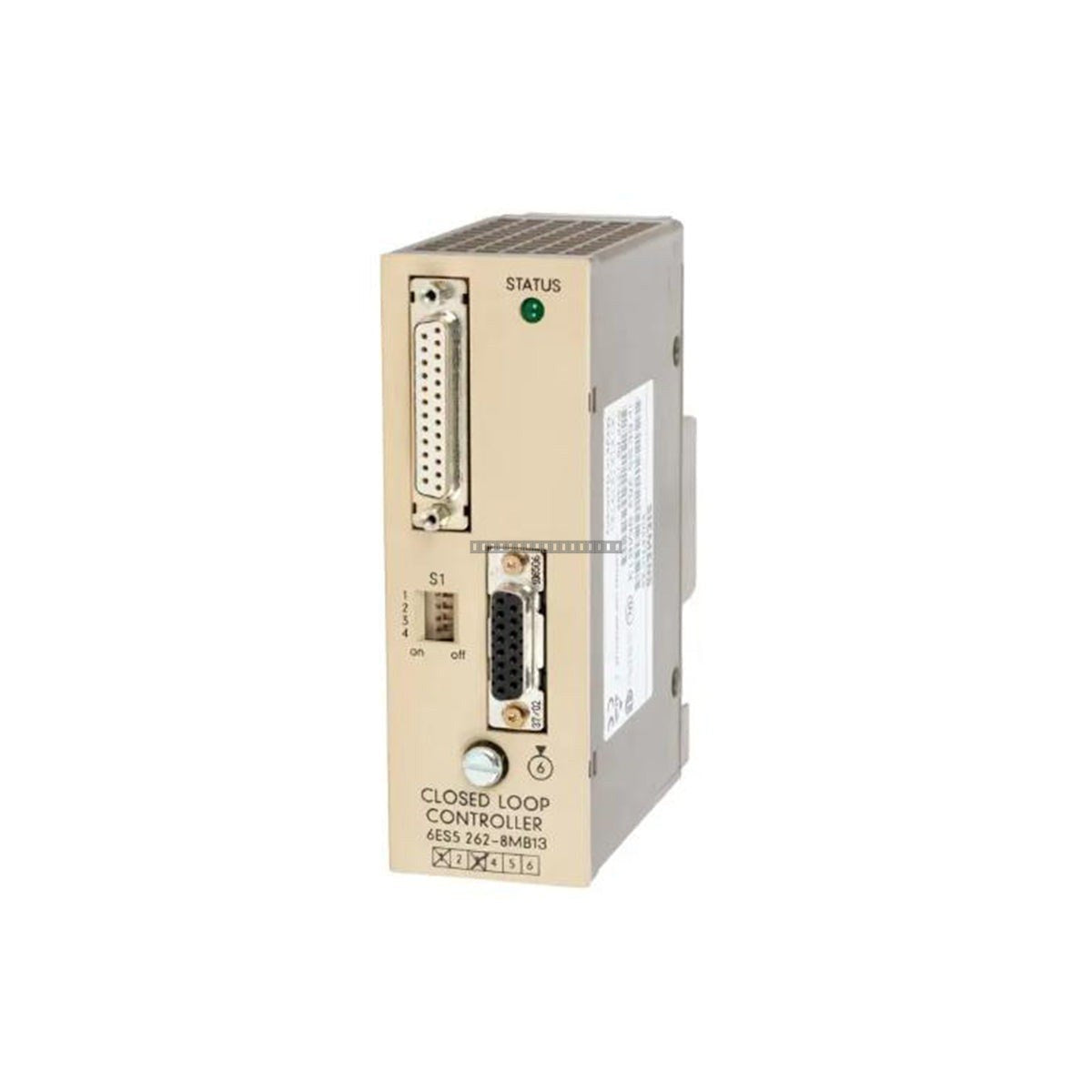

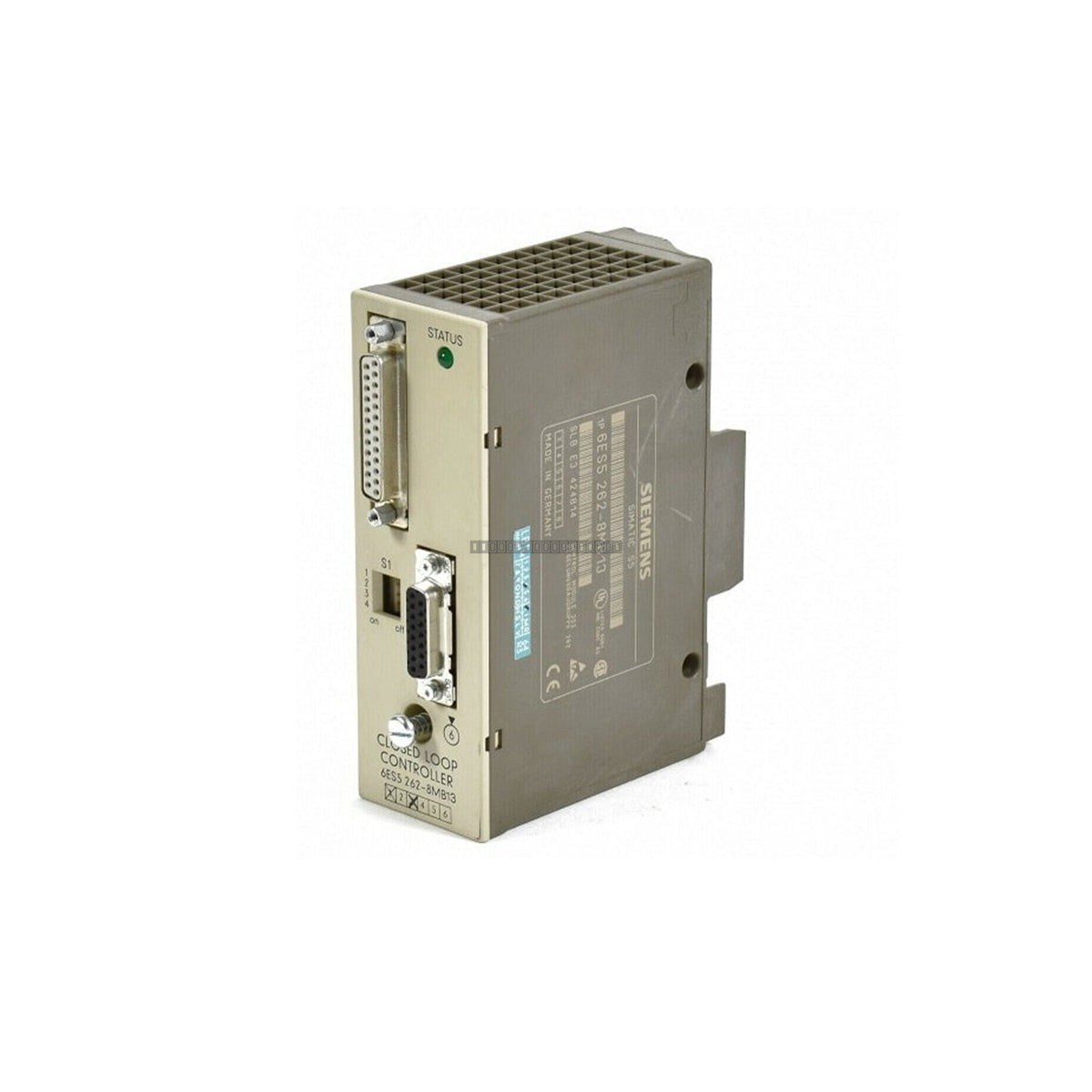

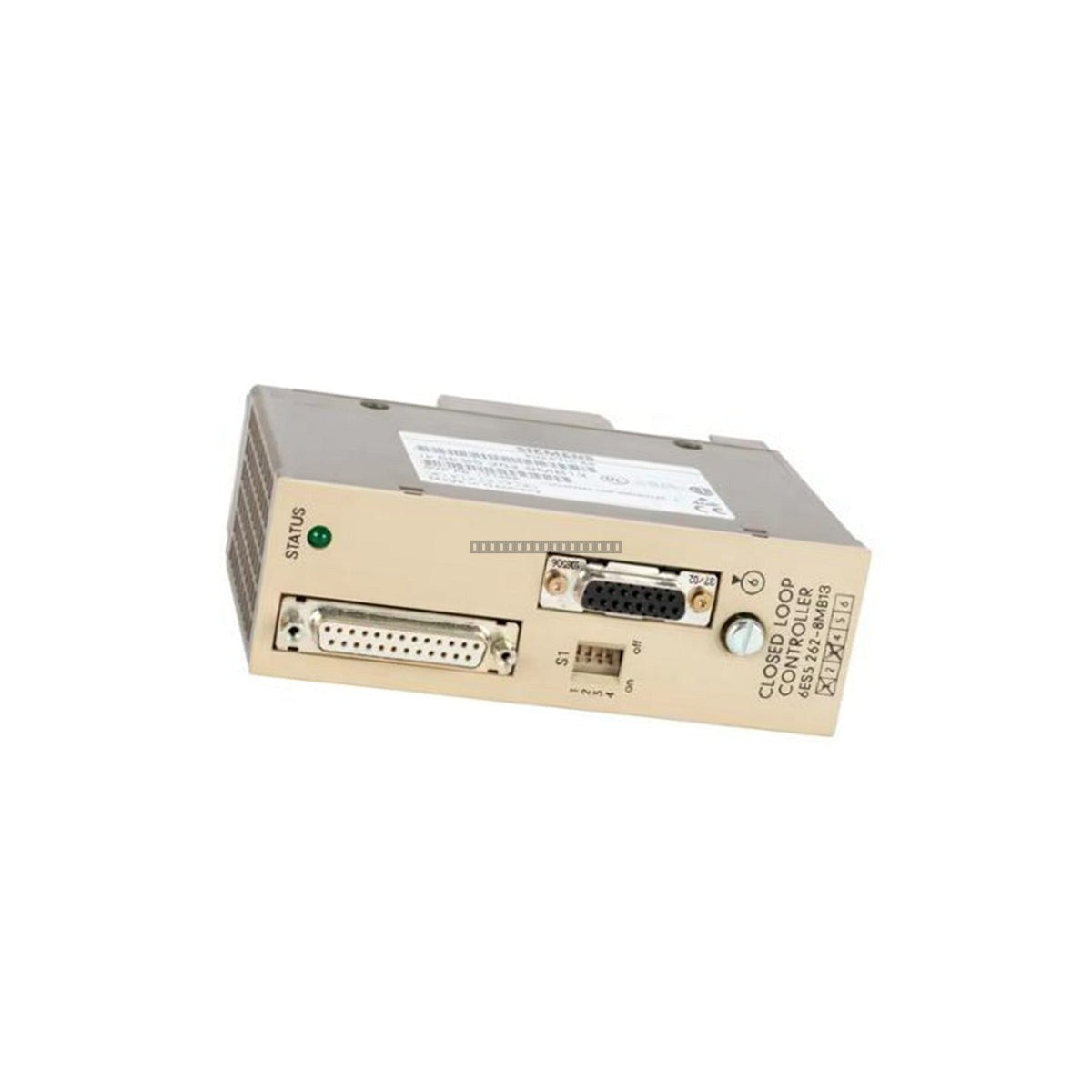

The Siemens 6ES5262-8MB13 is an intelligent IP 262 closed-loop control module designed for integration with the Simatic S5-090U, S5-095U, and S5-100U programmable logic controller series. This module is engineered to handle complex PID and loop control algorithms locally, effectively offloading these tasks from the main PLC CPU to optimize system scan times and enhance control precision. It serves as a robust solution for demanding process control applications, ensuring stable operation even during communication delays or CPU state changes.
Features
- Advanced S-loop control capabilities for independent process management.
- Four universal analog inputs supporting current, voltage, thermocouple (TC), and RTD sensors.
- Four 24 VDC digital inputs and eight binary outputs for flexible control element interfacing.
- 12-bit analog-to-digital conversion resolution for high-accuracy feedback.
- Independent cycle timer allowing local loop execution regardless of main CPU status.
Applications
The IP 262 module is widely deployed in industrial environments requiring precise process regulation, including thermal management systems, chemical dosing stations, and precision flow control loops. Its ability to maintain independent control makes it an essential component for critical process stability.
Technical Specifications
| Model |
6ES5 262-8MB13 |
| Brand |
Siemens Simatic S5 |
| Analog Inputs |
4 (Current, Voltage, TC, RTD) |
| Digital Inputs |
4 (24 VDC) |
| Binary Outputs |
8 |
| Resolution |
12-bit |
| Operating Temperature |
0 to 55 degC |
| Compatibility |
Simatic S5-090U, S5-095U, S5-100U |
Installation Guidelines
- Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
- Verify that the module is securely seated in the designated S5 backplane slot to ensure reliable bus communication.
- Use shielded cabling for all analog input signals to minimize electromagnetic interference (EMI) in industrial environments.
- Maintain proper ventilation within the control cabinet to ensure the ambient temperature remains within the 0 to 55 degC range.
- Handle the module using ESD-safe practices to protect internal circuitry from electrostatic discharge.
FAQ
What is the primary function of the IP 262 module?
The IP 262 acts as a dedicated co-processor for loop control, allowing the S5 PLC to manage PID loops locally without relying on the main CPU's cycle time for every calculation.
Does this module require external power?
The module is powered via the Simatic S5 backplane; however, the digital inputs and output elements may require external 24 VDC power supplies depending on the specific field wiring configuration.
