Description

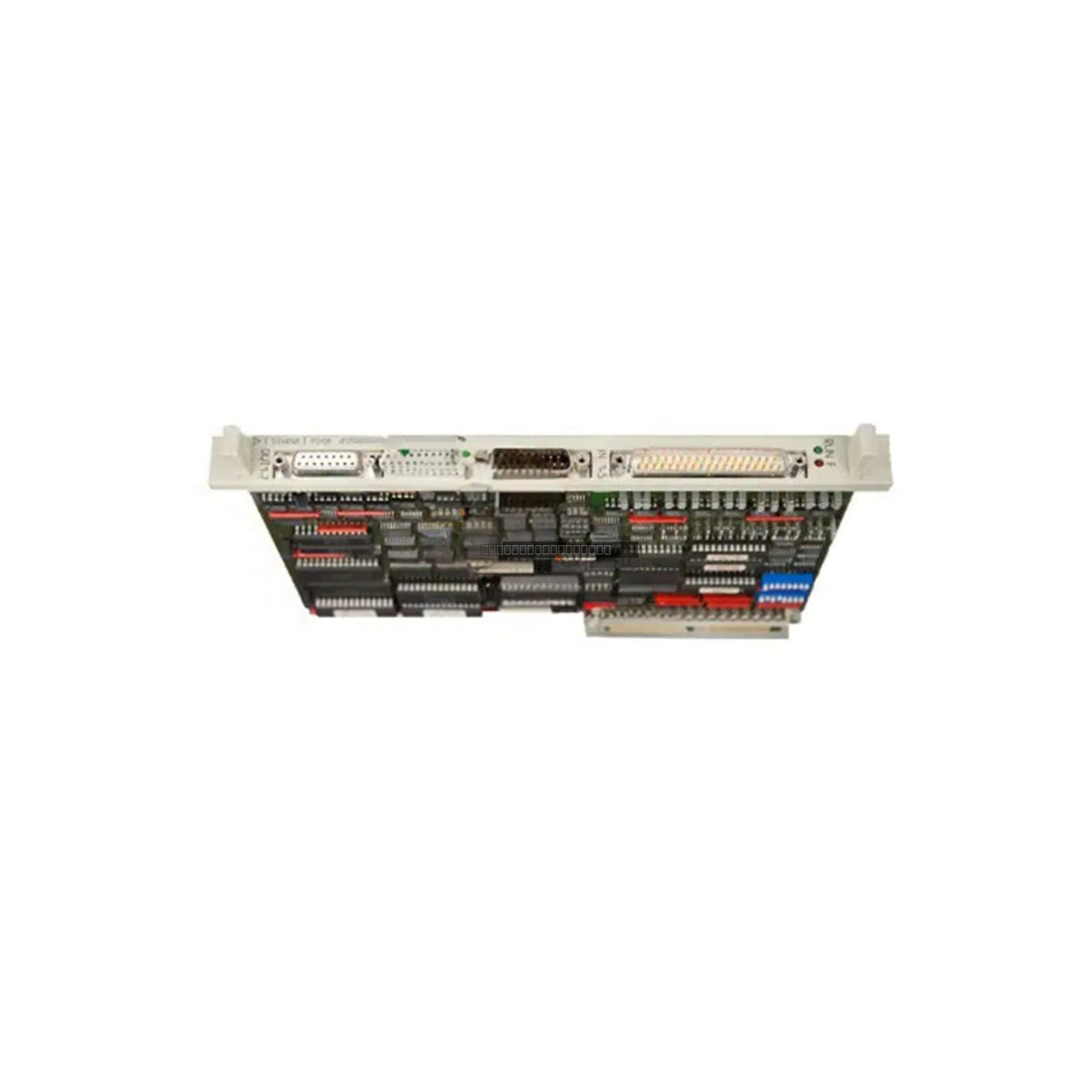

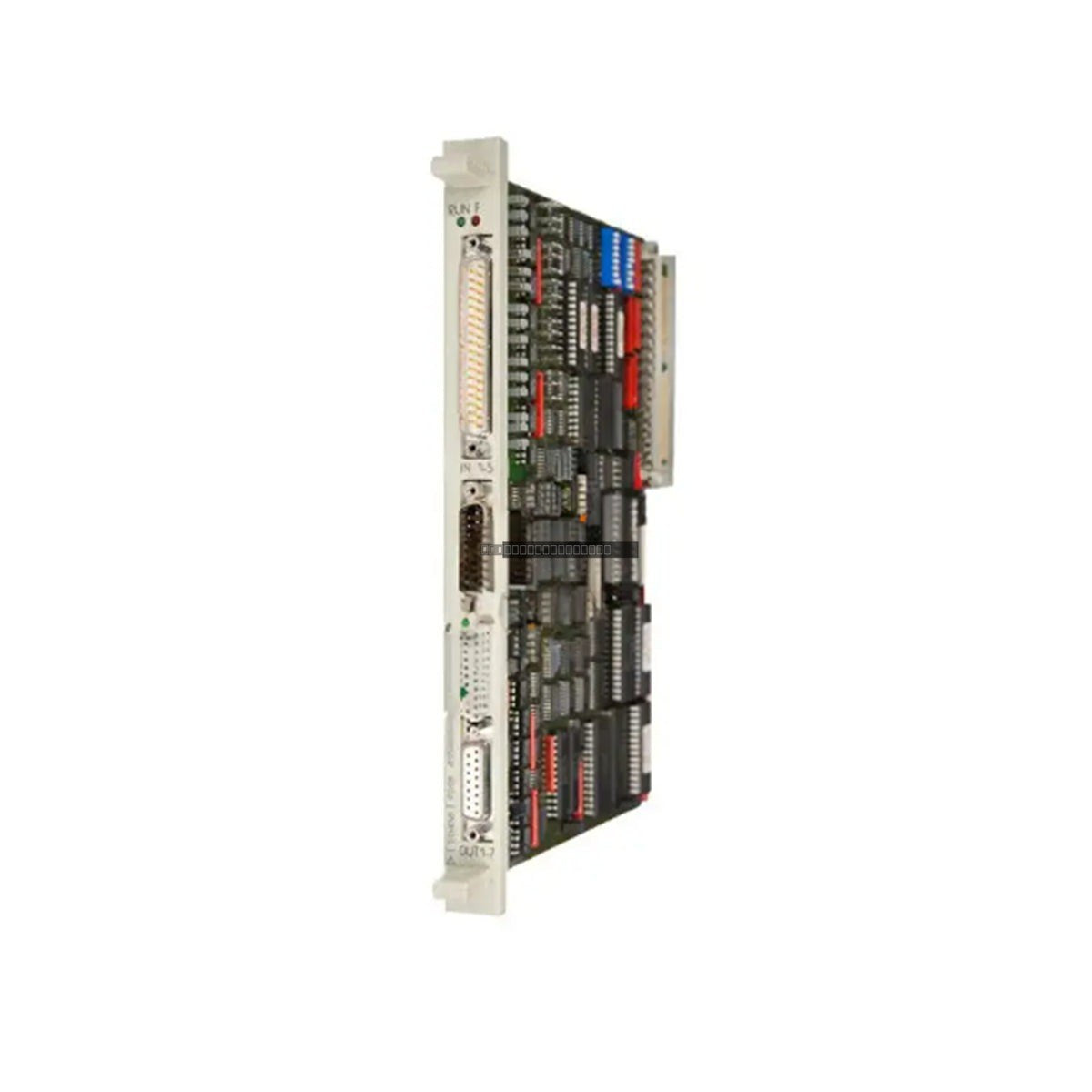

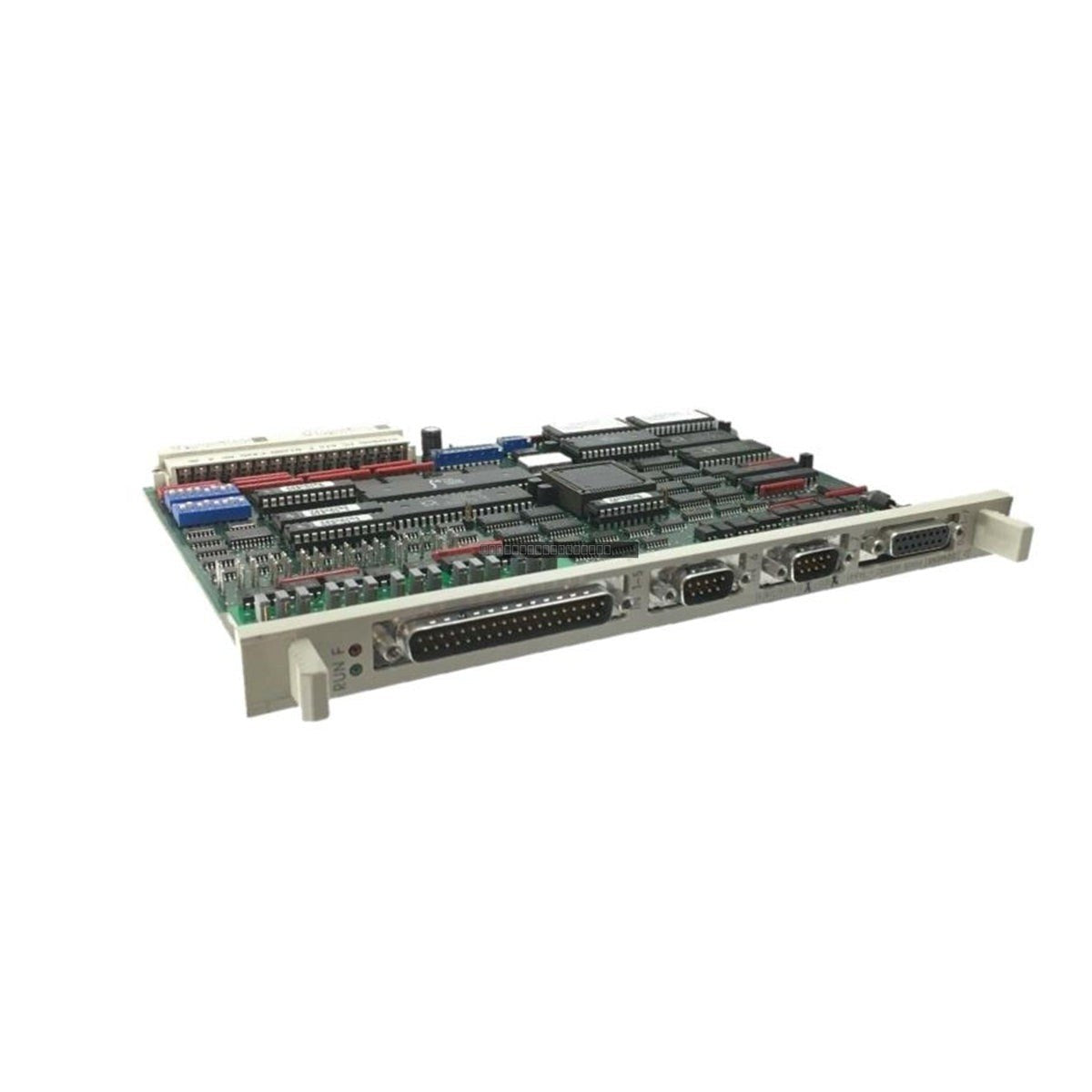

The Siemens 6ES5242-1AA41, identified as the IP 242B, is a specialized 7-channel counter module engineered for the Simatic S5-115U, S5-135U, and S5-155U PLC families. This intelligent processor module is designed to handle high-speed counting and frequency measurement tasks, offloading these time-critical functions from the main CPU to ensure deterministic performance and high-speed signal processing accuracy. It is widely utilized in industrial environments for flow monitoring, batch counting, and rotational speed detection.
Features
- Seven independent high-speed counter channels.
- Direct interface with the Simatic S5 backplane for efficient data exchange.
- Supports multiple operational modes including continuous counting, single-cycle operation, and periodic value capture.
- Enables dynamic threshold setpoint updates without interrupting active counting processes.
- Reduces CPU scan-time impact by managing high-frequency pulse inputs locally.
Applications
This module is suitable for demanding industrial automation tasks where precise pulse counting is required, such as in petrochemical processing, power generation facilities, and heavy manufacturing production lines. It is particularly effective for motion control, volumetric flow measurement, and high-speed synchronization tasks.
Technical Specifications
| Model |
6ES5242-1AA41 (IP 242B) |
| Brand |
Siemens Simatic S5 |
| Number of Channels |
7 |
| Input Type |
High-speed digital pulse |
| Power Supply |
24 VDC (via S5 backplane) |
| Operating Temperature |
0 to 60 degC |
Installation Guidelines
- Ensure the PLC system is powered down before inserting or removing the module from the S5 rack.
- Verify that the module is securely seated in the designated backplane slot to ensure proper electrical contact.
- Use shielded cabling for pulse input signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Maintain proper ventilation within the control cabinet to ensure ambient temperatures remain within the 0 to 60 degC range.
- Follow standard ESD (electrostatic discharge) precautions when handling the module to prevent damage to internal circuitry.
FAQ
What PLC systems are compatible with the IP 242B?
The 6ES5242-1AA41 is designed for use with Siemens Simatic S5-115U, S5-135U, and S5-155U programmable logic controller systems.
How is the module powered?
The module receives its required 24 VDC power supply directly through the S5 backplane connection.
