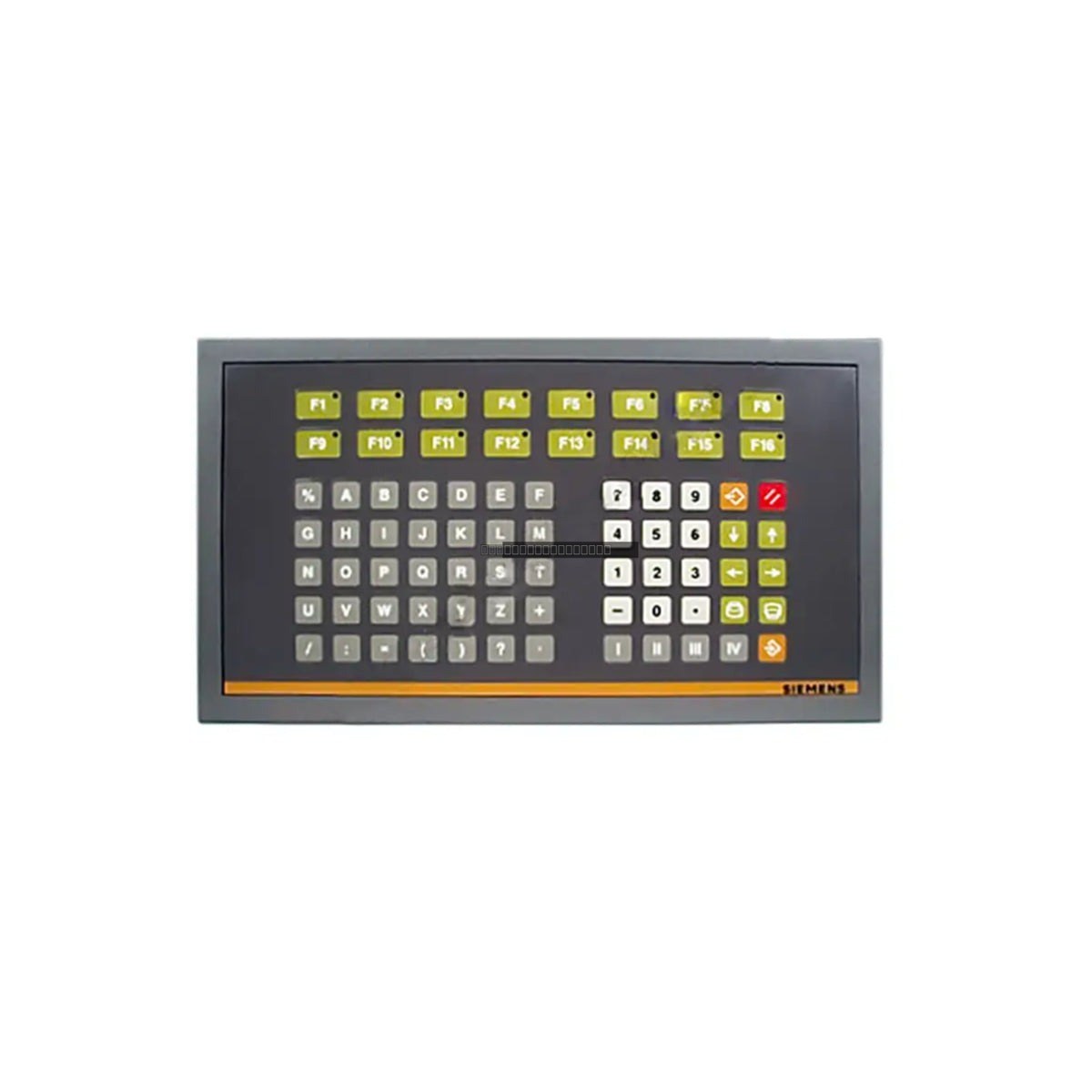

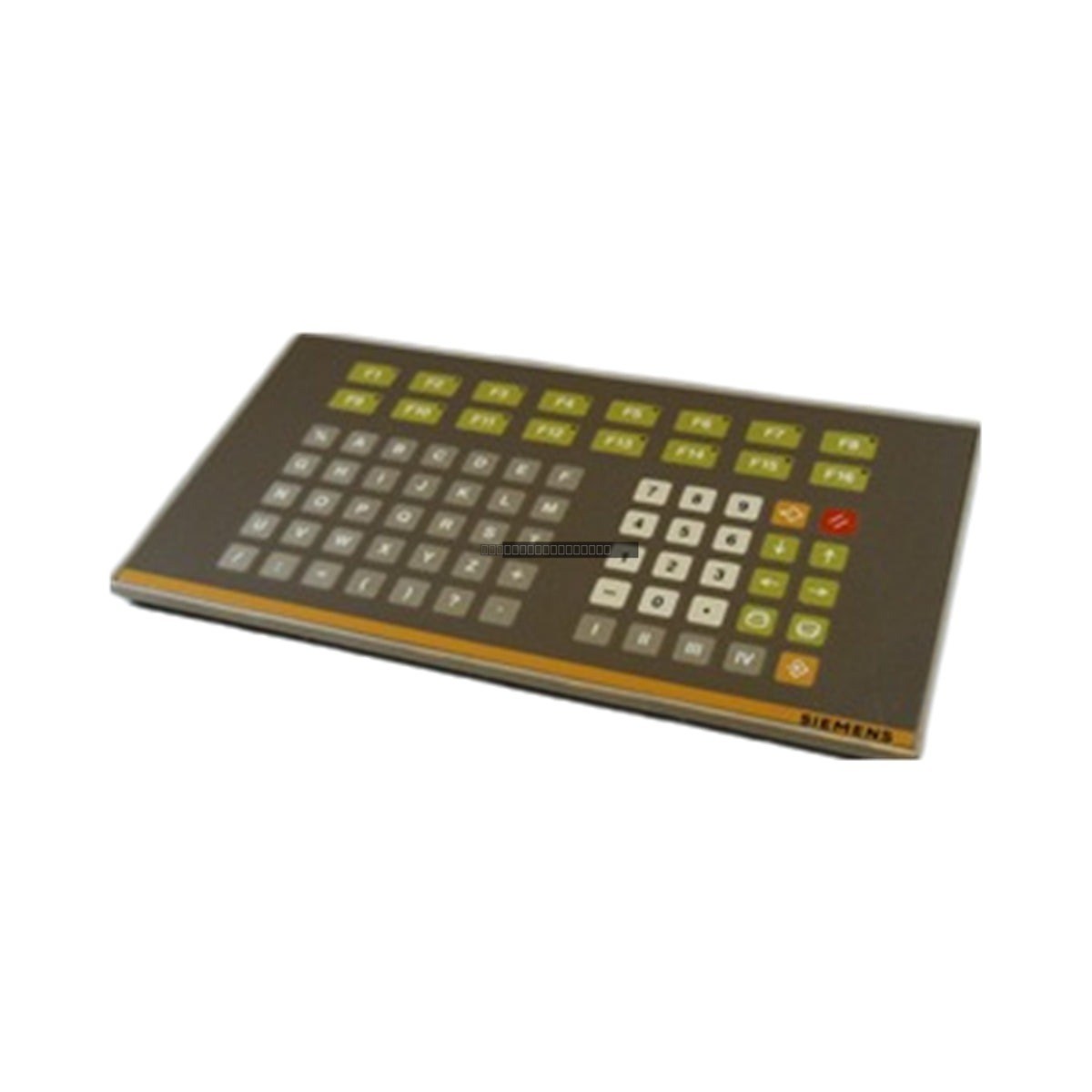

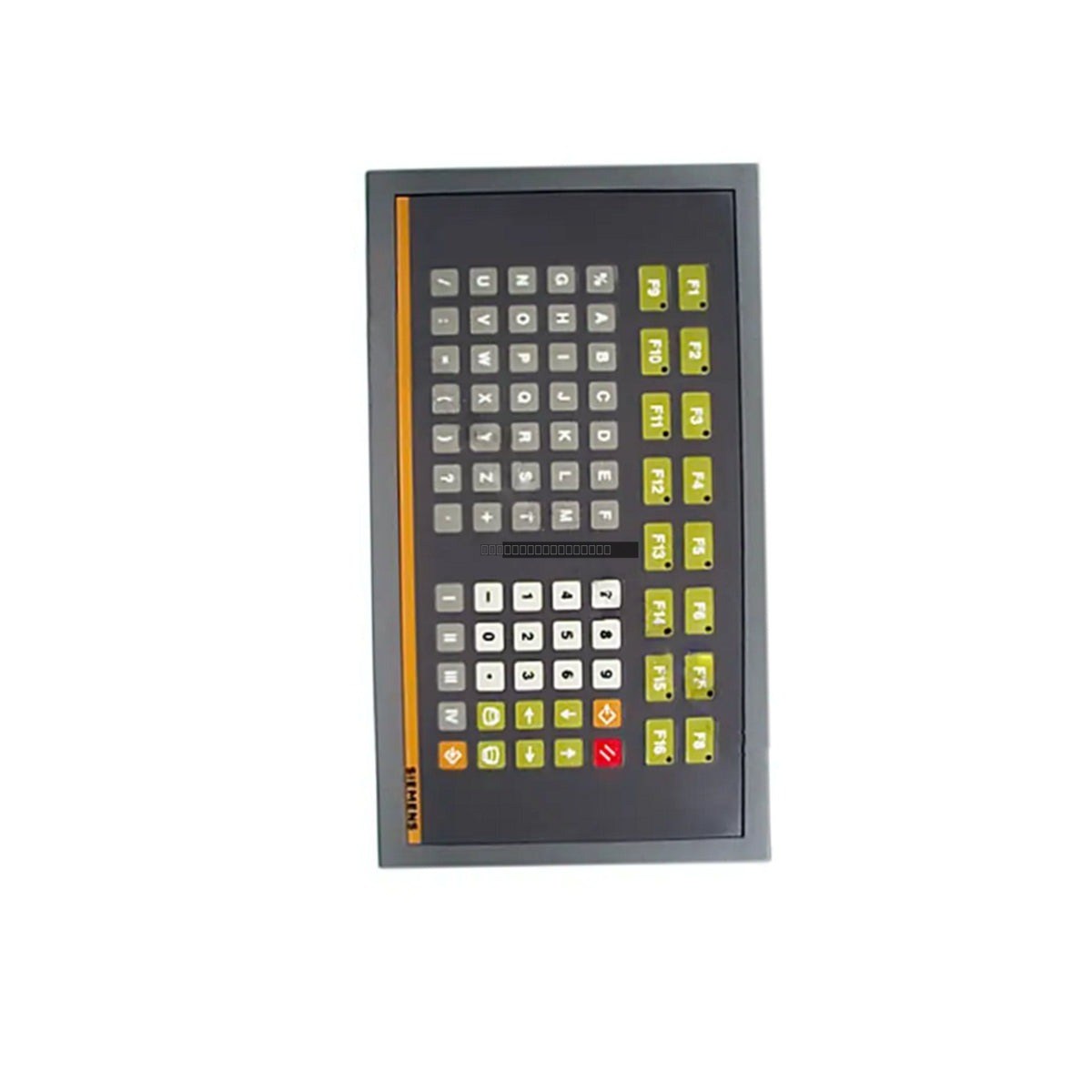

The Siemens 6FM1496-1AB10 is a specialized WS496 Keyboard Control Module designed for integration with Siemens Simatic S5 HMI workstations and operator panels. This module acts as a critical hardware interface, responsible for decoding and processing mechanical keystroke signals from matrix keyboards into digital data for transmission across the Simatic S5 backplane bus. It is engineered for high-reliability applications, including heavy industrial processing, mining, and power generation facilities, where it provides robust isolation between operator input devices and sensitive control logic.
Features
- Dedicated hardware-based keyboard encoding with integrated transient voltage suppression.
- Advanced digital debounce algorithms to filter mechanical contact chatter and electromagnetic interference.
- Direct mapping of control registers into the Simatic S5 processor I/O space.
- Rugged aluminum frame construction designed to withstand high-vibration industrial environments.
- Fast interrupt-driven scan routines to ensure low-latency operator input processing.
Applications
This module is primarily utilized in legacy Siemens Simatic S5 HMI systems where reliable operator-to-machine communication is required. It is commonly found in control rooms for steel mills, large-scale mining equipment, and power plant operator consoles where membrane or mechanical matrix keypads are used for system control.
Technical Specifications
| Model |
6FM1496-1AB10 |
| Series |
Simatic S5 |
| Module Type |
WS496 Keyboard Control Module |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Humidity |
95% non-condensing |
| Power Supply |
+5 VDC (from backplane) |
| Power Consumption |
<= 2.5 W |
Installation Guidelines
- Ensure all power to the Simatic S5 rack is disconnected before inserting or removing the module to prevent electrical transients.
- Align the module casing with the baseplate tracks and ensure the rear pins are fully seated before securing the locking fasteners.
- Use shielded multi-conductor cables for keyboard connections, grounding the shield at the panel common ground bus bar to prevent ground loops.
- Verify that all fasteners are tightened to maintain electrical contact integrity and prevent vibration-induced fretting.
FAQ
Is this module compatible with modern HMI systems?
No, this module is specifically engineered for the legacy Siemens Simatic S5 HMI series and is not compatible with modern S7 or TIA Portal-based systems.
Does the module require external power?
No, the module draws its operating power (+5 VDC) directly from the Simatic S5 rack backplane.
What should I do if the keyboard response is intermittent?
Check the seating of the module in the backplane and inspect the keyboard matrix cable shielding for proper grounding. Intermittent signals are often caused by poor electrical contact or ground loop interference.
