Description

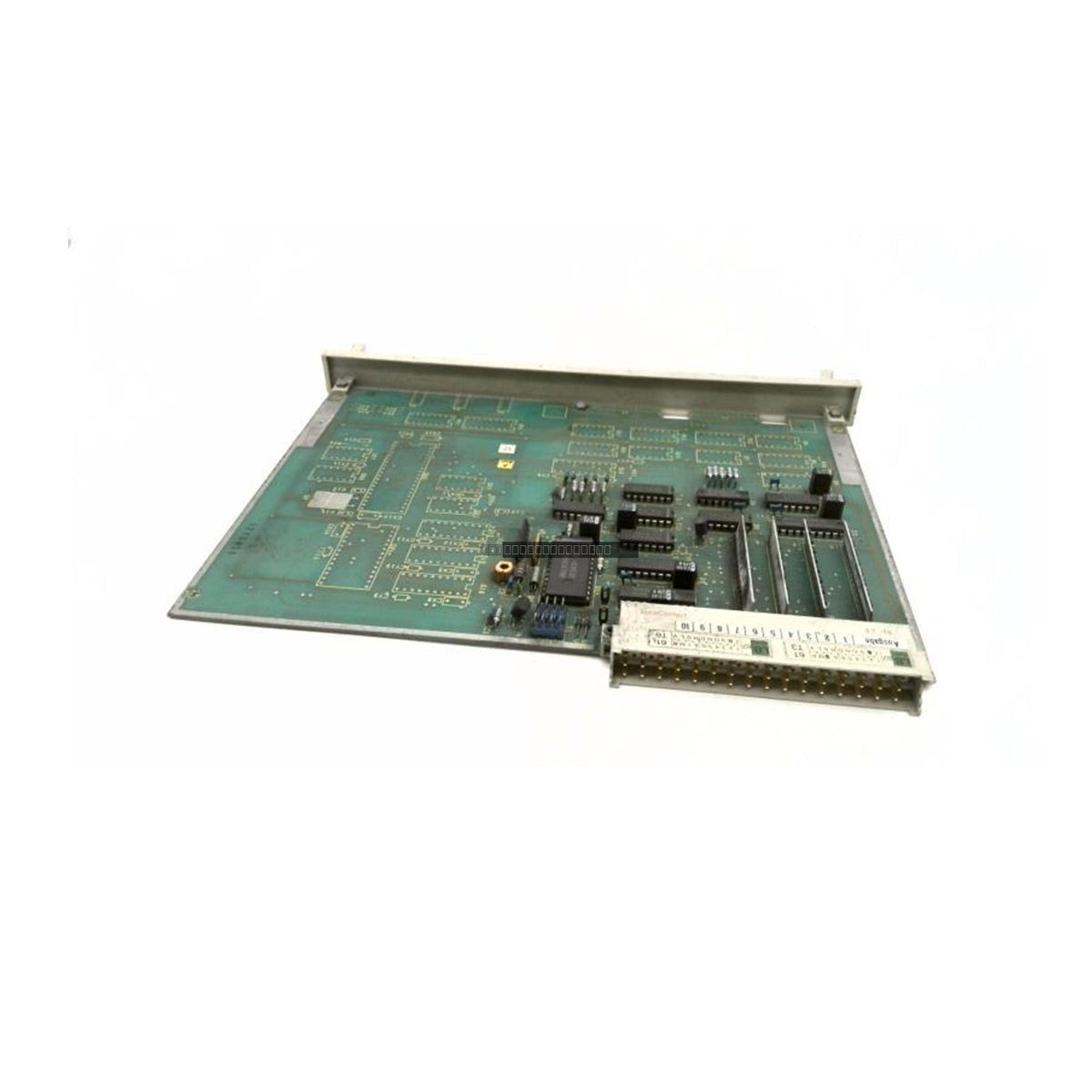

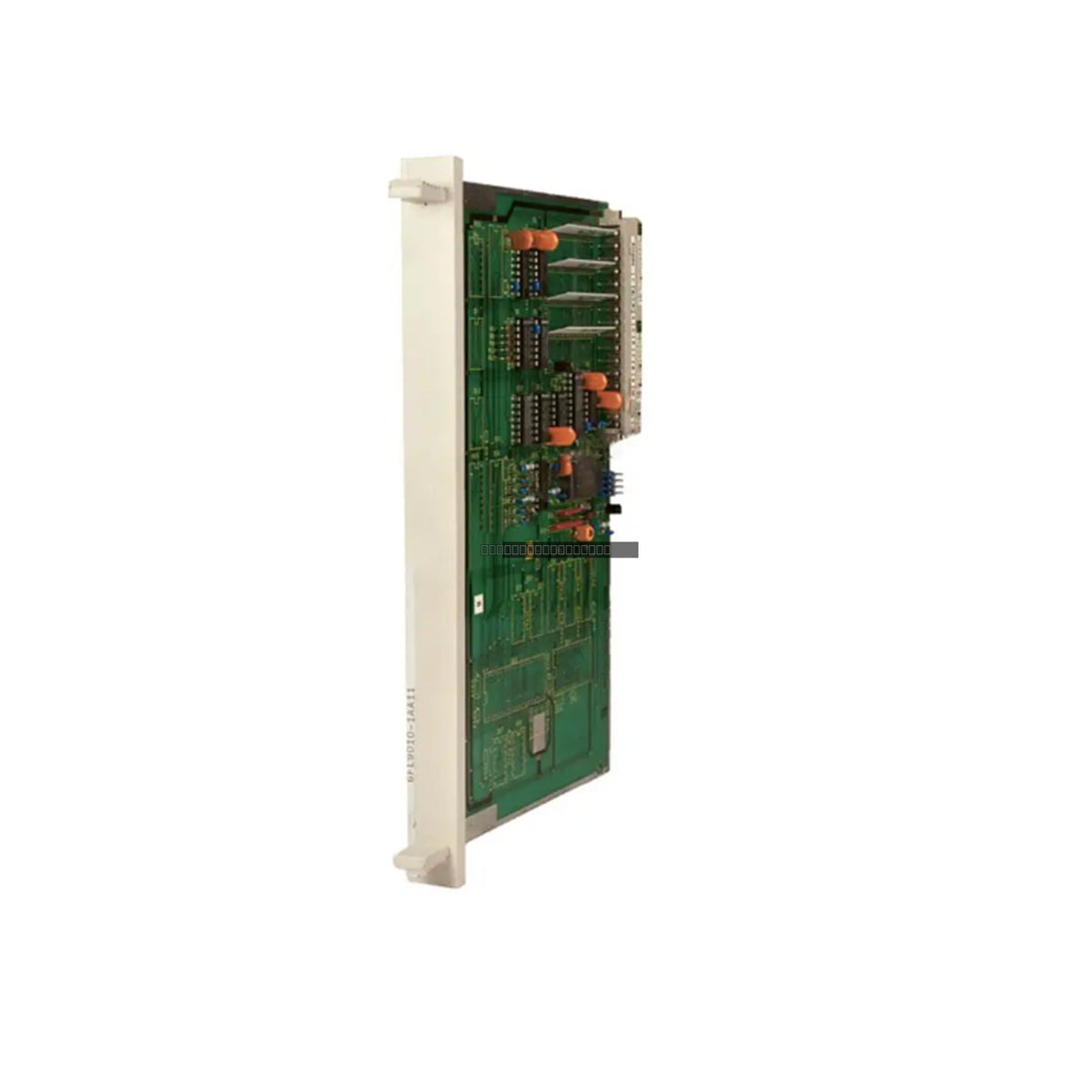

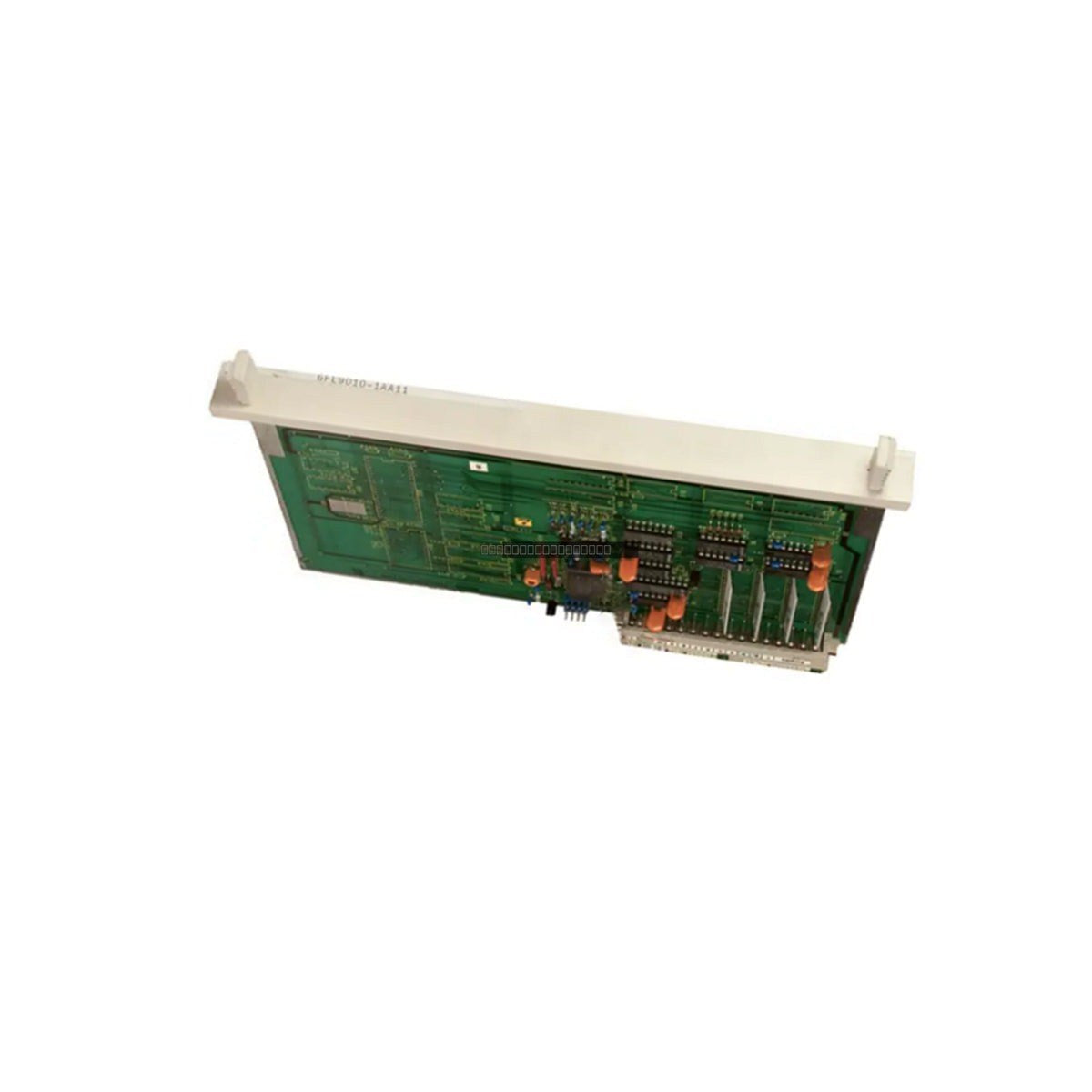

The Siemens 6FL9010-1AA11 is a dedicated real-time clock (RTC) module engineered for integration within the SIMATIC S5 AG135 programmable logic controller (PLC) architecture. This module provides essential time-stamping, synchronization, and interval management functions, ensuring that all processing units within the automation rack operate on a unified time base. By maintaining precise temporal alignment, the module is critical for accurate event logging, sequence-of-events analysis, and reducing diagnostic latency in complex industrial environments.
Features
- Designed specifically for the Siemens SIMATIC S5 AG135 controller series.
- High-precision quartz oscillator ensures stable timekeeping with minimal drift.
- Integrated battery backup circuit maintains clock integrity during power loss.
- Robust shielding protects internal timing circuitry from electromagnetic interference (EMI).
- Direct backplane communication via a reliable 48-pin interface.
Applications
This module is widely utilized in large-scale industrial automation, including thermal power generation, petrochemical refinery operations, and mineral processing facilities. Its ability to provide synchronous telemetry is vital for maintaining audit trails and preventing data corruption in log files during system faults.
Technical Specifications
| Model |
6FL9010-1AA11 |
| Brand |
Siemens |
| Series |
SIMATIC S5 AG135 |
| Module Type |
Real-Time Clock Module |
| Interface |
48-pin backplane connector |
| Power Consumption |
2.5 W |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the AG135 rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the 48-pin connector is properly aligned with the backplane slot before applying pressure to seat the module.
- Handle the module using standard ESD (electrostatic discharge) precautions to protect internal components.
- Ensure the module is installed in an environment free from excessive vibration and shielded from high-power field switching noise.
- Periodically inspect the battery backup status to ensure continued timekeeping during power outages.
FAQ
Does this module require external programming?
The 6FL9010-1AA11 is designed for seamless integration into the AG135 rack environment; however, system-level configuration within the S5 programming environment may be required to enable time-stamping functions for specific PLC logic routines.
How does the module handle power failure?
The module features an onboard battery backup circuit that maintains the time and date registers when the main rack power is disconnected, ensuring the system resumes with accurate time upon restoration.
