Module Description

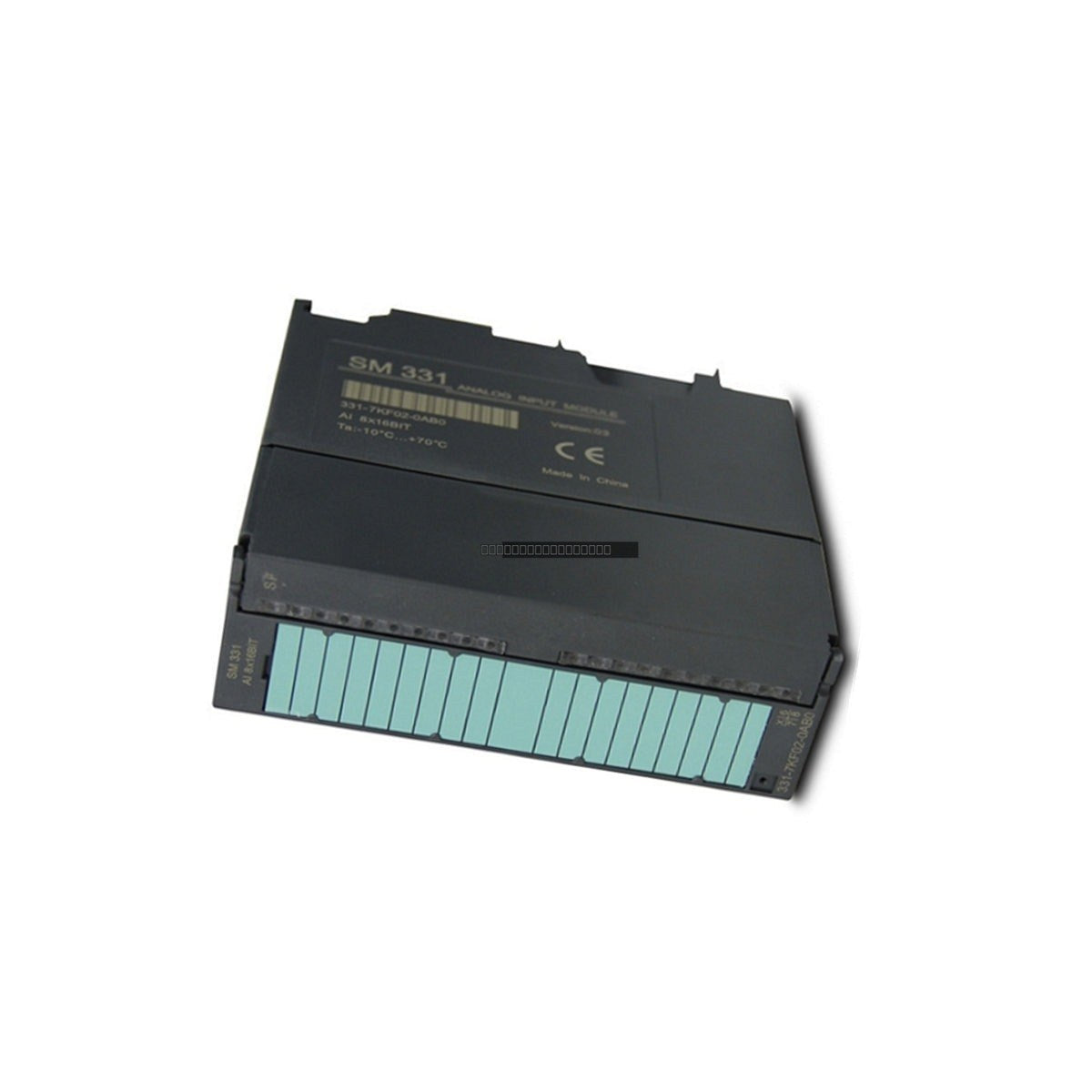

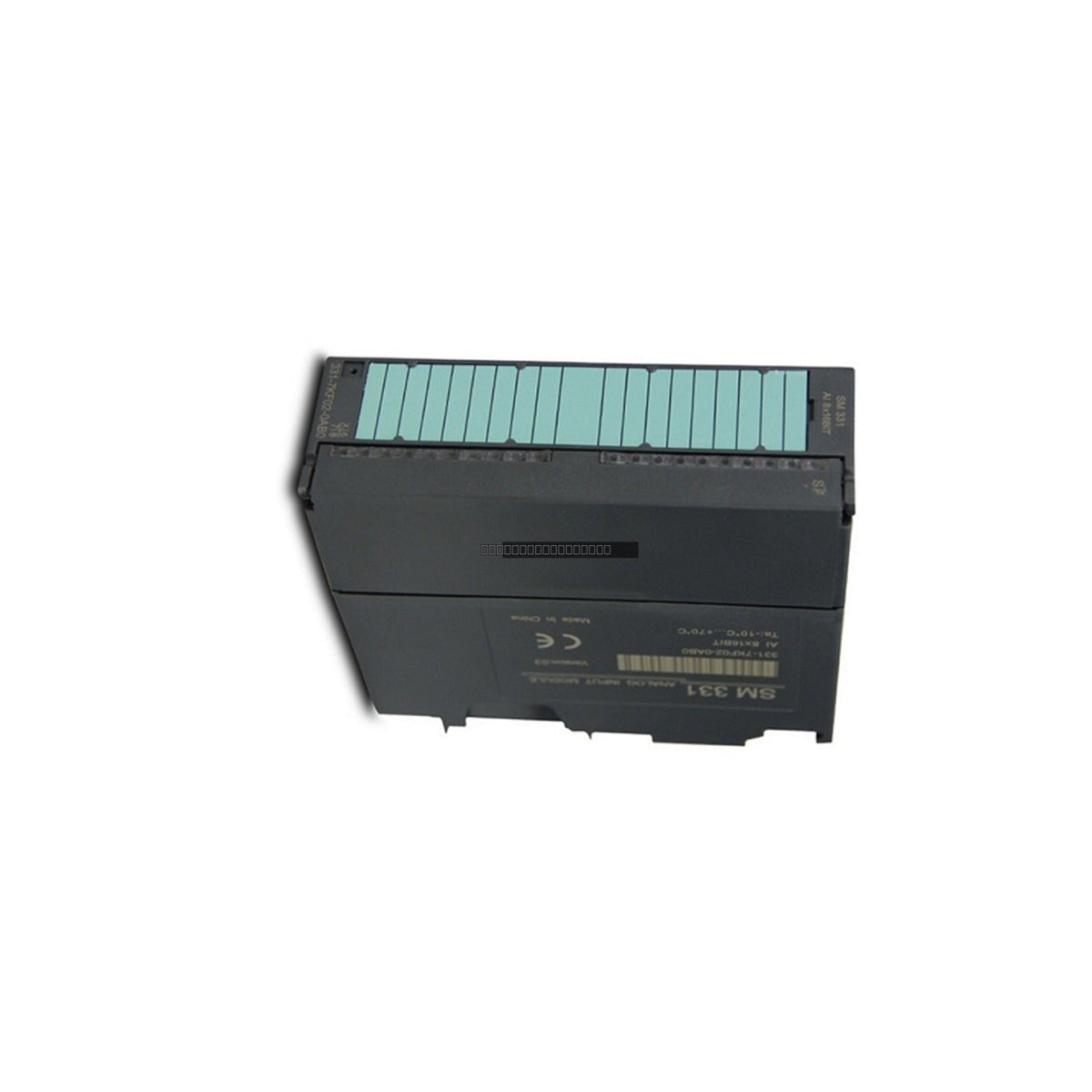

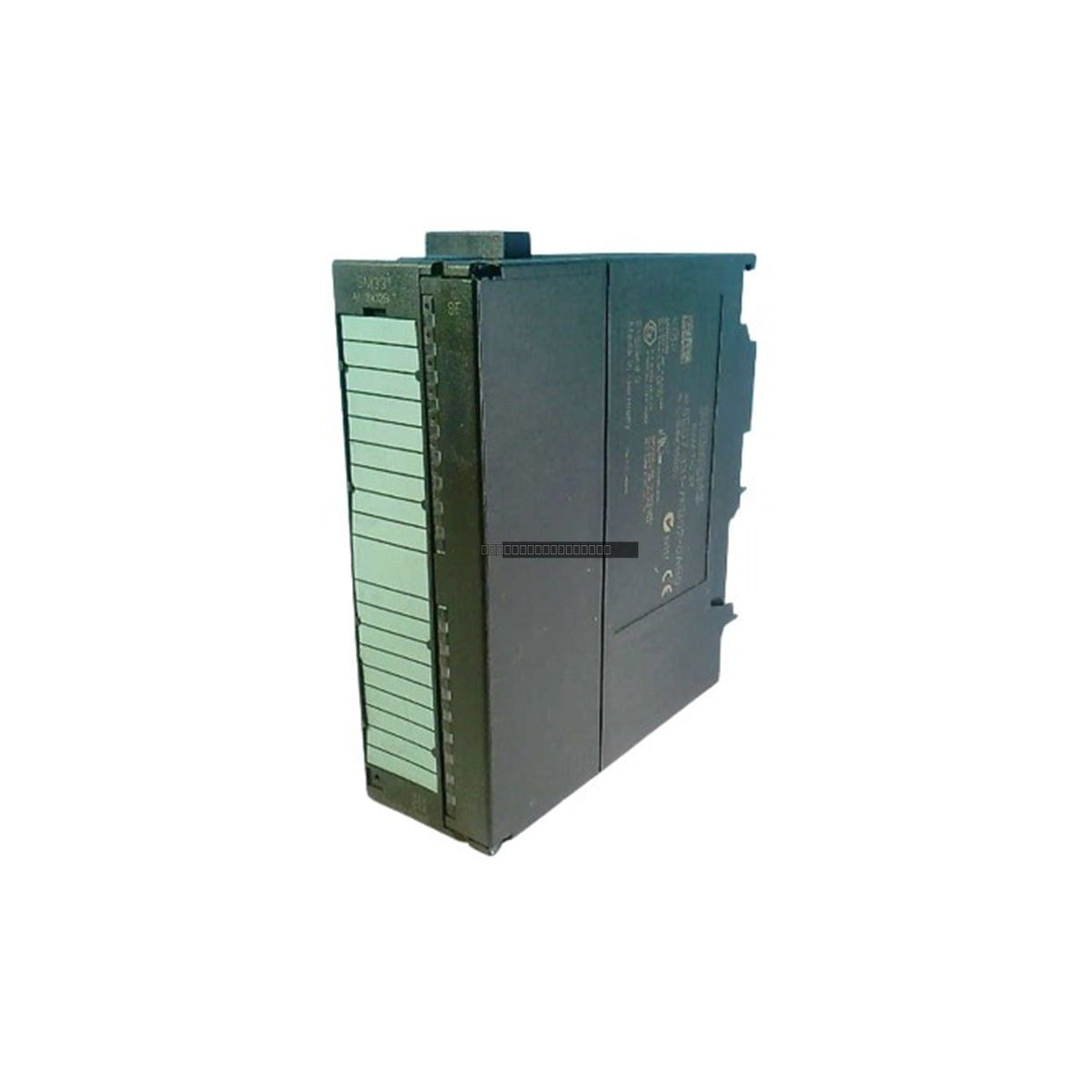

The Siemens 6ES7331-7KB02-0AB0 is a precision-engineered SM 331 analog input module designed for the SIMATIC S7-300 automation system. This unit provides two isolated input channels capable of processing a wide variety of signal types, including voltage, current, thermocouples, and resistance-based (RTD) sensors. With configurable resolution options of 9, 12, or 14 bits, this module is well-suited for high-accuracy process monitoring in sectors such as chemical processing, manufacturing, and energy management. It serves as a drop-in replacement for earlier iterations, ensuring compatibility and simplified maintenance for existing S7-300 installations.
Features
- Two fully isolated analog input channels to prevent ground loop interference.
- Configurable resolution (9, 12, or 14 bits) to balance speed and precision requirements.
- Supports diverse input ranges: voltage, current (0/4-20 mA), thermocouples, and RTDs.
- Advanced diagnostics include wire-break detection and overflow monitoring with CPU interrupt capability.
- Integrated hardware and software parameterization via STEP 7 or TIA Portal.
- Galvanic isolation between channels and the backplane bus for enhanced EMI protection.
Installation Guidelines
- Ensure the S7-300 CPU is powered down before installing or removing the module from the rack.
- The module requires a standard 20-pole front connector for field wiring.
- Configure the physical measuring range modules (side-mounted cards) to match the sensor type before software parameterization.
- Use shielded twisted-pair cabling for all analog signals to minimize noise pickup in high-EMI environments.
- Ensure adequate ventilation in the control cabinet to maintain an ambient operating temperature between 0 and 60 degC.
- Verify that the backplane bus connection is secure to avoid intermittent communication errors.
Technical Specifications
| Model |
6ES7331-7KB02-0AB0 |
| Brand |
Siemens |
| Series |
SIMATIC S7-300 |
| Inputs |
2 (Isolated) |
| Resolution |
9/12/14-bit (Configurable) |
| Power Supply |
24 VDC |
| Current Consumption |
130 mA (Backplane) |
| Power Loss |
1 W (Typical) |
| Isolation |
500 VDC |
| Operating Temp |
0 to 60 degC |
FAQ
Does this module require external power for the sensors?
The module is powered via the 24 VDC backplane supply; however, depending on your field instrument requirements (e.g., active vs. passive sensors), you may need to provide external loop power for your transmitters.
Can this module replace the 6ES7331-7KB01-0AB0?
Yes, the 6ES7331-7KB02-0AB0 is designed as an upward-compatible replacement for the 7KB01 version, allowing for seamless integration into existing S7-300 projects.
