Description

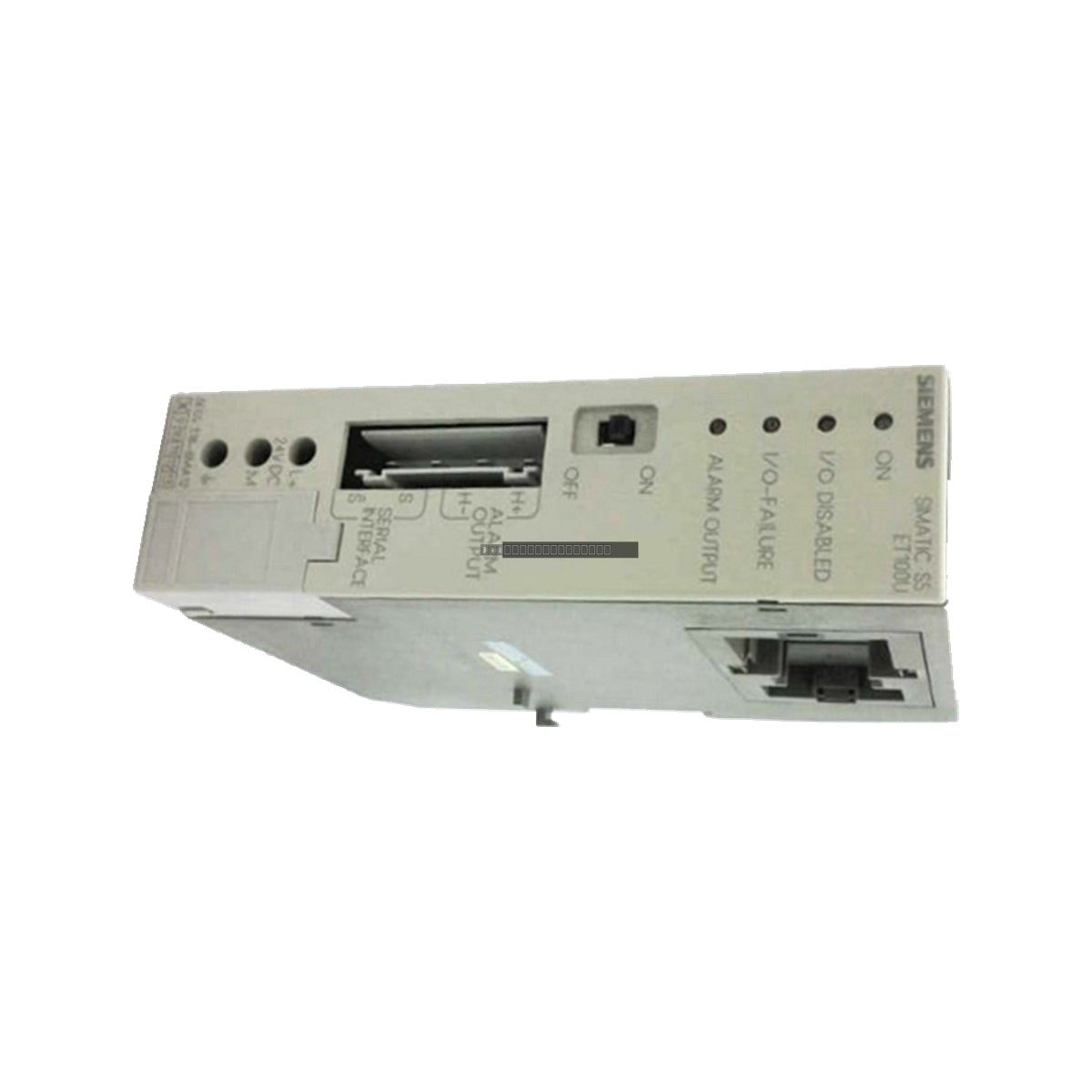

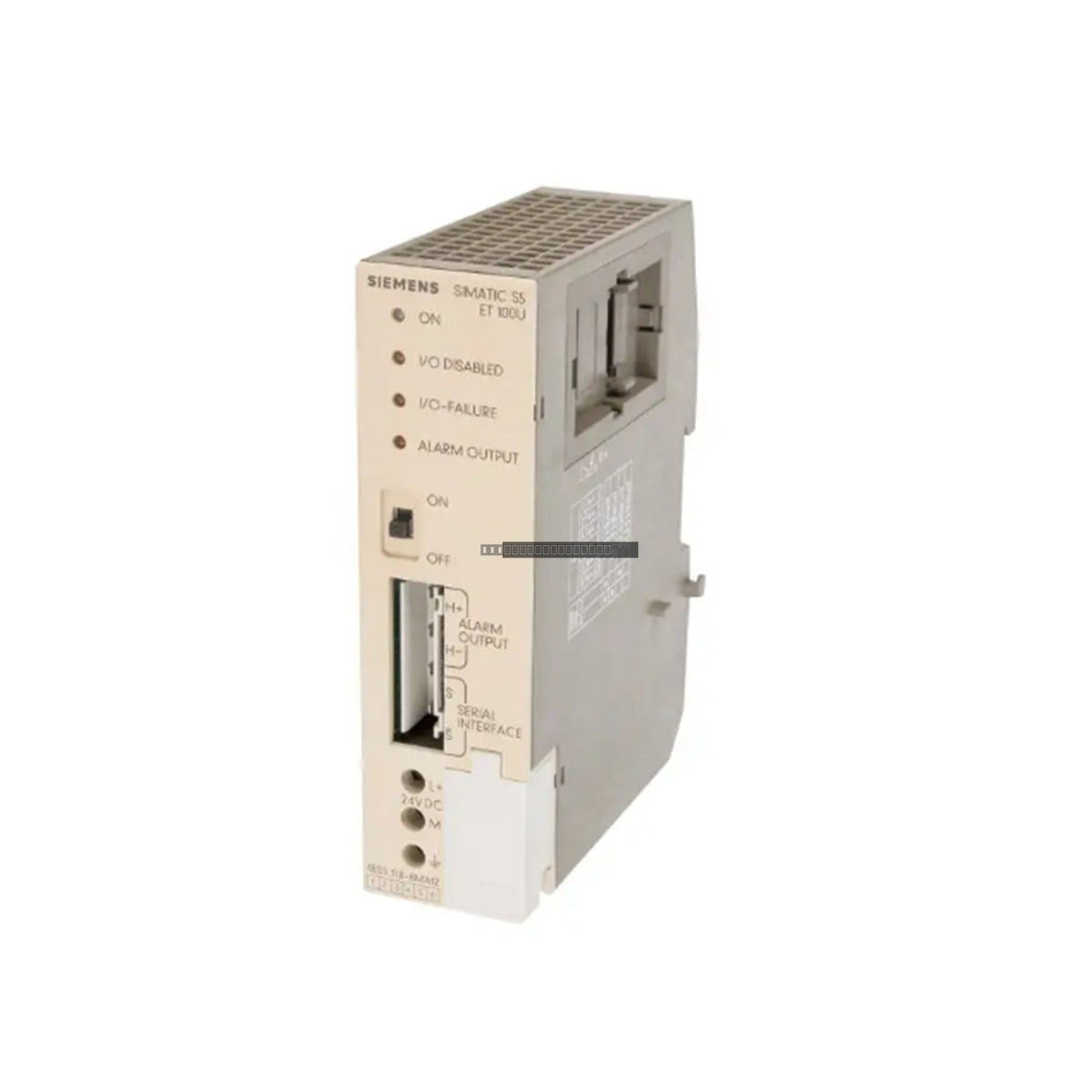

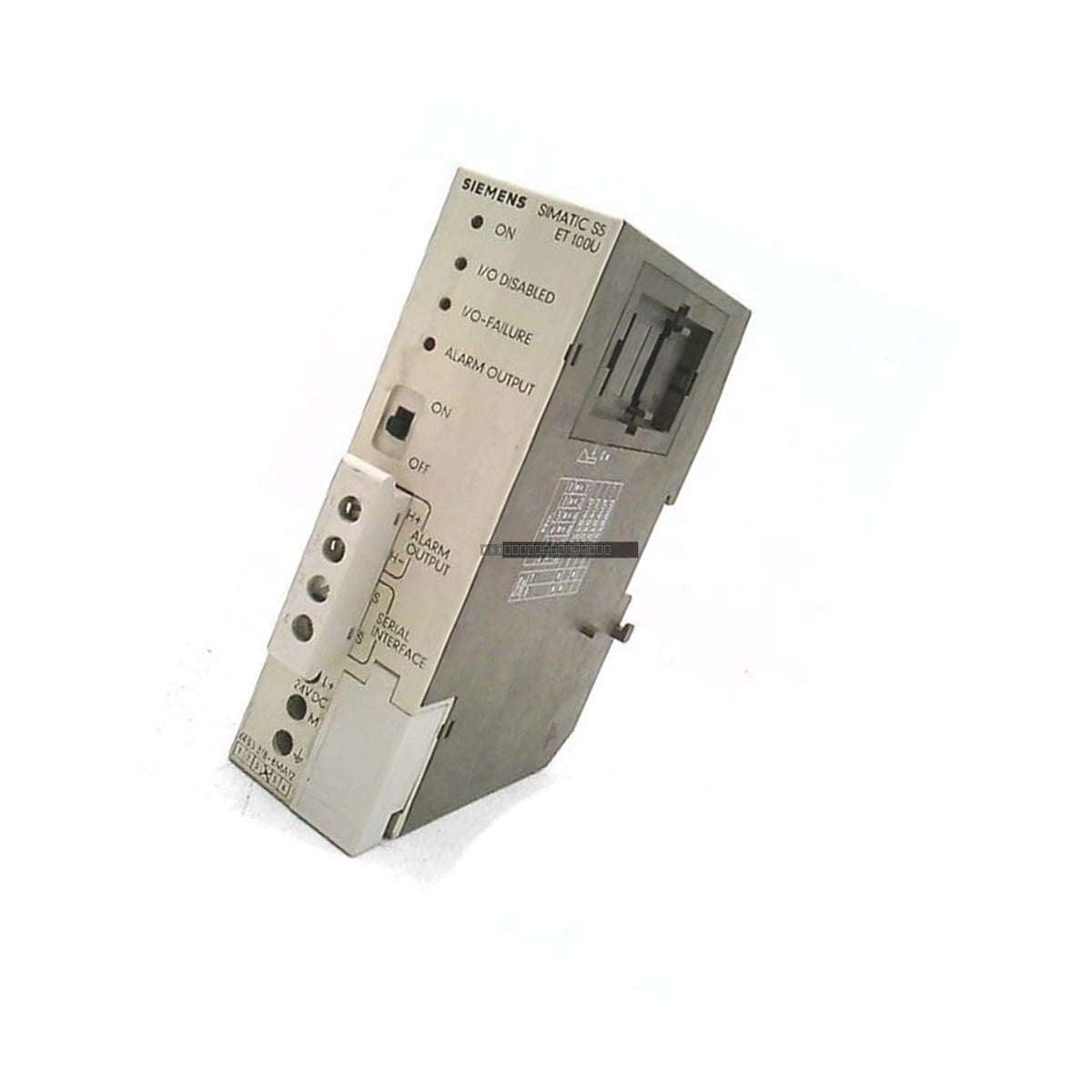

The Siemens 6ES5318-8MA12 (IM 318) is a specialized interface module designed to facilitate high-speed communication between a central SIMATIC S5 programmable controller and the ET 100U distributed I/O system. This module acts as a bridge, converting internal backplane data into a robust serial bitstream for reliable transmission over remote fieldbus networks. By enabling decentralized signal collection, it allows for the expansion of control architectures across large-scale industrial facilities, ensuring deterministic data exchange and centralized diagnostic monitoring.
Features
- Designed for seamless integration with SIMATIC S5 controllers and ET 100U I/O systems.
- Utilizes differential signaling to ensure high noise immunity against electromagnetic interference.
- Features front-panel LED indicators for real-time status monitoring of bus health, link connectivity, and power supply.
- Includes internal 24 VDC power stage with integrated reverse-polarity protection and transient voltage suppression.
- Supports long-distance data transmission for distributed control applications.
Applications
The IM 318 interface module is widely utilized in complex industrial environments where centralized control of remote assets is required. Typical applications include oil and gas processing, municipal water and wastewater treatment, large-scale manufacturing lines, and mining infrastructure where decentralized I/O nodes are essential for operational efficiency.
Technical Specifications
| Model |
6ES5318-8MA12 |
| Series |
SIMATIC S5 / ET 100U |
| Module Type |
IM 318 Interface Module |
| Operating Voltage |
24 VDC |
| Current Consumption |
0.25 A |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Diagnostics |
Front Panel LED Status Indicators |
Installation Guidelines
- Ensure the system power is completely disconnected before inserting or removing the IM 318 module from the rack.
- Mount the module in a clean, dry, and vibration-free environment, ensuring adequate clearance for ventilation and heat dissipation.
- Use shielded fieldbus cables for all remote communication links to minimize the risk of EMI-induced signal degradation.
- Verify that the 24 VDC power supply is stable and within the specified operating range to prevent communication dropouts.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry or connectors.
FAQ
What is the primary function of the 6ES5318-8MA12?
This module serves as an interface between the SIMATIC S5 central controller and the ET 100U distributed I/O system, allowing the controller to communicate with remote I/O stations over a serial bus.
Can this module be used in high-EMI environments?
Yes, the module is designed with differential signaling, which provides inherent rejection of common-mode electromagnetic interference, making it suitable for standard industrial environments when properly shielded cabling is utilized.
