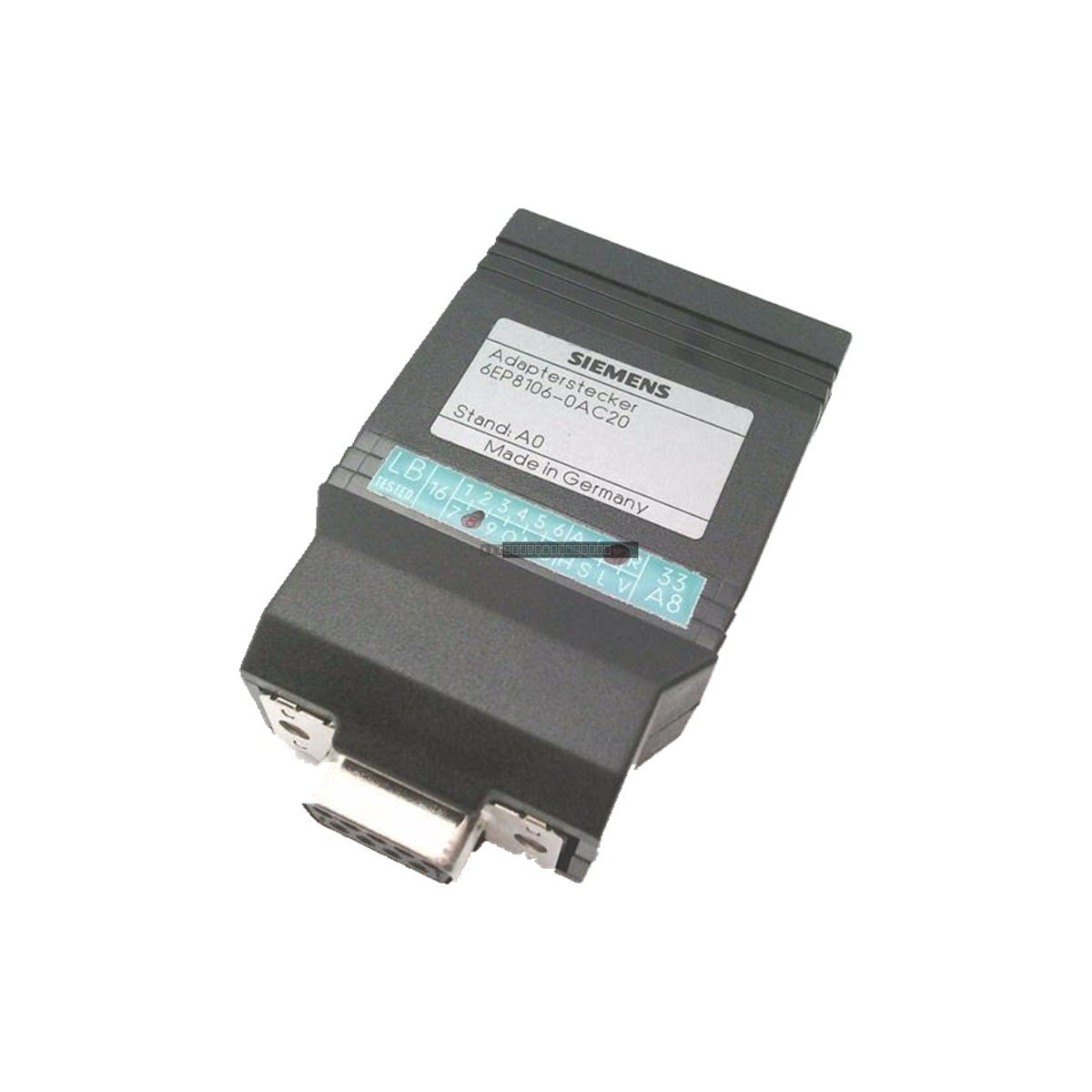

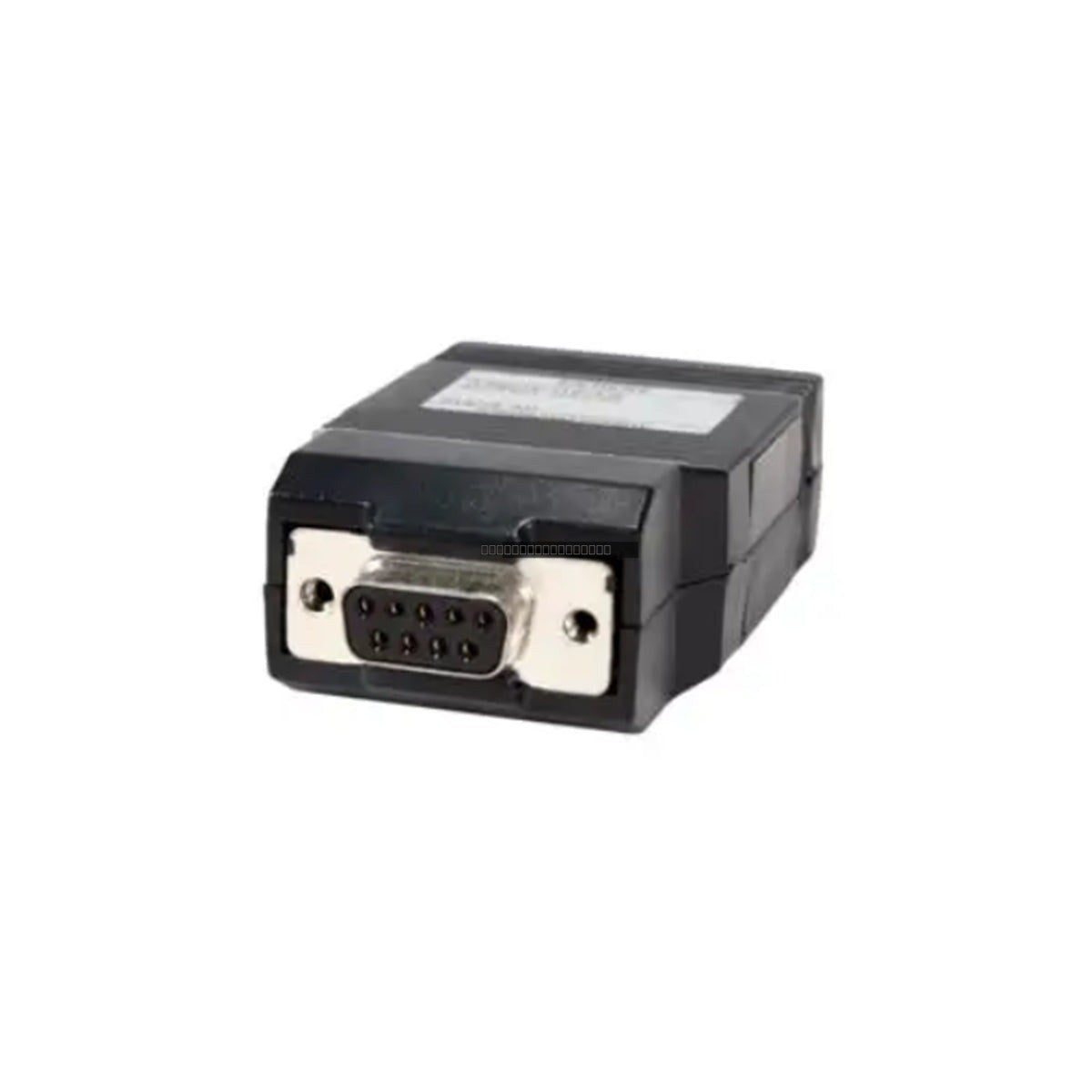

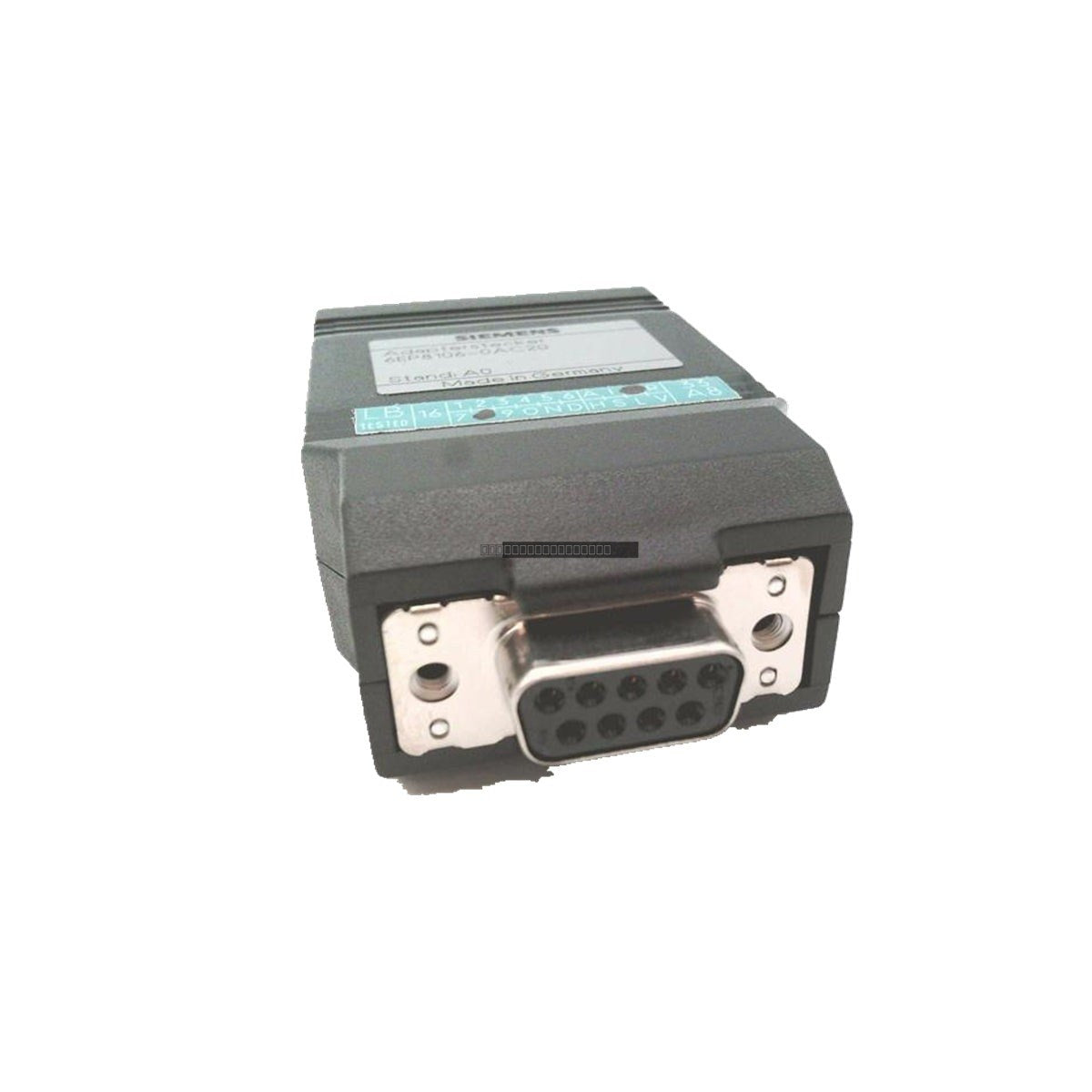

The Siemens 6EP8106-0AC20 functions as a specialized diagnostic interface component for the SIMATIC DP series. Specifically engineered as a spare part for the BT200 Bus Tester, this test connector facilitates comprehensive physical layer analysis of PROFIBUS DP networks. In heavy industrial environments such as automated manufacturing, oil refining, and power generation, maintaining network integrity is critical. This connector allows technicians to execute precise cable tests, shielding verification, and signal quality monitoring during commissioning and active maintenance phases. By providing immediate diagnostic access to the PROFIBUS segment, the 6EP8106-0AC20 plays a vital role in identifying bus faults and wiring errors, thereby significantly reducing unplanned system downtime and ensuring stable communication between PLCs and distributed I/O.
Features
- Designed specifically for use with the Siemens BT200 Bus Tester.
- Facilitates high-fidelity signal passthrough for accurate PROFIBUS DP network diagnostics.
- Optimized for impedance matching to ensure diagnostic pulses accurately reflect network conditions.
- Supports identification of short circuits, wire breaks, and incorrect termination resistors.
- Robust mechanical design suitable for frequent insertion cycles in field-service environments.
- Constructed from industrial-grade flame-retardant plastic.
Applications
This test connector is essential for maintenance engineers and system integrators working with PROFIBUS DP networks. Typical applications include:
- Physical layer integrity verification during new network commissioning.
- Routine maintenance audits of PROFIBUS segments to prevent communication failures.
- Rapid troubleshooting of wiring faults, cable breaks, and termination issues in large-scale automated plants.
- Legacy system support where original diagnostic hardware is required for compliance.
Technical Specifications
| Model |
6EP8106-0AC20 |
| Brand |
Siemens |
| Series |
SIMATIC DP |
| Product Type |
Test Connector for BT200 Bus Tester |
| Operating Temperature |
0 to 60 deg C |
| Compatibility |
Siemens BT200 Bus Tester |
| Enclosure Material |
Industrial grade flame-retardant plastic |
Installation Guidelines
- Ensure the PROFIBUS segment is isolated or the system is in a safe state before connecting diagnostic equipment.
- Inspect the connector pins for debris or damage prior to insertion into the BT200 or the network node.
- Ensure proper seating of the connector to maintain signal integrity during testing.
- Handle with care to prevent excessive mechanical stress on the network port.
- Always follow local plant safety procedures and ESD (Electrostatic Discharge) protocols when handling industrial communication hardware.
FAQ
Is the 6EP8106-0AC20 compatible with other bus testers?
This connector is specifically designed for the Siemens BT200 Bus Tester. Use with other diagnostic equipment is not recommended as it may result in inaccurate readings or damage to the interface.
Can this connector be used while the network is active?
The connector is designed to facilitate diagnostic access during commissioning and maintenance. Please refer to your specific BT200 manual regarding the safety and operational requirements for connecting to an energized PROFIBUS network.
