Description

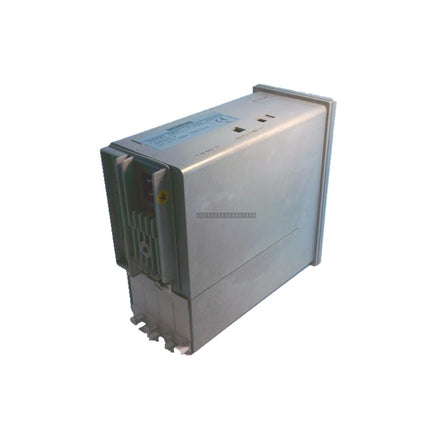

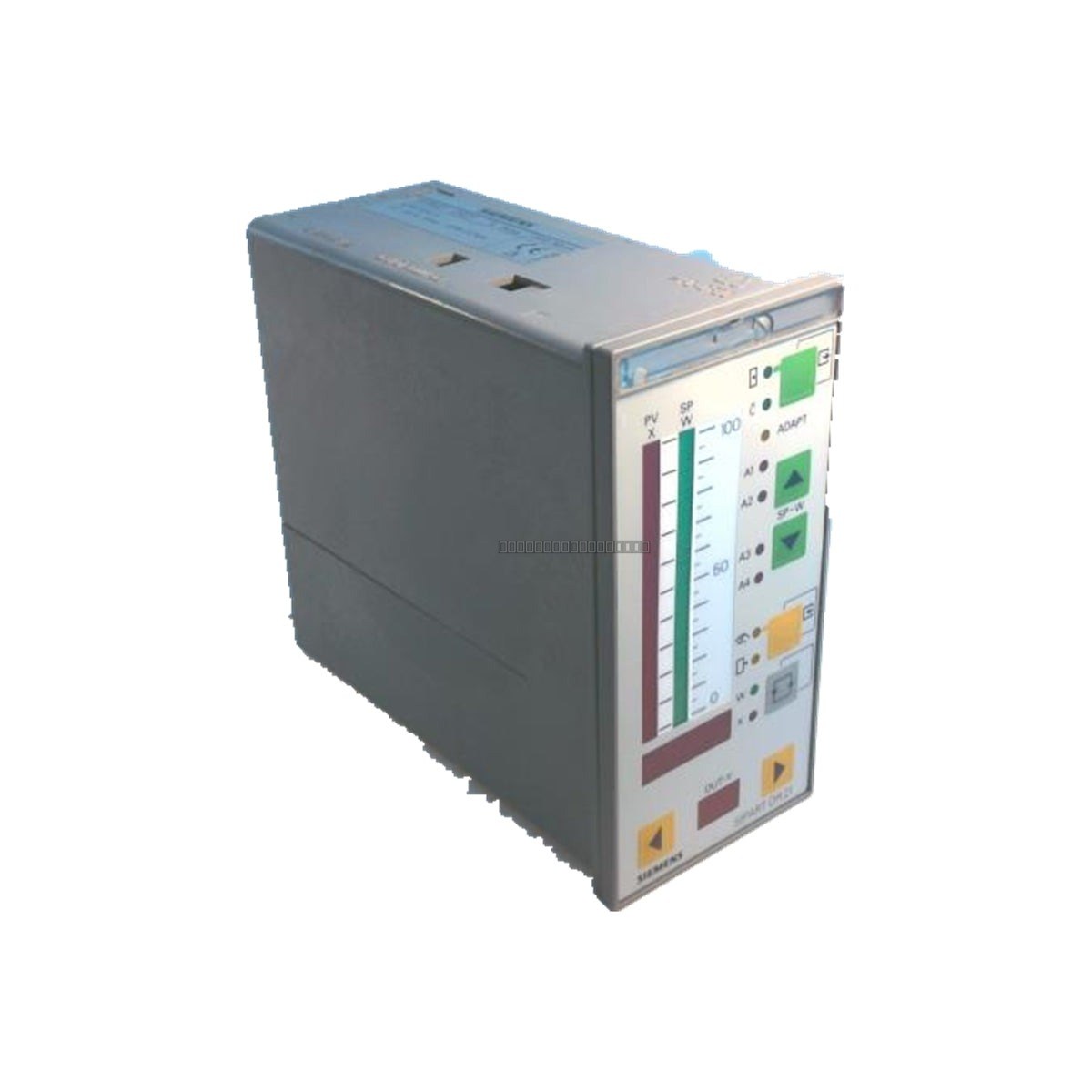

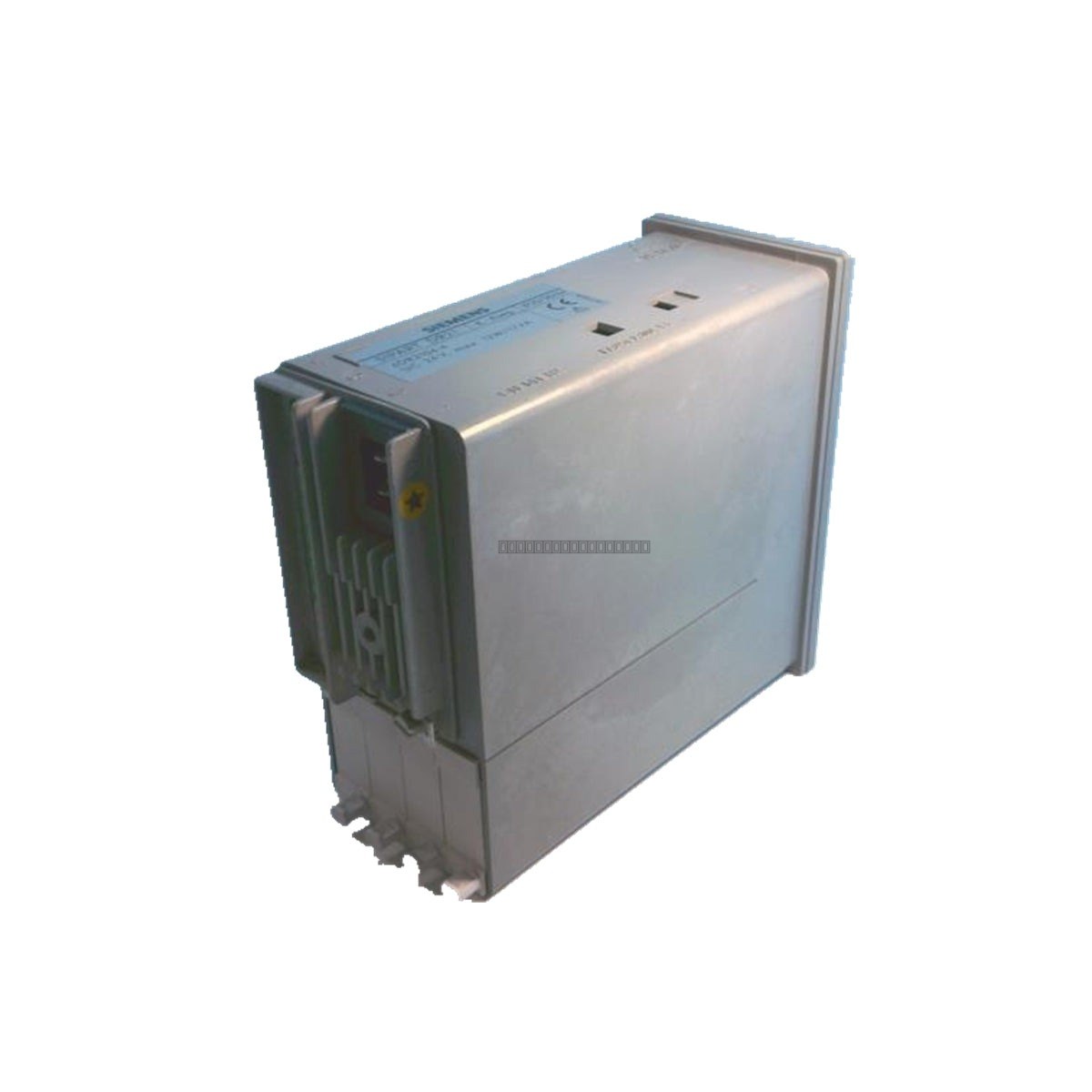

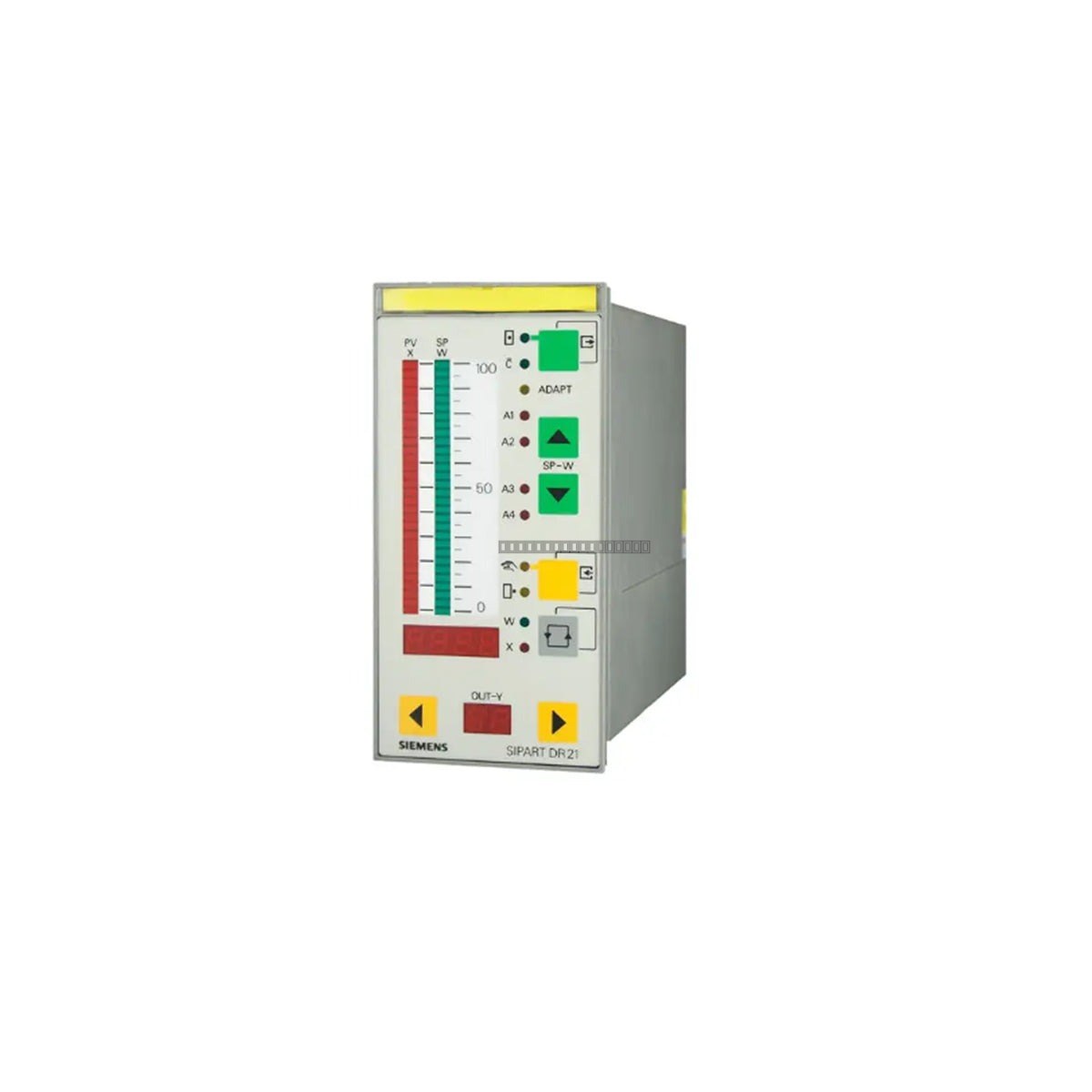

The Siemens 6DR2104-4 is a SIPART DR 21 process controller designed for precise industrial automation and control applications. As part of the established SIPART series, this controller provides reliable signal processing and loop control functionality in a compact, panel-mounted format. It is engineered to handle various control tasks, offering robust performance for industrial process environments requiring 24V DC power supply.
Features
- Compact design suitable for standard panel mounting.
- Reliable 24V DC operation for integration into industrial control systems.
- Part of the proven SIPART DR 21 series, known for stability in process control.
- Designed for ease of configuration and operational monitoring.
Applications
The SIPART DR 21 controller is utilized in a wide range of industrial sectors, including chemical processing, water treatment, and manufacturing, where precise regulation of process variables such as flow, pressure, or temperature is required.
Technical Specifications
| Product Model |
6DR2104-4 |
| Series |
SIPART DR 21 |
| Supply Voltage |
24V DC |
| Manufacturer |
Siemens |
| Weight |
0.5 kg |
Installation Guidelines
- Ensure the controller is mounted in a clean, dry environment protected from excessive vibration and extreme temperatures.
- Verify that the power supply matches the 24V DC requirement before connection to prevent damage to internal circuitry.
- Use appropriate shielded cabling for signal inputs and outputs to minimize electromagnetic interference (EMI).
- Ensure all terminal connections are secure and follow the wiring diagram provided in the original Siemens technical manual.
- Always disconnect power before performing any maintenance or wiring changes to the unit.
- Maintain adequate clearance around the unit to allow for proper heat dissipation during operation.
FAQ
What is the primary function of the Siemens 6DR2104-4?
The 6DR2104-4 is a process controller used to regulate and monitor process variables in industrial control loops.
Is this unit compatible with other SIPART DR 21 models?
The 6DR2104-4 is a specific configuration within the SIPART DR 21 series. Please verify your system requirements and existing part numbers to ensure compatibility with your specific application.
