Description

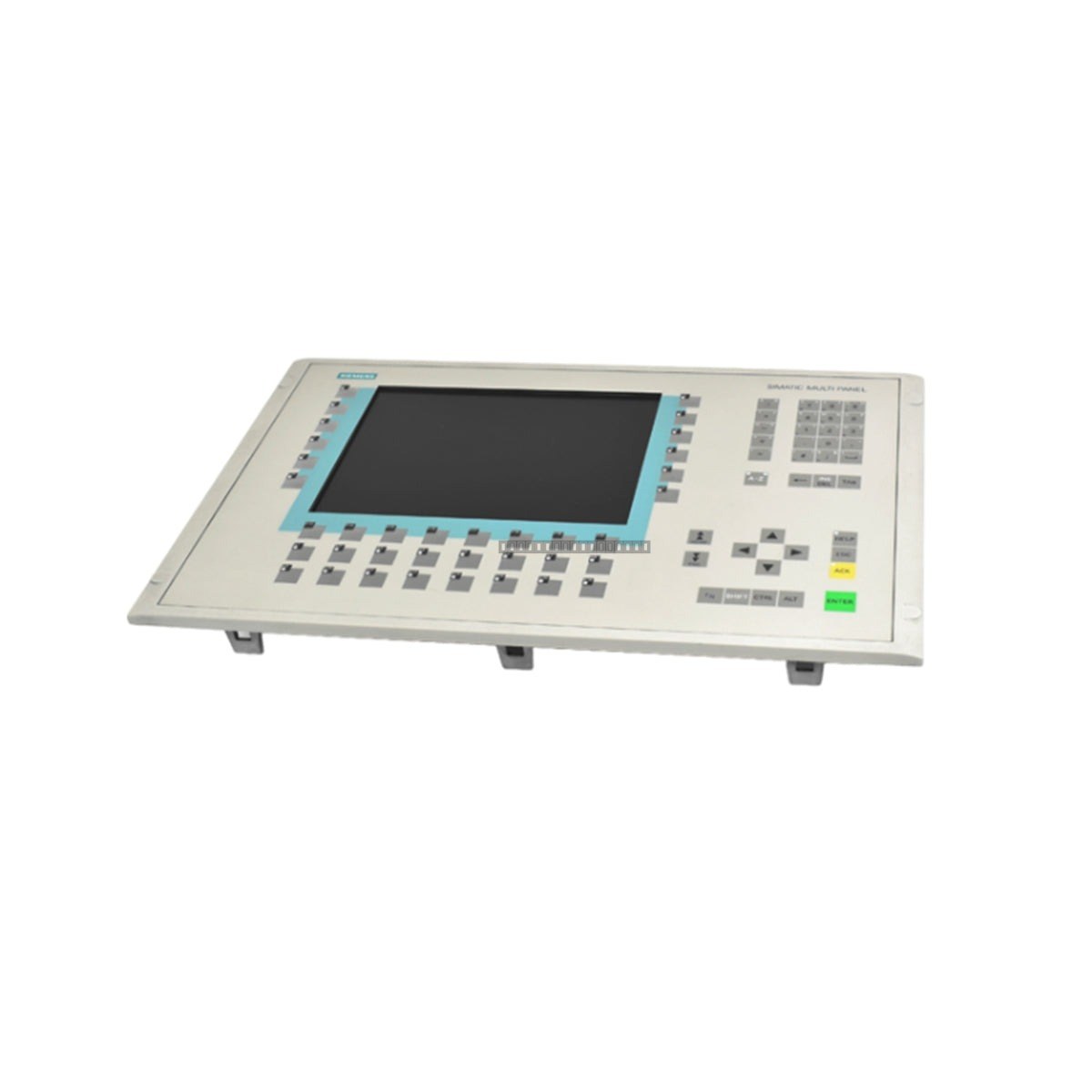

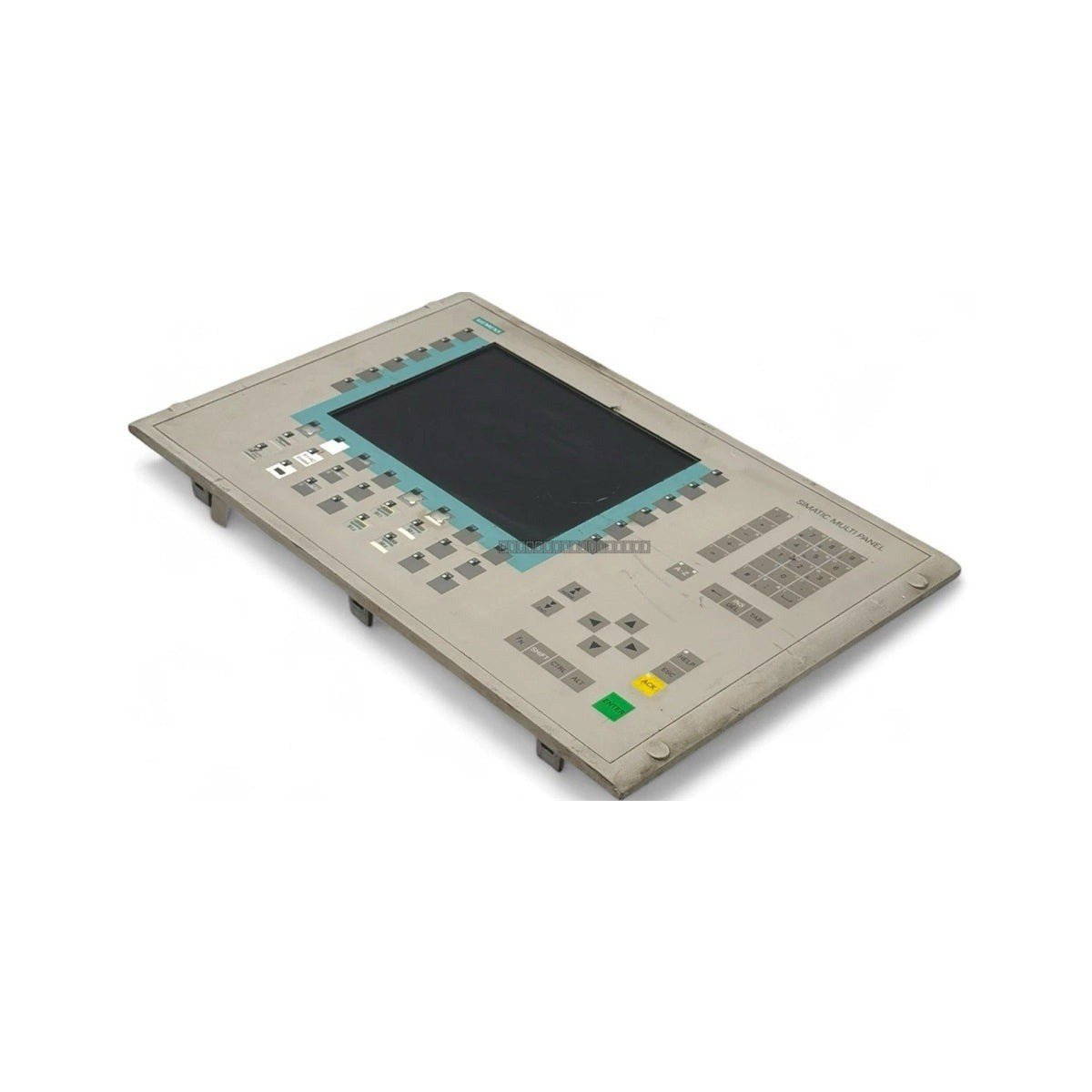

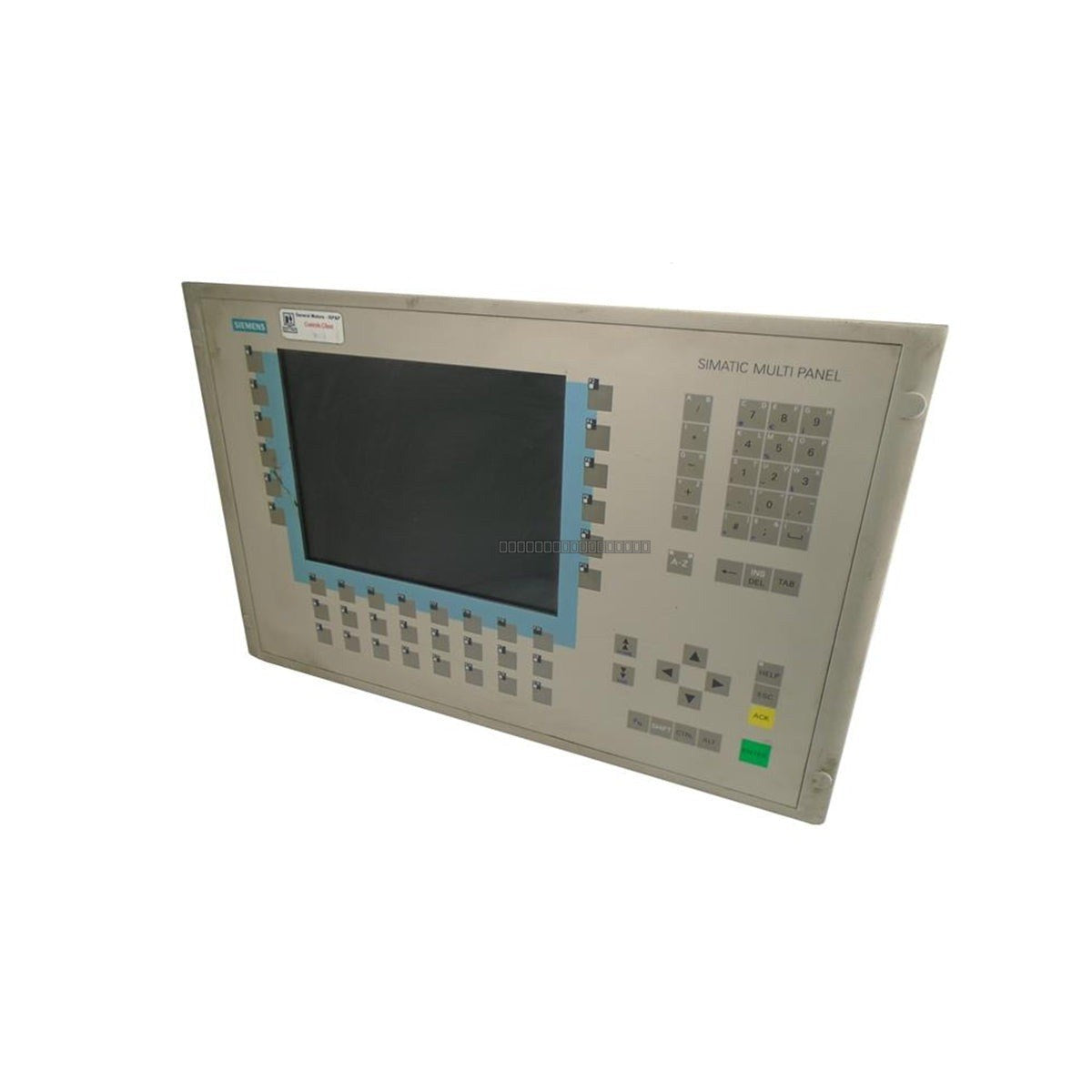

The Siemens 6AV6542-0AG10-0AX0 is a SIMATIC MP 270B Multi Panel designed for industrial operator interface applications. This unit features a 10.4-inch TFT color display and a membrane keypad, providing a robust solution for monitoring and controlling automated processes. As a legacy device, it is frequently utilized in established machine control systems requiring reliable human-machine interaction.
Features
- 10.4-inch TFT color display with 640 x 480 pixel resolution.
- Integrated membrane keyboard for tactile operator input.
- 4 MB of configuration memory.
- Configurable via Siemens ProTool software (Version V6.0 or higher).
- Integrated USB interface for peripheral connectivity.
- Designed for demanding industrial environments with a rated current consumption of 0.9 A.
Applications
- Packaging and palletizing systems for recipe management and error logging.
- Industrial kilns and ovens for multi-step temperature profiling.
- Water treatment and pump station monitoring.
- Injection molding machine cycle and pressure monitoring.
- Maritime machinery and engine control systems.
Technical Specifications
| Model |
6AV6542-0AG10-0AX0 |
| Display Type |
TFT, 256 colors |
| Screen Diagonal |
10.4 inch |
| Resolution |
640 x 480 pixels |
| Backlight MTBF |
50,000 hours (at 25 degC) |
| Control Elements |
Membrane keyboard |
| Power Input (typ.) |
22 W |
| Rated Current |
0.9 A |
| Memory |
4 MB configuration memory |
| Interfaces |
1x USB |
Installation Guidelines
- Ensure the panel is mounted in a clean, dry environment within an appropriate IP-rated enclosure.
- Verify that the mounting cutout dimensions are accurate to maintain the integrity of the front seal.
- Use a damp, soft cloth for cleaning the front membrane; avoid abrasive cleaners or solvents that may damage the display or seal.
- Ensure proper grounding of the panel chassis to minimize electromagnetic interference (EMI).
- Power down the system before connecting or disconnecting communication cables or peripheral devices.
- Maintain adequate ventilation around the rear of the unit to prevent overheating during operation.
FAQs
What is the 6AV6542-0AG10-0AX0?
The Siemens 6AV6542-0AG10-0AX0 is an industrial multi-panel with a 10.4-inch color display and functional keys, typically used with ProTool V6.0 or higher software for process visualization.
What is the difference between MP270 and MP270B?
The 6AV6542-0AG10-0AX0 is a Multi Panel 270B model. The 'B' designation generally indicates updated processor performance and memory specifications compared to the original MP270 series.
What is the memory capacity?
The device features 4 MB of configuration memory and supports up to 2,048 variables for process monitoring.
