Description

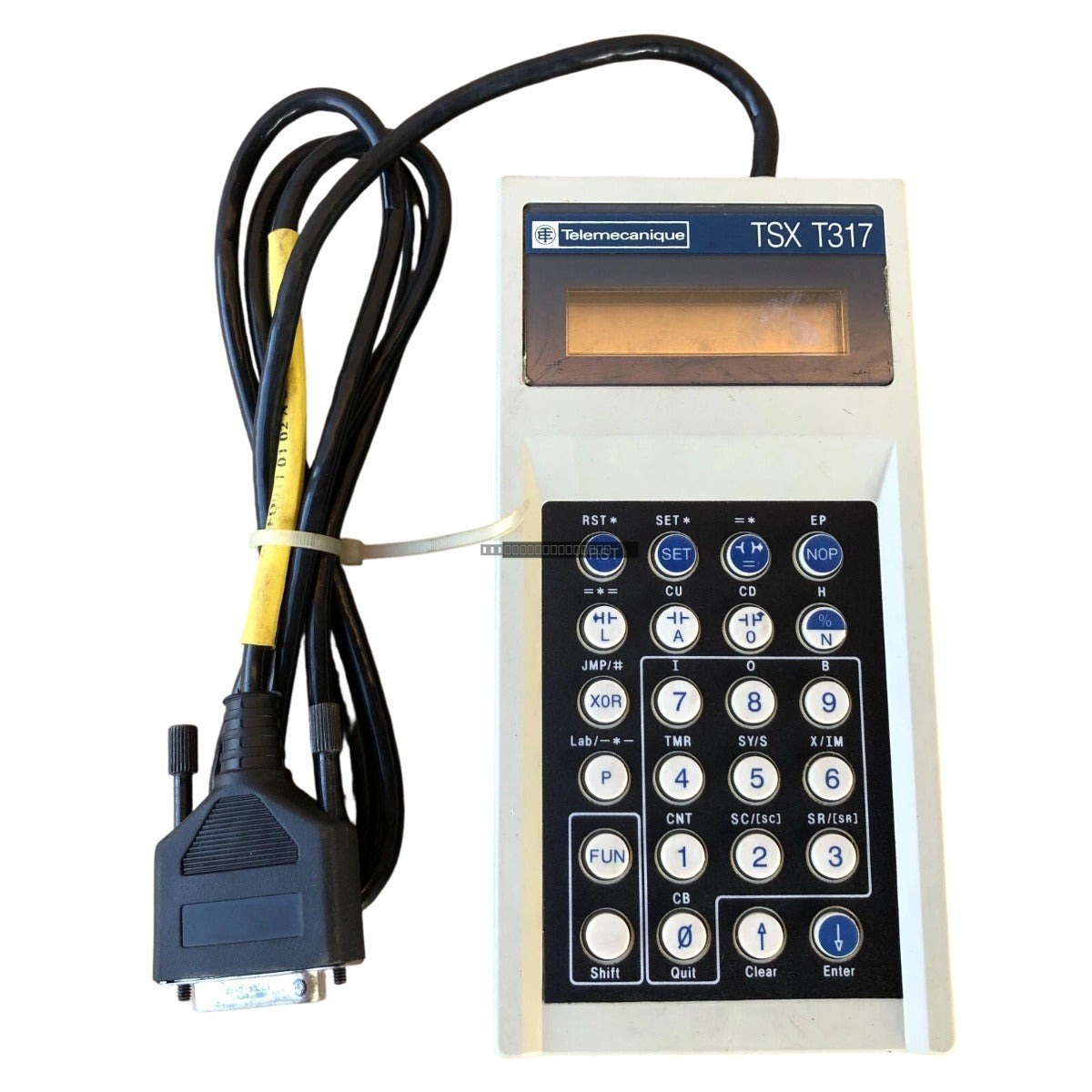

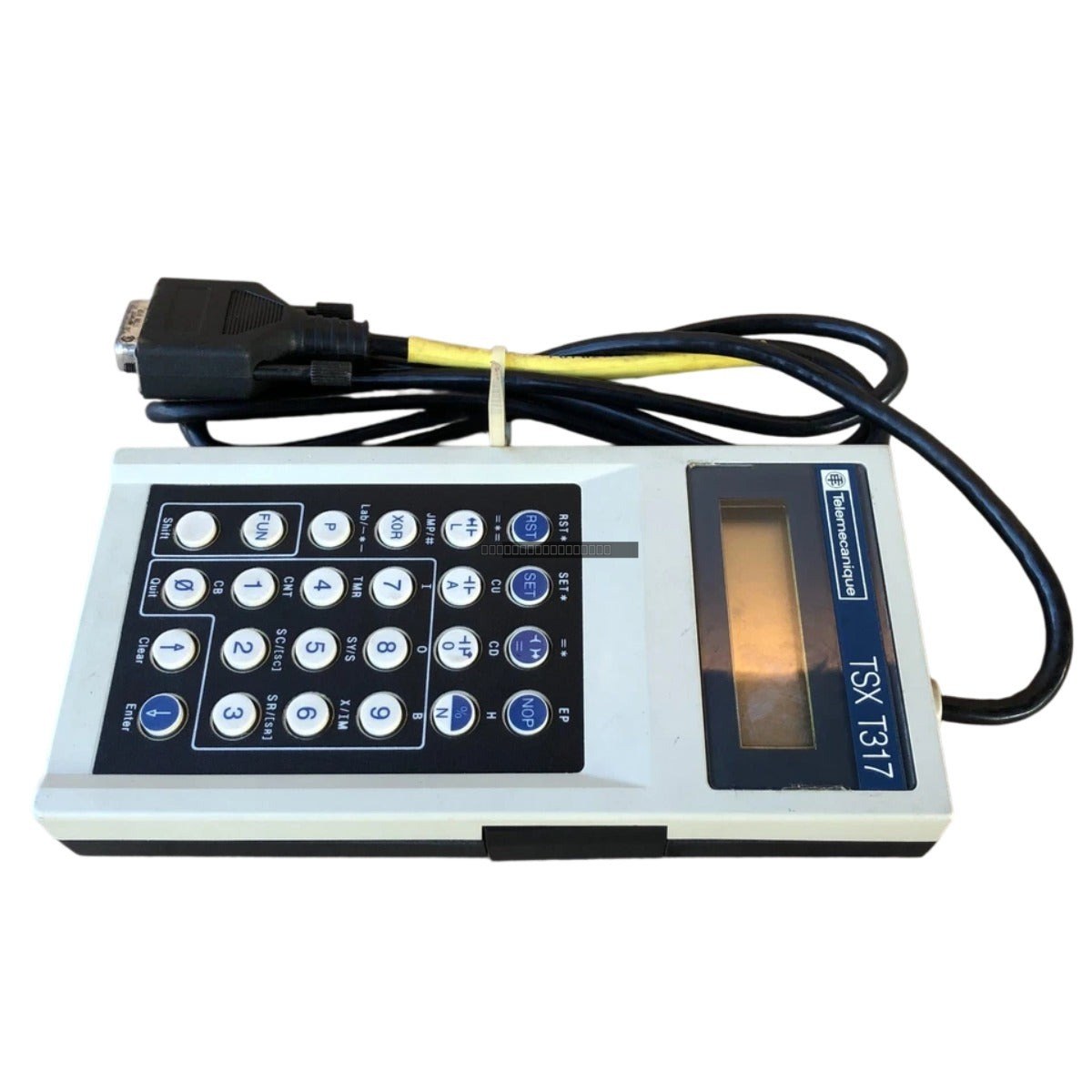

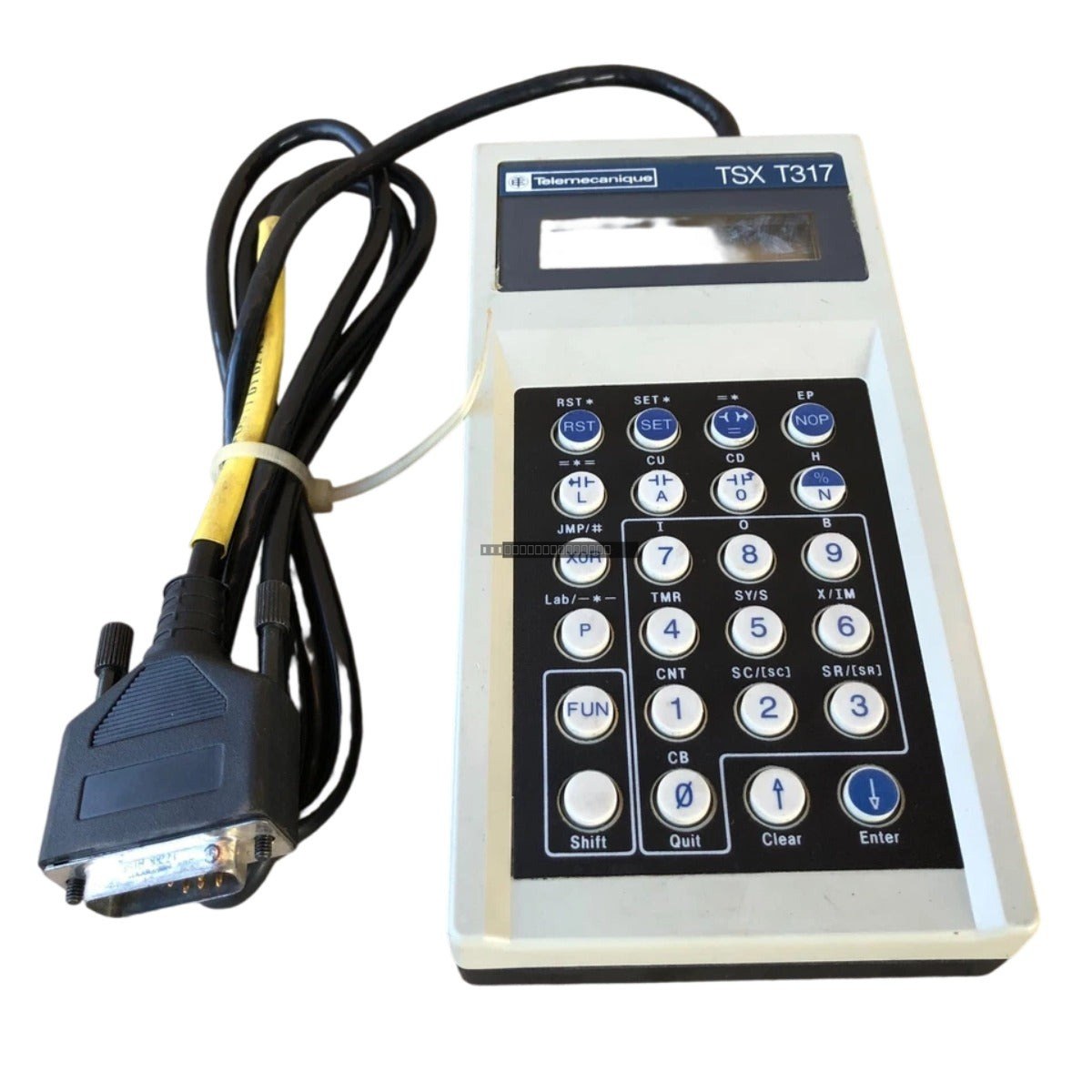

The Schneider TSXT3170 is a robust handheld controller engineered for industrial automation environments. This portable unit provides operators with a direct interface for system management, diagnostics, and monitoring tasks. Designed for field-level efficiency, the TSXT3170 facilitates swift interaction with automation systems, ensuring reliable performance during troubleshooting and routine control operations.
Features
-
Portable Design: Lightweight and ergonomic construction allows for comfortable operation in confined industrial spaces.
-
Intuitive Interface: Features a clear LCD display designed to minimize operator training time and improve diagnostic response speed.
-
Industrial Reliability: Engineered to maintain consistent performance under demanding environmental conditions.
-
Terminal-Line Configuration: Optimized specifically for terminal-line applications to ensure focused and stable control.
-
Seamless Integration: Designed for straightforward connectivity with compatible Schneider automation systems.
Technical Specifications
| Manufacturer |
Schneider Electric |
| Model |
TSXT3170 |
| Type |
Handheld Controller |
| Configuration |
Terminal Line Only |
| Display Type |
LCD |
| Operating Temperature |
-10 degC to +60 degC |
| Power Supply |
24V DC |
| Connection Interface |
Serial Communication |
Installation Guidelines
- Ensure the device is powered down before connecting or disconnecting the serial interface cable.
- Avoid routing communication cables near high-voltage lines or sources of significant electromagnetic interference (EMI) to prevent signal degradation.
- Handle the unit with care; while built for industrial use, the LCD screen and internal components are sensitive to high-impact shocks.
- Maintain proper ventilation around the unit during operation to stay within the specified temperature range.
- Verify that the 24V DC power source is stable and properly grounded according to site safety standards.
FAQ
Q: Is the TSXT3170 suitable for outdoor use?
A: The device is designed for industrial environments within the specified temperature range of -10 degC to +60 degC. Ensure it is protected from direct moisture and extreme weather conditions.
Q: What type of connection does this controller use?
A: The TSXT3170 utilizes a serial communication interface for integration with automation systems.
Q: Does this controller require external power?
A: Yes, the unit operates on a 24V DC power supply.
