Description

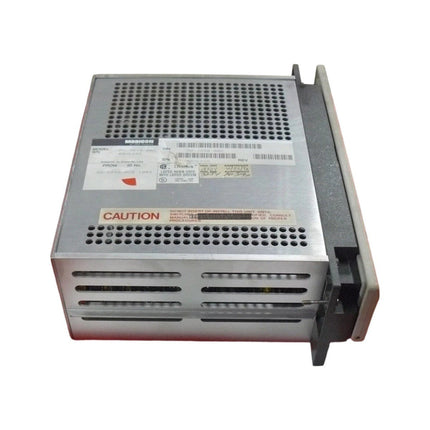

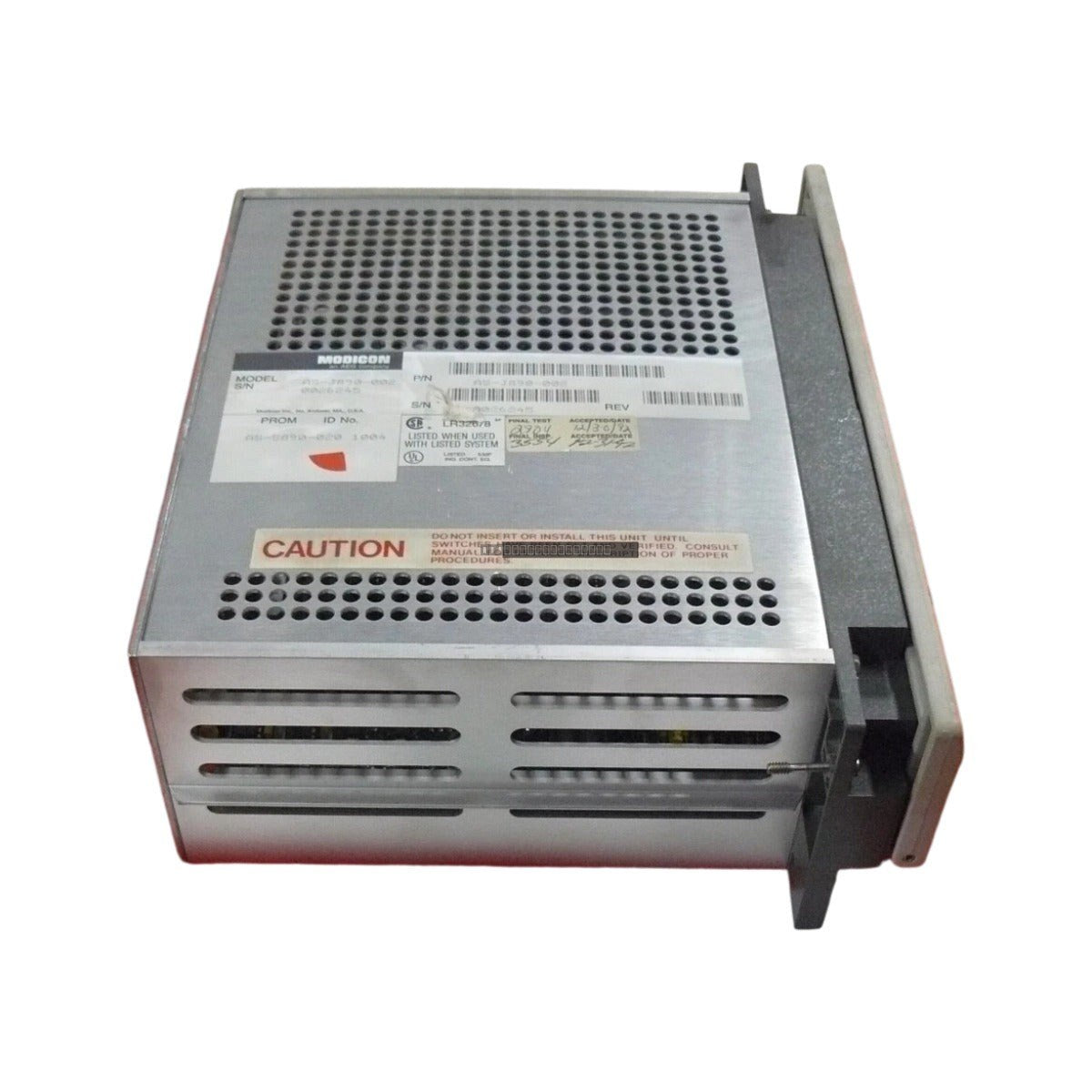

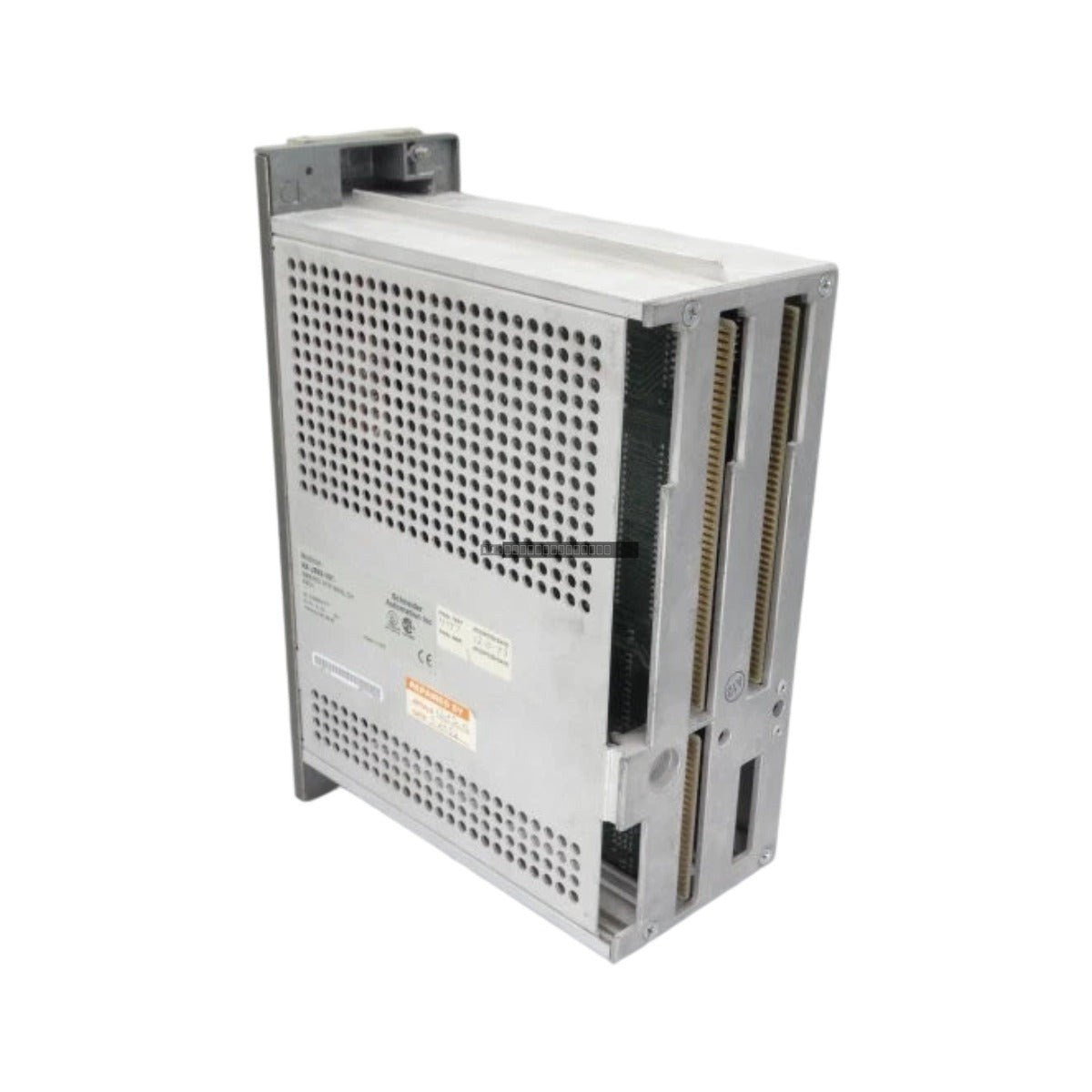

The Schneider Electric ASJ890002 is a specialized remote I/O adapter module designed for the Modicon Quantum automation platform. This interface module facilitates reliable, deterministic communication between remote I/O drops and the central controller, ensuring high-performance data exchange in demanding industrial environments such as chemical processing, power generation, and heavy mining. By supporting distributed network architectures, the module extends the reach of the automation system while maintaining strict data integrity and real-time telemetry processing.
Features
- Dual-channel design supporting redundant cable configurations to prevent system failure due to line breaks.
- High-speed token-pass bus network compatibility for efficient data transmission.
- Integrated hardware logic for independent packet encapsulation, error detection, and address routing.
- Front-panel diagnostic LEDs providing immediate status updates on network activity and channel health.
- Robust isolation between the communication channels and the system backplane to prevent signal interference.
Applications
This module is engineered for large-scale distributed control systems where remote I/O drops must maintain continuous, high-availability links to the primary PLC. It is commonly deployed in infrastructure requiring long-distance signal transmission and high fault tolerance, such as automated manufacturing lines, water treatment facilities, and energy distribution networks.
Technical Specifications
| Model |
ASJ890002 |
| Brand |
Schneider Electric |
| Network Protocol |
Modbus Plus / Remote I/O |
| Power Requirements |
5 VDC, 750 mA (Backplane) |
| Cable Compatibility |
RG-6 Coaxial |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Isolation Voltage |
500 VDC (Channel-to-Backplane) |
Installation Guidelines
- Ensure the system power is completely disconnected before inserting or removing the module from the Quantum backplane.
- Verify that all coaxial cable connections are securely seated and properly terminated to minimize signal reflection.
- Maintain proper ventilation within the control cabinet to ensure ambient temperatures remain within the specified 0-60 deg C operating range.
- Utilize appropriate grounding techniques for the coaxial shielding to minimize electromagnetic interference (EMI) in high-noise environments.
- Handle the module using ESD-safe procedures to prevent damage to internal logic components.
FAQ
Is this module compatible with standard Modbus Plus networks? Yes, the ASJ890002 is designed for use with Modbus Plus/Remote I/O network topologies using RG-6 coaxial media.
Does this module support redundant cabling? Yes, the unit features dual-channel capabilities (Channel A and Channel B) to support redundant network paths for increased system reliability.
