Description

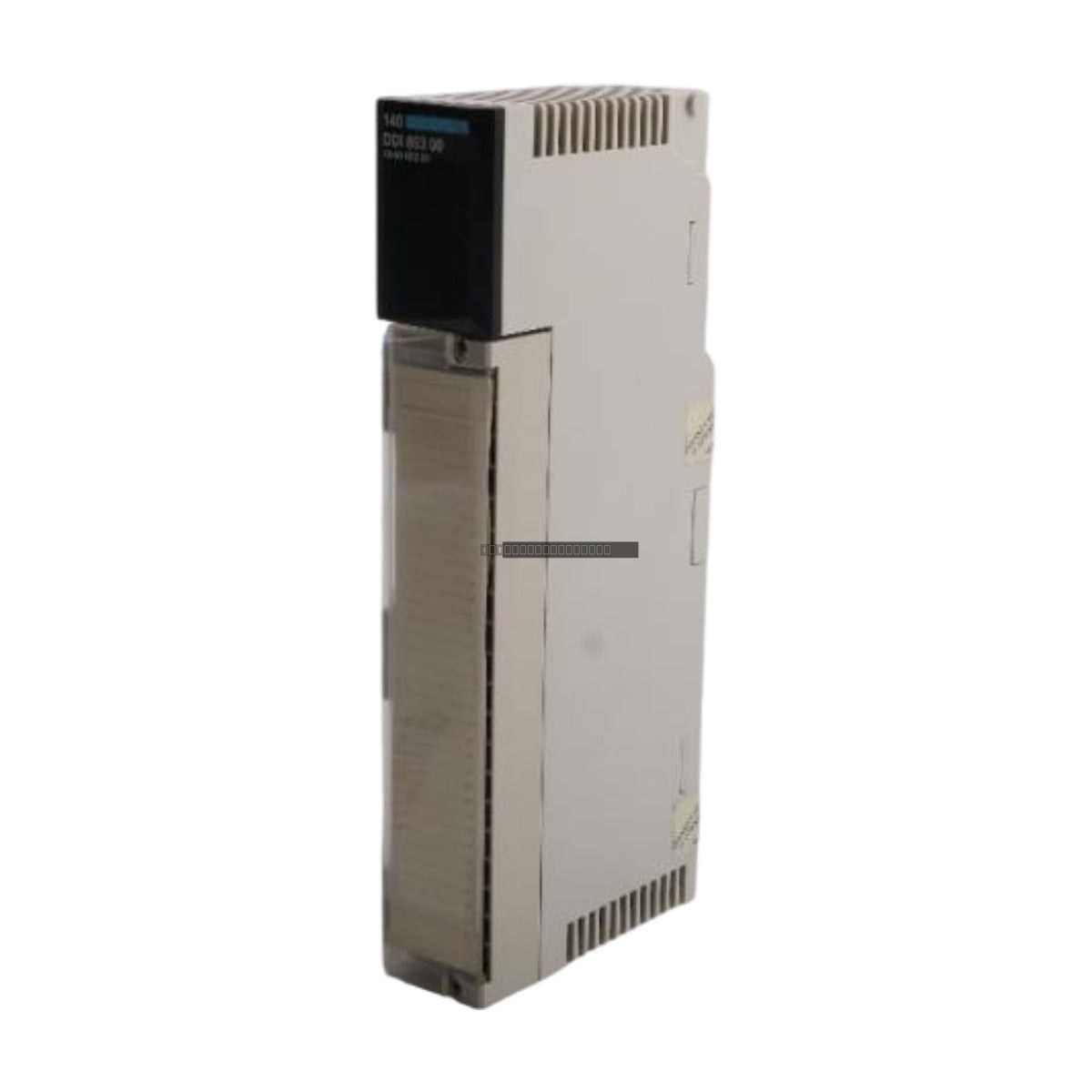

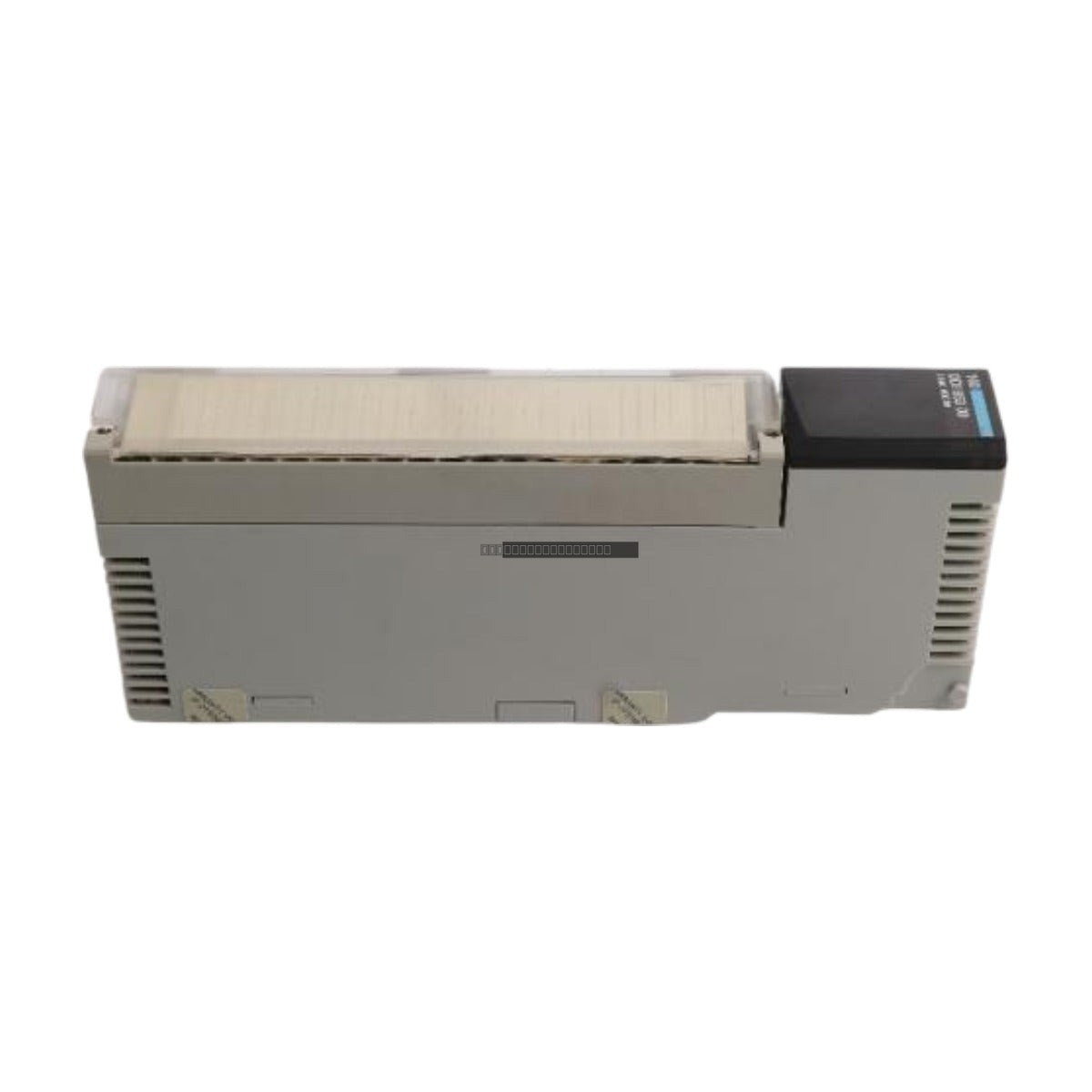

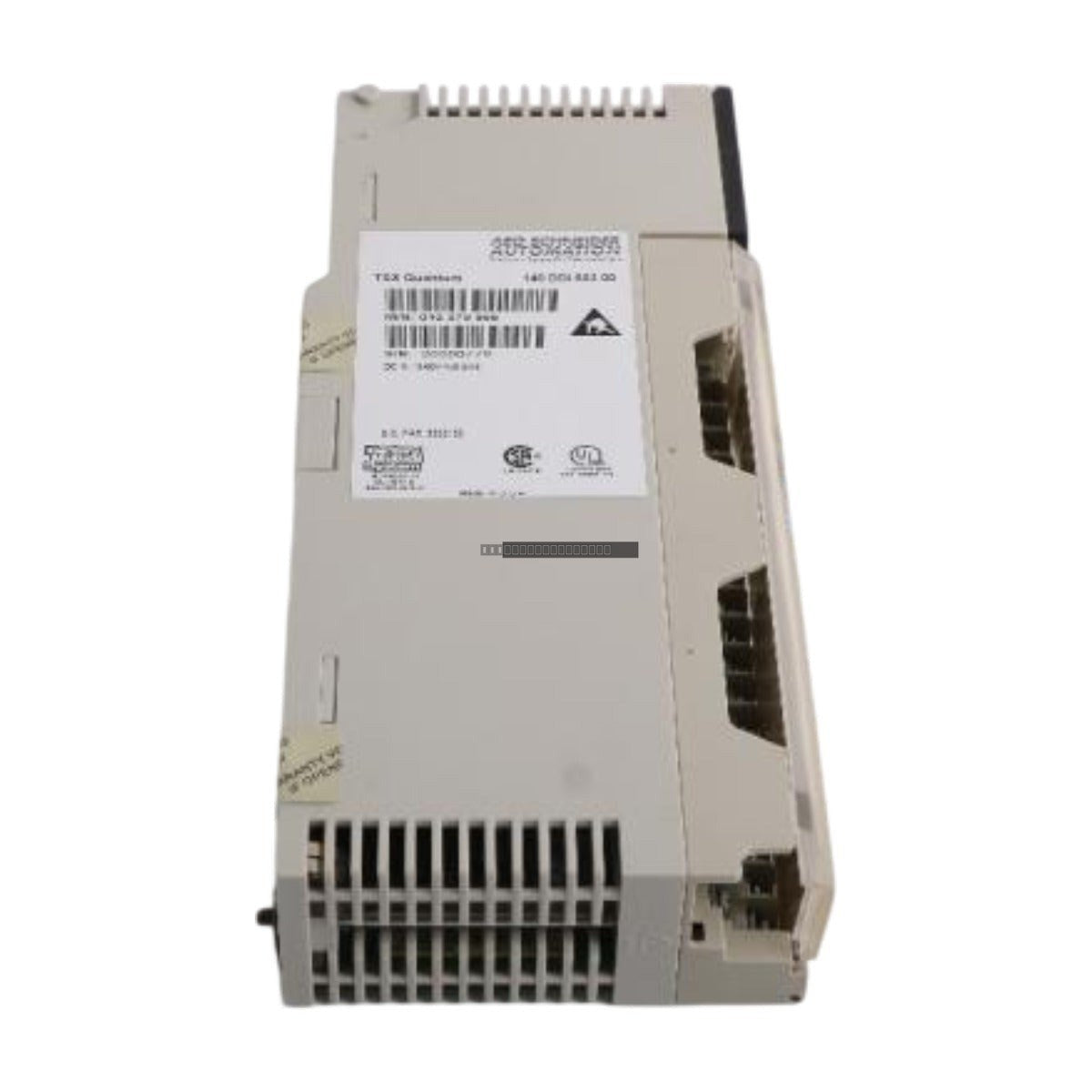

The Schneider Electric 140DDI85300 is a high-density discrete input module engineered for the Modicon Quantum PLC platform. This module is specifically designed to interface with 230 VAC field devices, converting high-voltage input signals into internal logic levels for the controller. It is a critical component for large-scale automation systems in sectors such as water treatment, power generation, and chemical processing, where reliable monitoring of AC-powered field devices is required. The module features robust opto-isolation to shield internal control circuitry from electrical noise and voltage transients common in industrial environments.
Features
- 32 discrete input channels, organized into four isolated groups of eight.
- Supports a wide input voltage range of 170 to 276 VAC.
- Internal RC filtering on each channel to mitigate contact bounce and high-frequency interference.
- Front-panel LED status indicators for real-time channel diagnostics.
- Supports hot-swapping capability within compatible Quantum backplane configurations.
- Integrated opto-isolation between field circuits and the backplane for enhanced system protection.
Technical Specifications
| Model |
140DDI85300 |
| Input Points |
32 (4 groups of 8) |
| Voltage Category |
230 VAC |
| Input Voltage Range |
170 to 276 VAC |
| Frequency Range |
47 to 63 Hz |
| Internal Bus Power |
300 mA at 5 VDC |
| Isolation Voltage |
1780 Vrms (1 minute) |
| Response Time |
12 to 24 ms |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Relative Humidity |
0 to 95% (non-condensing) |
Installation Guidelines
- Ensure the Quantum rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify that field wiring is properly shielded and routed away from high-voltage power cables to minimize EMI.
- Ensure the module is fully seated in the backplane slot and the locking tabs are engaged.
- Maintain adequate ventilation within the cabinet to keep ambient temperatures within the 0 to 60 deg C operating range.
- Check that the input power source matches the 230 VAC specification before connecting to the terminal block.
FAQ
Is this module compatible with other Modicon series?
The 140DDI85300 is designed specifically for the Modicon Quantum platform and is not directly compatible with Momentum or Premium series backplanes.
Can I replace this module while the system is running?
Yes, this module supports hot-swapping in supported Quantum rack configurations, allowing for replacement without halting the entire control process.
What is the purpose of the 4 isolated groups?
The grouping allows you to interface with different AC power phases or independent power sources on a single module, providing greater flexibility for complex cabinet wiring.
