Description

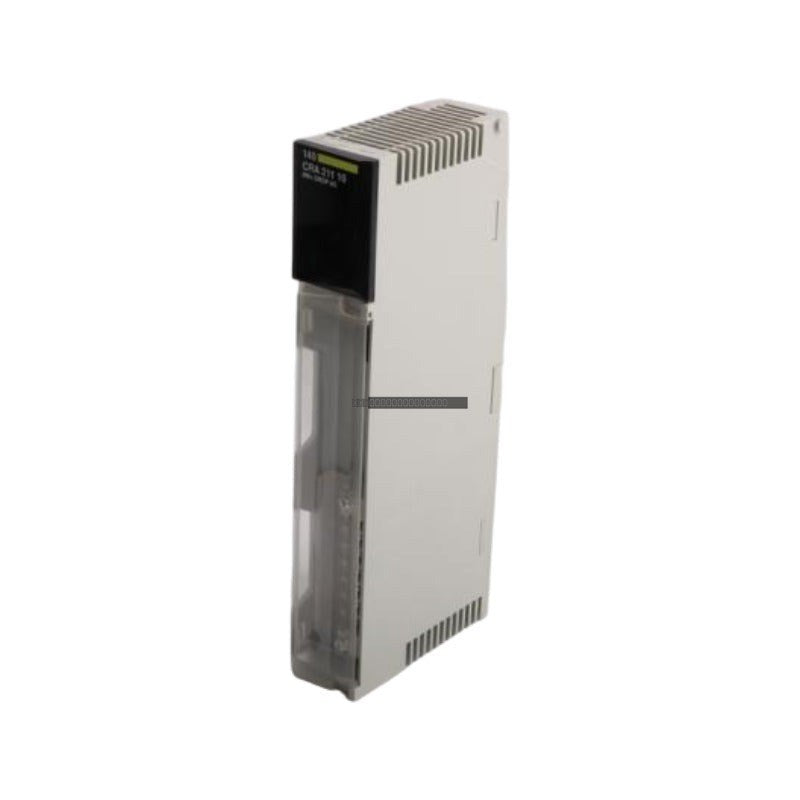

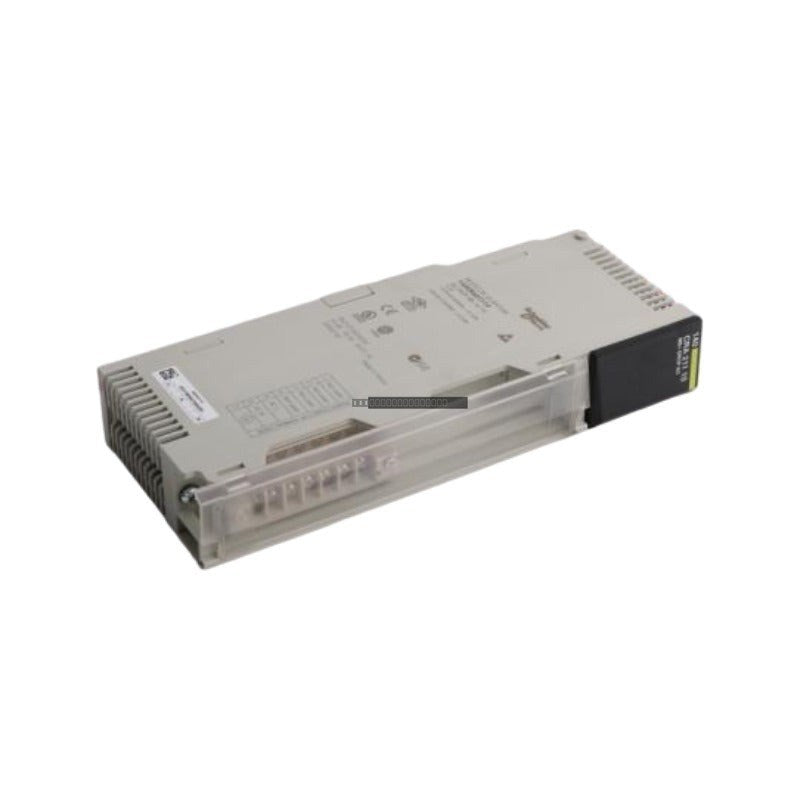

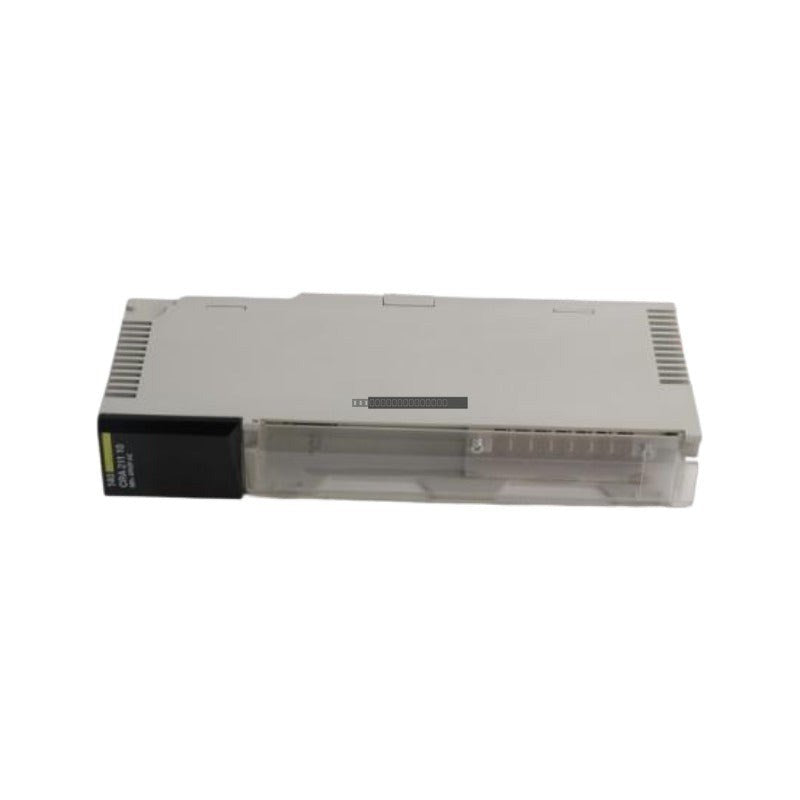

The Schneider Electric Modicon Quantum 140CRA21110 is a specialized Distributed I/O (DIO) drop interface module designed for the Modicon Quantum automation platform. This unit facilitates reliable communication between remote I/O racks and the central PLC controller. By integrating both the communication interface and a dedicated AC power supply into a single housing, it optimizes space within field enclosures while maintaining deterministic data transmission across the Modbus Plus network.
Features
-
Integrated Power and Comm: Combines a single-port Modbus Plus network interface with an internal AC power supply to drive remote rack backplanes.
-
Manual Addressing: Features front-mounted rotary decimal switches for quick, hardware-level station addressing (1 to 64).
-
Real-Time Monitoring: Includes front-panel status indicators to provide immediate visual verification of network traffic, power status, and module health.
-
Robust Design: Engineered for demanding industrial environments, including chemical processing, mining, and manufacturing facilities.
-
High Availability: Designed to maintain synchronized, deterministic signal processing to minimize downtime in critical control loops.
Technical Specifications
| Model |
140CRA21110 |
| Brand |
Schneider Electric |
| Series |
Modicon Quantum |
| Module Type |
DIO Drop Interface Module |
| Network Protocol |
Modbus Plus (Single Port) |
| Input Voltage (115 VAC) |
93 to 132 VAC (47-63 Hz) |
| Input Voltage (230 VAC) |
170 to 264 VAC (47-63 Hz) |
| Station Address Range |
1 to 64 |
| Max Inrush Current |
10A (115V) / 20A (230V) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Humidity |
95% non-condensing |
Installation Guidelines
-
Power Safety: Always ensure the system power is disconnected before installing or removing the module from the rack backplane.
-
ESD Precautions: Handle the module using proper electrostatic discharge (ESD) prevention techniques to protect sensitive internal circuitry.
-
Mounting: Ensure the module is fully seated in the rack slot and secured according to standard Quantum backplane mounting procedures.
-
Grounding: Follow standard industrial grounding practices to minimize EMI and ensure signal integrity across the Modbus Plus network.
-
Environment: Maintain adequate clearance around the module to facilitate airflow and heat dissipation within the enclosure.
FAQ
Q: Does this module require external software for addressing?
A: No, the 140CRA21110 uses physical rotary switches on the front panel to set the station address, allowing for rapid configuration without software tools.
Q: Can this module operate on both 115V and 230V AC?
A: Yes, it is designed to accept wide-range AC utility power, covering 115 VAC and 230 VAC nominal ranges with specific tolerance bands.
Q: What is the primary function of the 140CRA21110?
A: It acts as an interface between a remote Modicon Quantum I/O rack and the main control system via a Modbus Plus network, while simultaneously providing the necessary DC power to the local rack backplane.
