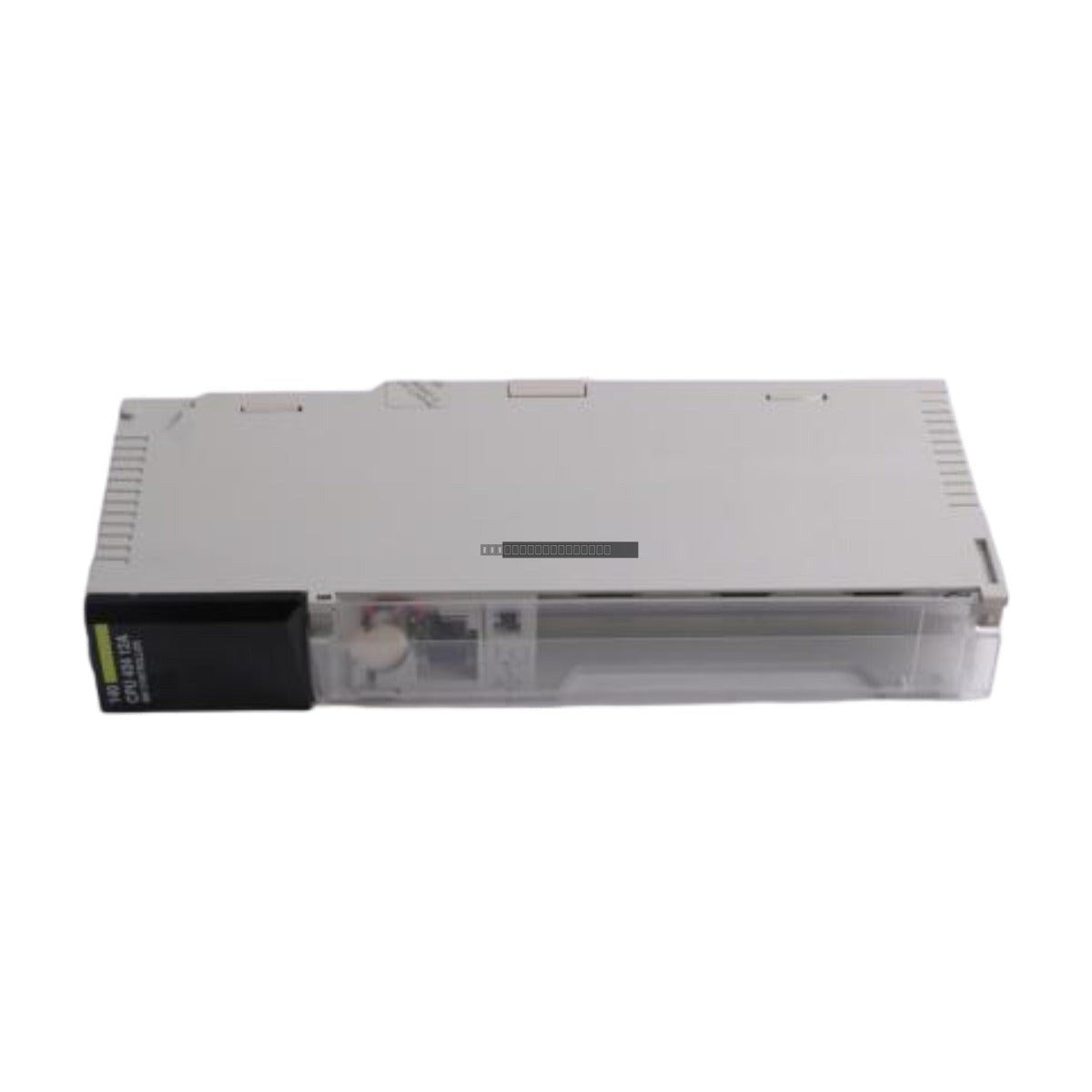

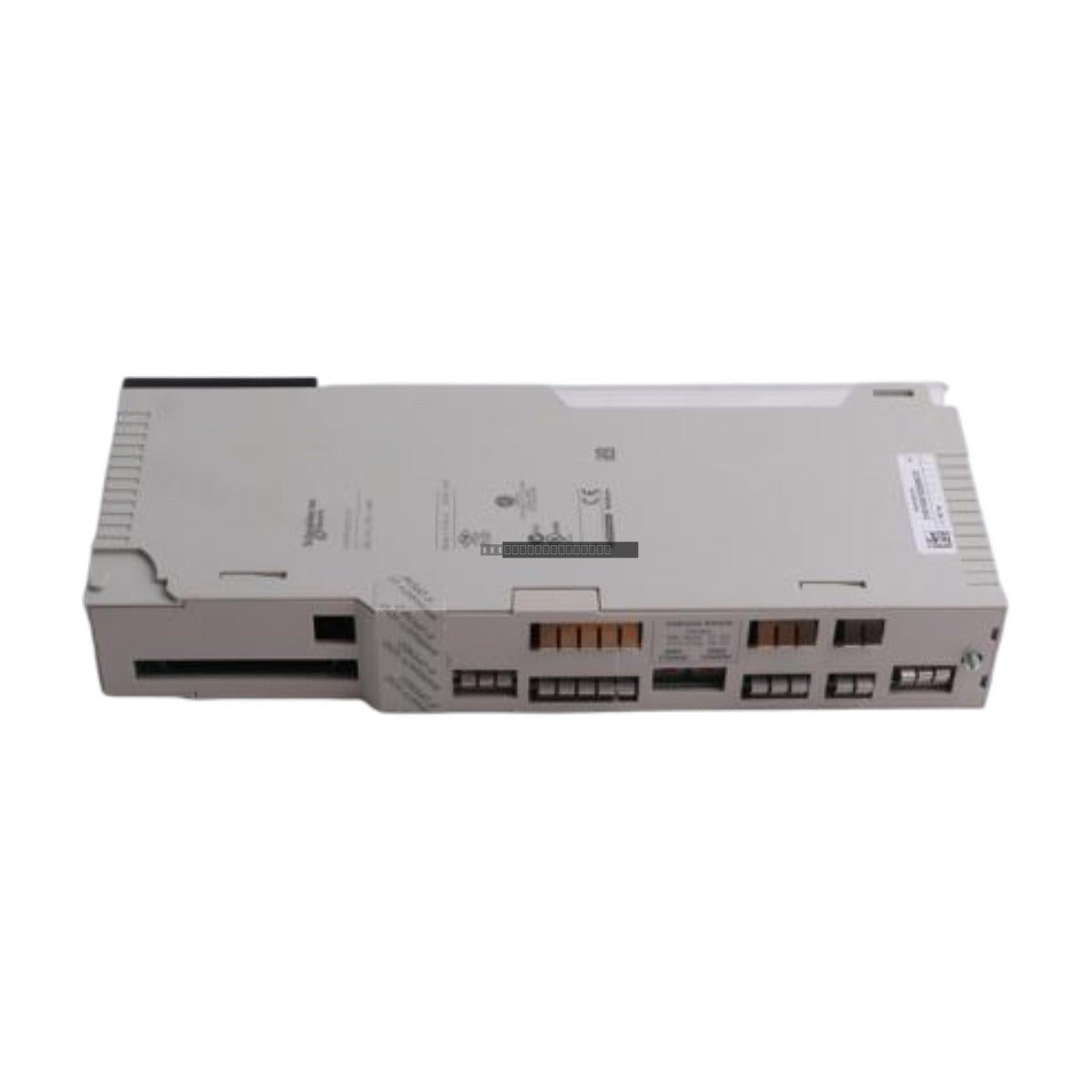

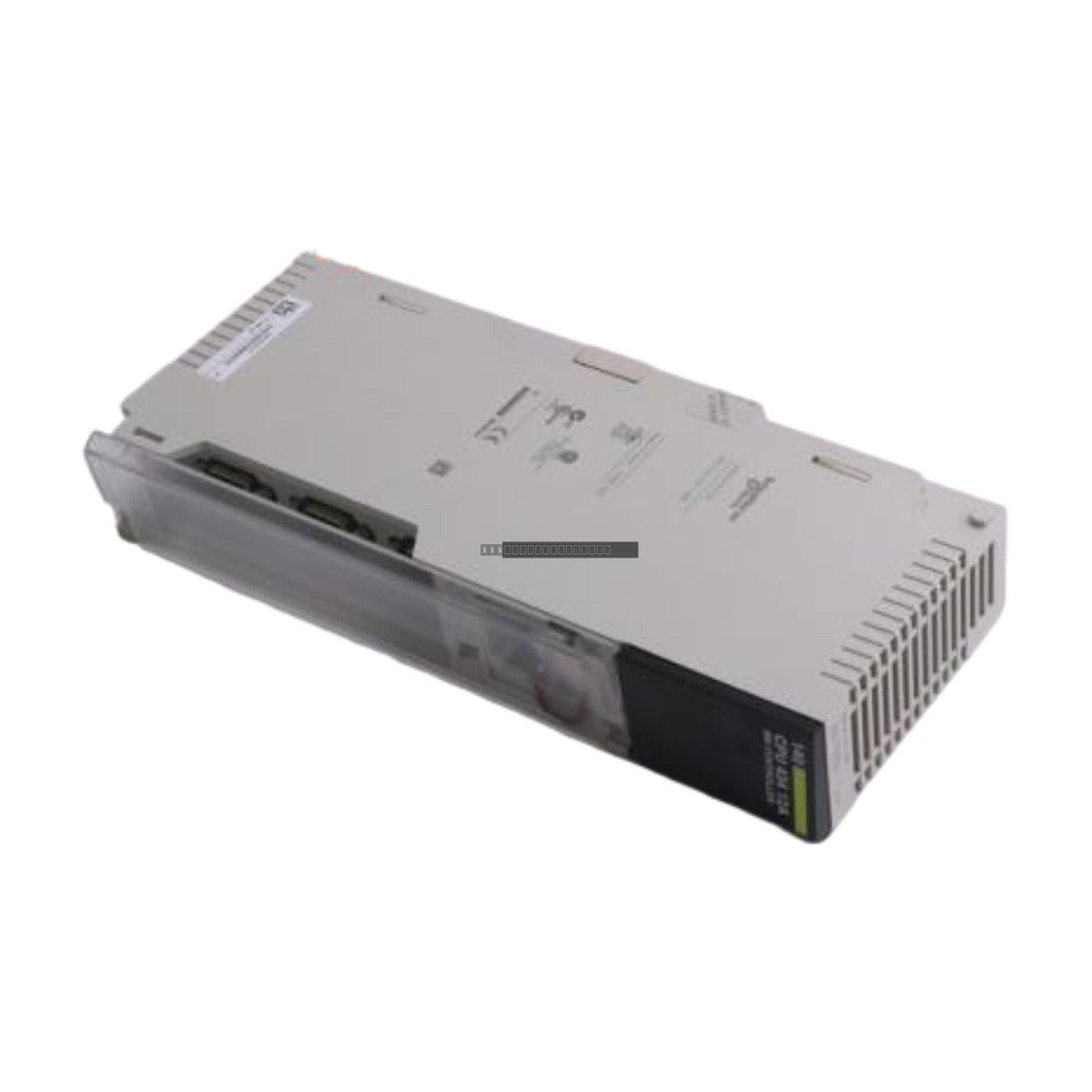

The Schneider Electric 140CPU4321A is a high-performance central processing unit designed for the Modicon Quantum automation platform. This module provides robust control capabilities suitable for demanding industrial environments, featuring an 80486 processor architecture running at a clock frequency of 66 MHz. It is engineered to support complex logic execution, offering reliable processing power for distributed and remote I/O configurations.

Features

• Processor: 80486 architecture operating at 66 MHz.
• Memory: Equipped with 896 kB of internal RAM for application storage and data processing.
• Instruction Speed: Optimized for LL984, with an execution time of 0.1 to 0.5 ms per 1 Kinstruction.
• Network Capacity: Supports up to 63 distributed drops and 31 remote drops for scalable system expansion.
• System Monitoring: Integrated 250 ms watchdog timer for enhanced operational safety.
• Software Compatibility: Fully compatible with ProWORX 32 and Concept programming environments.

Technical Specifications

Model	140CPU4321A
Processor	80486
Clock Frequency	66 MHz
Internal RAM	896 kB
Bus Current Consumption	1250 mA
Clock Drift	+/- 8 s/day (0 to 60 degC)
Watchdog Timer	250 ms

Installation Guidelines

• Ensure the power supply is disconnected before installing or removing the CPU module from the Quantum rack.
• Verify that the backplane connector pins are clean and free of debris to ensure reliable electrical contact.
• The module should be seated firmly into the designated slot and secured using the integrated locking mechanisms.
• Maintain adequate ventilation within the control cabinet to prevent overheating, keeping the ambient temperature within the specified 0 to 60 degC range.
• Route communication cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.

FAQ

What software is required to program the 140CPU4321A?
This module is compatible with Schneider Electric's ProWORX 32 and Concept programming software suites.

What is the typical bus current requirement for this unit?
The 140CPU4321A requires 1250 mA from the backplane bus.

What is the operating temperature range for this CPU?
The module is designed for operation within an ambient temperature range of 0 to 60 degC.
