Description

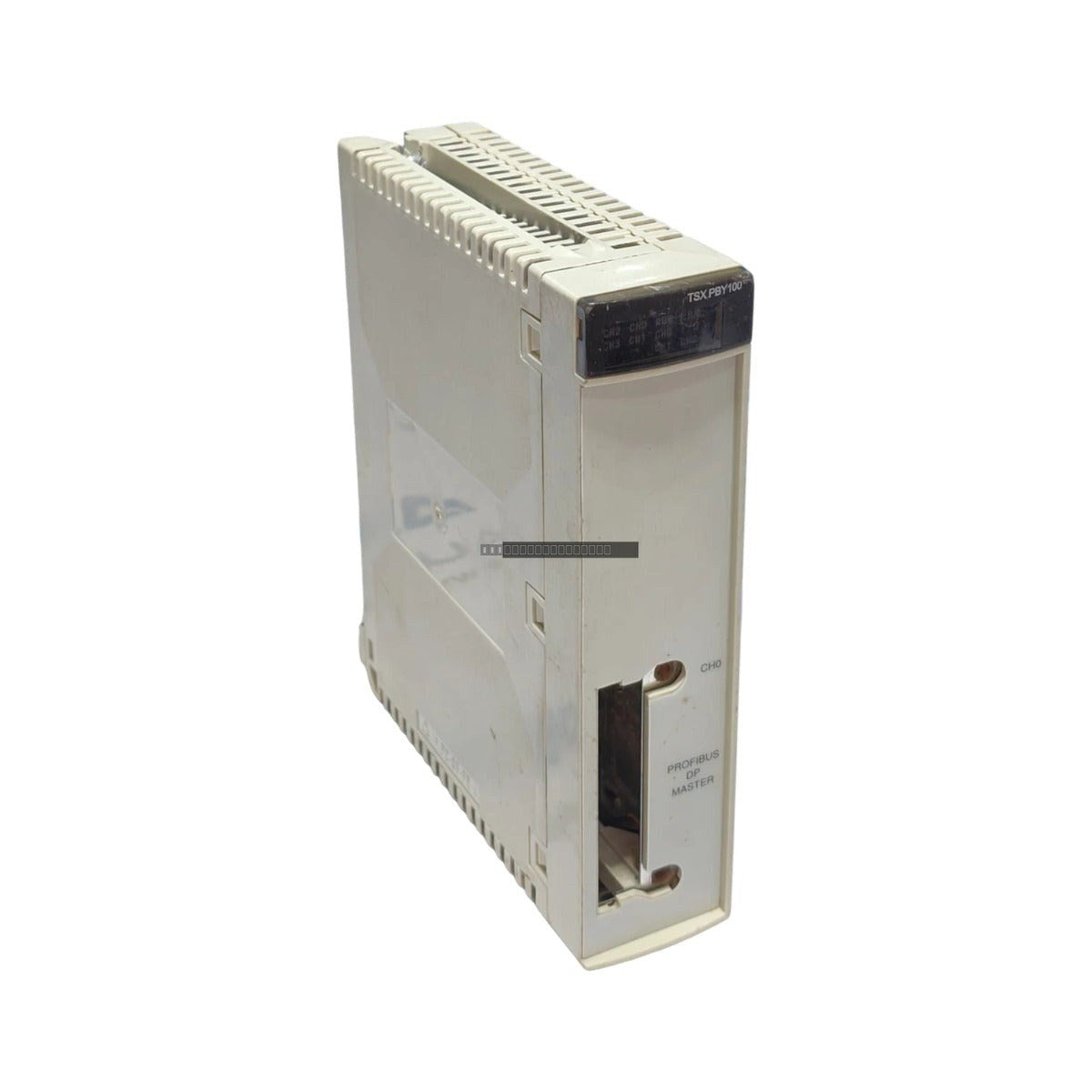

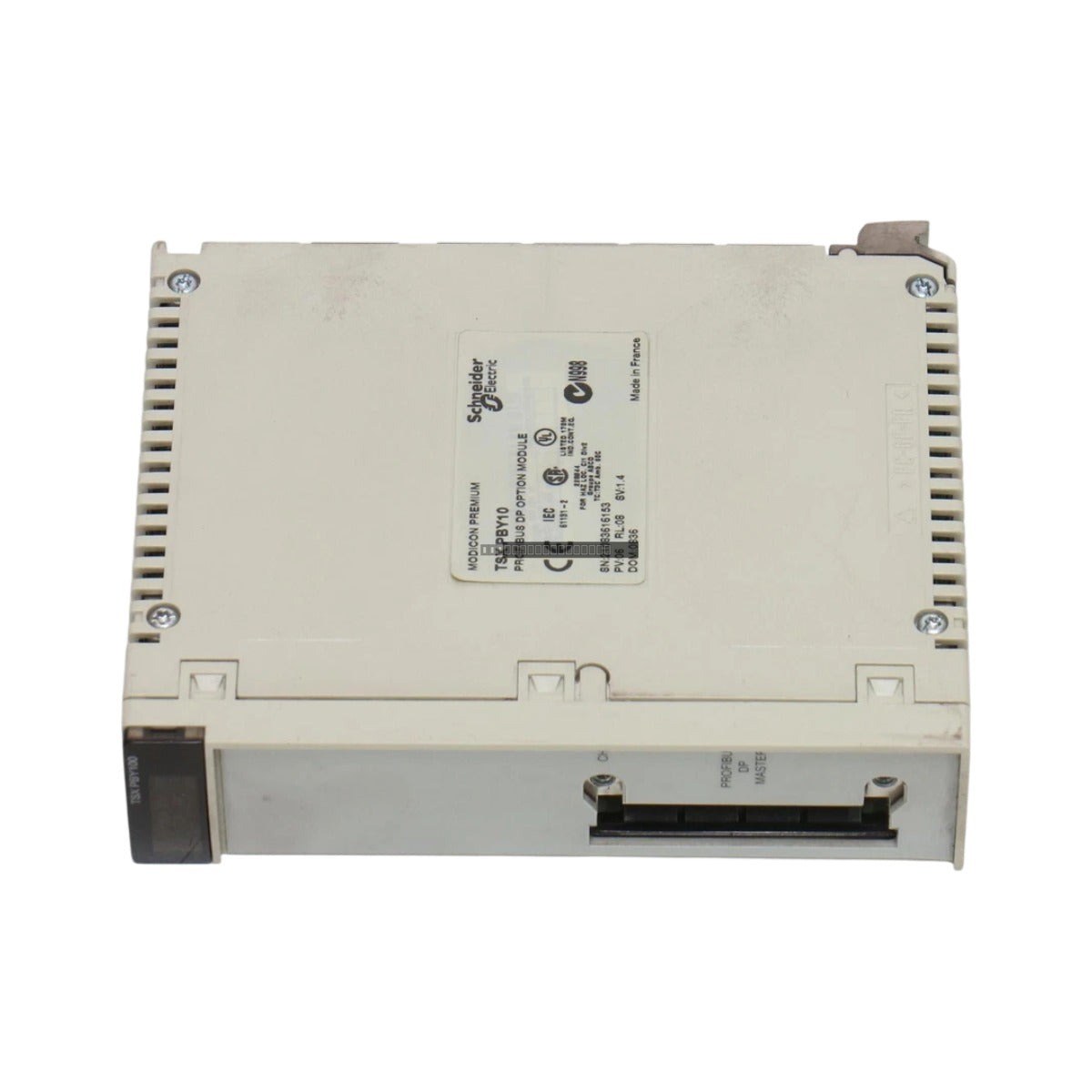

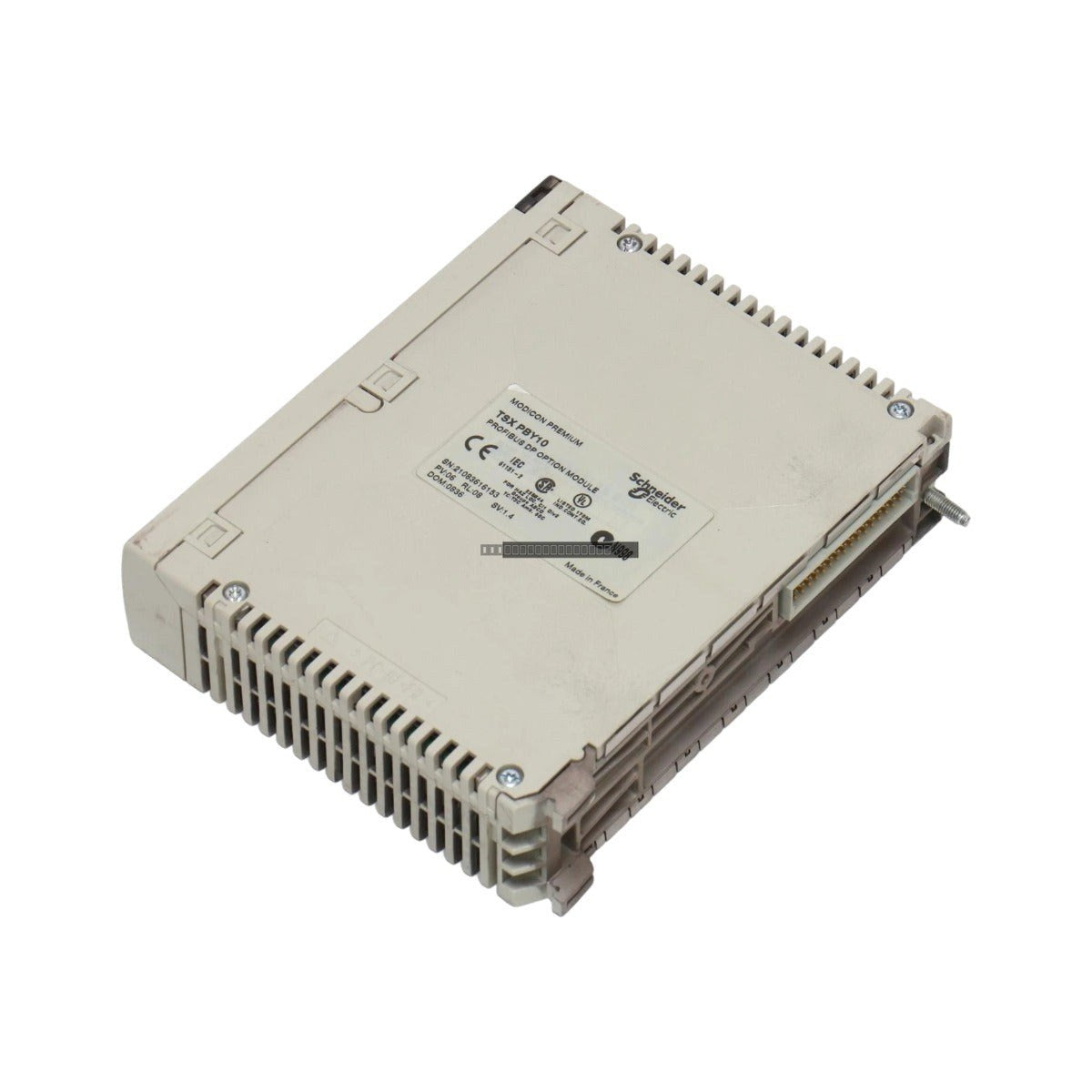

The Schneider Electric TSX PBY10 (often referenced in the TSX PBY 100 series) acts as a high-performance Profibus DP Master module designed for integration within Modicon Premium PLC architectures. This communication module facilitates robust, deterministic fieldbus connectivity, allowing the controller to manage complex distributed I/O systems, variable frequency drives, and intelligent sensors across industrial environments. By offloading communication tasks to an dedicated on-board processor, the module ensures efficient data exchange without impacting the cycle time of the primary CPU.
Features
- Supports Profibus DP V0 master functionality for reliable fieldbus control.
- Manages up to 125 slave nodes on a single network segment.
- Provides configurable data transmission rates ranging from 9.6 Kbps up to 12 Mbps.
- Features integrated front-panel LED indicators for real-time monitoring of bus activity, network health, and module status.
- Utilizes RS-485 differential signaling for high-integrity data transmission.
- Includes optical isolation to protect the internal backplane from external electrical surges and common-mode noise.
Applications
This module is engineered for demanding automation tasks in sectors including oil and gas processing, thermal power generation, and large-scale manufacturing facilities. It is ideal for applications requiring high-speed, reliable communication between the main controller and remote terminal units or distributed I/O drops.
Technical Specifications
| Model |
TSX PBY10 / TSXPBY100 |
| Protocol |
Profibus DP V0 Master |
| Physical Layer |
RS-485 |
| Max Slave Capacity |
125 nodes |
| Baud Rate |
9.6 Kbps to 12 Mbps |
| Power Supply |
400 mA at 5 VDC (backplane) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-25 to 70 deg C |
| Relative Humidity |
10 to 95% non-condensing |
| Isolation |
500 VDC field-to-backplane |
Installation Guidelines
- Ensure the Modicon Premium rack is powered down before inserting or removing the module to prevent damage to the backplane connectors.
- Slide the module into the designated slot until the locking mechanism engages securely.
- Use shielded twisted-pair cabling for RS-485 connections to minimize electromagnetic interference (EMI).
- Ensure proper grounding of the cable shield at the entry point of the control cabinet to maintain signal integrity.
- Maintain adequate ventilation clearance around the module to keep ambient temperatures within the specified 0 to 60 deg C operating range.
FAQ
Q: Does this module support Profibus DP V1?
A: The TSX PBY10 is designed for Profibus DP V0 master functionality.
Q: Can this module be hot-swapped?
A: It is standard industrial practice to power down the rack or isolate the backplane before installation or removal of communication modules to prevent electrical faults.
