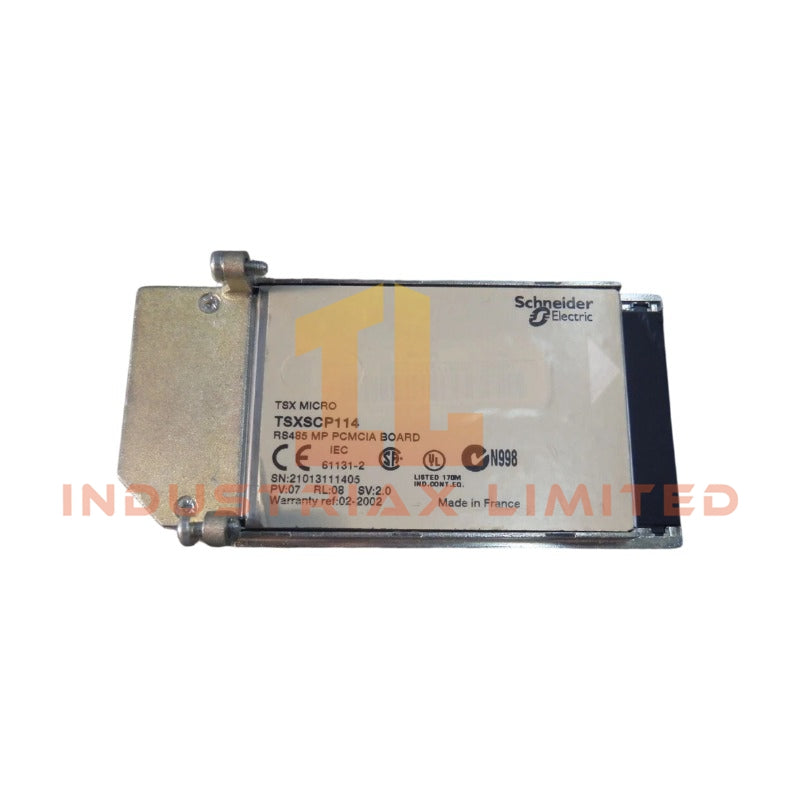

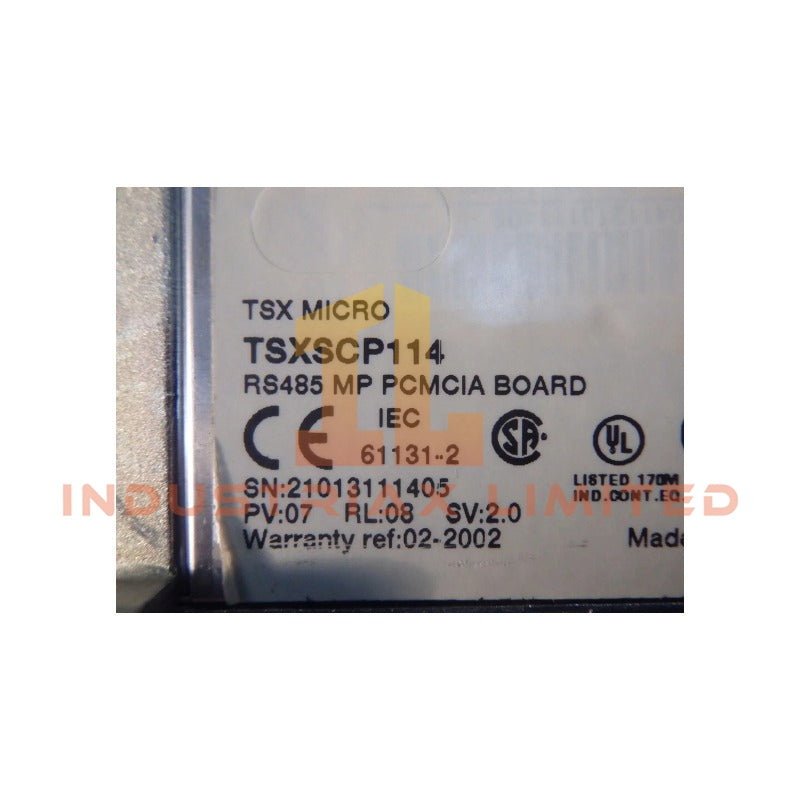

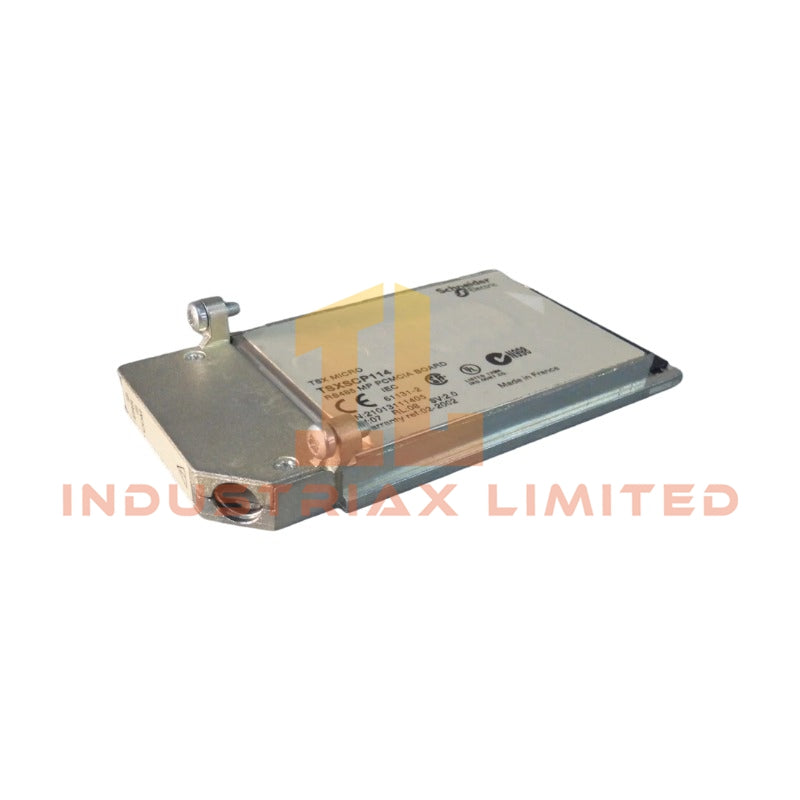

Schneider Electric TSXSCP114 Modicon Premium PCMCIA Communication Card

The Schneider Electric TSXSCP114, also cataloged as the TSXSCP114 PCMCIA Communication Card, operates as a dedicated hardware component for RS485 serial communication within the Modicon Premium Automation platform. The card provides Modbus, Character Mode, and Uni-Telway communication through a Type III PCMCIA interface and is intended for use with Premium processors and Atrium co-processors.

Suffix Breakdown & Model Matrix

The supplied documentation identifies TSXSCP114 as a fixed catalog number. No official suffix variants or ordering matrix are specified; therefore, no suffix interpretation is provided.

Hardware Specifications

Parameter	Specification
Model	TSXSCP114
Brand	Schneider Electric
Product Series	Modicon Premium Automation Platform
Product Type	PCMCIA Communication Card
Memory Type	PCMCIA Card Type III
Physical Interface	RS485
Supported Protocols	Modbus, Character Mode, Uni-Telway
Compatible Equipment	TSX37-21/22, TSXSCY21601, Premium Processor, Atrium Co-processor
Supply Voltage	5 VDC
Power Consumption	150 mA @ 5 VDC
Origin	France
Weight	0.105 kg
Dimensions	17 cm x 15.5 cm x 3.5 cm (package dimensions)
Operating Temp	Not specified in the supplied documentation
Commercial Status	Discontinued (02 December 2020)
Service Status	End of Service: 31 December 2027

Backplane Communication Integration

Within the Modicon Premium platform, the TSXSCP114 exchanges communication data through the controller architecture using its dedicated PCMCIA interface rather than discrete field wiring. Communication timing and protocol execution are determined by the host Premium processor firmware. Firmware compatibility should therefore be verified against the target CPU before installation or controller maintenance.

Frequently Asked Questions

Q: Does the TSXSCP114 support hot insertion or removal while the PLC is energized?
A: The supplied documentation does not specify hot-swap capability. Installation or removal should follow the controller maintenance procedure recommended for the host Premium processor.

Q: Which communication protocols are available on the RS485 interface?
A: The card supports Modbus, Character Mode, and Uni-Telway communication over its RS485 physical interface.

Q: Is this card a standalone communication processor?
A: No. The TSXSCP114 functions as an accessory communication card intended for compatible Premium processors and Atrium co-processors.

Field Installation Guidelines

• Confirm processor compatibility before inserting the Type III PCMCIA card.
• Disconnect system power or follow the controller maintenance procedure if hot insertion is not explicitly supported.
• Use RS485 cabling with proper signal polarity and network termination according to the communication network design.
• Route communication cables separately from high-power conductors to reduce electromagnetic interference.
• Bond cable shields according to the site's grounding standard and maintain continuous shielding through communication junctions.
• Verify the configured communication protocol (Modbus, Character Mode, or Uni-Telway) matches the connected network before system commissioning.
