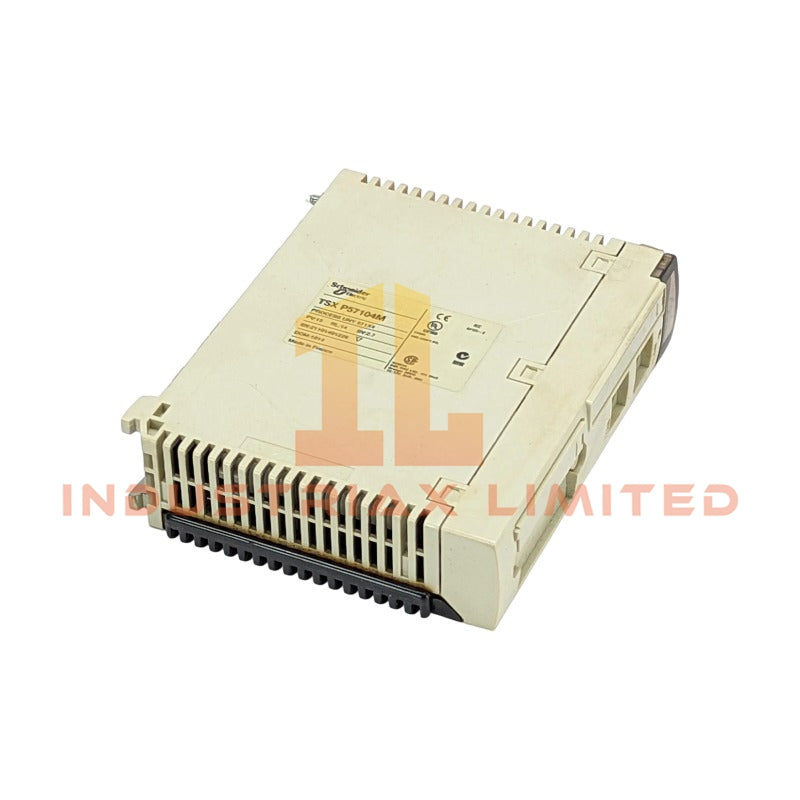

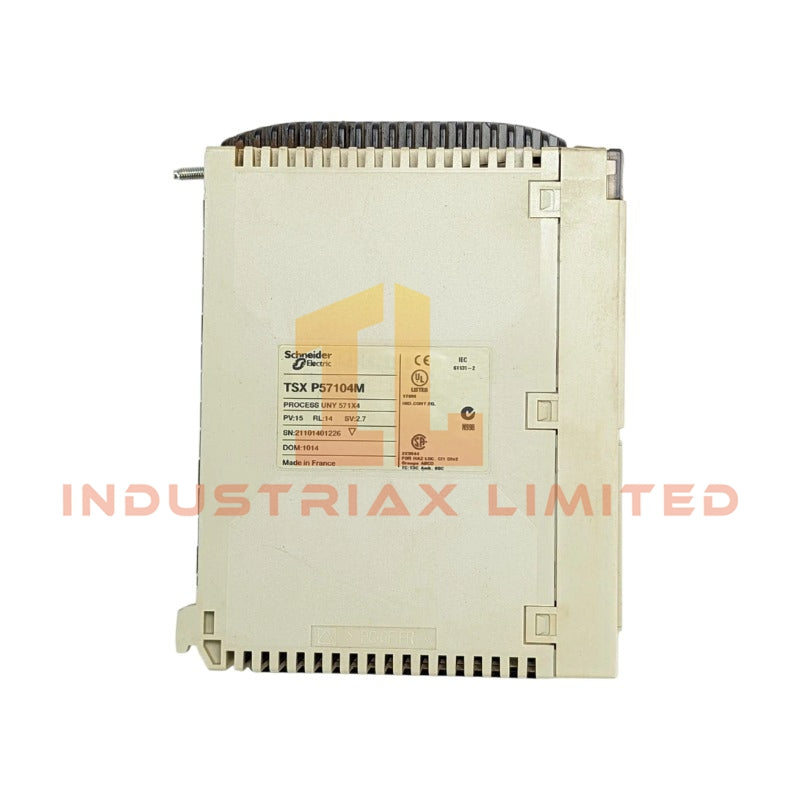

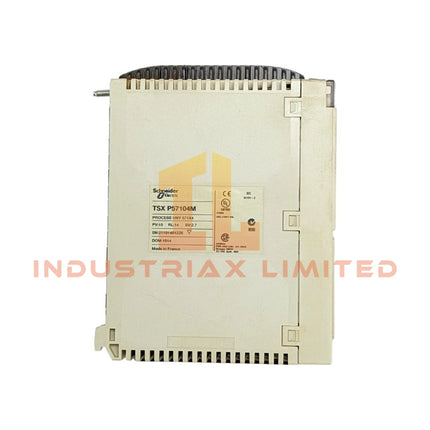

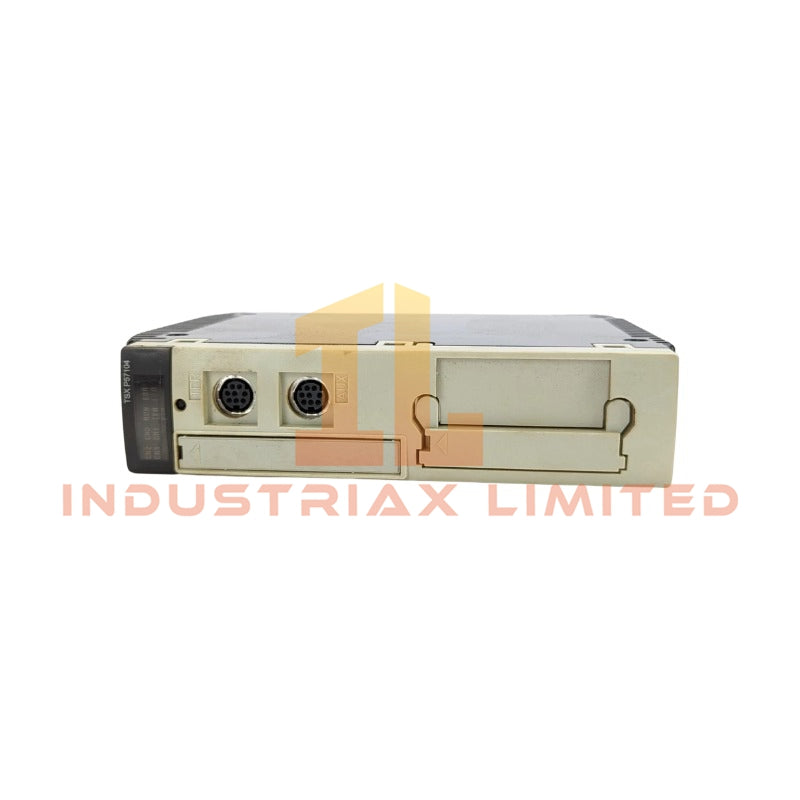

Schneider Electric TSXP57104M Unity Processor Module

Configured for execution of PLC scan cycles and system task scheduling in Modicon Premium Automation platform, the Schneider Electric TSXP57104M (TSXP57104M Unity processor) provides direct physical/electrical execution for multi-rack I/O processing and Unity Pro application runtime handling.

Hardware Specifications

Parameter	Specification
ModelBrand	Schneider Electric TSXP57104M
Origin	FR
Weight	0.38 kg
Dimensions	5.5 cm x 18 cm x 26 cm (package)
OperatingTemp	0 degC to 60 degC
PowerConsumption	850 mA at 5 V DC
PLC Platform	Modicon Premium Automation Platform
Program Memory	224 kB (with PCMCIA), 96 kB data
I/O Capacity	512 discrete I/O, 24 analog I/O
Rack Support	2 x 12-slot or 4 x 4/6/8-slot racks
Task Structure	1 master task, 1 fast task, up to 32 event tasks
Serial Communication	RS485 (19.2 kbit/s, non-isolated mini DIN)

Industrial Control Backplane Bus and Deterministic Execution Behavior

The Schneider Electric TSXP57104M operates within Modicon Premium backplane architecture, where deterministic scan execution is synchronized across distributed rack modules via internal system bus arbitration. Backplane communication velocity is optimized for cyclic task scheduling, supporting mixed Boolean and arithmetic instruction execution with fixed scan timing behavior under Unity Pro runtime.

Firmware execution supports structured application segmentation (master, fast, and event tasks), enabling predictable I/O refresh alignment across multi-rack configurations. PCMCIA expansion impacts execution timing profiles, particularly for floating-point instruction cycles and data block handling, requiring deterministic memory arbitration during high-load scan conditions.

Frequently Asked Questions

Q: Does TSXP57104M support hot-swap of CPU module during runtime?
A: No hot-swap capability is defined for the processor module. Removal requires system power down due to backplane arbitration and memory state dependency.

Q: How does PCMCIA memory affect execution timing?
A: When PCMCIA is installed, instruction execution time increases for Boolean and arithmetic operations due to external memory access latency and address mapping overhead.

Q: What is the backplane load behavior under maximum I/O configuration?
A: Backplane current draw is constrained by 850 mA at 5 V DC processor consumption, with additional load distributed across rack-mounted I/O modules via system power rails.

Field Installation Guidelines

Processor shall be mounted on Modicon Premium compatible rack backplane ensuring full mechanical engagement of connector interface. Maintain separation between RS485 serial wiring and high-noise power conductors to minimize signal coupling.

Shielding for communication lines shall be grounded at single-point earth reference. Ensure rack power supply stability at 5 V DC system rail before processor insertion. Avoid insertion or removal under energized conditions.

Backplane connectors must be free of dust and oxidation prior to installation. Torque and mechanical locking should follow rack manufacturer specification for module retention integrity.
