Description

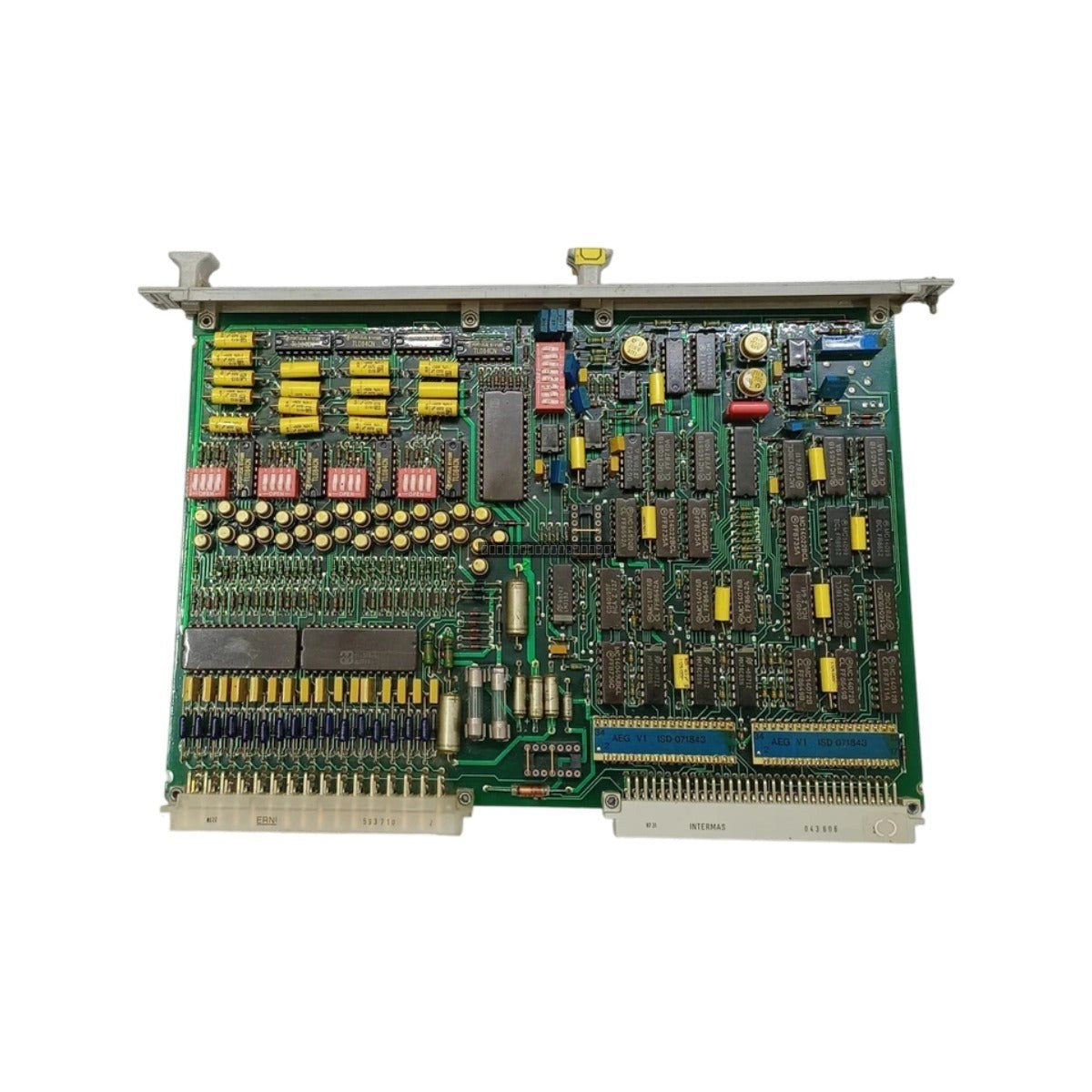

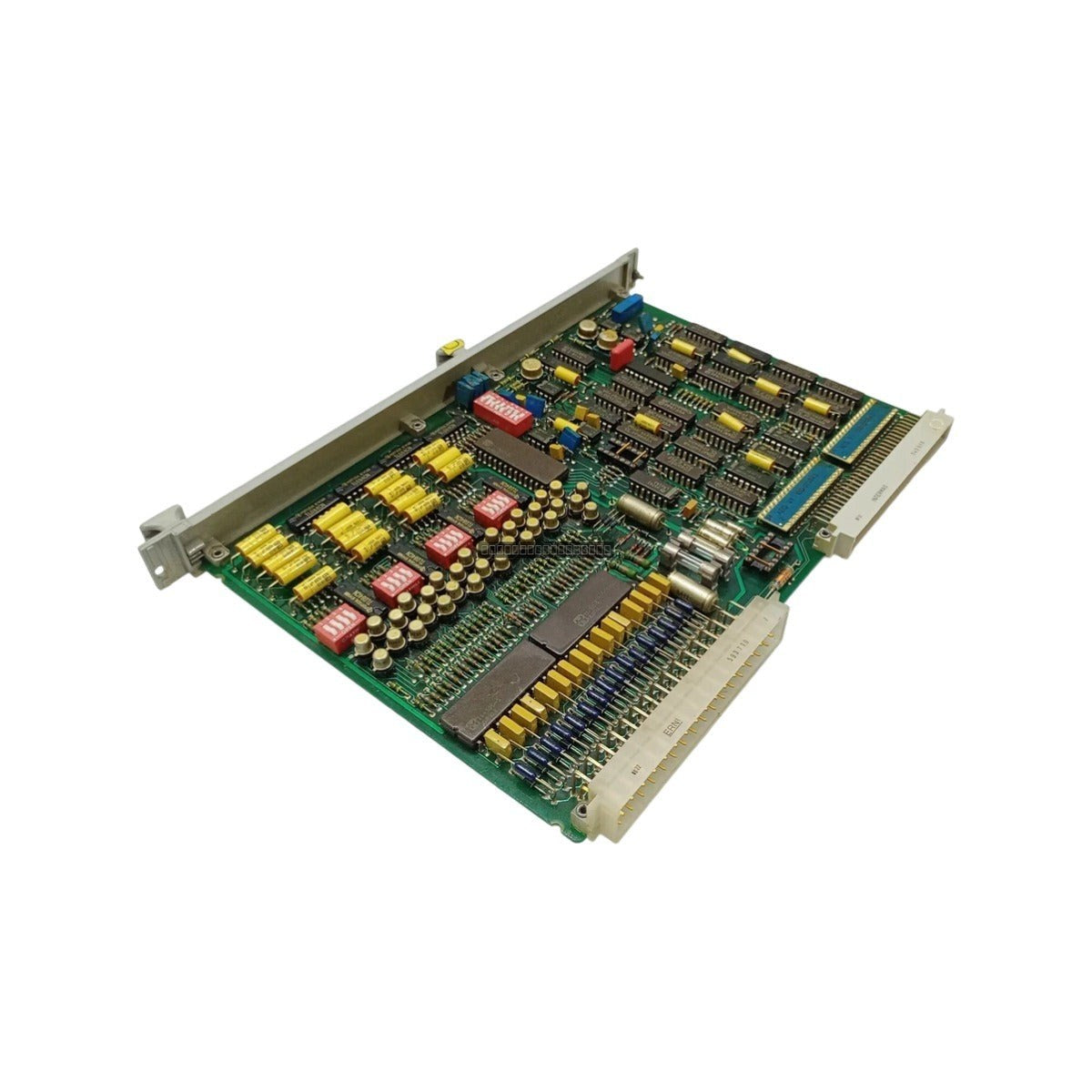

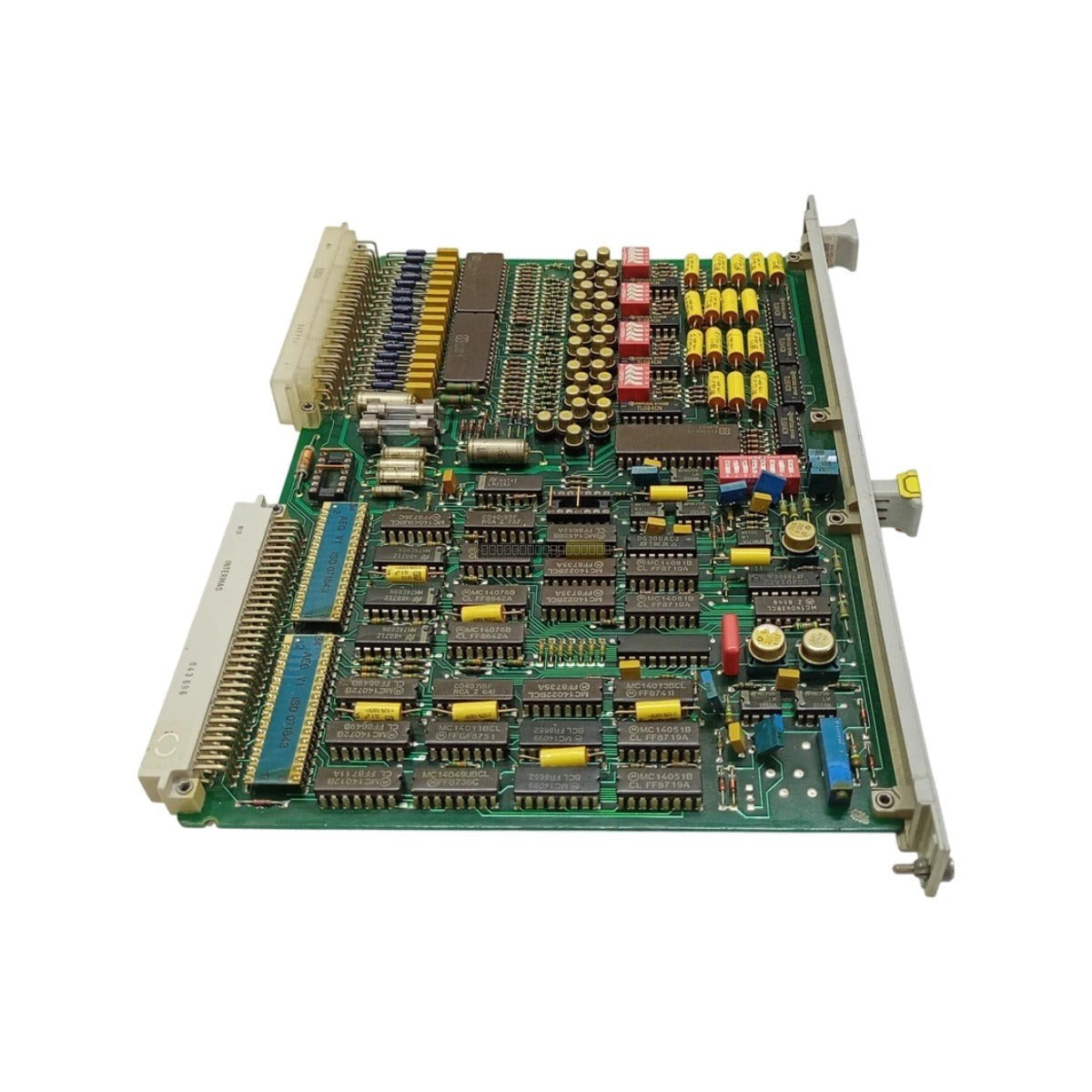

The MWA 16PN is a high-density mixed discrete I/O interface module designed for the GE Fanuc Series 90-30 programmable logic controller platform. This module consolidates 8 digital inputs and 8 digital outputs into a single-slot footprint, facilitating localized control loops and efficient signal management in industrial environments. It is engineered for demanding continuous-process applications, including petroleum refining, power generation, and material handling systems. By integrating both input data acquisition and output signal control, the module optimizes backplane utilization, reduces field-wiring complexity, and enhances system reliability through optocoupler isolation.
Features
-
Integrated Mixed I/O: Combines 8 input channels and 8 output channels on one module to save rack space.
-
Robust Input Filtering: Features integrated RC low-pass filters on inputs to mitigate mechanical contact chatter and noise.
-
Solid-State Outputs: Utilizes positive-logic (source) transistor circuits for reliable control of relays, pilot lamps, and starters.
-
Diagnostic Monitoring: Front-panel LED array provides real-time status for backplane communication and individual channel activity.
-
Serviceability: Equipped with a removable front-panel terminal block for rapid module replacement without disturbing field wiring.
Applications
The MWA 16PN is suitable for various industrial automation tasks, including:
- Petroleum and chemical processing plants.
- Fossil-fuel and renewable power generation facilities.
- Automated material handling and logistics systems.
- General-purpose discrete control loops requiring localized I/O density.
Technical Specifications
| Model |
MWA 16PN |
| Input Channels |
8 |
| Output Channels |
8 |
| Nominal System Voltage |
24 V DC |
| Input Voltage Range |
20 to 30 V DC |
| Output Type |
Transistor Source (Positive Logic) |
| Max Output Current |
0.5 A per channel (4.0 A total) |
| Isolation Voltage |
1500 V AC (field to logic) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Enclosure Rating |
IP20 |
Installation Guidelines
-
Power Down: Always disconnect backplane power before inserting or removing the module from the rack.
-
ESD Handling: Use proper electrostatic discharge (ESD) grounding procedures when handling the module to prevent damage to internal circuitry.
-
Wiring: Ensure field wiring is properly secured in the removable terminal block. Use shielded cables for high-EMI environments to maintain signal integrity.
-
Mounting: Ensure the module is fully seated in the Series 90-30 rack and the retaining screws are tightened to ensure a secure backplane connection.
-
Environment: Maintain ambient conditions within the specified 0 to 60 deg C range and ensure adequate ventilation within the control cabinet.
Compliance and Certifications
This module is designed to meet international industrial standards, including CE, UL 508, CSA, and Class 1 Division 2 (Groups A, B, C, D) for hazardous locations.
FAQ
Is the MWA 16PN compatible with all Series 90-30 racks? Yes, the module is designed for standard Series 90-30 backplane compatibility.
Can I replace the module without rewiring? Yes, the module features a removable terminal block, allowing you to swap the hardware while leaving the field wiring connected to the block.
What is the purpose of the RC filters on the inputs? The integrated RC low-pass filters are designed to suppress electrical noise and mechanical contact bounce from field sensors, ensuring accurate signal detection.
