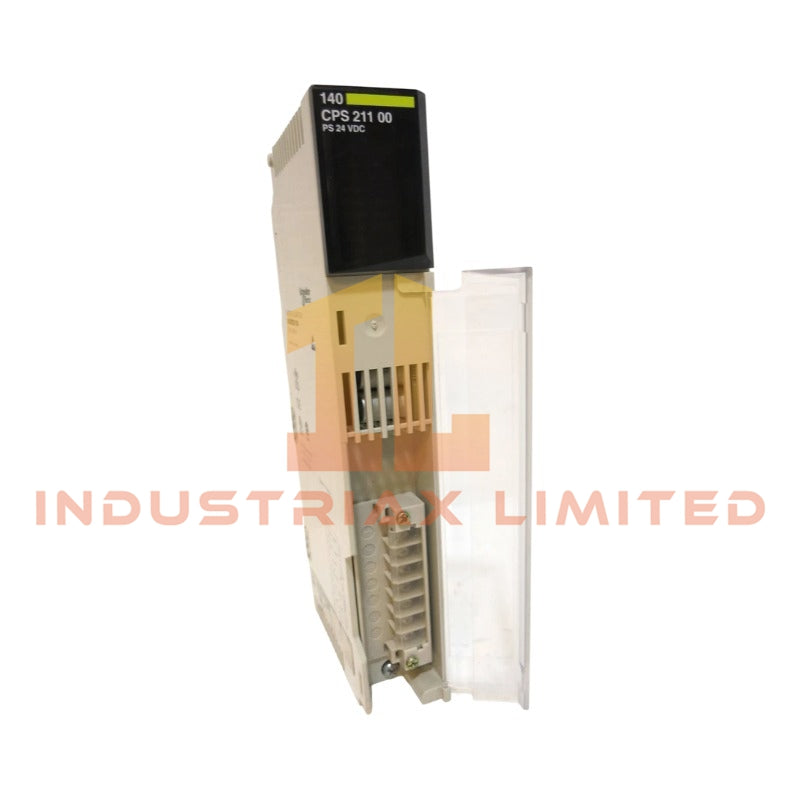

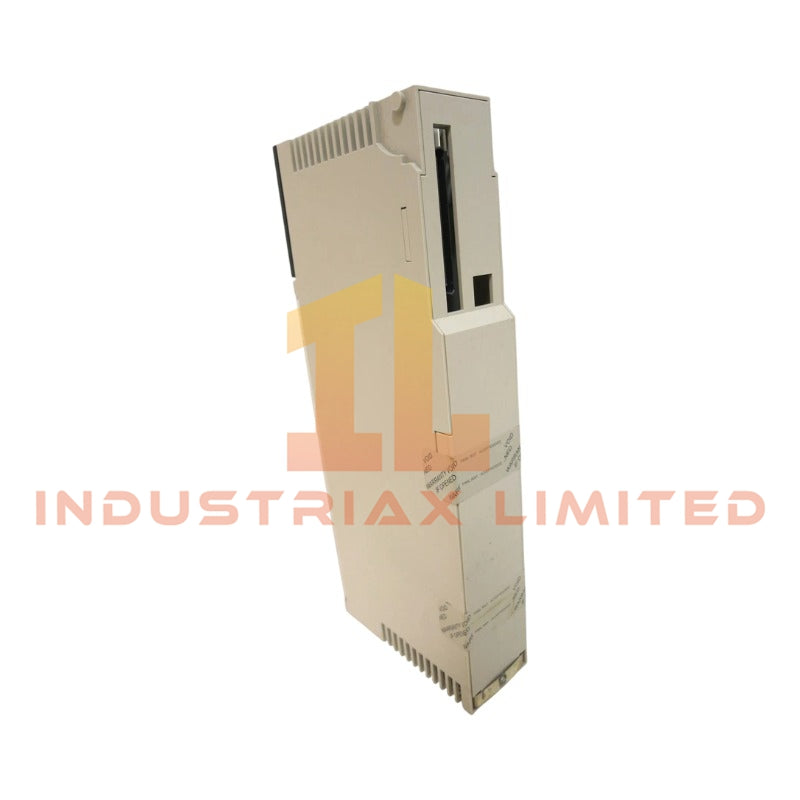

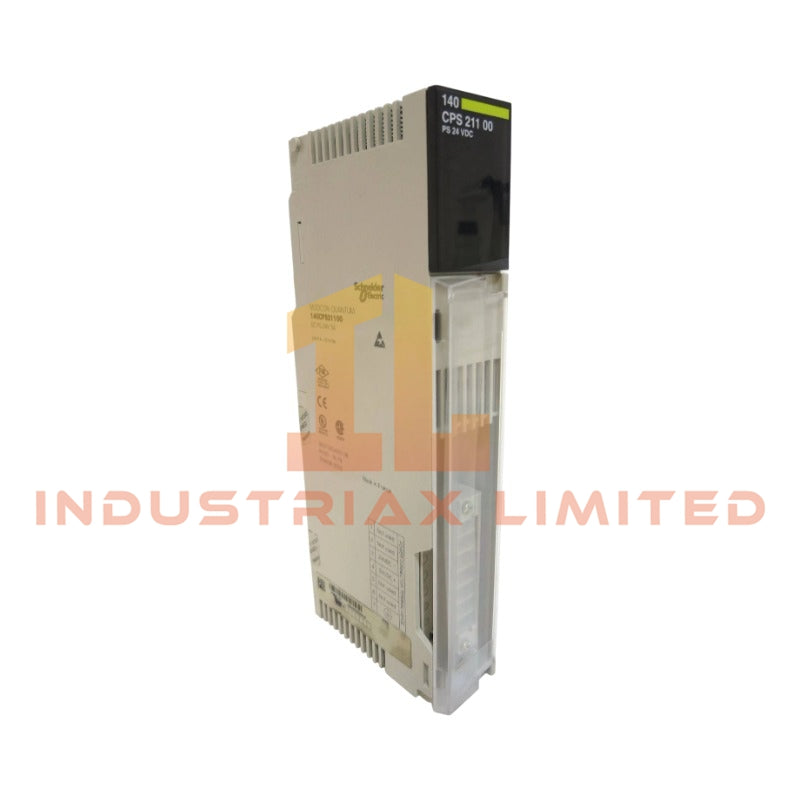

Schneider Electric 140CPS21100 Power Supply Module
Configured for DC power conversion and backplane distribution in Modicon Quantum rack-based control systems, the Schneider Electric 140CPS21100 (140CPS21100 power supply module) provides direct electrical execution for 24 VDC to 5.1 VDC system rail conversion within Modicon Quantum automation platforms.
SuffixBreakdown&ModelMatrix
HardwareSpecifications
| Parameter |
Specification |
| ModelBrand |
Schneider Electric 140CPS21100 |
| Weight |
0.65 kg |
| Dimensions |
Not specified |
| OperatingTemp |
0 to 60 degC |
| PowerConsumption |
2 + (3 x Iout) W (dissipation model) |
| Input Voltage |
24 VDC (20 to 30 VDC) |
| Input Current |
1600 mA |
| Inrush Current |
30 A |
| Output Voltage |
5.1 VDC |
| Output Current |
0.3 to 3 A |
| Power Interruption Immunity |
1 ms @ 20 VDC, 20 ms @ 25 VDC |
| Protection |
Internal overvoltage and overload protection |
| Signalling |
1 x green LED (PWR OK) |
Backplane Power Distribution and PLC Rail Interface Behavior
Within the Modicon Quantum architecture, the 140CPS21100 module participates in rack-level backplane energization where regulated 5.1 VDC is injected into the system bus for CPU and I/O module consumption. The backplane communication layer relies on deterministic electrical rail stability, where transient suppression and inrush limiting (30 A peak) govern module insertion dynamics. Power interruption tolerance (1 ms to 20 ms depending on input level) defines reset boundary conditions for downstream logic modules, ensuring controlled restart sequencing across the rack.
FrequentlyAskedQuestions
Q: Can the module be hot-inserted into an energized Quantum rack?
A: The module includes inrush current limiting (30 A peak), but hot-insertion behavior depends on rack design and backplane tolerance. Electrical arcing and transient loading must be evaluated at system level.
Q: What is the impact of load variation on output stability?
A: Output current range is 0.3 A to 3 A. The internal regulation loop maintains 5.1 VDC, while power dissipation increases according to 2 + (3 x Iout) W.
Q: How does input power interruption affect system operation?
A: The module supports 1 ms hold-up at 20 VDC and 20 ms at 25 VDC, defining the minimum immunity window before backplane voltage collapse may occur.
FieldInstallationGuidelines
-
Install only in compatible Modicon Quantum rack backplane assemblies.
-
Verify 24 VDC supply is within 20 to 30 VDC operating window prior to energization.
-
Maintain correct polarity on input terminals to avoid internal protection triggering.
-
Ensure sufficient upstream fuse protection (2.5 A slow-blow recommended).
-
Provide proper chassis grounding to reduce electromagnetic interference on backplane rails.
-
Allow adequate airflow within cabinet to manage dissipation proportional to load current.
