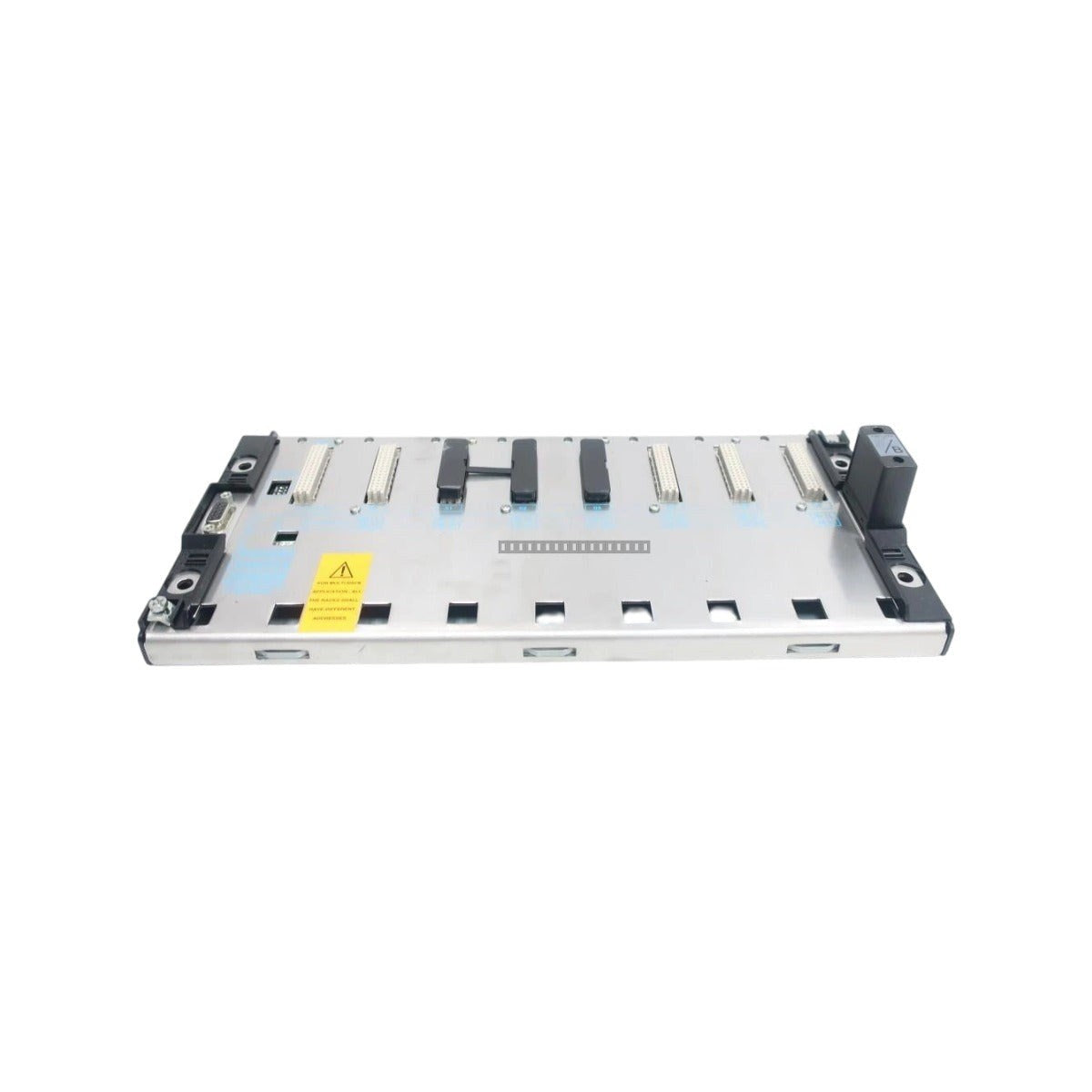

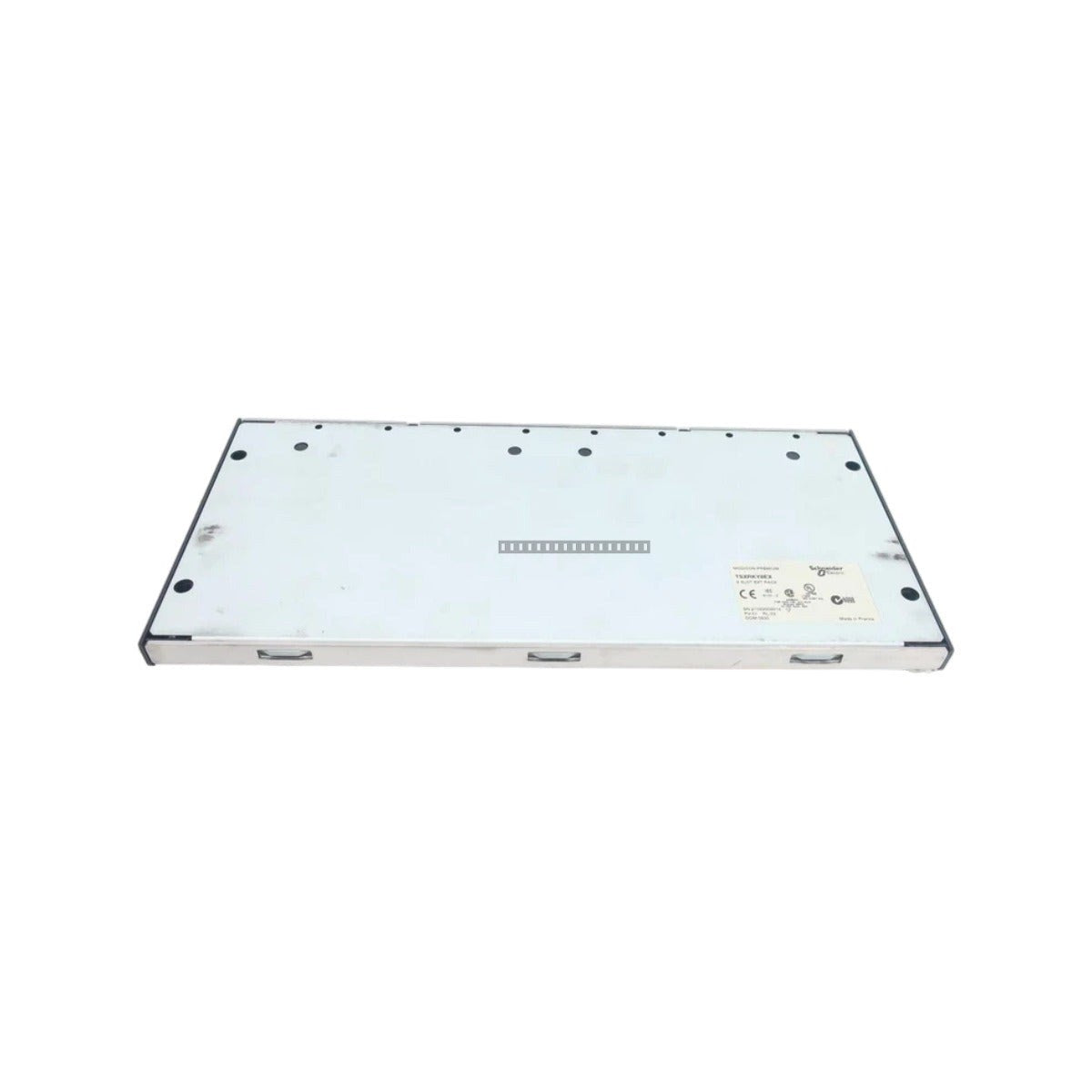

The TSXRKY8EX is an 8-slot rugged expansion rack base designed for the Schneider Electric Modicon Premium automation platform. This chassis facilitates the physical and logical scaling of PLC systems by providing a stable backplane for high-density I/O and communication modules. It is engineered for demanding industrial environments, including chemical processing, petroleum refining, and power generation, ensuring reliable signal integrity and reduced system downtime.
Features
- Supports up to 8 standard Modicon Premium functional modules.
- Integrated passive backplane with high-speed bus communication.

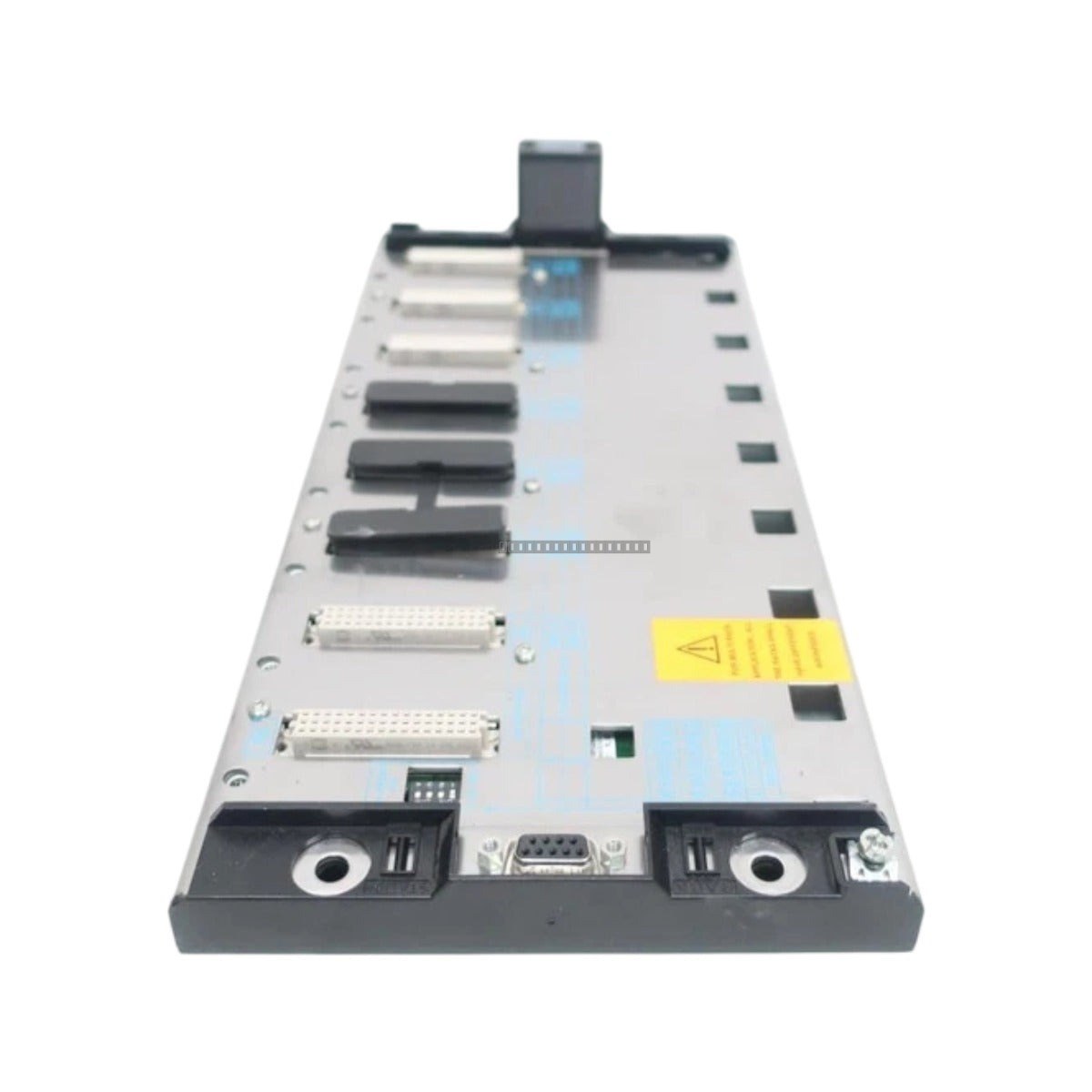

- Dedicated 9-pin female connector for TSXBusX high-speed network extension.
- Onboard rotary hex switch for rack address configuration.
- Robust metallic chassis with integrated M6 copper grounding studs for enhanced EMC.
- Flexible mounting options including direct panel screw fixation or 35 mm DIN rail.
Applications
This expansion rack is suitable for distributed I/O architectures in large-scale automation systems. It is commonly deployed in thermal power stations, mining extraction grids, and complex manufacturing lines where modular scalability and high-availability communication are critical.
Technical Specifications
| Model |
TSXRKY8EX |
| Slots |
8 |
| Bus Type |
Modicon Premium Backplane Bus |
| Interface |
1 x 9-pin female TSXBusX |
| Max Expansion Racks |
3 bases per segment |
| Operating Temp |
0 to 60 deg C |
| Storage Temp |
-25 to 70 deg C |
| Humidity |
10% to 95% (non-condensing) |
| Power Consumption |
1.8 W (passive) |
| Protection |
IP20 |
| Standards |
CE, UL 508, CSA C22.2, IEC 61131-2 |
Installation Guidelines
- Ensure the rack is mounted on a flat, vibration-resistant surface or a properly secured 35 mm DIN rail.
- Always power down the system before installing or removing any modules from the rack slots.
- Connect the M6 grounding studs to a low-impedance earth ground to minimize electromagnetic interference.
- Maintain proper ventilation clearance around the rack to ensure operating temperatures remain within the 0 to 60 deg C range.
- Verify the rotary address switch is set correctly for the specific rack segment before powering up the bus.
FAQ
Can this rack be used as a standalone base? No, the TSXRKY8EX is designed as an extension rack base and requires connection to a primary processor rack or another upstream expansion chassis via the TSXBusX link.
How many expansion racks can I add? The system architecture supports up to 3 expansion bases per segment.
