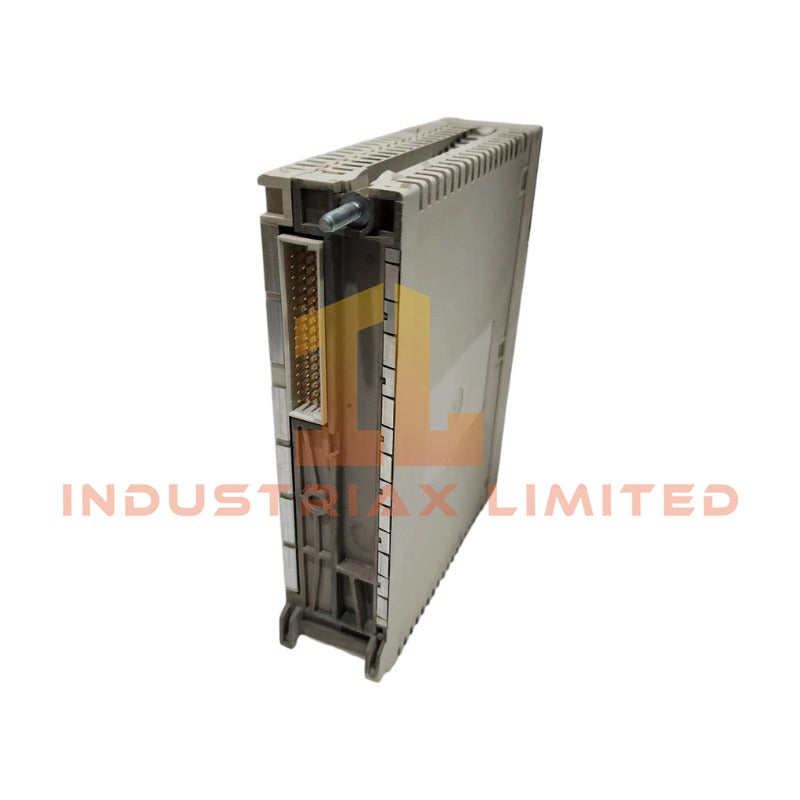

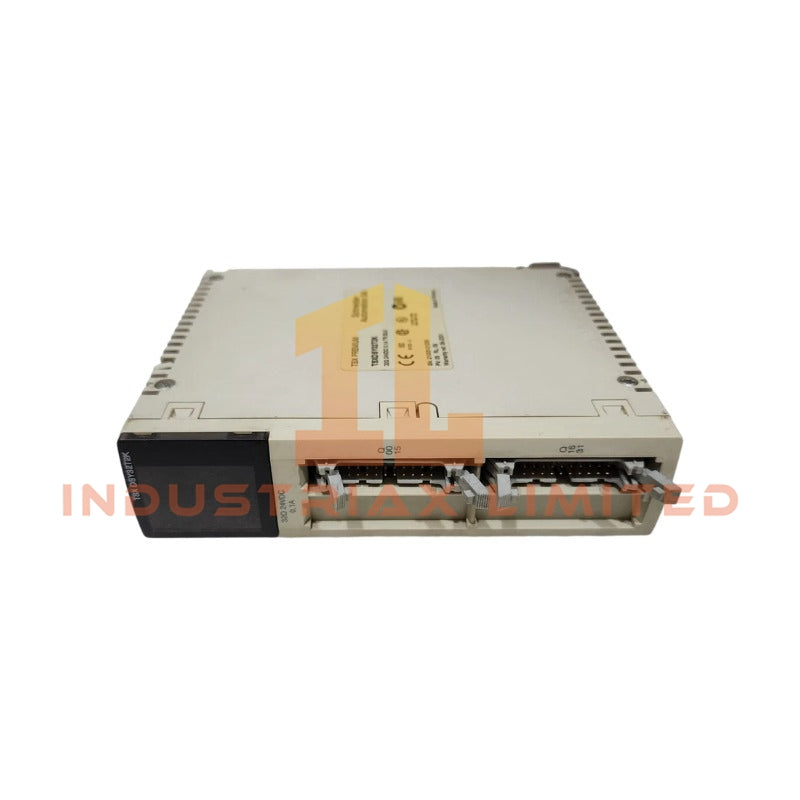

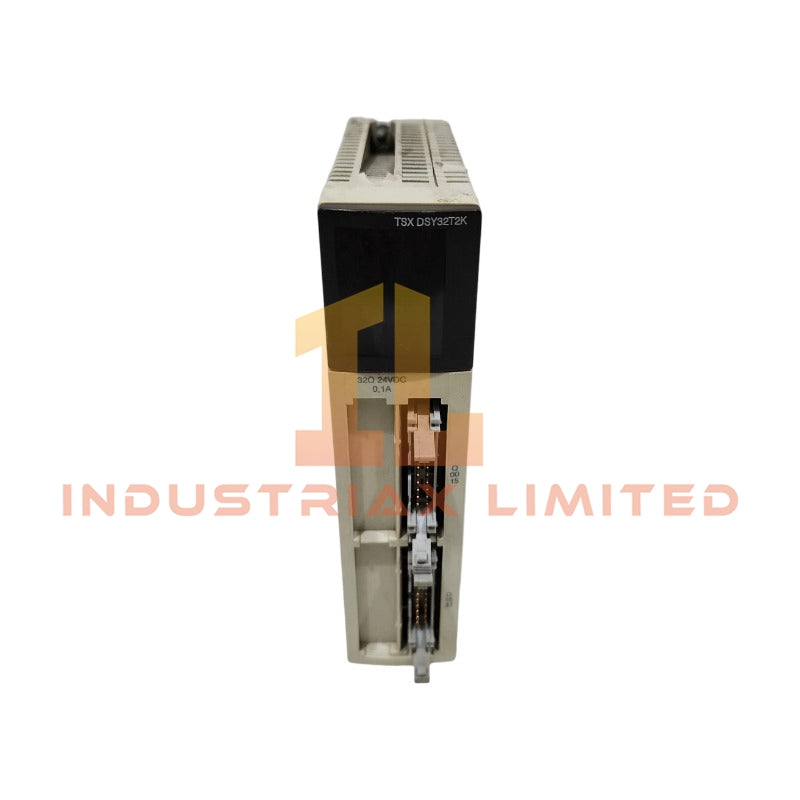

Schneider Electric Modicon Premium Discrete Output Module

Configured for discrete 24 VDC output switching in the Modicon Premium Automation Platform, the Schneider Electric Discrete Output Module (Modicon Premium Discrete Output Module) provides direct physical electrical execution through 32 protected solid-state output channels.

Hardware Specifications

Parameter	Specification
Model	Modicon Premium Discrete Output Module
Brand	Schneider Electric
Origin	France
Product Type	Discrete Output Module
Output Type	32 solid-state protected outputs
Output Voltage	24 VDC positive conforming to EN/IEC 61131-2 (19 to 30 VDC)
Current per Channel	0.1 A
Maximum Current per Module	3.2 A
Maximum Leakage Current	0.1 mA at 30 V
Maximum Tungsten Load	1.2 W
Residual Voltage	1.5 V
Response Time	1.2 ms
Output Paralleling	Up to 3 outputs
Overvoltage Protection	Transil diode
Reverse Polarity Protection	Reverse-mounted diode
Overload Protection	Automatic trip
Short-Circuit Protection	Automatic trip
Minimum Load Impedance	220 Ohm at state 1
Insulation Resistance	Greater than 10 MOhm at 500 V
Dielectric Strength	1500 VAC, 50/60 Hz, 60 s
Electrical Connection	2 HE-10 connectors
Backplane Current Consumption	140 mA at 5 VDC
Power Consumption	1.6 W + (0.1 W x active outputs)
Module Format	Standard
Weight	0.3 kg
Package Dimensions	26.0 x 18.0 x 5.5 cm
Operating Temp	0 to 60 degC
Storage Temp	-25 to 70 degC
Operating Humidity	10 to 95 % RH, non-condensing
Storage Humidity	5 to 95 % RH, non-condensing
Operating Altitude	0 to 2000 m
Protection Rating	IP20
Pollution Degree	2
Protective Treatment	TC
Product Compatibility	Dial and Power
Standards	IEC 61131-2, UL 508, CSA C22.2, CE Directives
Certifications	ABS, BV, DNV, GL, LR, RINA, RMRS

Backplane Communication and I/O Density

The module interfaces with the Modicon Premium backplane through a standard module format and draws 140 mA from the 5 VDC backplane supply. Thirty-two protected transistor outputs provide high I/O density while maintaining individual channel protection through automatic overload and short-circuit trip functions. The module supports output paralleling for up to three channels where application current distribution permits.

Frequently Asked Questions

Q: Does the module include individual output protection?
A: Yes. Each output incorporates automatic overload protection, automatic short-circuit protection, reverse-polarity protection using a reverse-mounted diode, and overvoltage suppression using a transil diode.

Q: Can multiple outputs be connected in parallel?
A: Yes. The specification permits paralleling of up to three outputs.

Q: What electrical interface is required for field wiring?
A: The module uses two HE-10 connectors for field connections and operates with 24 VDC positive logic outputs.

Field Installation Guidelines

• Verify that the PLC rack power supply has sufficient 5 VDC backplane current capacity before module installation.
• Isolate field power before connecting or disconnecting HE-10 connectors.
• Route output wiring separately from high-voltage or high-frequency cables to reduce conducted electrical interference.
• Connect protective earth according to the control cabinet grounding practice.
• Confirm field loads remain within the specified channel and module current limits before energizing the system.
• Install the module only within the specified ambient temperature, humidity, and altitude limits.
