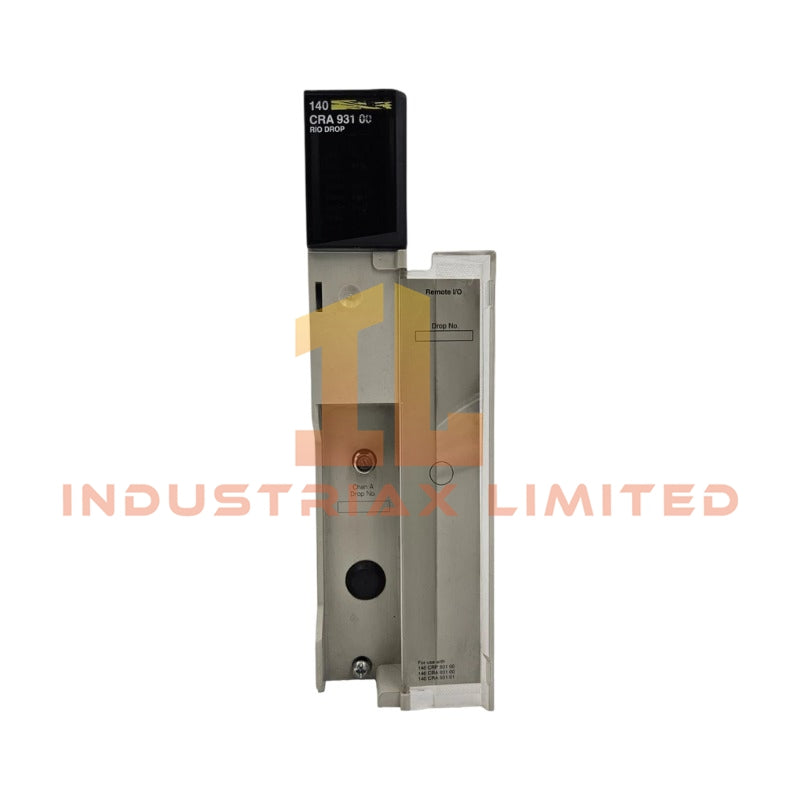

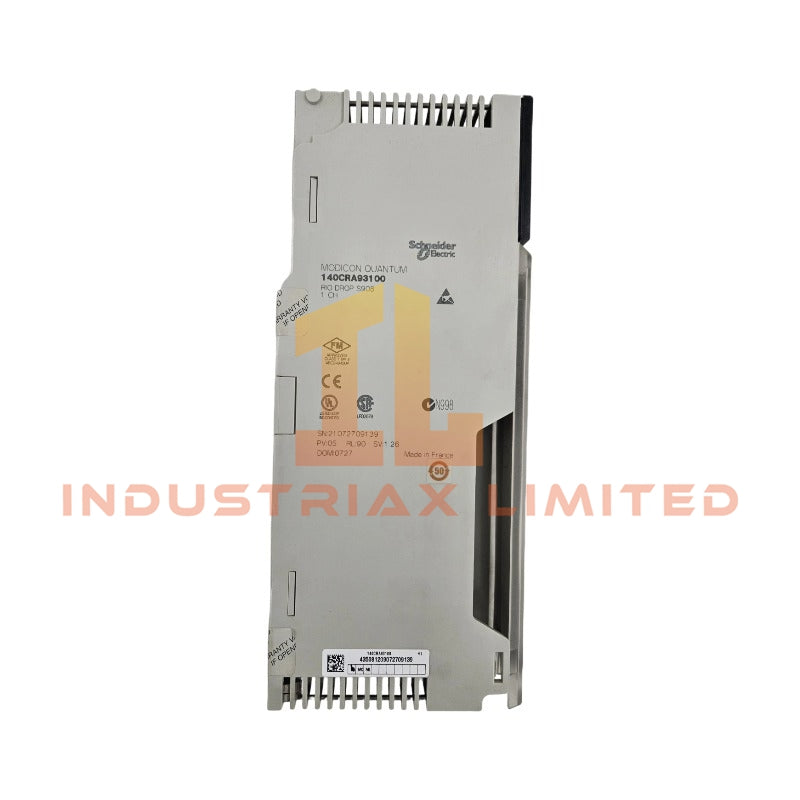

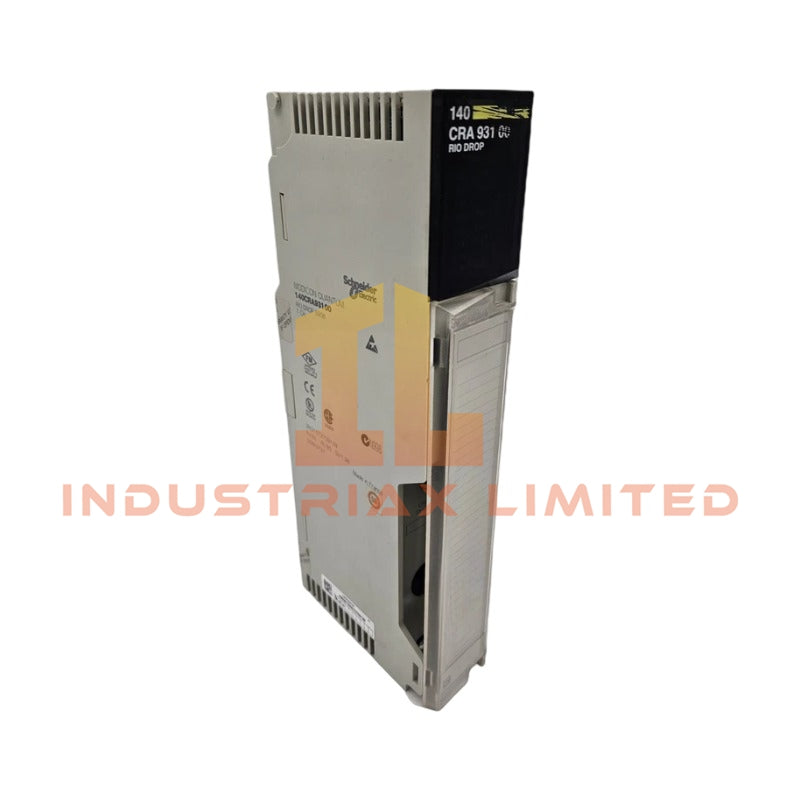

Schneider Electric 140CRA93100 RIO Drop Adaptor Module

The Schneider Electric 140CRA93100 also cataloged as the 140CRA93100 RIO Drop Adaptor Module, operates as a dedicated hardware component for remote I/O drop attachment within the Modicon Quantum backplane communication network. It provides electrical and data interface conversion between Quantum local rack architecture and coaxial RIO trunk topology.

Hardware Specifications

Parameter	Specification
ModelBrand	Schneider Electric 140CRA93100
OperatingTemp	0 degC to 60 degC
PowerConsumption	3 W (1 channel)
I/O Expansion Capacity	Up to 27 modules
Transmission Medium	75 Ohm coaxial cable
Isolation Voltage	500 V DC (coaxial center to ground)
Bus Current Requirement	600 mA (1 channel)
Data Interface	RIO drop adaptor protocol

PLC Backplane and Deterministic RIO Communication Characteristics

Within the Modicon Quantum platform, the 140CRA93100 implements backplane-to-RIO trunk coupling with deterministic cycle execution behavior. The module synchronizes rack-level I/O scanning with remote drop communication through a high-speed coaxial transport layer rated at 1544 Mbit/s signaling.

The Schneider Electric Quantum architecture supports firmware-level compatibility handling for mixed I/O expansion environments, where module address mapping and runtime checksum validation (executive checksum, RAM address/data validation) ensure consistent backplane integrity during power-up and cyclic execution phases. Channel-to-drop synchronization is maintained under fixed scan scheduling, limiting jitter in remote I/O refresh cycles across extended rack configurations.

Frequently Asked Questions

Q: Can the 140CRA93100 module support hot-swap during operation?
A: Hot-swap capability is dependent on the Quantum rack configuration. Electrically, the module participates in backplane addressing and should only be replaced under controlled shutdown unless the system architecture explicitly supports online insertion.

Q: What is the impact of bus current requirement on rack loading?
A: The module draws 600 mA from the backplane on a single channel basis. Total rack loading must be evaluated against the Quantum power supply capacity to prevent voltage droop on the internal bus.

Q: Does coaxial transmission require termination at the drop level?
A: Yes. The 75 Ohm coaxial trunk requires proper termination at network endpoints to maintain impedance matching and minimize signal reflection across the RIO segment.

Field Installation Guidelines

The 140CRA93100 shall be installed in a Modicon Quantum rack slot with verified backplane alignment and secure mechanical locking. Coaxial cabling must maintain continuous 75 Ohm impedance with controlled bend radius to avoid attenuation increase across the RIO trunk.

Shield grounding shall be implemented at a single-point earth reference to reduce ground loop current injection into the coaxial center conductor reference plane. Avoid routing RIO coaxial lines parallel to high-voltage switching conductors or VFD output cabling to minimize electromagnetic coupling.

Module insertion must ensure full engagement of the backplane connector without mechanical stress on the rack guide rails. All drop addressing should be verified during power-up diagnostic phase via executive checksum and runtime RAM validation routines.
