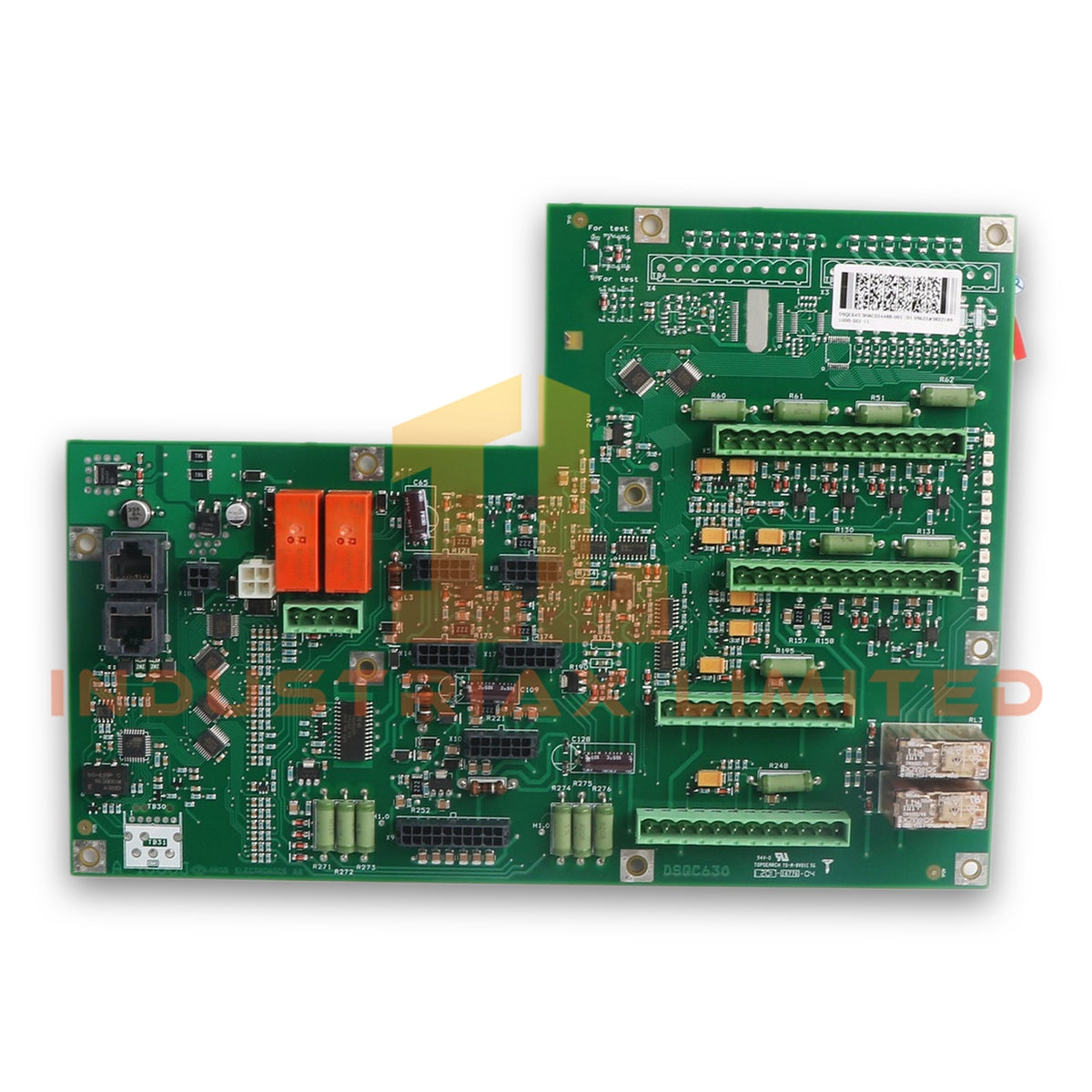

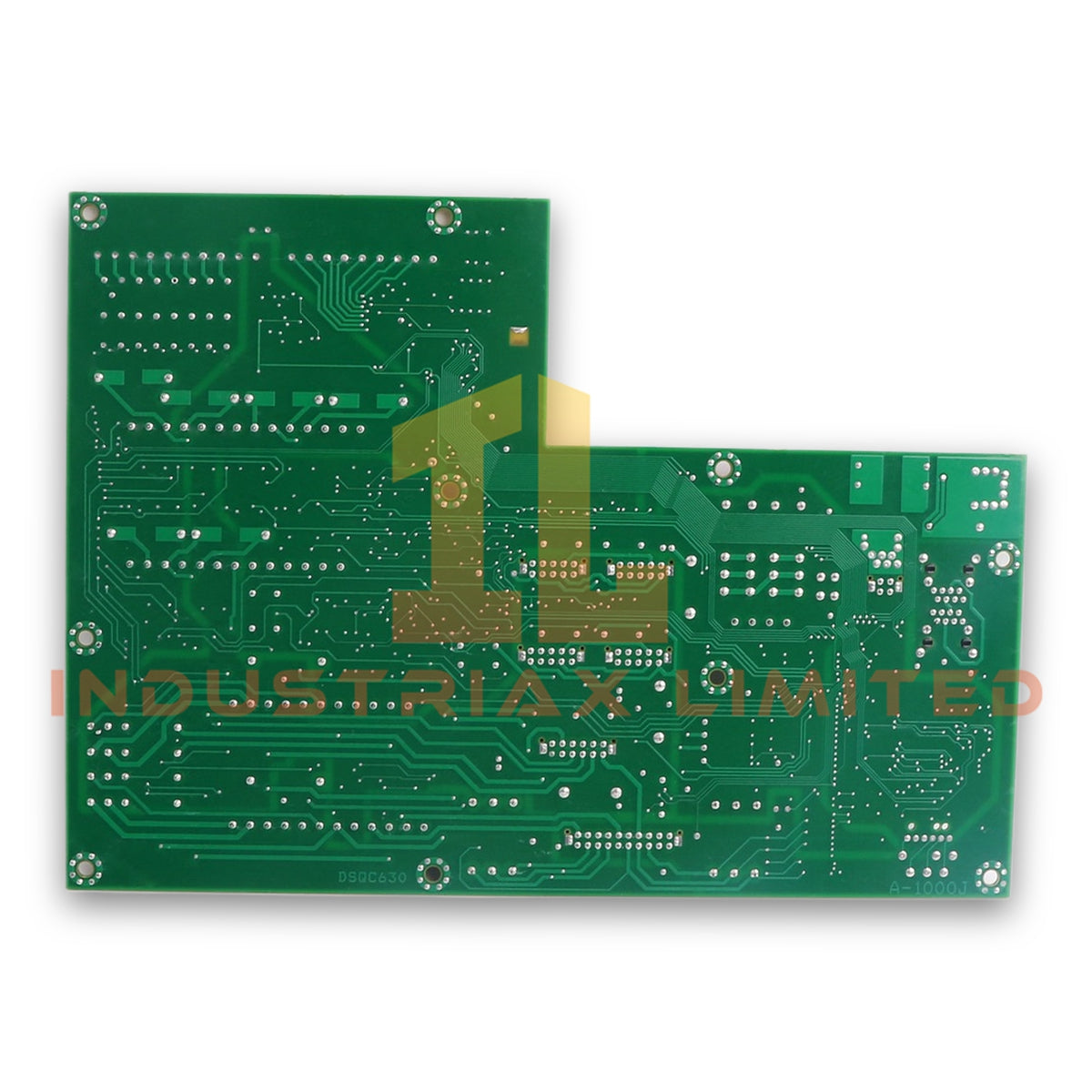

ABB DSQC643 Safety Panel Board

Configured for safety signal routing and panel-level safety control in the ABB IRC5 controller, the ABB DSQC643 (3HAC024488-001) (DSQC 643 Safety Panel Board) provides the physical interface for safety-related control circuits.

Hardware Specifications

Parameter	Specification
Model	DSQC643
Part Number	3HAC024488-001
ABB Type Designation	DSQC 643
Brand	ABB
Component Type	Safety Panel Board
Controller Platform	ABB IRC5
Product Function	Safety signal routing and panel-level safety interface
Product Net Depth / Length	280 mm
Product Net Height	218 mm
Product Net Width	26.8 mm
Dimensions	280 mm x 218 mm x 26.8 mm
Net Weight	Approx. 0.34 kg
Application	ABB industrial robot controller safety circuits

ABB Controller Integration

The DSQC643 operates as a hardware board within the ABB IRC5 controller architecture. It routes and interfaces safety-related electrical signals between the controller panel circuitry and connected safety functions.

Because the supplied data does not specify a communication protocol, backplane bus rate, or I/O channel count, these parameters should not be assigned to this board without controller-specific documentation. The board should therefore be identified by its ABB type designation and complete part number during replacement.

Frequently Asked Questions

Q: Is the DSQC643 a general-purpose I/O module?
A: No. The supplied documentation identifies the DSQC643 as a Safety Panel Board for ABB IRC5 controller systems.

Q: Can the DSQC643 be replaced while the IRC5 controller remains powered?
A: No hot-swap capability is specified in the supplied data. Power down the controller before removing or installing the board.

Q: What environmental operating temperature does the DSQC643 support?
A: The supplied specifications do not define an operating temperature range. Use the applicable ABB IRC5 controller documentation for environmental limits.

Field Installation Guidelines

1. Isolate and power down the ABB IRC5 controller before accessing the Safety Panel Board.
2. Verify the replacement board against the complete part number 3HAC024488-001 and type designation DSQC 643.
3. Follow ESD protection procedures when handling the PCB and exposed electrical contacts.
4. Disconnect and reconnect field wiring according to the controller wiring documentation.
5. Keep safety-related wiring separated from high-current and high-frequency power conductors where the controller installation rules require separation.
6. Inspect connectors, mounting points, and cable routing before energizing the controller.
7. After installation, perform the applicable safety circuit and emergency-stop functional checks before returning the robot system to service.
