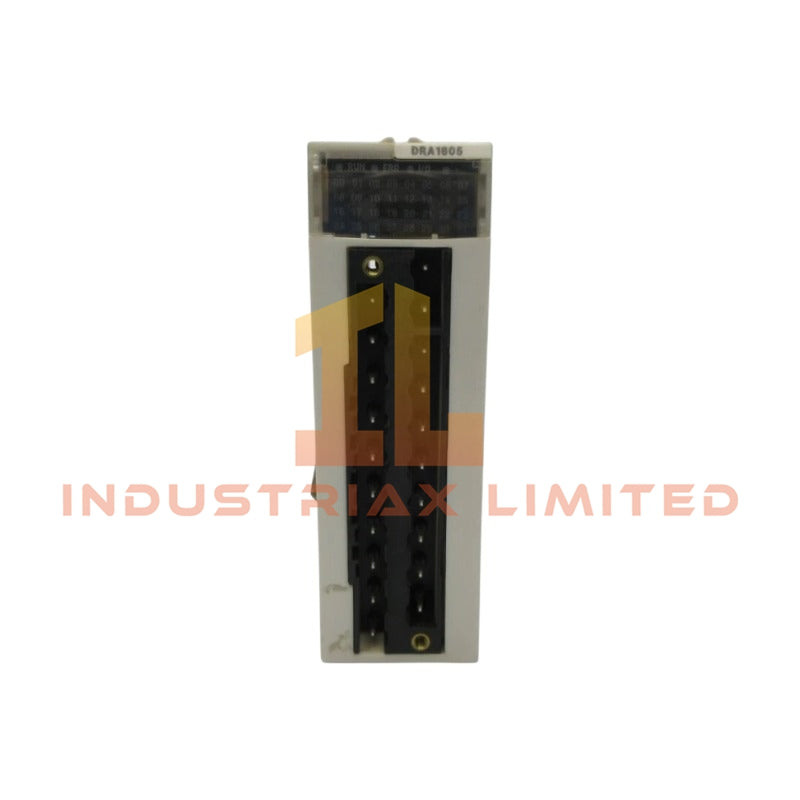

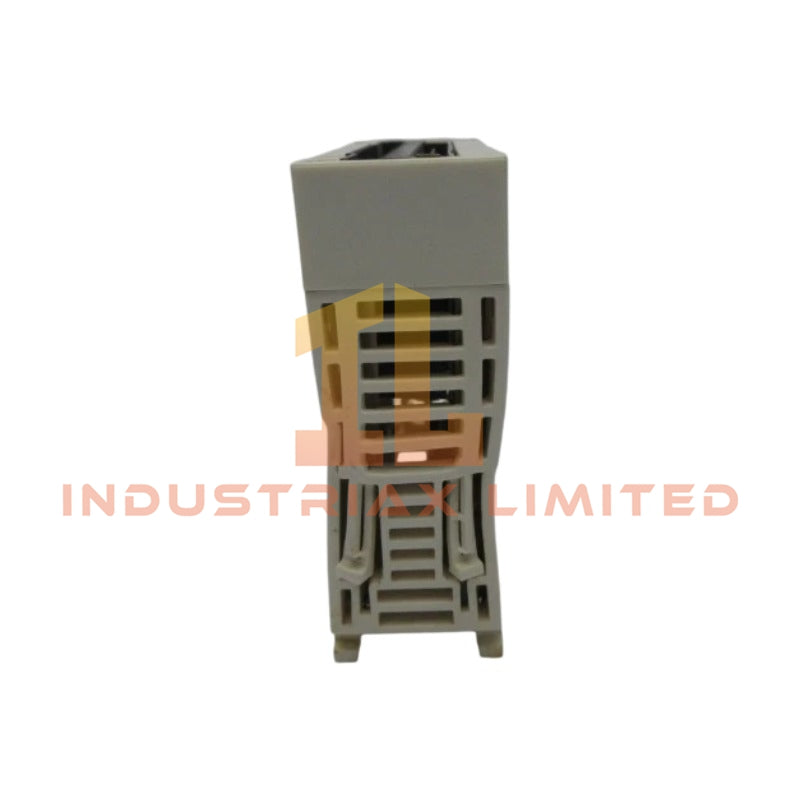

Schneider Electric BMXDRA1605 Modicon X80 Relay Output Module

The Schneider Electric BMXDRA1605 serves as the primary BMXDRA1605 discrete output module utilized to execute relay-based digital switching of field loads across Modicon X80 platform backplane architectures. Configured for deterministic ON/OFF signal actuation in rack-based PLC systems, the module provides 16 independent relay outputs supporting both DC and AC load switching via electromechanical contacts.

Suffix Breakdown & Model Matrix

BMXDRA1605 is a fixed-order identifier within the Modicon X80 discrete output relay family. No additional functional suffix segmentation is defined by manufacturer documentation for this part number.

Hardware Specifications

Parameter	Specification
ModelBrand	Schneider Electric BMXDRA1605
Origin	France
OperatingTemp	0 to 60 degC
PowerConsumption	3 W (module dissipation), 79 mA at 3.3 VDC
Output Channels	16 relay outputs
Output Types	Relay (Form A contact behavior)
DC Voltage Range	24 VDC (19 to 30 VDC)
AC Voltage Range	24 to 240 VAC (19 to 264 VAC)
Rated Thermal Current	2 A per channel (free air)
Response Time	<= 8 ms ON, <= 10 ms OFF
Insulation Resistance	> 10 MOhm at 500 VDC

Schneider Electric Backplane Relay Switching Characteristics

Within the Modicon X80 rack architecture, the BMXDRA1605 relay matrix interfaces through backplane-controlled digital command frames, where output state transitions are executed via deterministic bus refresh cycles. Relay actuation introduces mechanical switching latency defined by coil energization and contact settling time, making the module suitable for discrete actuator control rather than high-frequency PWM or analog modulation tasks.

The channel architecture supports independent galvanic isolation per relay contact path, ensuring separation between field wiring domains and PLC logic circuitry. Output protection design requires external suppression components: flyback diode networks for DC inductive loads and RC or ZnO surge suppression for AC switching environments. This external dependency defines the module as a passive switching stage within the control chain rather than a protected power driver.

Frequently Asked Questions

Q: Can BMXDRA1605 outputs be hot-swapped under load conditions?
A: Hot-swap is not supported for energized field loads. Output de-energization and backplane removal must occur under controlled power-down conditions to avoid contact arcing and backplane disturbance.

Q: What is the effect of inductive loads on relay lifetime?
A: Inductive loads without external suppression (diode or RC snubber) generate contact erosion due to arc discharge during opening transitions, reducing mechanical endurance of relay contacts.

Q: Does the module require internal short-circuit protection per channel?
A: No internal per-channel electronic protection is implemented. External fast-blow fusing per channel or grouped outputs is required to limit fault current propagation.

Field Installation Guidelines

• Install module only in Modicon X80 compliant rack backplanes with verified grounding continuity.
• Maintain separation between AC switching wiring and low-voltage DC logic cabling to reduce electromagnetic coupling.
• Use shielded conductors for long field runs where relay outputs control inductive actuators.
• Apply external suppression elements directly at load terminals for both AC and DC circuits.
• Ensure all wiring torque specifications follow terminal block mechanical limits defined by cabinet assembly standards.
• Verify isolation integrity before energizing system, especially in mixed-voltage (AC/DC) output configurations.
