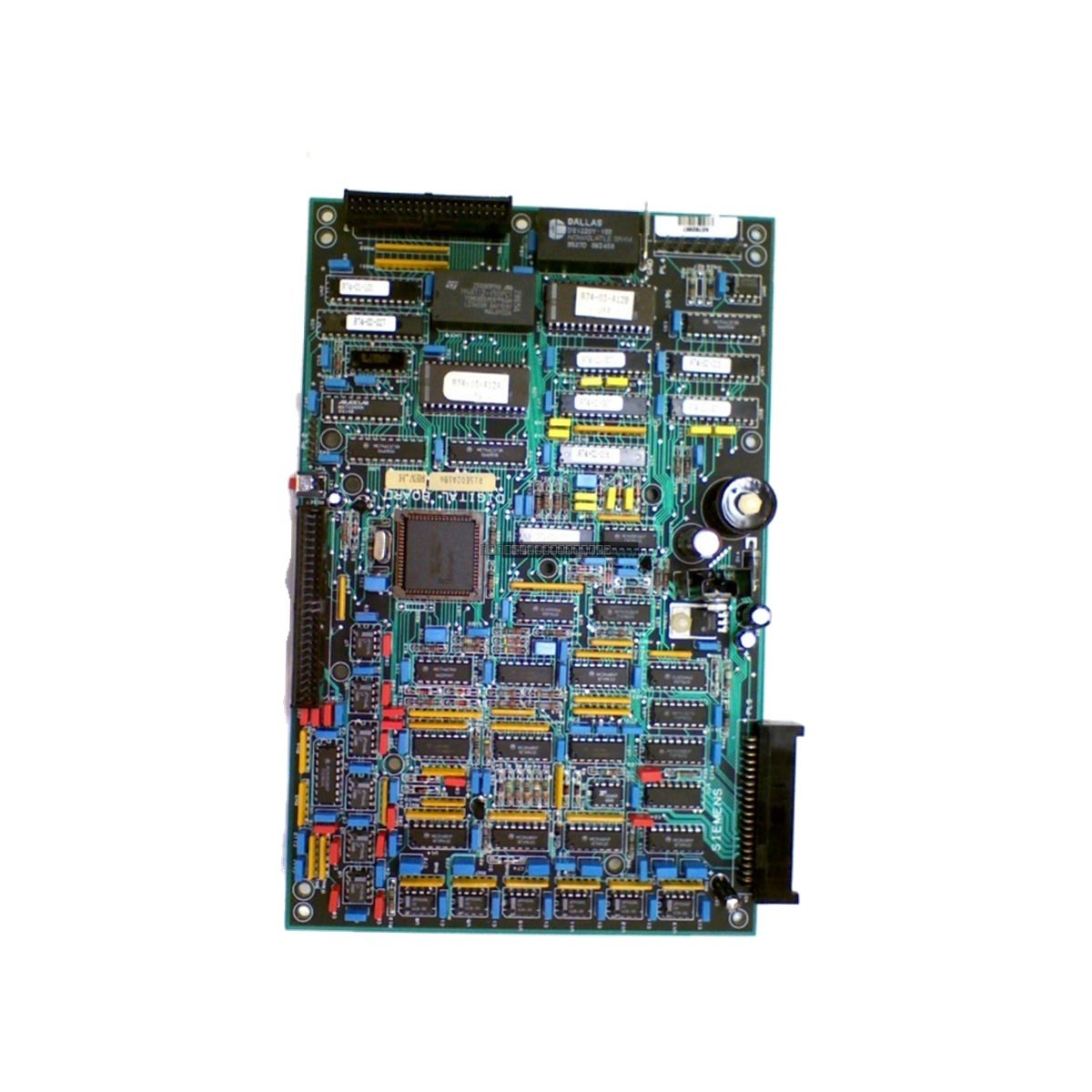

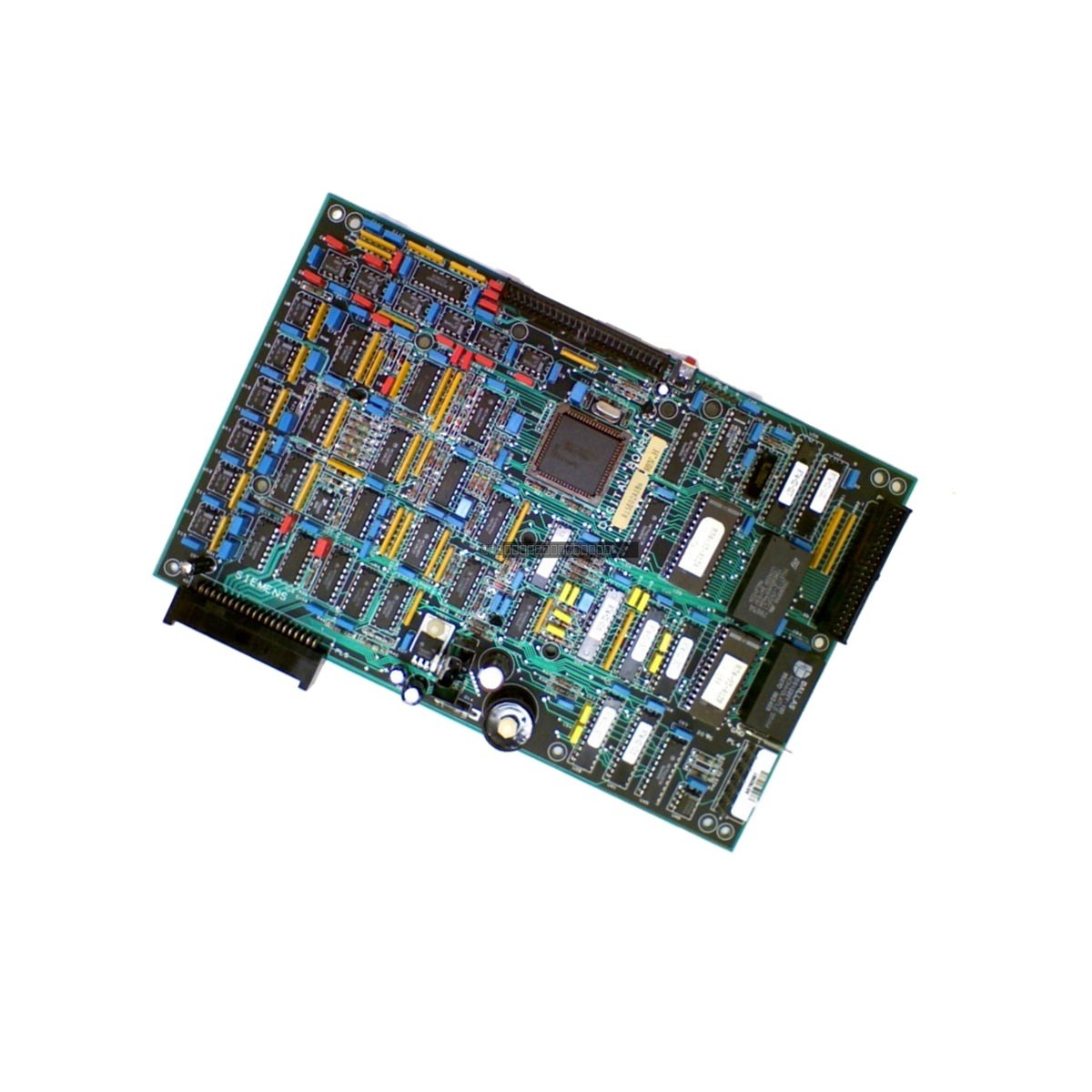

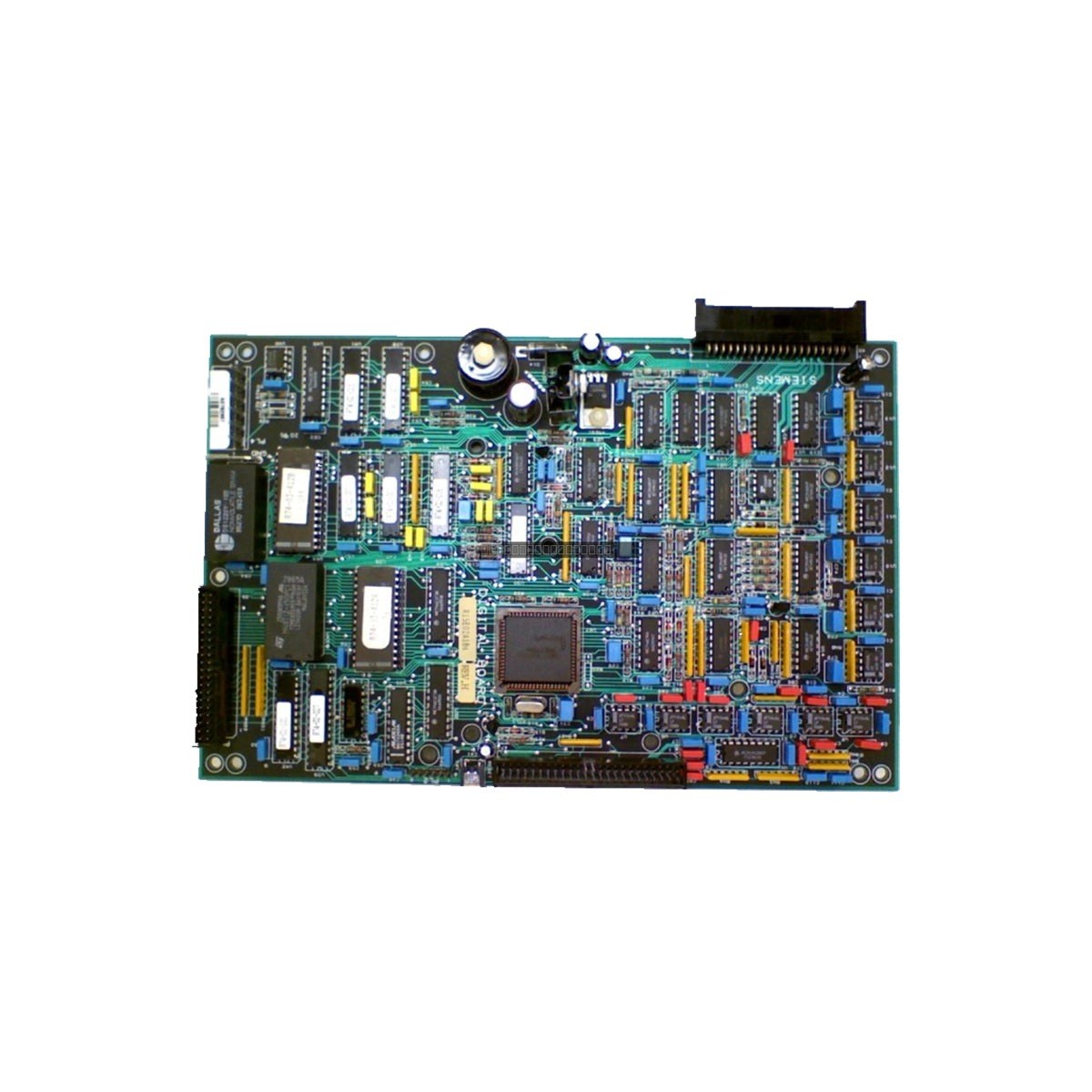

The Siemens R15E02-A186 is a robust PC board module designed for integration within industrial PLC and machine control architectures. This specialized interface board serves as a critical component in maintaining signal integrity and facilitating communication between the central processor and field-level instrumentation. Engineered for durability in demanding industrial settings, such as chemical processing and metal manufacturing, the R15E02-A186 is a vital replacement part for legacy automation systems requiring high-reliability hardware.
Features
- Compact, single-slot PC board architecture designed for efficient cabinet space utilization.
- Integrated screw terminal interface for secure, vibration-resistant direct field wiring.
- Advanced circuitry layout optimized for noise rejection and signal stability in high-EMI environments.
- Direct-termination design reduces the need for external terminal blocks, minimizing potential failure points.
- Supports high-accuracy data transmission with minimal latency for real-time control applications.
Applications
This module is widely utilized in industrial automation environments where precise signal conditioning and reliable I/O handling are required. It is commonly found in refineries, chemical plants, and heavy manufacturing facilities that rely on established Siemens control hardware to manage complex production processes.
Technical Specifications
| Model |
R15E02-A186 |
| Brand |
Siemens |
| Module Type |
PC Board PLC / Add-On Board |
| Connection Method |
Integrated Screw Terminals |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Installation Type |
Internal PC Board / Rack Mount |
Installation Guidelines
- Ensure all power is disconnected from the PLC rack before attempting to insert or remove the module.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive internal circuitry.
- Verify that the module is fully seated in the designated slot and that all screw terminals are tightened to the specified torque to ensure a stable connection.
- Route field wiring away from high-voltage power cables to minimize electromagnetic interference (EMI).
- Maintain adequate ventilation within the control cabinet to ensure the module operates within its specified temperature range.
FAQ
Is the R15E02-A186 compatible with modern Siemens systems?
The R15E02-A186 is typically intended for legacy automation infrastructure. We recommend verifying your specific PLC backplane compatibility and part revision before installation.
Does this module require external terminal blocks?
No, the R15E02-A186 features integrated screw terminals, allowing for direct field wiring to the board, which helps reduce the overall footprint in the control cabinet.
