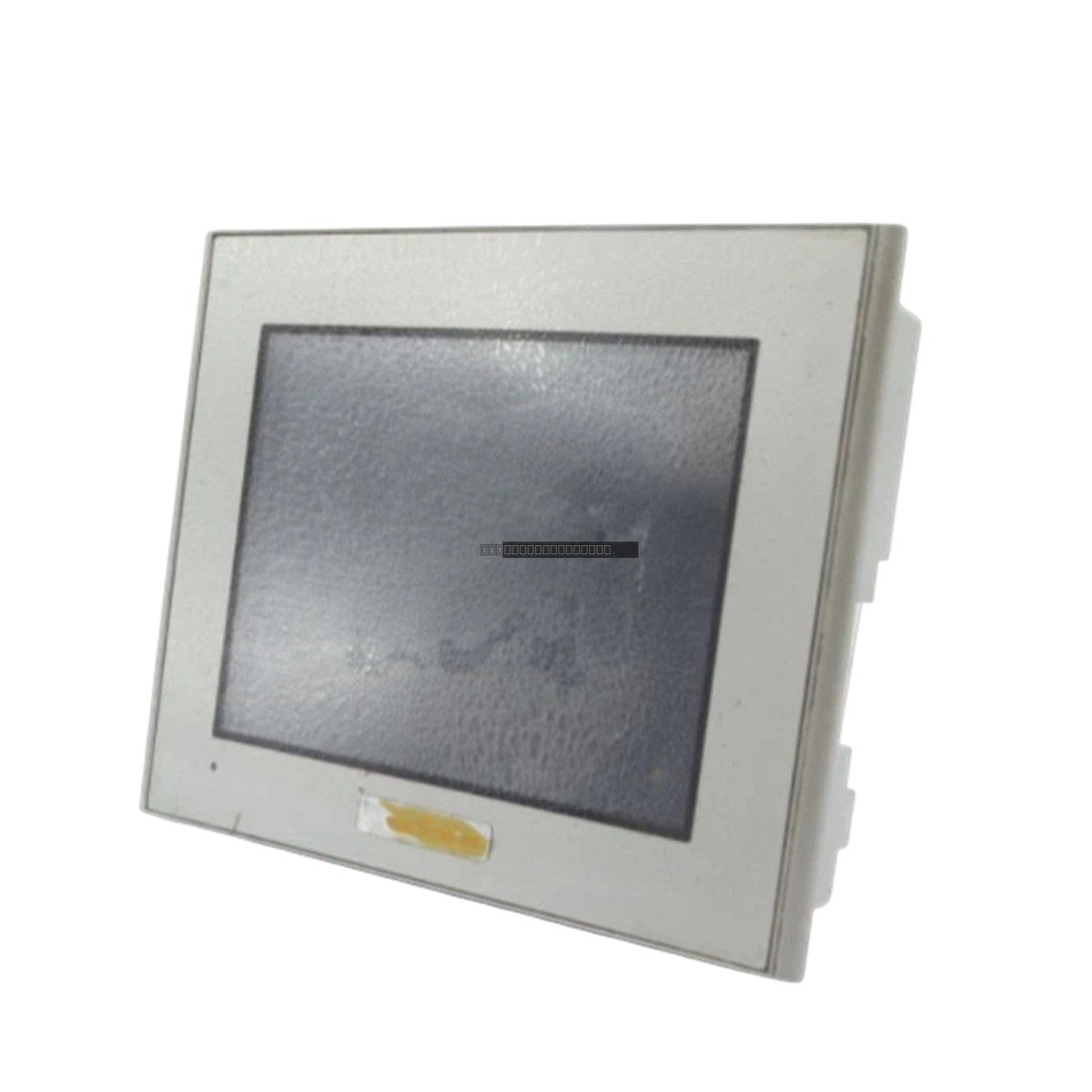

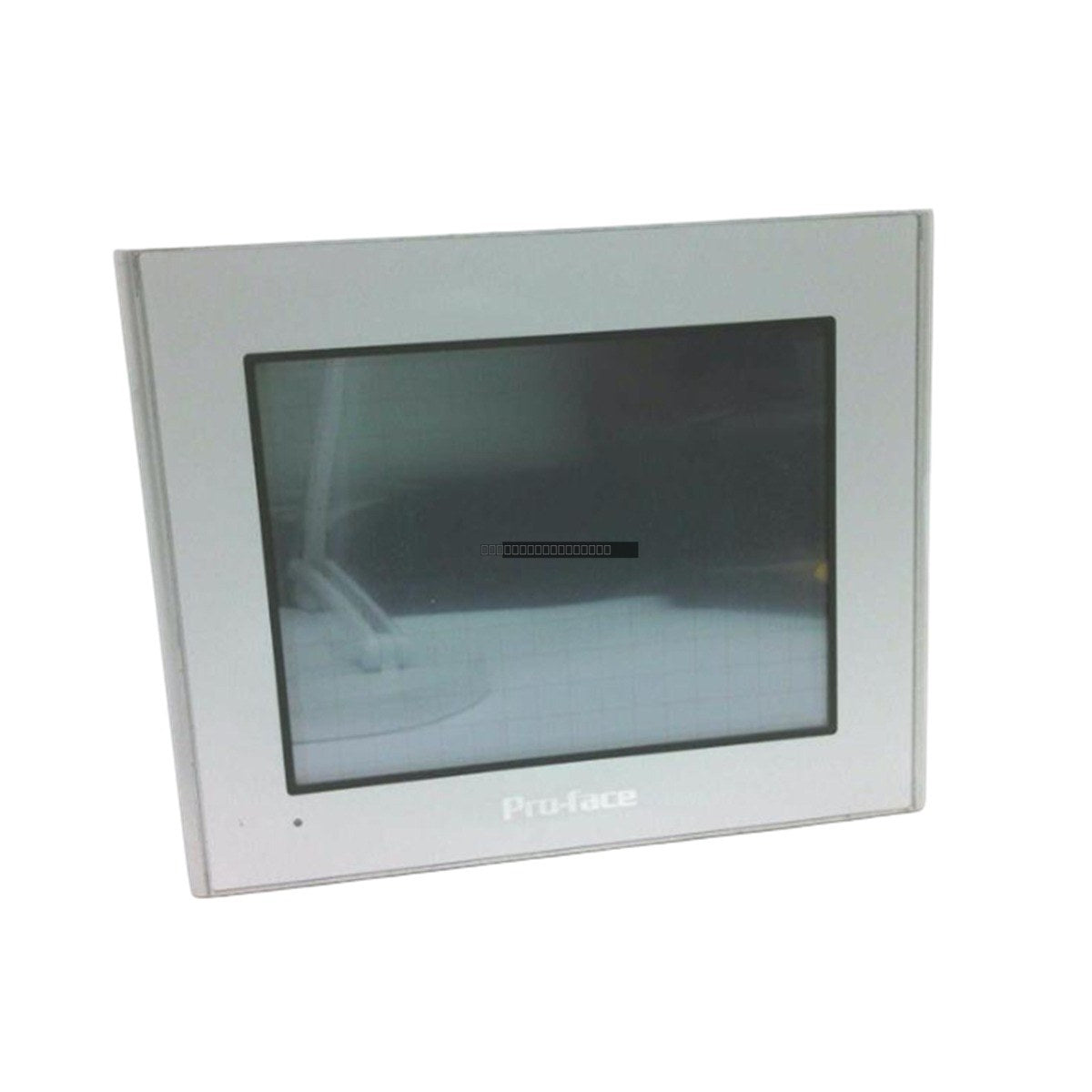

The GE Fanuc QPKSTDN0000 is a 5.7-inch graphical touch screen interface module belonging to the QuickPanel Jr. series. This HMI is engineered for compact machine control and OEM applications, providing operators with a clear, responsive interface for monitoring and controlling industrial processes. The unit features a full-color STN LCD display and is designed for seamless integration into automated factory environments, helping to improve operational oversight and reduce machine downtime.
Features
- 5.7-inch STN color LCD display with 320 x 240 pixel resolution.
- 1 MB Flash EPROM for graphical interface and data storage.

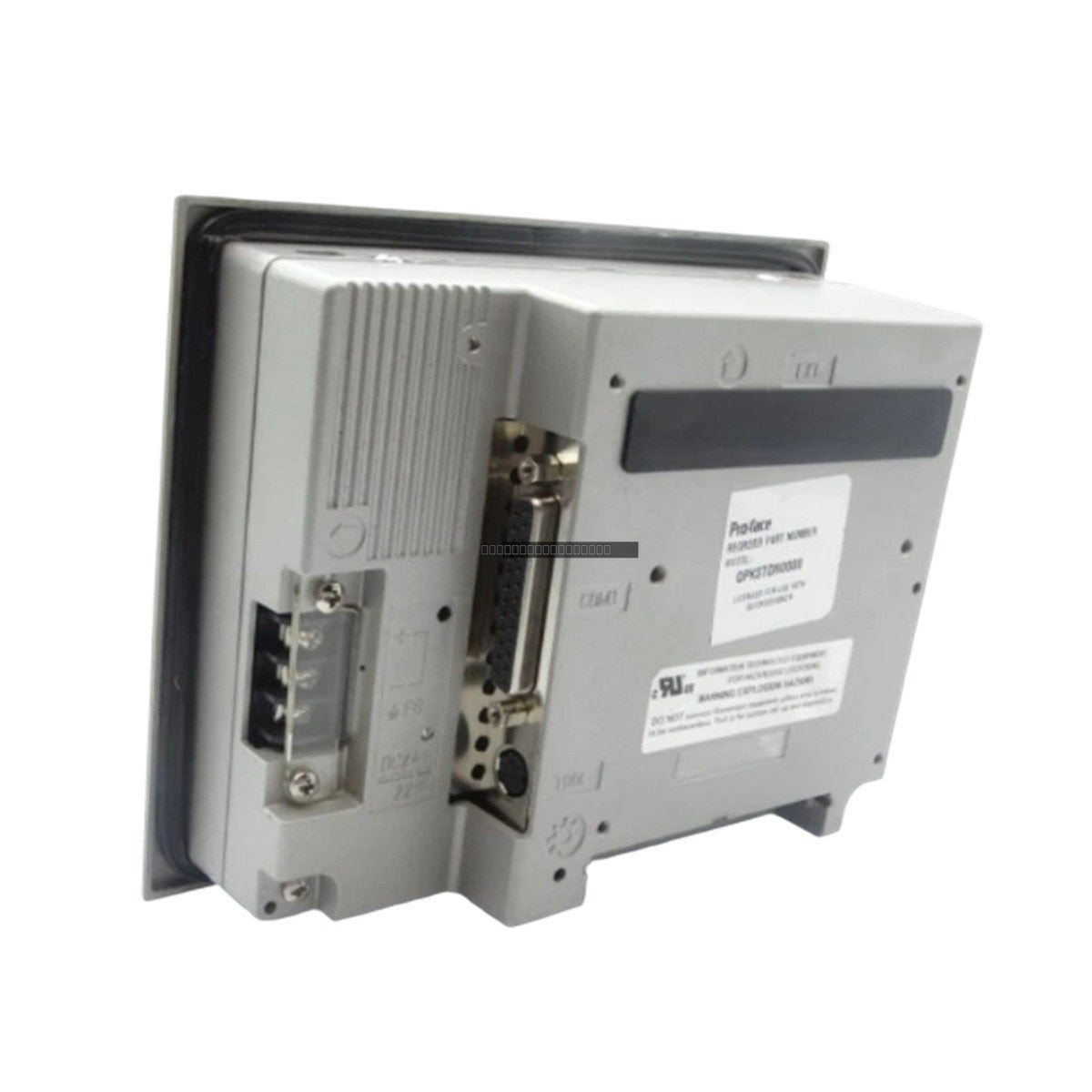

- Robust communication suite including 10BaseT Ethernet, two serial ports, and one dedicated printer port.
- Designed for durability with NEMA Type 4X/12 and IP65 environmental ratings.
- Class 1, Division 2 rated for hazardous location suitability.
- Compact form factor ideal for space-constrained control panels.
Technical Specifications
| Model |
QPKSTDN0000 |
| Display Type |
STN Color LCD |
| Display Size |
5.7 inch |
| Resolution |
320 x 240 pixels |
| Input Voltage |
24 VDC |
| Memory |
1 MB Flash EPROM |
| Communication |
10BaseT Ethernet, 2x Serial, 1x Printer Port |
| Operating Temperature |
0 to 50 degC |
| Humidity |
10 to 90 percent (non-condensing) |
Installation Guidelines
- Ensure the panel cutout is prepared according to the manufacturer's specifications to maintain the NEMA 4X/12 seal.
- Verify that the power supply is a stable 24 VDC source before connection.
- Use shielded communication cables for Ethernet and serial connections to minimize EMI interference in industrial environments.
- Ensure adequate ventilation around the unit to maintain operating temperatures within the 0 to 50 degC range.
- Always power down the system before performing any wiring or maintenance on the interface module.
- Ground the unit properly to the control cabinet chassis to ensure electrical safety and signal integrity.
FAQ
What software is required to program the QPKSTDN0000?
The unit is designed to operate with QuickDesigner software (Version 3.7 or compatible).
Is this unit suitable for outdoor use?
While it carries NEMA 4X/12 and IP65 ratings, it is intended for industrial control environments. Please consult the installation manual for specific environmental exposure limitations.
Does this module include built-in I/O?
No, the QPKSTDN0000 is a dedicated HMI interface module and does not feature integrated auxiliary I/O.
