Description

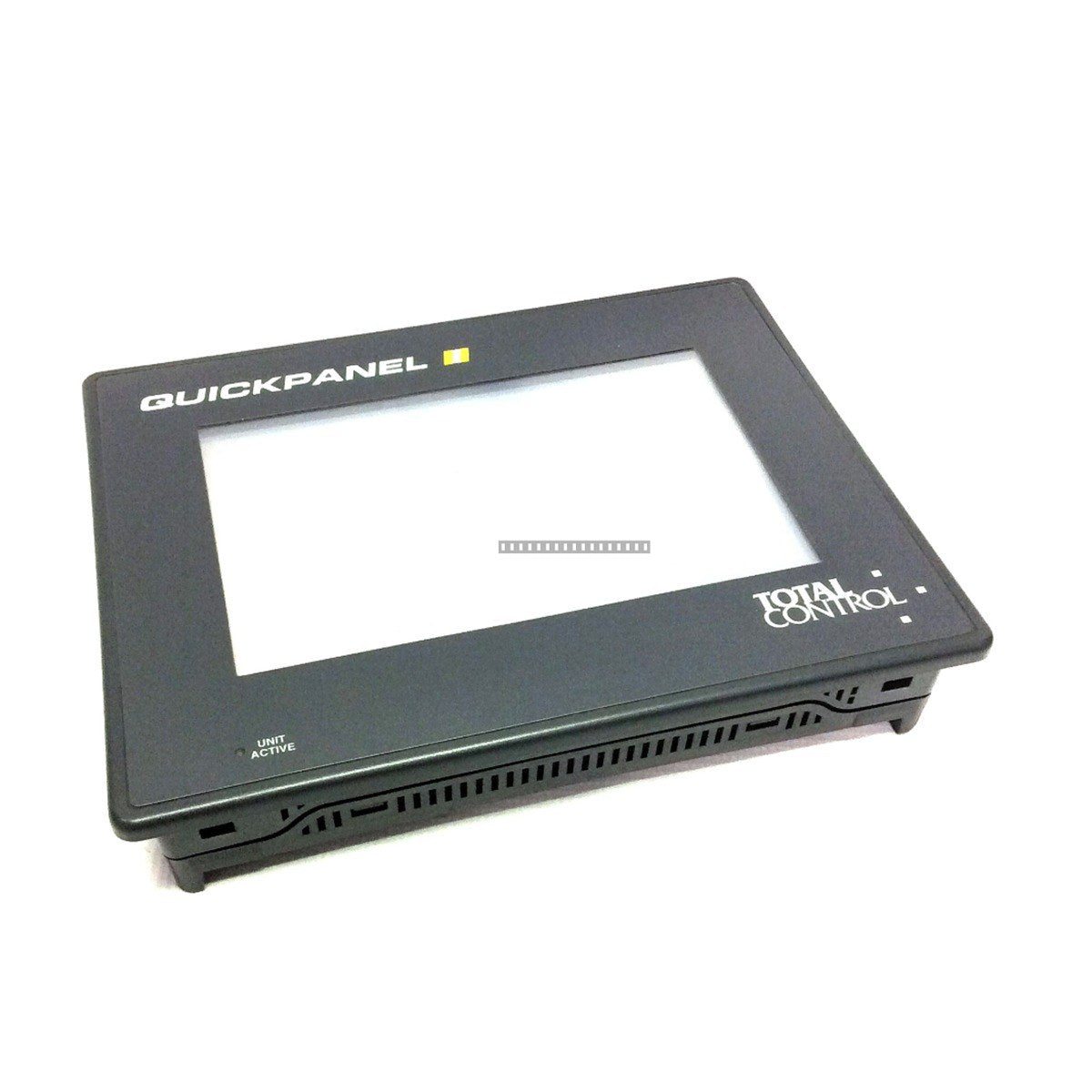

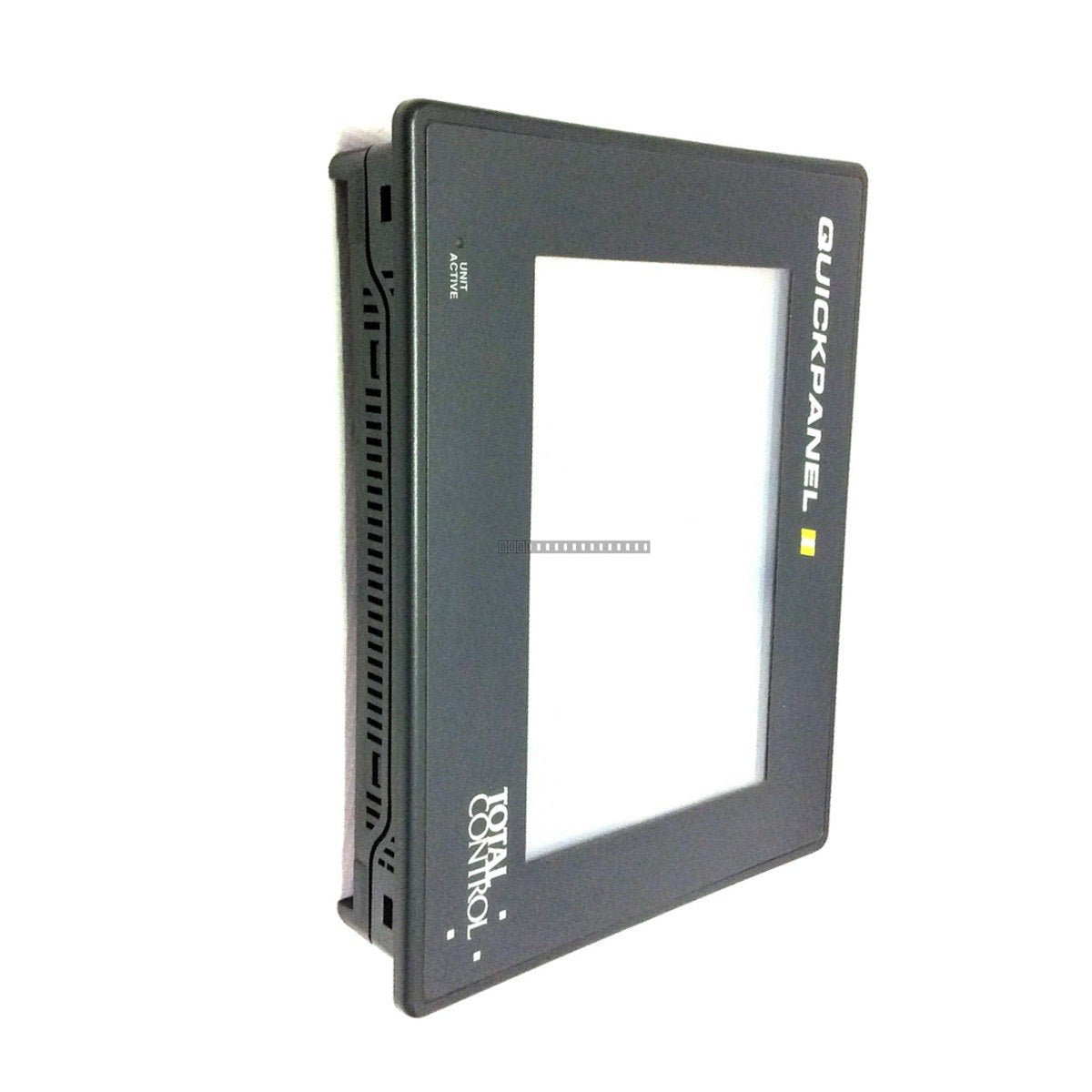

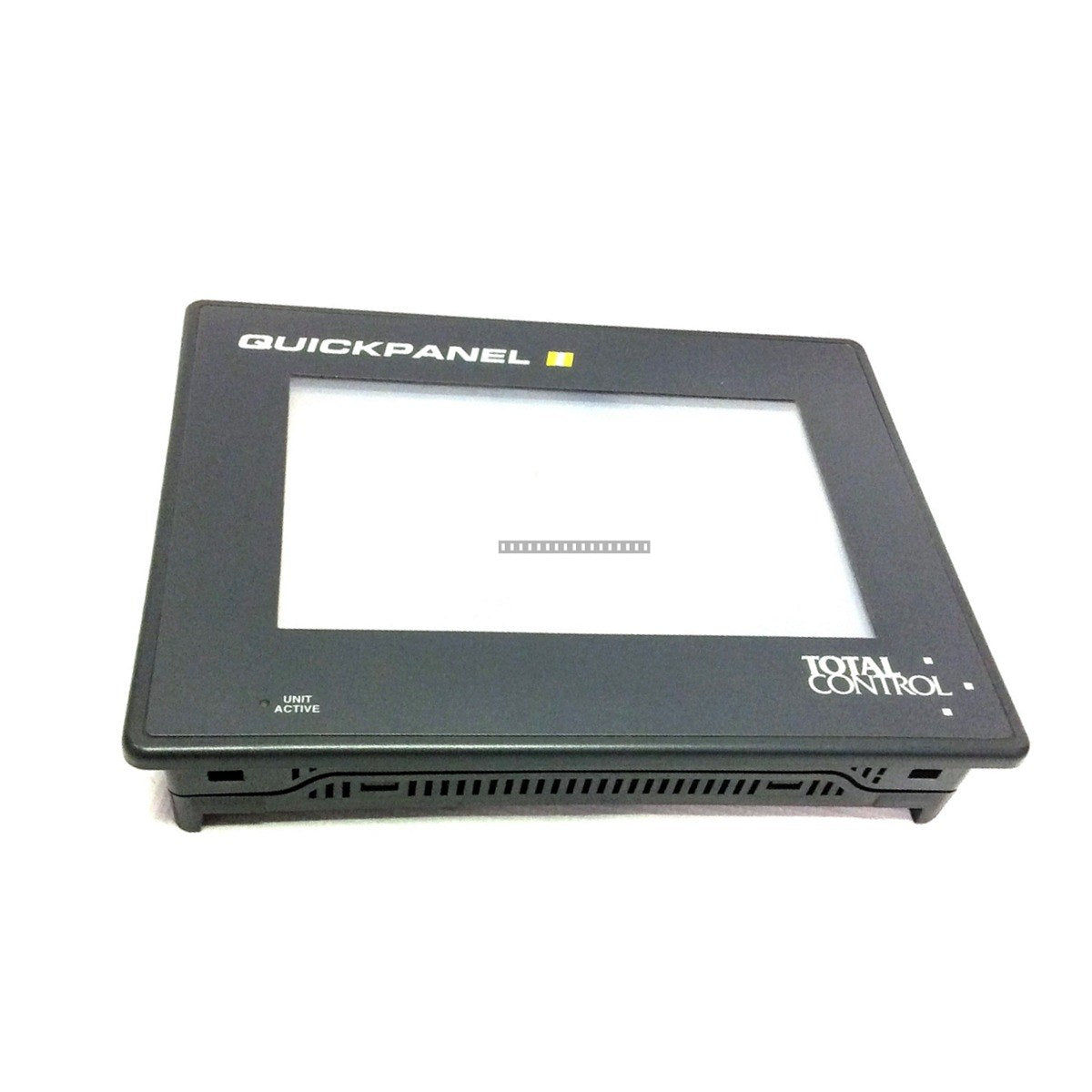

The GE Fanuc QuickPanel QPI31200S2P is a 10.4-inch industrial touch screen interface designed for high-performance human-machine interaction in demanding production environments. This unit serves as a robust visualization gateway for plant-floor controllers, providing operators with clear, real-time diagnostic data and system controls. Its durable construction ensures reliable operation in critical sectors such as heavy manufacturing, water treatment, and process control systems.
Features
- 10.4-inch STN color display with 640 x 480 pixel resolution.
- Amber-hued electroluminescent backlighting for clear visibility in varied ambient lighting.
- NEMA 4X/12 and IP65 rated enclosure for protection against dust and liquid ingress.
- Compatible with QuickDesigner Version 3.7 software for streamlined application deployment.
- Designed for integration with GE Fanuc industrial automation systems.
Applications
This HMI is suitable for a wide range of industrial applications, including process automation, machine monitoring, water and wastewater treatment facilities, and general manufacturing environments where robust visualization is required.
Technical Specifications
| Model |
QPI31200S2P |
| Brand |
GE Fanuc |
| Series |
QuickPanel |
| Display Size |
10.4 inch |
| Display Technology |
STN Color |
| Resolution |
640 x 480 pixels |
| Backlight |
Amber Electroluminescent |
| Input Voltage |
120 VAC |
| Enclosure Rating |
NEMA 4X/12, IP65 |
Installation Guidelines
- Ensure the panel cutout dimensions are verified against the manufacturer's installation manual before mounting.
- The unit must be installed in a clean, dry environment within the specified NEMA/IP rating limits.
- Ensure proper grounding of the chassis to prevent electrical interference and protect against electrostatic discharge.
- Verify that the power supply matches the 120 VAC requirement before connection.
- Maintain adequate clearance around the unit for proper ventilation and heat dissipation.
- Always disconnect power before performing any wiring, maintenance, or module replacement.
FAQ
What software is required to program this HMI?
The QPI31200S2P is compatible with QuickDesigner Version 3.7 software for project development and application deployment.
What is the protection rating of this unit?
The unit features a NEMA 4X/12 and IP65 rated enclosure, making it suitable for environments where exposure to dust, moisture, and non-corrosive liquids is a concern.
