Description

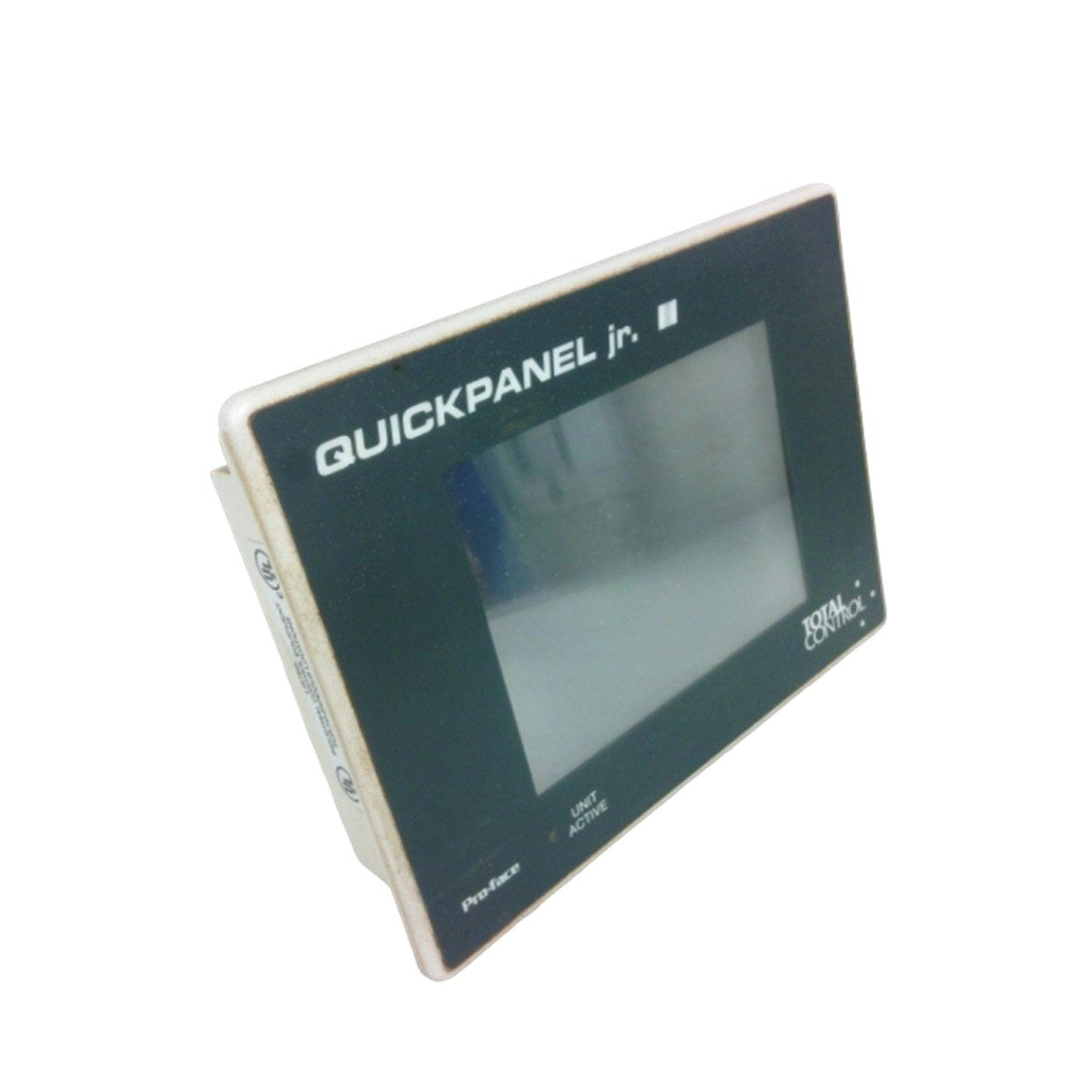

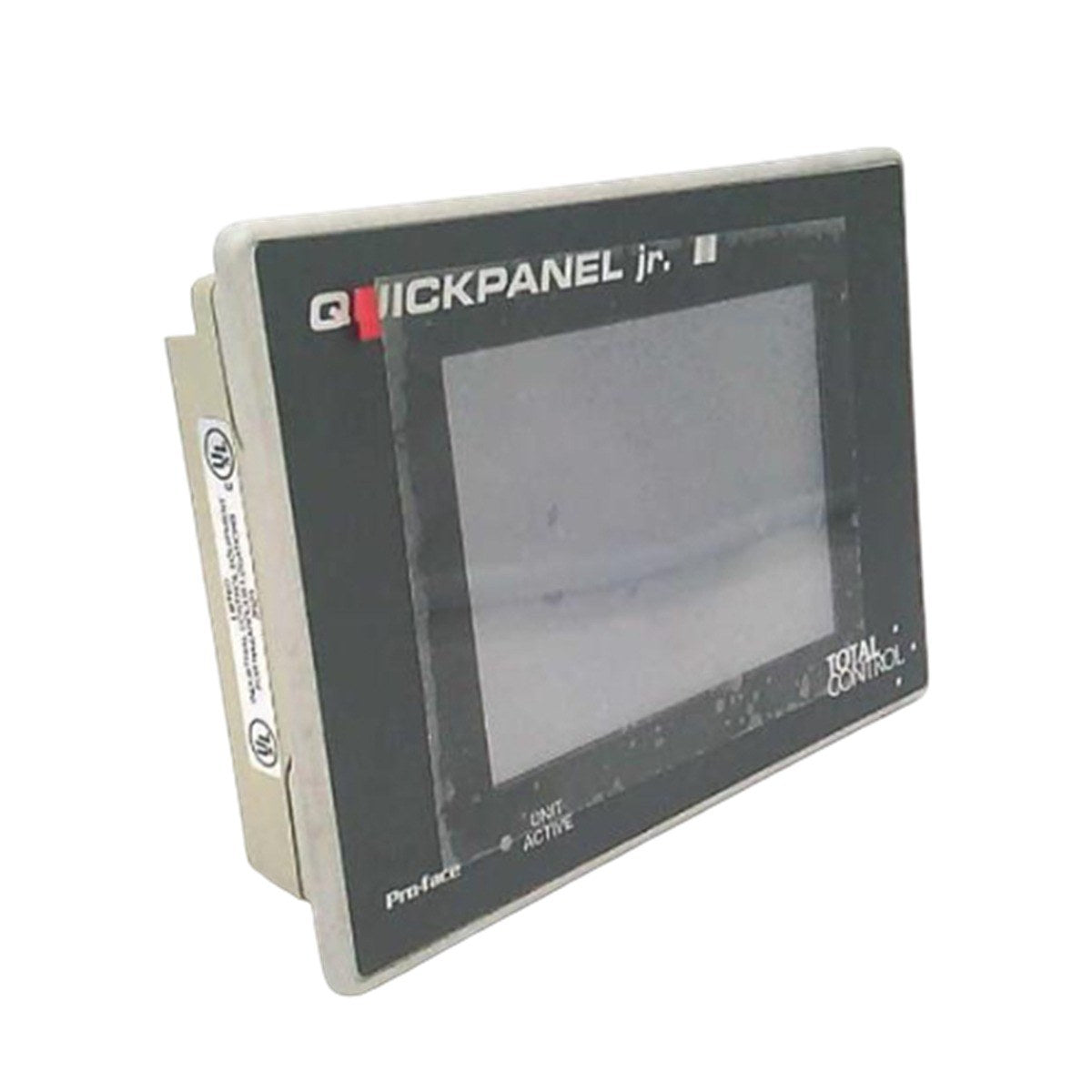

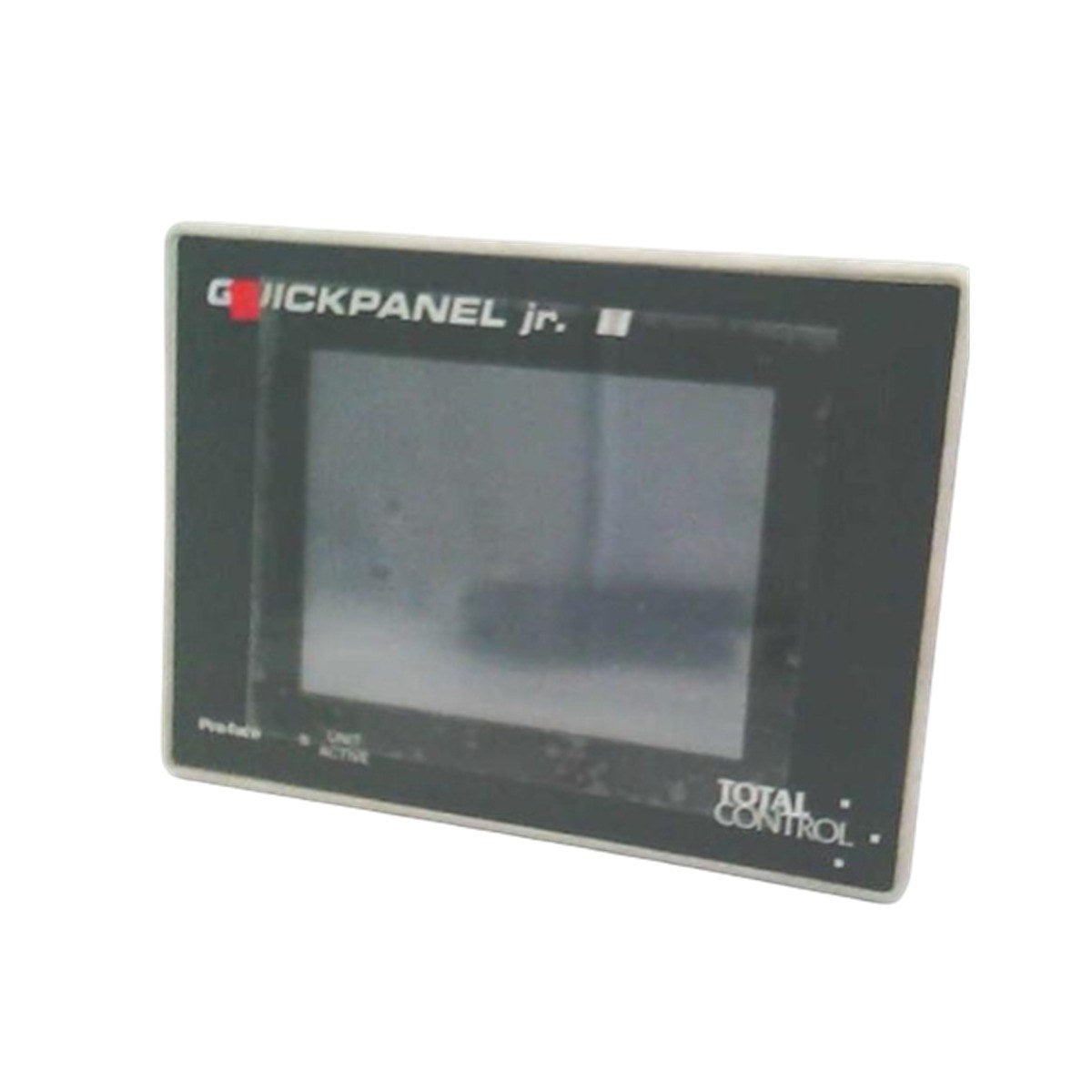

The GE Fanuc QPJ-2D100-L2P is a 4.7-inch monochrome touch screen interface from the QuickPanel Jr. series. This HMI module functions as an operator control station for industrial automation, providing real-time monitoring and parameter adjustment capabilities. Its compact design and high-resolution display make it suitable for space-constrained environments such as water treatment, food processing, and small-scale manufacturing machinery.
Features
- 4.7-inch monochrome LCD display with 240 x 320 pixel resolution.
- Rugged housing rated for NEMA 4X/12 and IP65 protection against moisture and contaminants.
- Compatible with QuickDesigner Version 3.7 software for application development.
- Integrated tactile interface for rapid diagnostic feedback and process control.
- Designed for reliable operation in distributed automation architectures.
Applications
This unit is designed for local machine-side control, operator interface panels, and distributed I/O monitoring. It is frequently deployed in environments requiring localized troubleshooting and real-time process visibility.
Technical Specifications
| Model |
QPJ-2D100-L2P |
| Display Type |
4.7 inch Monochrome LCD |
| Resolution |
240 x 320 pixels |
| Input Voltage |
24 VDC (20.4 to 27.6 VDC) |
| Power Consumption |
12 W |
| Operating Temperature |
0 to 50 degC |
| Relative Humidity |
5 to 85 percent (non-condensing) |
| Ingress Protection |
IP65 / NEMA 4X/12 |
Installation Guidelines
- Ensure the panel cutout is prepared according to the manufacturer's specifications to maintain the integrity of the NEMA 4X/12 seal.
- Verify that the power supply provides a stable 24 VDC within the 20.4 to 27.6 VDC range before connection.
- Maintain proper ventilation in the enclosure to keep the ambient temperature within the 0 to 50 degC operating range.
- Use shielded communication cables and route them away from high-voltage or high-EMI sources to prevent signal interference.
- Always disconnect power before installing or removing the unit to prevent electrical damage.
FAQ
What software is required to program this HMI?
The QPJ-2D100-L2P is designed to be used with the QuickDesigner Version 3.7 software suite.
What is the power tolerance of this unit?
The unit operates on 24 VDC and is engineered to withstand power interruptions of up to 20 milliseconds without loss of operation.
