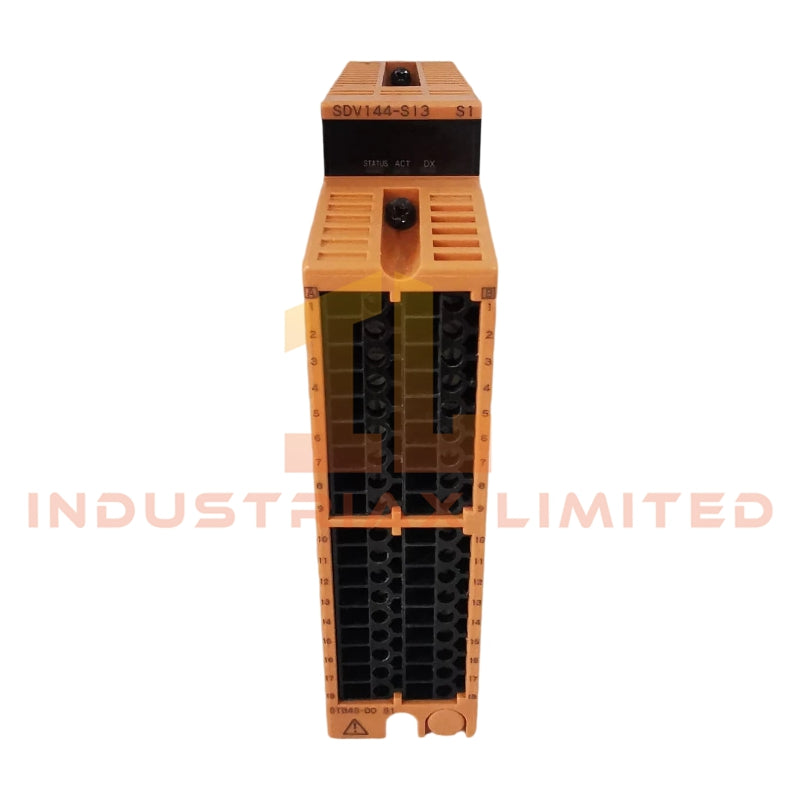

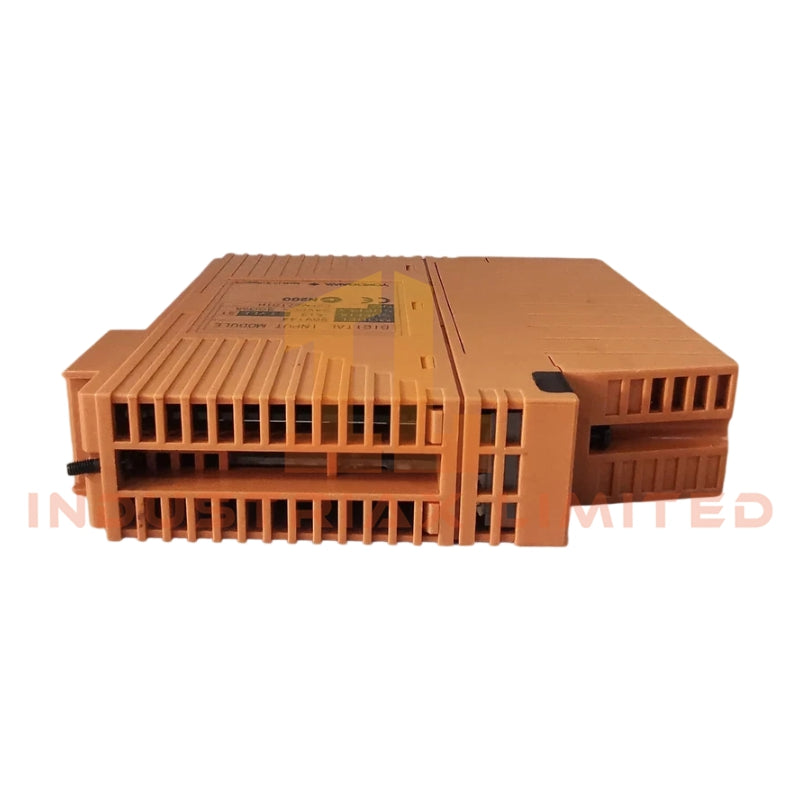

Yokogawa STB4S-00 Pressure Clamp Terminal Block

The Yokogawa STB4S-00, also cataloged as the STB4S Pressure Clamp Terminal Block, operates as a dedicated hardware component for field wiring termination and digital signal interfacing within ProSafe-RS and CENTUM I/O connection architectures. The unit provides pressure-clamp based electrical connection between field devices and associated digital I/O modules.

Suffix Breakdown & Model Matrix

The provided documentation identifies STB4S-00 as a fixed model designation. No official suffix decoding or option matrix is specified. Documentation indicates that the STB4S-00 version is supplied without an integrated surge absorber, while the related STB4S-10 variant includes surge protection circuitry.

Hardware Specifications

Parameter	Specification
Model	STB4S-00
Brand	Yokogawa
Product Type	Pressure Clamp Terminal Block
Configuration	Single (Non-redundant)
Application	Digital Input / Digital Output
Wiring Method	Tool-free pressure clamp connection
Channel Capacity	8-channel or 16-channel configuration depending on connected I/O module
Compatible Modules	SDV144, SDV531, SDV541
Surge Protection	Not equipped with surge absorber
Weight	Approx. 0.2 kg
Environmental Standard	ISA G3
Mounting Environment	Industrial control cabinet installation

Channel-to-Channel Isolation Considerations

The STB4S-00 functions as a passive termination interface and does not perform signal conditioning, protocol conversion, or channel isolation. Channel-to-channel isolation characteristics are determined by the connected I/O module architecture. The terminal block provides a direct field wiring interface through pressure-clamp contacts, maintaining electrical continuity between field circuits and digital I/O channels.

Frequently Asked Questions

Q: Does the STB4S-00 contain an integrated surge absorber?
A: No. The STB4S-00 is supplied without a built-in surge absorber. Documentation identifies the STB4S-10 as the corresponding surge-protected variant.

Q: Which I/O modules can be connected to the STB4S-00?

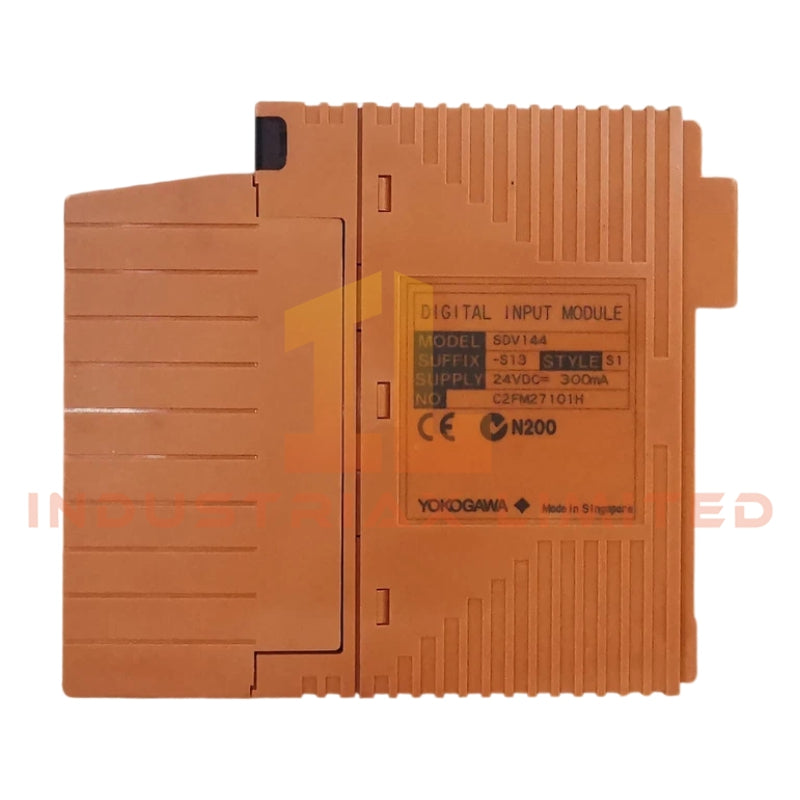

A: The terminal block is commonly associated with Yokogawa digital I/O modules including SDV144 digital input modules and SDV531 or SDV541 digital output modules.

Q: Does the terminal block require an external power supply?
A: The STB4S-00 operates as a passive field termination component. No dedicated power consumption specification is provided in the available documentation.

Field Installation Guidelines

• Verify terminal block compatibility with the installed digital I/O module before wiring.
• Ensure field conductors are fully inserted into the pressure-clamp terminals before energizing circuits.
• Separate signal wiring from high-voltage power conductors to minimize electrical interference.
• Follow cabinet grounding practices specified by the control system installation standard.
• Inspect conductor insulation to prevent exposed wire strands from contacting adjacent terminals.
• Confirm terminal identification against loop drawings and I/O allocation documents before commissioning.
• Where surge protection is required by site standards, provide external surge suppression devices or utilize the appropriate surge-protected terminal block variant.
