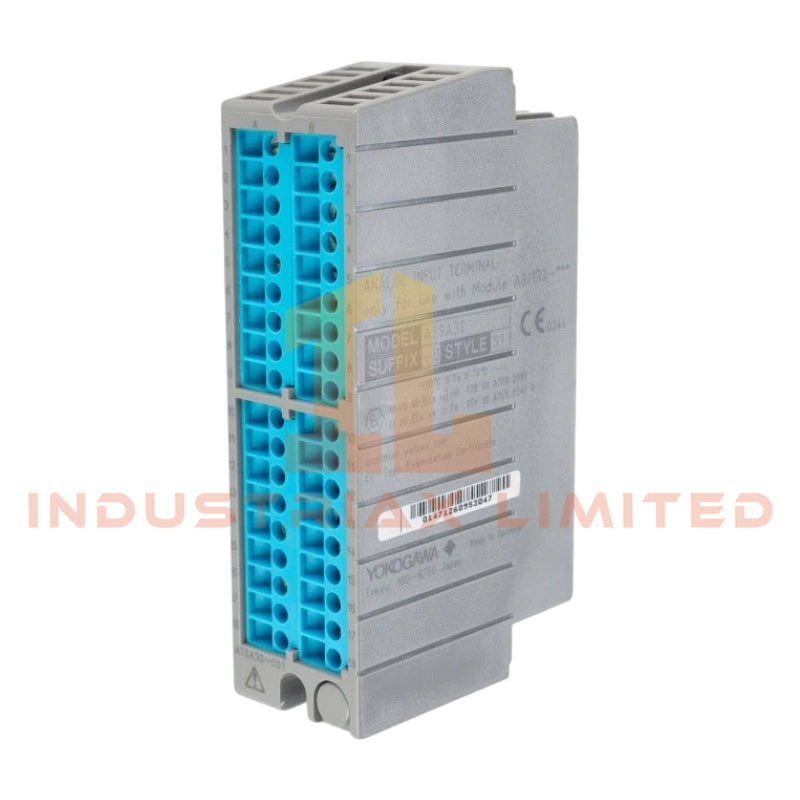

Yokogawa ATSA3S-0 Pressure Clamp Terminal Block

The Yokogawa ATSA3S-0, also cataloged as the ATSA3S terminal block, operates as a dedicated hardware component for terminating 4-20 mA analog input loops within Yokogawa CENTUM VP and CS-series distributed control systems. It interfaces directly with the ASI133 analog input module, providing secure mechanical retention and electrical contact for field-side wiring.

Hardware Specifications

Parameter	Specification
Model	ATSA3S-0
Brand	Yokogawa
Origin	Japan
Weight	0.20 kg
Dimensions (W×H×D)	32.6 × 114 × 60.5 mm
Operating Temp	–20 to +70 degC
Power Consumption	Not applicable (passive wiring interface)
Terminal Type	Spring-cage (pressure clamp, screwless)
Applicable I/O Module	ASI133 8-channel analog input with barrier

Channel-to-Channel Isolation Characteristics

The ATSA3S-0 supports the ASI133 module’s intrinsic galvanic separation between channels, maintaining signal integrity across independent measurement loops. Each channel path is physically isolated up to rated dielectric withstand voltage, preventing cross-circuit interference from ground potential differences. This isolation aligns with standard DCS analog input design practice where field noise and transient overvoltages are suppressed before signal processing.

Frequently Asked Questions

Q: Does the ATSA3S-0 support hot-swapping while the ASI133 module is powered?

A: No. The terminal block must be disconnected from field wiring and removed only after powering down the associated module to prevent arcing or contact damage.

Q: Is the ATSA3S-0 compatible with HART communication signals?

A: Yes, provided the mating ASI133 module supports HART protocol; the terminal block itself imposes no impedance mismatch in the 4-20 mA loop.

Q: Can this terminal block be replaced with the redundant version without rewiring?

A: No. The redundant ATSA3D-0 has a different mechanical layout; replacing it requires re-termination of all field wiring.

Field Installation Guidelines

Mount the ATSA3S-0 directly onto the ASI133 module base within the Yokogawa I/O nest until fully seated. Ensure all spring-cage levers are actuated correctly to achieve uniform contact force. Use twisted-pair cabling for each 4-20 mA loop and terminate shield drains to the designated earth bar at the cabinet entry point. Avoid mixing power and signal conductors in the same routing path to minimize electromagnetic coupling. Verify torque retention visually; do not over-lever the clamp mechanism beyond its designed travel.
