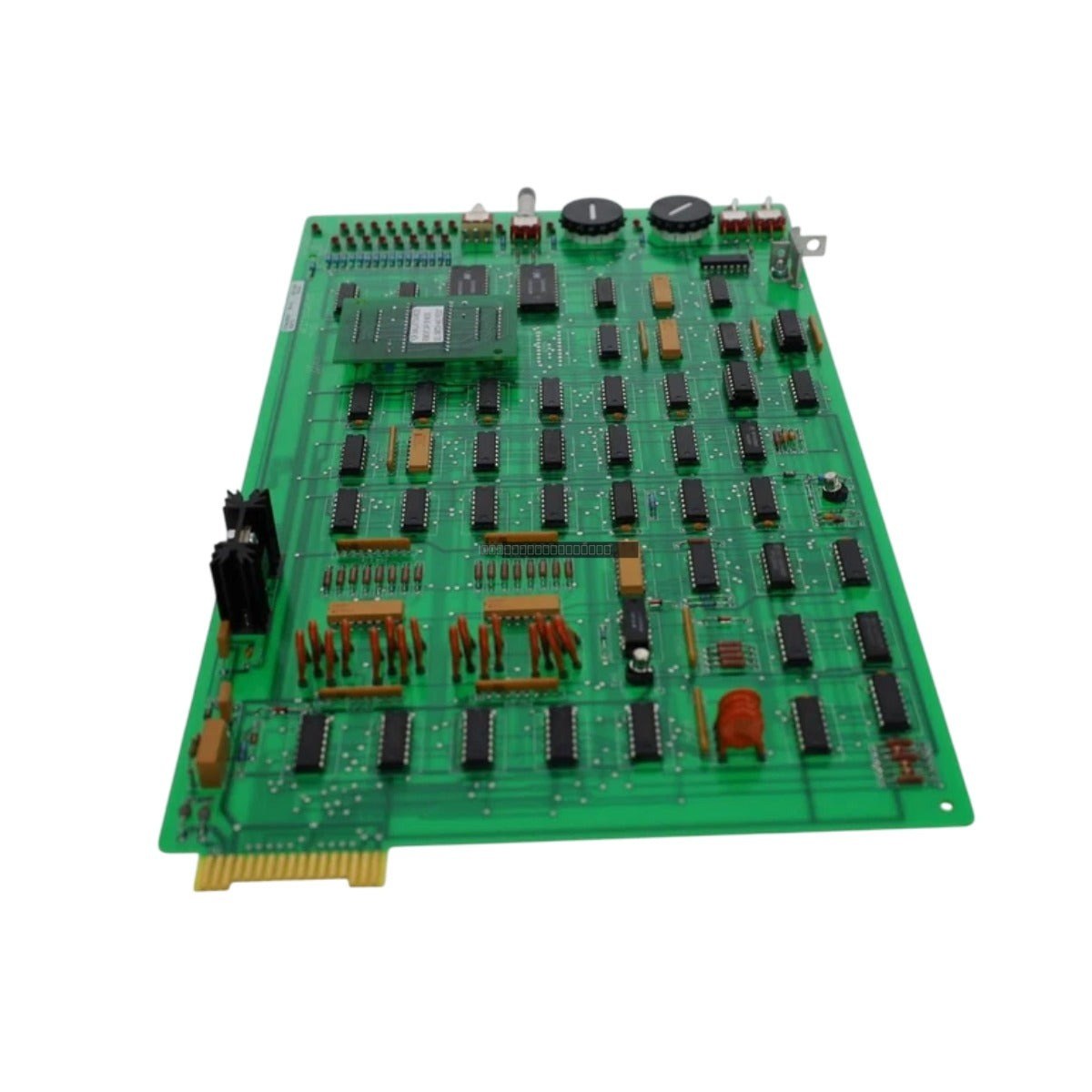

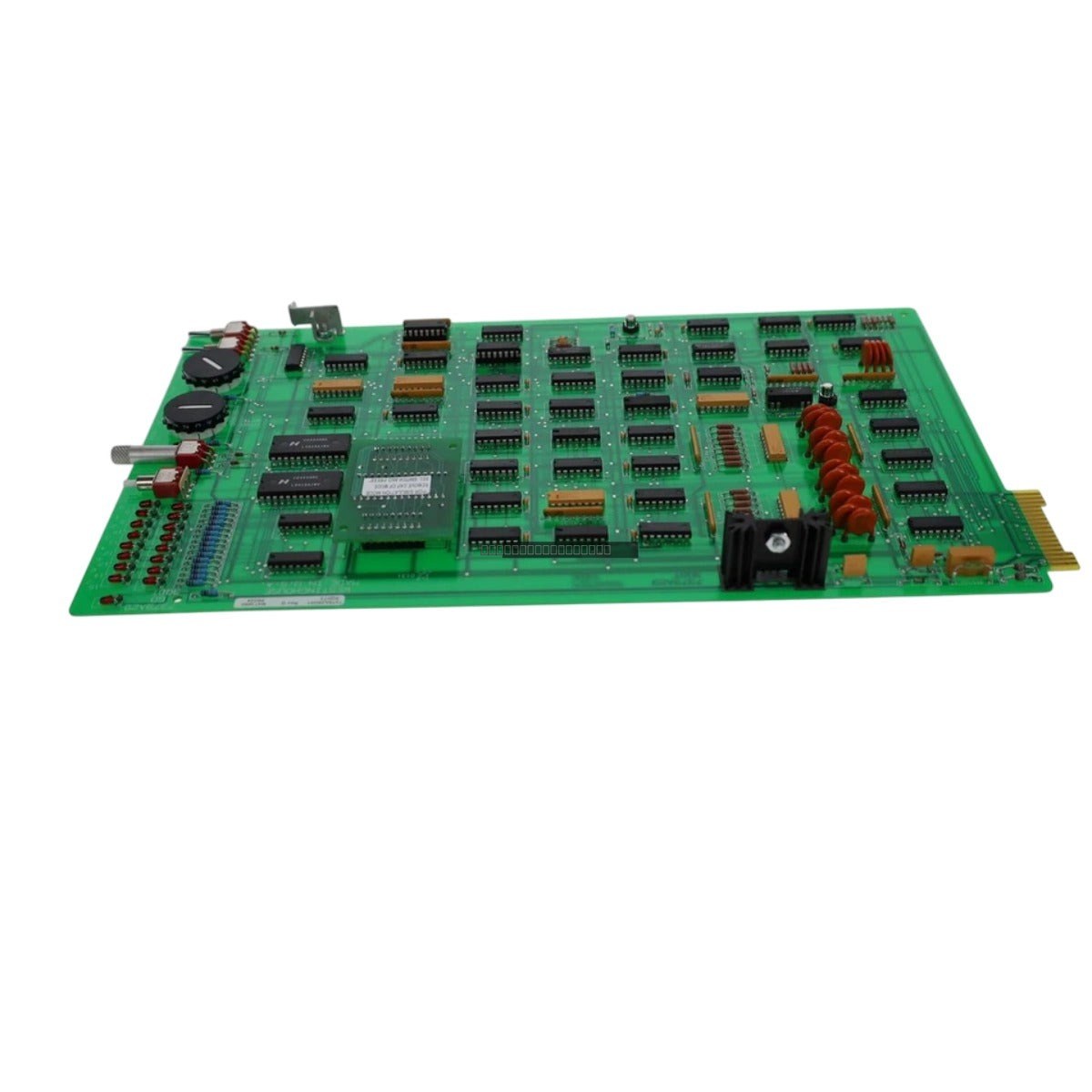

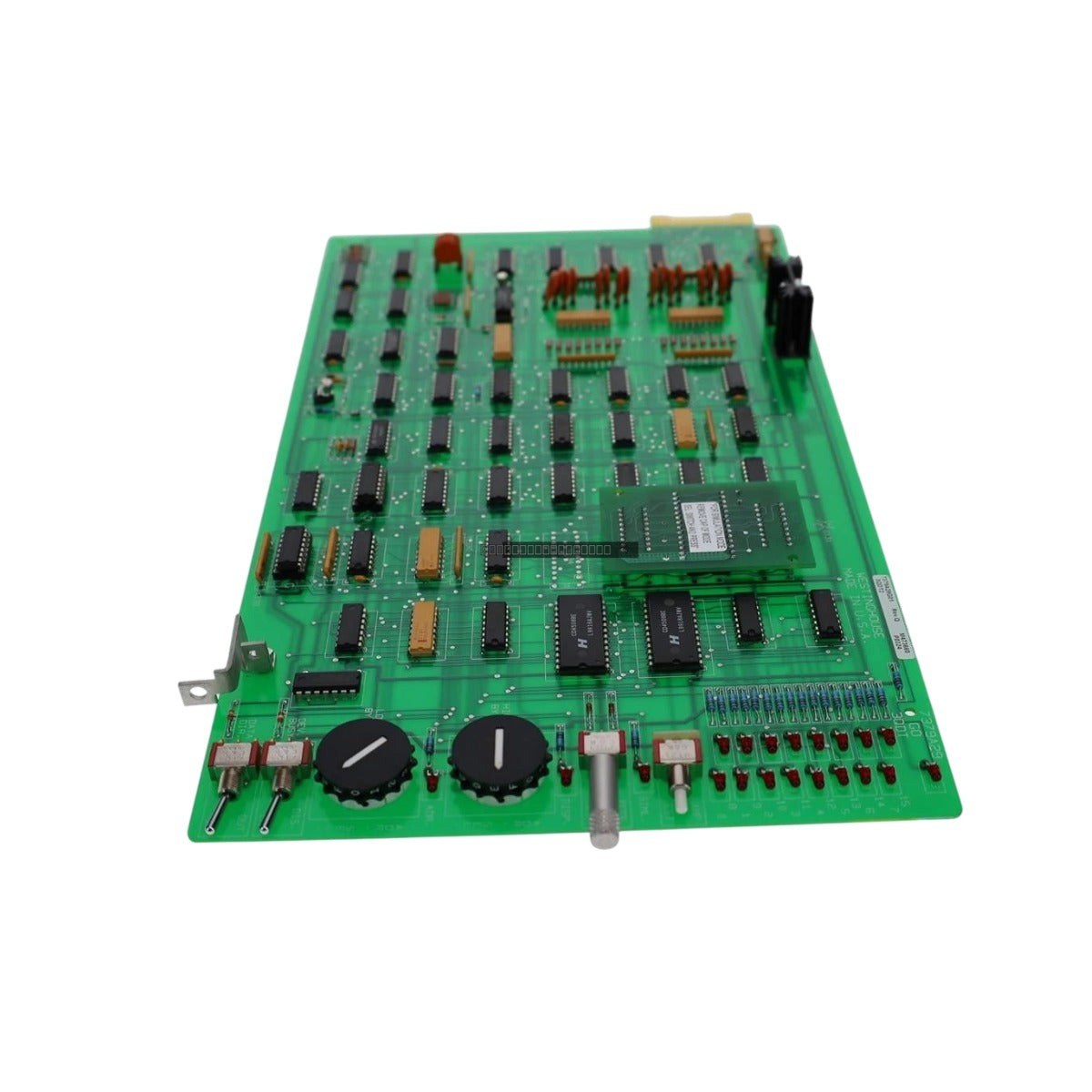

The Ovation 7379A29G01 is a specialized Diagnostic Test Card (QDT) engineered to support the maintenance and troubleshooting workflows of Ovation control systems. This hardware module serves as a critical diagnostic interface, allowing maintenance personnel to perform board-level validation and fault isolation within industrial automation architectures. By facilitating direct hardware-level monitoring, the 7379A29G01 assists in identifying signal inconsistencies and component-level errors, which helps to streamline repair processes and reduce system downtime in critical power and manufacturing applications.
Features
- Designed specifically for diagnostic analysis within Ovation control environments.
- Enables rapid isolation of hardware faults and signal discrepancies.
- High-density circuitry optimized for interfacing with standard Ovation backplanes.
- Supports preventative maintenance cycles by providing real-time feedback on bus activity and I/O states.
- Robust construction suitable for standard industrial cabinet environments.
Applications
This diagnostic card is primarily utilized in power generation facilities, utility-scale control systems, and complex automated manufacturing lines where Ovation control hardware is deployed. It is an essential tool for field engineers and system integrators tasked with maintaining high-availability control networks.
Technical Specifications
| Model |
7379A29G01 |
| Component Type |
Diagnostic Test Card (QDT) |
| Interface |
Proprietary Ovation Diagnostic Bus |
| Operating Temperature |
0 to 60 degC |
| Weight |
0.37 kg |
Installation Guidelines
- Ensure the control system is powered down before inserting or removing the diagnostic card to prevent electrical arcing or damage to the backplane pins.
- Handle the PCB assembly by its edges; avoid contact with integrated circuit pins or sensitive surface-mount components to prevent ESD damage.
- Ensure the card is fully seated in the designated diagnostic slot to maintain proper contact with the bus interface.
- Verify that the cabinet environment remains within the specified operating temperature range of 0 to 60 degC to ensure accurate diagnostic readings.
- Keep the module away from high-EMI sources during diagnostic routines to prevent signal noise from interfering with system analysis.
FAQ
What is the primary function of the 7379A29G01 card?
The 7379A29G01 is a diagnostic test card used to troubleshoot and validate the health of components within an Ovation control system, allowing for precise fault identification.
Is this module intended for permanent installation in the control rack?
No, this is a diagnostic tool typically used during maintenance, testing, or troubleshooting procedures rather than as a permanent operational I/O module.
