Description

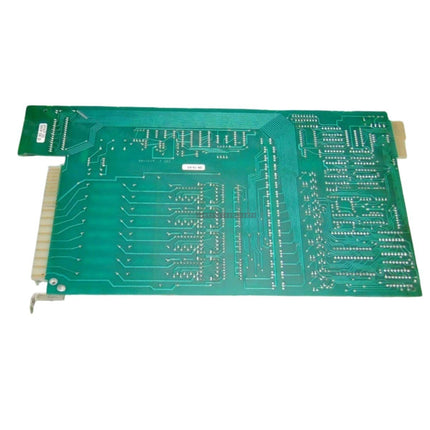

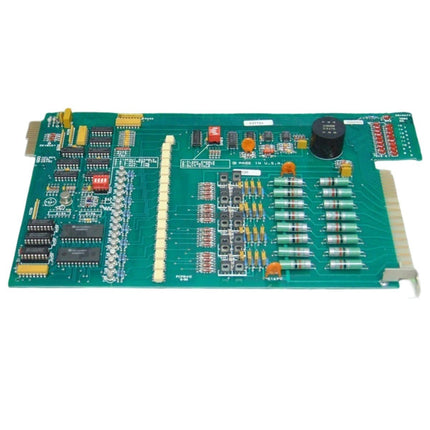

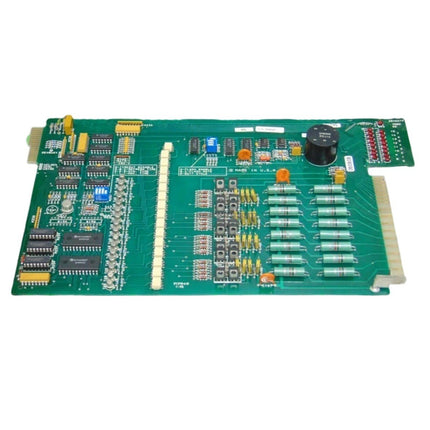

The Ovation 2840A79G01 digital output card is a high-reliability interface module designed for the Ovation control system environment. It is specifically engineered for demanding applications in power generation and heavy industrial process management. This module facilitates precise control signal distribution, acting as the critical link between the central processing unit and field-level actuators. By maintaining signal integrity and high-speed switching response, the 2840A79G01 minimizes latency and helps mitigate the risk of operational downtime in critical infrastructure.
Features
- High-density digital output design for efficient control loop management.
- Robust 60 VDC operational architecture.
- Advanced electrical isolation to prevent transient interference between control loops.
- Onboard diagnostic capabilities for real-time monitoring of voltage stability and output states.
- Secure rack-mount locking mechanism for stability in high-vibration environments.
Applications
This module is typically deployed in power plant control systems, including turbine control, boiler management, and balance-of-plant (BOP) process automation where reliable digital switching is required.
Technical Specifications
| Model |
2840A79G01 |
| Brand |
Ovation |
| Supply Voltage |
60 VDC |
| Operating Temperature |
0 to 60 degC |
| Product Category |
Digital Output Card |
Installation Guidelines
- Ensure the Ovation rack assembly is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the slot is clear of debris and that the module is properly aligned with the backplane connector.
- Engage the locking mechanism fully to ensure the board is seated securely against the rack frame.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
- Ensure field wiring is routed to minimize exposure to high-EMI sources and that all terminations are tightened to manufacturer specifications.
FAQ
What is the primary function of the 2840A79G01?
The 2840A79G01 is a digital output card used to interface the Ovation control system with field actuators, providing reliable signal switching for process control.
Is this module suitable for high-vibration environments?
Yes, the module is designed for use in industrial control rooms and includes a secure locking mechanism to maintain physical and electrical stability in environments such as turbine or boiler control areas.
