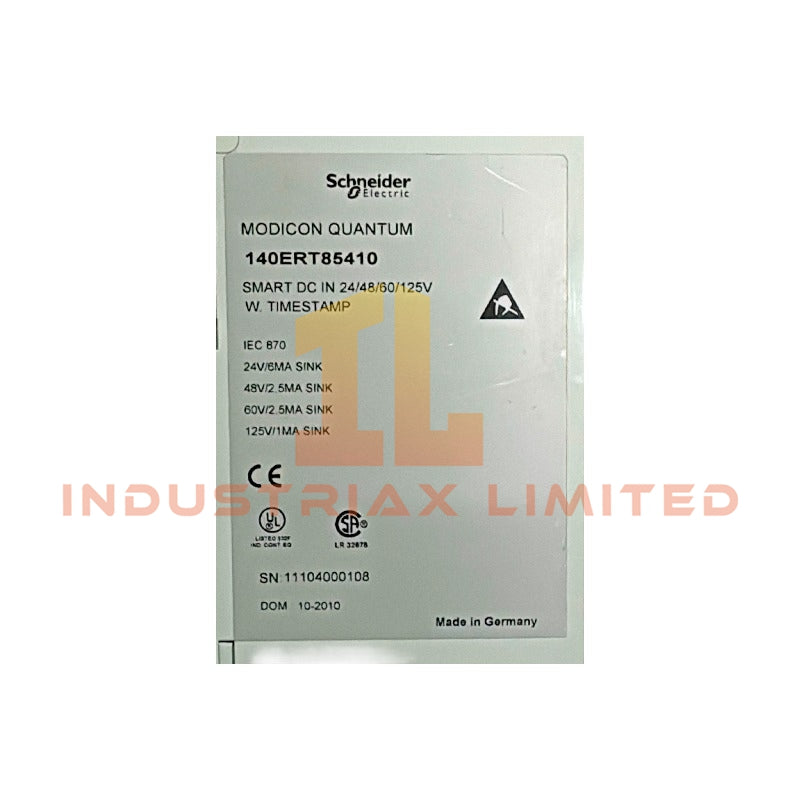

Schneider Electric 140ERT85410 Multifunction Input Module

The Schneider Electric 140ERT85410 also cataloged as the 140ERT85410 Multifunction Input Module, operates as a dedicated hardware component for discrete signal acquisition, event stamping, and clock synchronization within the Modicon Quantum automation platform I/O system. The module executes 32-channel digital input scanning combined with DCF77 time synchronization and event logging via backplane communication under Unity Pro configuration environments.

Hardware Specifications

Parameter	Specification
ModelBrand	140ERT85410 / Schneider Electric
Origin	France
Weight	0.45 kg
Dimensions	Not specified
OperatingTemp	0 to 60 degC
PowerConsumption	<= 7.5 W (process input)
Input Channels	32 discrete inputs + 1 clock input
Input Voltage Range	24 VDC to 125 VDC
Counting Function	Up to 500 Hz status logging
Time Sync	DCF77 protocol
Isolation	Optocoupler channel and group isolation
Backplane Current	300 mA at 5 VDC bus

Schneider Electric PLC Backplane Communication Characteristics

The module integrates into the Quantum backplane architecture with deterministic scan exchange across distributed I/O groups. Input state acquisition is executed via cyclic bus polling with timestamp embedding at signal transition level. Channel groups are electrically isolated using optocoupler stages to reduce cross-channel coupling under high-density 32-point configurations.

Backplane communication timing is synchronized with CPU task scheduling under Unity Pro runtime, enabling consistent event correlation between discrete transitions and DCF77-based time reference frames. The module supports configurable debounce filtering (0 to 255 ms) to stabilize high-frequency input edges in noisy industrial wiring environments. Signal integrity is maintained through differential internal bus arbitration and isolated group referencing.

Frequently Asked Questions

Q: Can the module be hot-swapped during operation?
A: The module is designed for rack-mounted installation; removal under energized backplane conditions may disrupt I/O scanning and should be performed only after system shutdown or controlled maintenance procedure.

Q: Does the 140ERT85410 support firmware upgrades via Unity Pro?
A: Configuration and parameterization are handled through Modicon Quantum automation platform engineering tools; firmware compatibility is dependent on CPU and backplane revision level.

Q: What is the effect of backplane loading with multiple multifunction modules?
A: Each module draws 300 mA at 5 VDC bus; total rack loading must remain within Quantum power supply limits to maintain stable scan cycles and avoid bus arbitration delays.

Field Installation Guidelines

Ensure the rack is de-energized before inserting or removing the module. Install the module into a standard Quantum slot with full backplane connector engagement to guarantee signal integrity and grounding continuity.

Use shielded cables for long-distance input wiring where electromagnetic interference is present, maintaining shield termination at a single earth reference point. Keep unshielded runs within 400 m and shielded runs within 600 m as specified.

Maintain separation between high-voltage switching lines and low-level digital input wiring to reduce induced noise on fast counting channels (500 Hz capability). Configure input debounce filtering according to mechanical contact characteristics prior to commissioning.
