Honeywell MC-PDOX02 Digital Output Processor

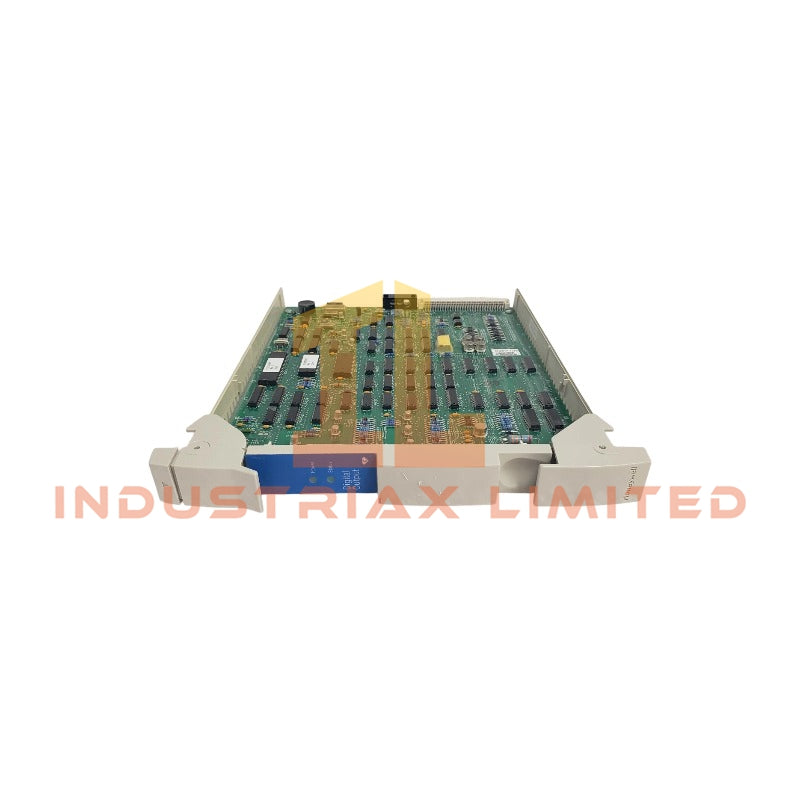

Configured for 16-channel digital signal execution in Honeywell control system platforms, the Honeywell MC-PDOX02 (51304487-150) (MC-PDOX02 Digital Output Processor) provides direct physical output switching and field signal control. This conformally coated assembly supports protection against humidity and chemical gas exposure during industrial operation.

Hardware Specifications

Parameter	Specification
Model	MC-PDOX02
Full Model Number	51304487-150
Brand	Honeywell
Product Type	Digital Output Processor
Function	Digital Output (DO) processing module
Output Channels	16 digital output channels
Coating Type	Conformally coated PCB assembly
Compliance	CE compliant part number: 51304487-150
System Compatibility	Honeywell control system I/O architecture
Signal Type	Discrete digital output signals

DCS Digital Output Signal Execution

The MC-PDOX02 processes discrete output commands from the control system and transfers electrical switching signals to connected field devices. Moreover, the module architecture supports 16 output points within the digital output processing path.

Honeywell digital output assemblies require controlled signal isolation and correct field wiring practices to maintain stable switching behavior. Therefore, installation should follow the applicable Honeywell I/O hardware configuration guidelines, including terminal assignment and grounding requirements.

The conformal coating layer covers the electronic assembly with a protective polymer film. In addition, this coating reduces exposure effects from humidity and most chemical gases that may affect printed circuit assemblies in industrial environments.

Frequently Asked Questions (FAQ)

Q: Does the MC-PDOX02 provide 16 independent digital output channels?
A: Yes. The MC-PDOX02 is specified as a Digital Output Processor with 16 output channels for discrete signal control.

Q: What protection does the conformal coating provide on this module?
A: The conformal coating provides a protective barrier against humidity and most chemical gas exposure on the electronic assembly.

Q: Can the MC-PDOX02 be installed without checking field wiring requirements?
A: No. Engineers should verify terminal assignments, field device connections, grounding methods, and system configuration before installation.

Field Installation Guidelines

• Install the MC-PDOX02 within the designated Honeywell I/O rack or approved hardware enclosure.
• Verify module orientation and connector engagement before applying system power.
• Use appropriate field wiring practices for digital output circuits, including correct conductor routing and terminal identification.
• Separate signal wiring from high-voltage power cables to reduce electrical interference.
• Connect shielding and grounding according to the applicable Honeywell installation documentation.
• Inspect the conformal coating surface before installation to confirm that the PCB protection layer remains intact.
• Confirm I/O configuration parameters within the control system before enabling field outputs.
