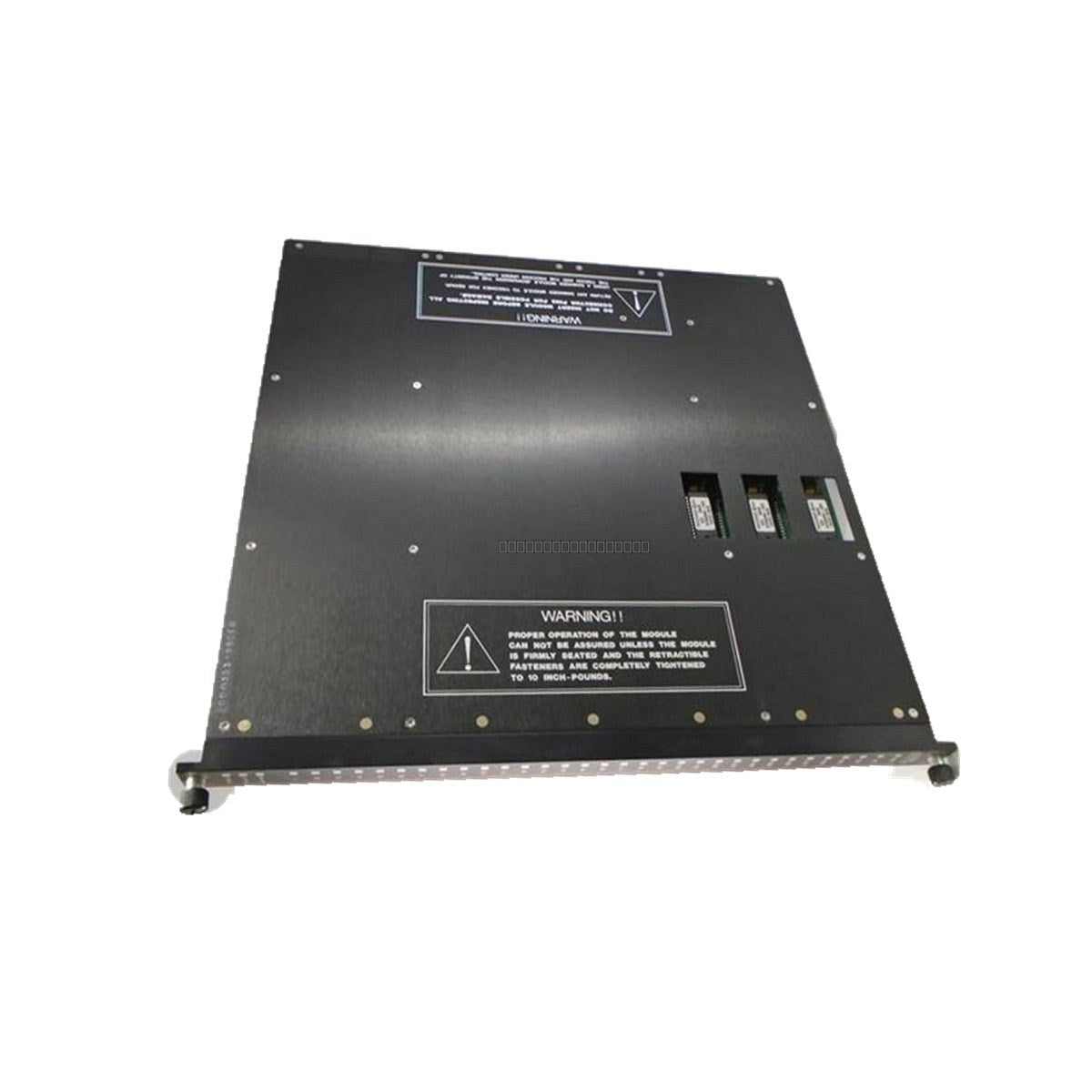

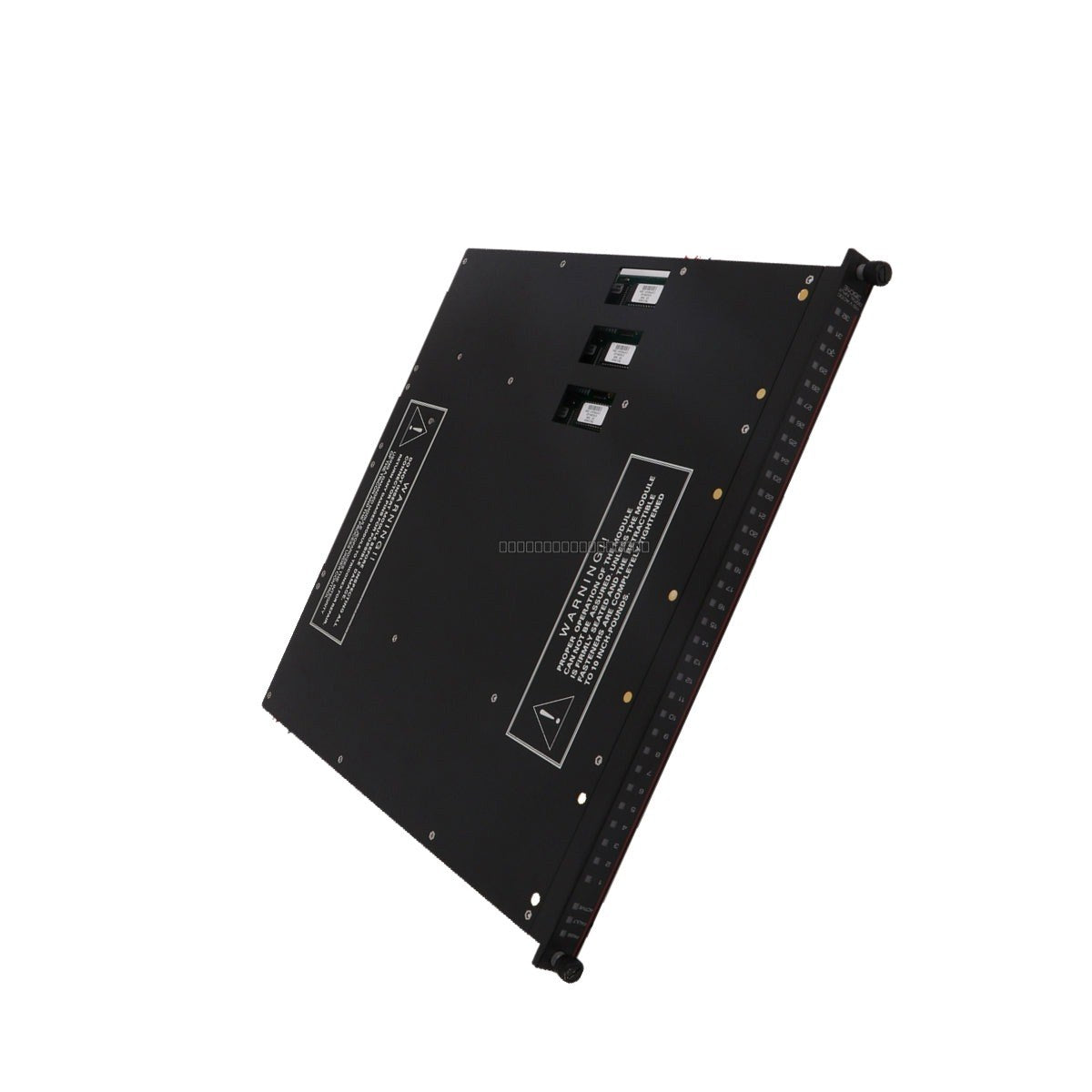

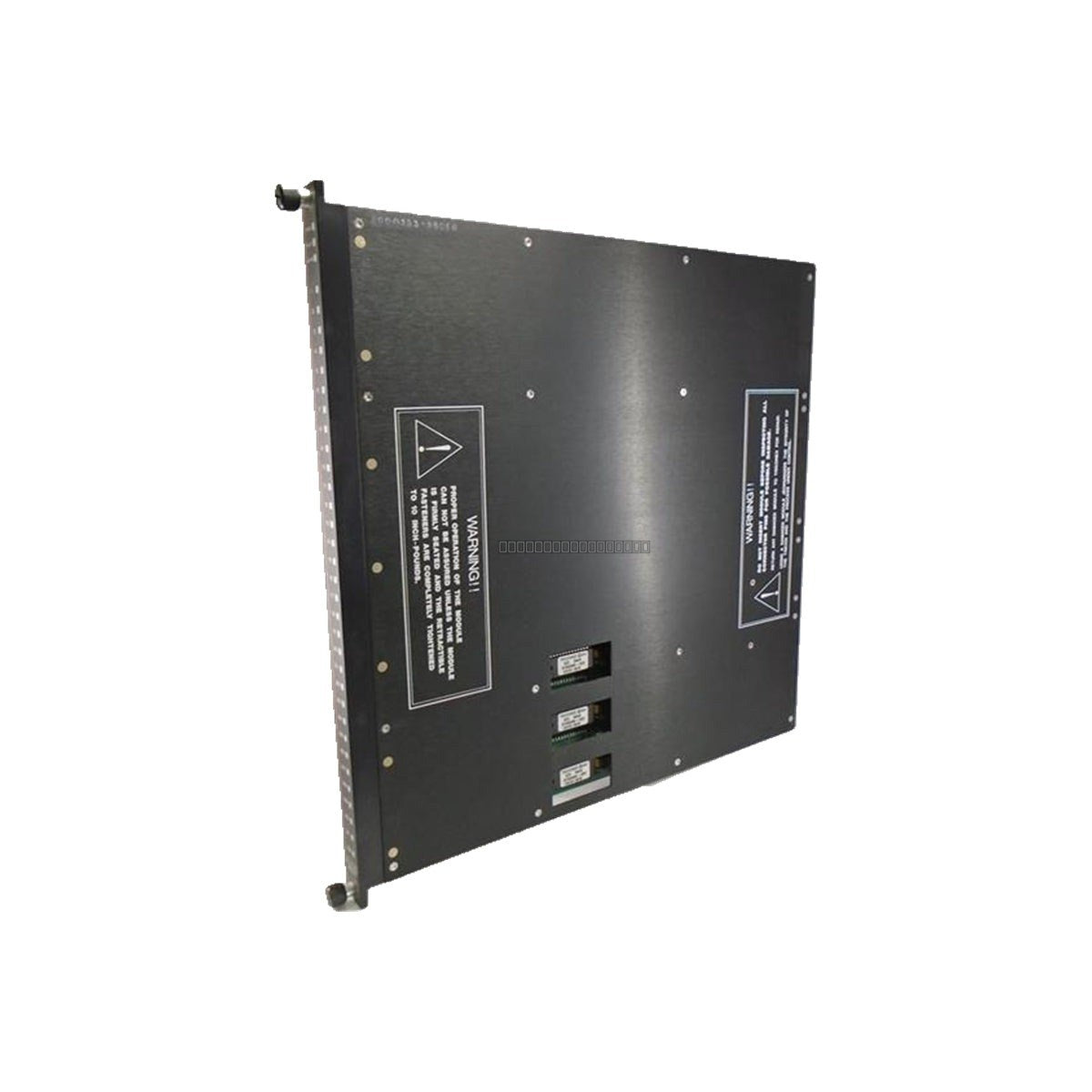

The Triconex 3501E is a high-density Digital Input Module engineered for the Triconex Triple Modular Redundant (TMR) safety system. Featuring 32 isolated input points, this module is designed to interface with 115 VAC/VDC field signals, making it an essential component for monitoring critical discrete devices such as limit switches and pushbuttons. In demanding industrial sectors like oil refining, power generation, and chemical processing, the 3501E ensures maximum process uptime through its fault-tolerant architecture. By utilizing advanced point-to-point isolation and rigorous signal processing, this module effectively eliminates common-mode interference and prevents field-side electrical faults from impacting the core logic controller.
Features
- 32-channel high-density digital input configuration.
- Triple Modular Redundant (TMR) architecture for high-availability safety applications.
- Supports 115 VAC/VDC nominal input signals.
- Robust optical isolation (1500 VDC to 2500 VDC) per channel.
- Integrated self-diagnostic routines for real-time health monitoring.
- SIL 3 compliant design for critical safety loops.
Applications
The 3501E is widely utilized in safety-critical environments, including:
- Emergency Shutdown Systems (ESD).
- Fire and Gas (F&G) monitoring systems.
- Turbine control and burner management systems.
- High-integrity process monitoring in chemical and petrochemical plants.
Technical Specifications
| Model |
3501E |
| Module Type |
Digital Input (DI) |
| Input Points |
32 Channels, Isolated |
| Nominal Voltage |
115 VAC/VDC |
| Input Voltage Range |
90-155 VAC/VDC |
| Frequency Range |
47-63 Hz |
| Input Current |
6-9 mA |
| Power Consumption |
2.9 W |
| Point Isolation |
1500 VDC to 2500 VDC |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the Triconex chassis is powered down before inserting or removing the 3501E module.
- Handle the module using ESD-safe practices to prevent damage to sensitive internal components.
- Ensure proper seating in the backplane slot to maintain electrical connectivity for the TMR bus.
- Use shielded cabling for field inputs to minimize EMI/RFI interference in high-noise industrial environments.
- Verify that field wiring polarity matches the terminal block configuration before applying power.
- Maintain adequate ventilation around the chassis to ensure operation within the specified 0 to 60 deg C temperature range.
FAQ
What is the primary function of the 3501E module?
The 3501E is a digital input module designed to monitor 32 discrete field signals (115 VAC/VDC) and feed them into a Triconex TMR safety controller for processing.
Is this module suitable for SIL 3 applications?
Yes, the 3501E is designed for use in TMR systems that meet SIL 3 requirements, provided it is installed and configured according to the manufacturer's safety manual.
Does the module require external power for the inputs?
The 3501E monitors field-powered signals; ensure your field devices are powered within the 90-155 VAC/VDC range as specified.
