ICS Triplex TC-304-01 Remote Expansion Cable

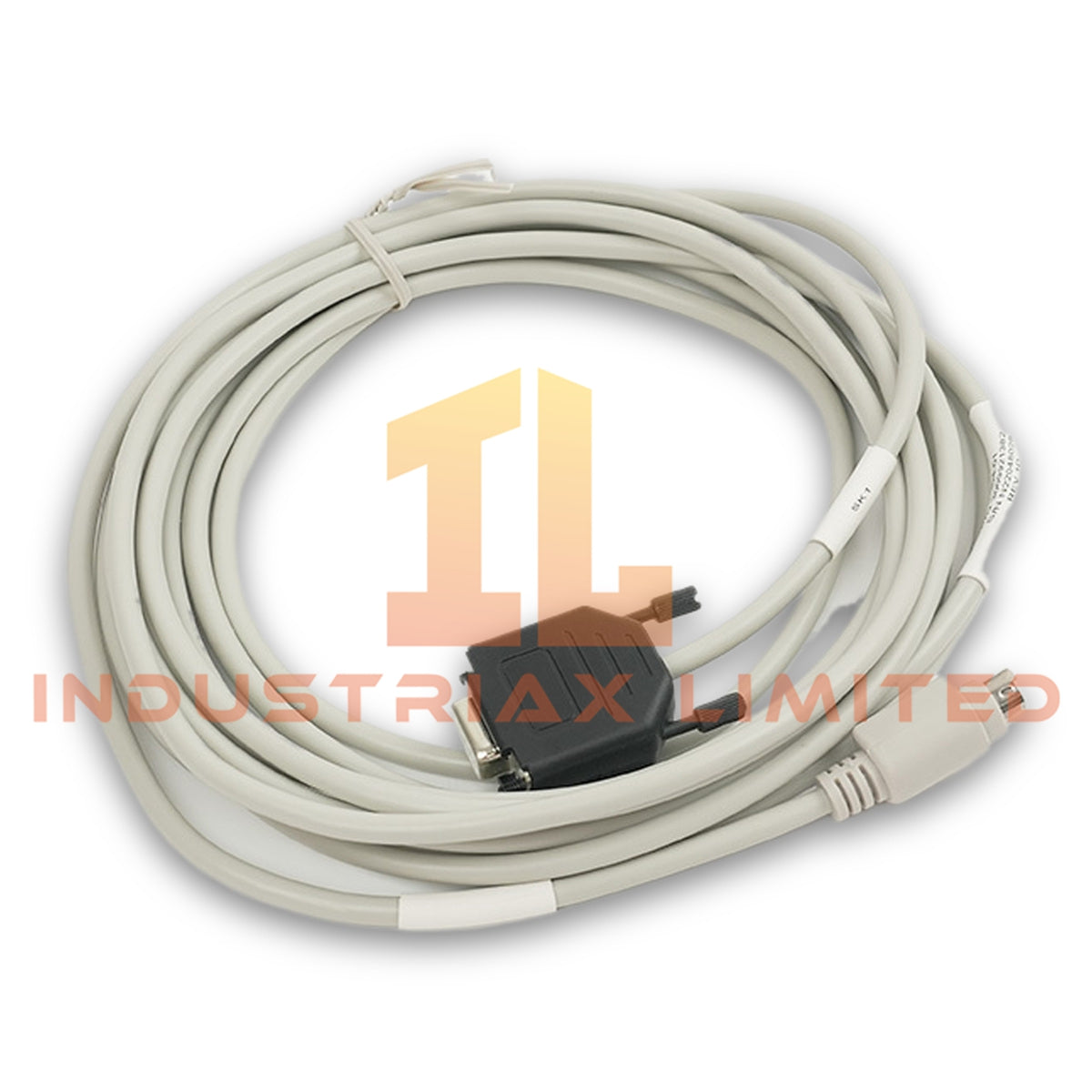

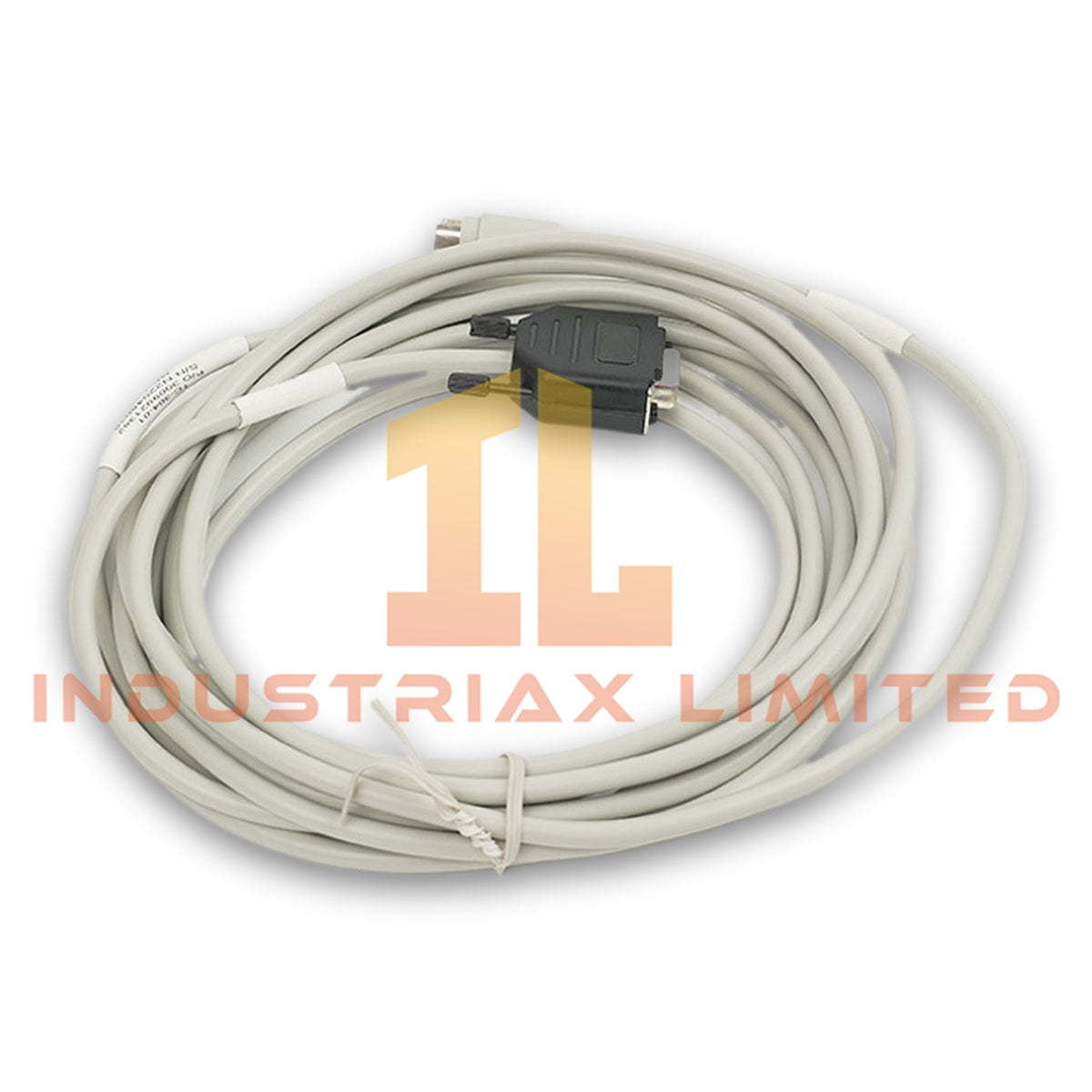

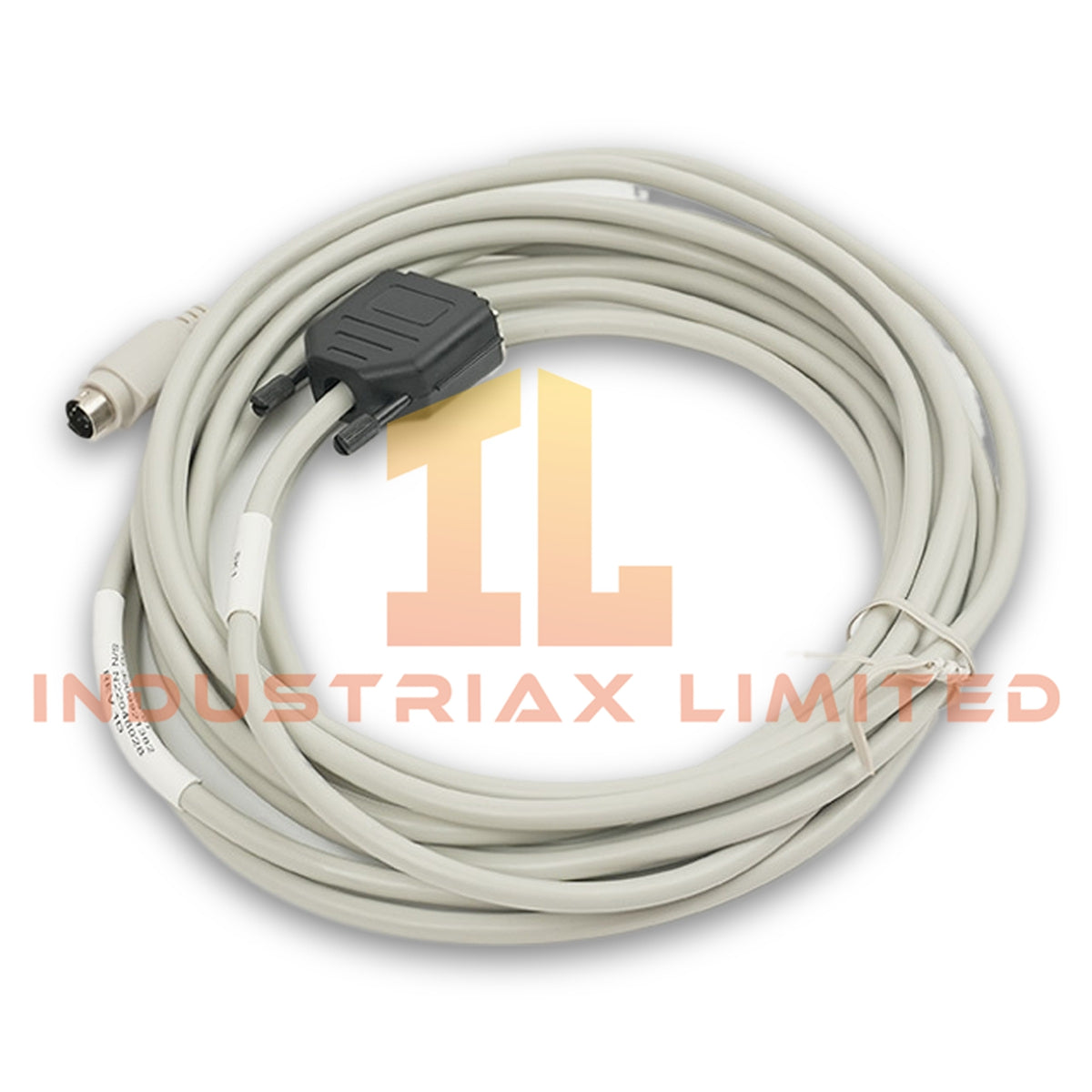

Configured for RS-232 diagnostic communication between an Engineering Workstation (EWS) or PC and a Trusted TMR Processor T8110 or Trusted Communications Interface T8151, the ICS Triplex TC-304-01 (TC-304-01 Remote Expansion Cable) provides a shielded physical communication link. The assembly uses a 6-core Belden 9536 cable, a 9-way D-type male connector, and a 6-way DIN connector.

Hardware Specifications

Parameter	Specification
Model	TC-304-01
Brand	ICS Triplex
Product Type	Remote Expansion Cable
Product Parameters	Maintenance Cable / Communications Cable
Origin	USA
Place of Shipment	Xiamen, China
Weight	0.2 kg
Dimensions	19 x 18 x 3.5 cm estimated shipping size
Cable Length	6 feet (1.8 meters)
Cable Construction	6-core Belden 9536
Connector Type	9-way D-type male at one end; 6-way DIN at the other end
Wire Gauge	24 AWG
Shielding	Foil and braid dual-layer protection
Impedance	100 ohms
Communication Interface	RS-232 serial
Operating Temperature	-40 deg C to +70 deg C
Storage Temperature	-40 deg C to +85 deg C
Relative Humidity	5% to 95%, non-condensing
Power Consumption	Passive cable assembly; no separate power input specified
Tariff Code	8537101190
Compatible Equipment	Trusted TMR Processor T8110; Trusted Communications Interface T8151

Trusted SIS Communication Characteristics

The TC-304-01 supports direct RS-232 diagnostic communication with Trusted system equipment. Therefore, the cable carries serial diagnostic data rather than field I/O signals.

The dual-layer foil and braid shield reduces susceptibility to electromagnetic interference during cabinet-level communication. Furthermore, the 100 ohm cable impedance and 24 AWG conductors define the electrical characteristics of the supplied cable assembly.

The cable connects an EWS or PC to the front-panel RS-232 diagnostics port on a T8110 or T8151. Its connector arrangement provides a 9-way D-type male interface at one end and a 6-way DIN interface at the other.

Frequently Asked Questions (FAQ)

Q: What communication interface does the TC-304-01 provide?
A: The TC-304-01 provides an RS-232 serial communication connection for the specified Trusted diagnostic interfaces.

Q: What connectors does the cable use?
A: The assembly uses a 9-way D-type male connector on one end and a 6-way DIN connector on the other end.

Q: Does the cable require an external power supply?
A: No separate power input or power consumption rating is specified. The TC-304-01 functions as a passive communications cable assembly.

Field Installation Guidelines

1. Verify the T8110 or T8151 diagnostic port before connection and confirm the connector orientation.
2. Connect the 9-way D-type male connector and 6-way DIN connector without applying lateral force to the mating interfaces.
3. Route the RS-232 cable separately from high-current AC wiring, switching power circuits, contactors, and high-energy motor conductors where practical.
4. Maintain the cable shielding system as supplied. Avoid unnecessary removal or modification of the foil and braid layers.
5. Protect the cable from excessive bending, crushing, abrasion, and mechanical tension during cabinet installation.
6. Secure the cable so that connector bodies do not carry the mechanical load of the cable.
7. Before commissioning, inspect both connectors for bent contacts, contamination, loose hardware, or damaged insulation.
8. Use the cable only with the specified Trusted diagnostic interfaces and verify communication after physical installation.
