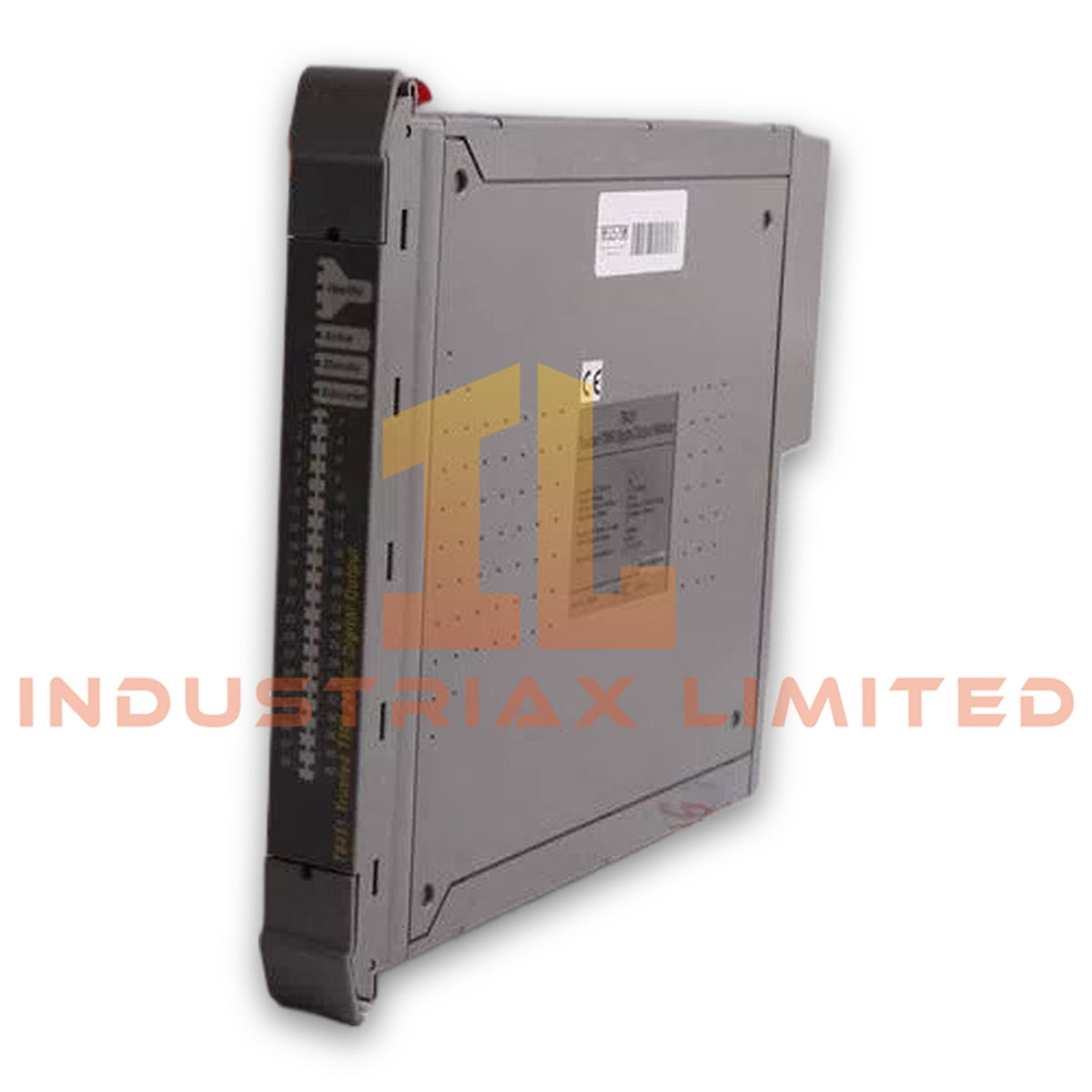

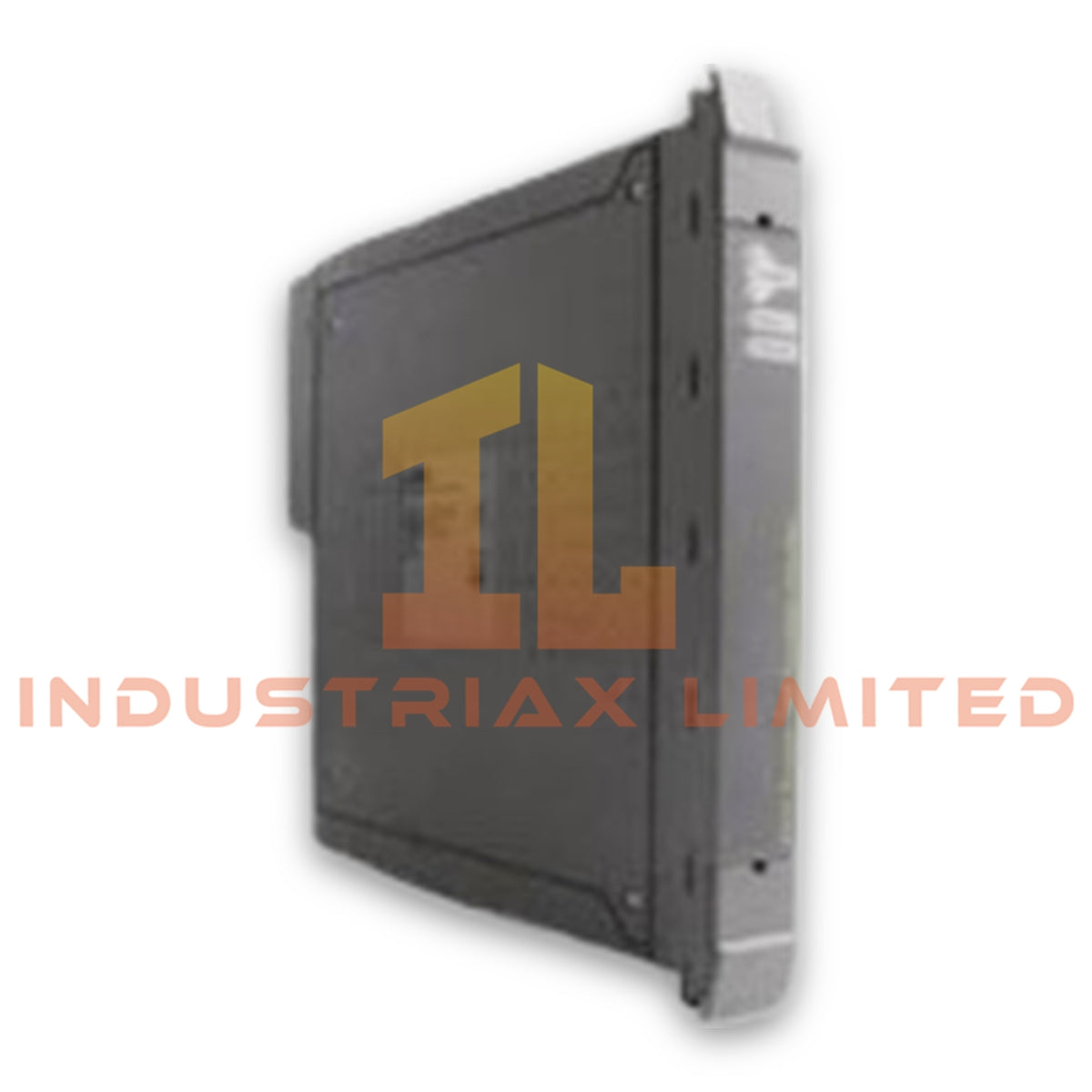

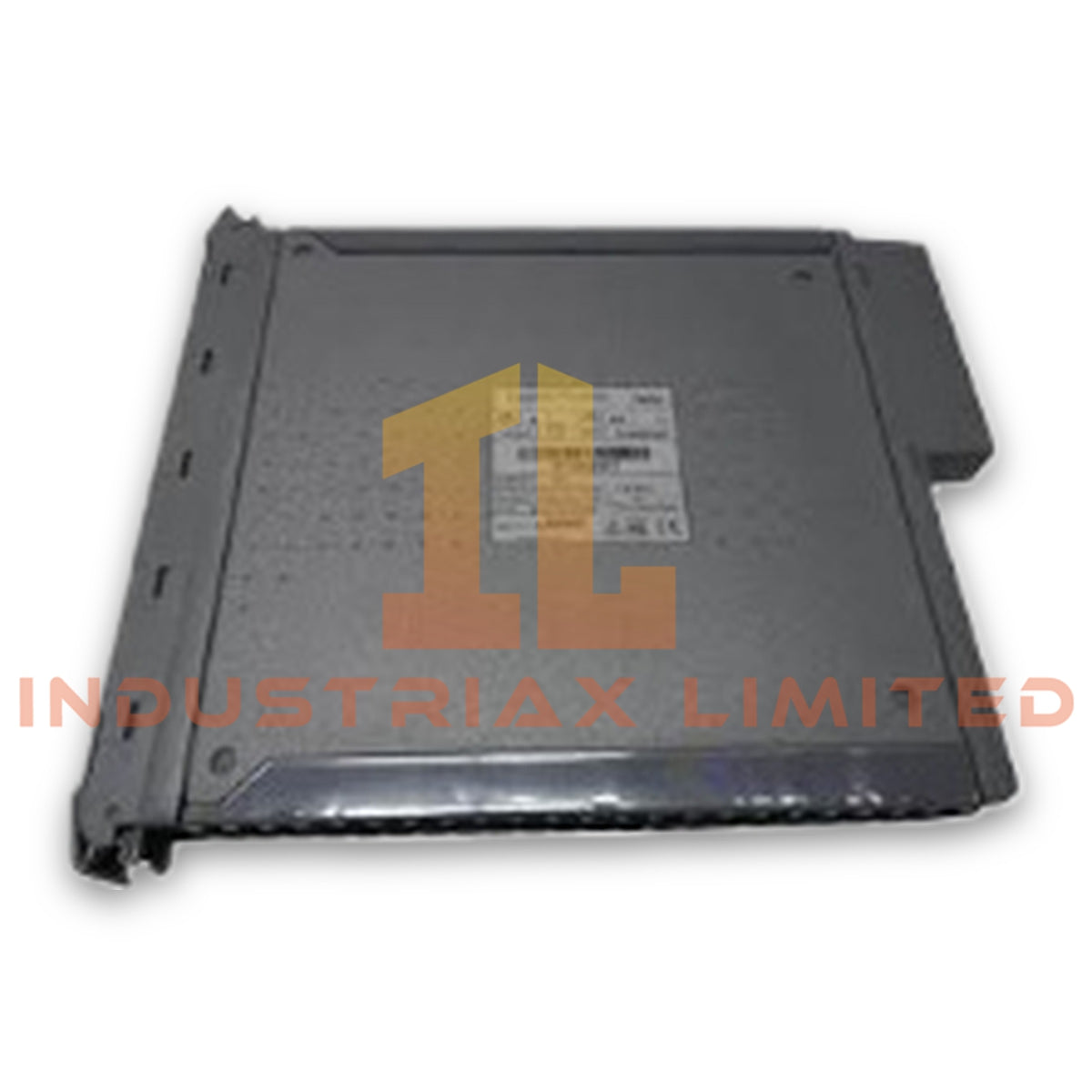

ICS Triplex T9193 TMR Processor Module

The ICS Triplex T9193, also cataloged as the T9193 Processor Module, operates as a dedicated hardware component for processor communication and system management within the ICS Triplex Trusted TMR safety controller platform. It exchanges internal control data through the system backplane, supervises controller resources, and participates in deterministic safety processing while maintaining compatibility with redundant controller architectures.

Suffix Breakdown & Model Matrix

The supplied documentation identifies a single catalog number, T9193. No official suffix variants or ordering matrix are defined in the provided information; therefore, no suffix interpretation is included.

Hardware Specifications

Parameter	Specification
Model	T9193
Brand	ICS Triplex
Product Type	TMR Processor Module
System Platform	ICS Triplex Trusted Safety System
Processor Function	Controller processing and system management
Architecture	Triple Modular Redundancy (TMR) platform compatible
Backplane Interface	Trusted system backplane
Redundancy Support	Yes, designed for redundant safety controller operation
Communication	Internal controller and backplane data exchange
Diagnostic Functions	Internal diagnostics and status monitoring
Origin	USA

Triple Modular Redundancy (TMR) Architecture

The T9193 operates within the ICS Triplex Trusted TMR platform. Three independent processing paths execute the same application logic simultaneously. Next, the controller compares execution results through a 2oo3 voting mechanism before updating field outputs. This architecture increases tolerance to single-channel hardware faults while maintaining deterministic safety execution.

Furthermore, the module interfaces with galvanically isolated system components through the Trusted backplane. Internal diagnostics continuously monitor processor status and communication integrity. When a detected fault exceeds configured limits, the controller transitions the affected channel toward the configured fail-safe operating state according to the system safety strategy.

Frequently Asked Questions

Q: Does the T9193 support operation in a redundant safety controller architecture?
A: Yes. The module is intended for operation within the ICS Triplex Trusted TMR architecture, where three processing channels participate in deterministic safety execution using 2oo3 voting.

Q: Can the T9193 be installed or removed while the controller is energized?
A: Installation and replacement procedures depend on the controller chassis configuration and maintenance procedures specified by the system manufacturer. Follow approved shutdown or online maintenance instructions before replacing processor hardware.

Q: Does the module perform internal diagnostics?
A: Yes. The controller architecture continuously supervises processor operation and internal communication paths. Diagnostic information is reported through the Trusted system for maintenance and fault analysis.

Field Installation Guidelines

• Verify the module part number before installation into the Trusted chassis.
• Insert the module fully into the designated backplane connector without applying excessive mechanical force.
• Ensure that cabinet protective grounding complies with the system installation manual.
• Route communication and power wiring separately from high-energy motor or inverter cables to reduce electrical interference.
• Confirm that ventilation openings remain unobstructed after installation.
• After installation, verify controller diagnostics and communication status before placing the safety application into service.
• Record the module position and maintenance history according to the site's functional safety management procedures.
