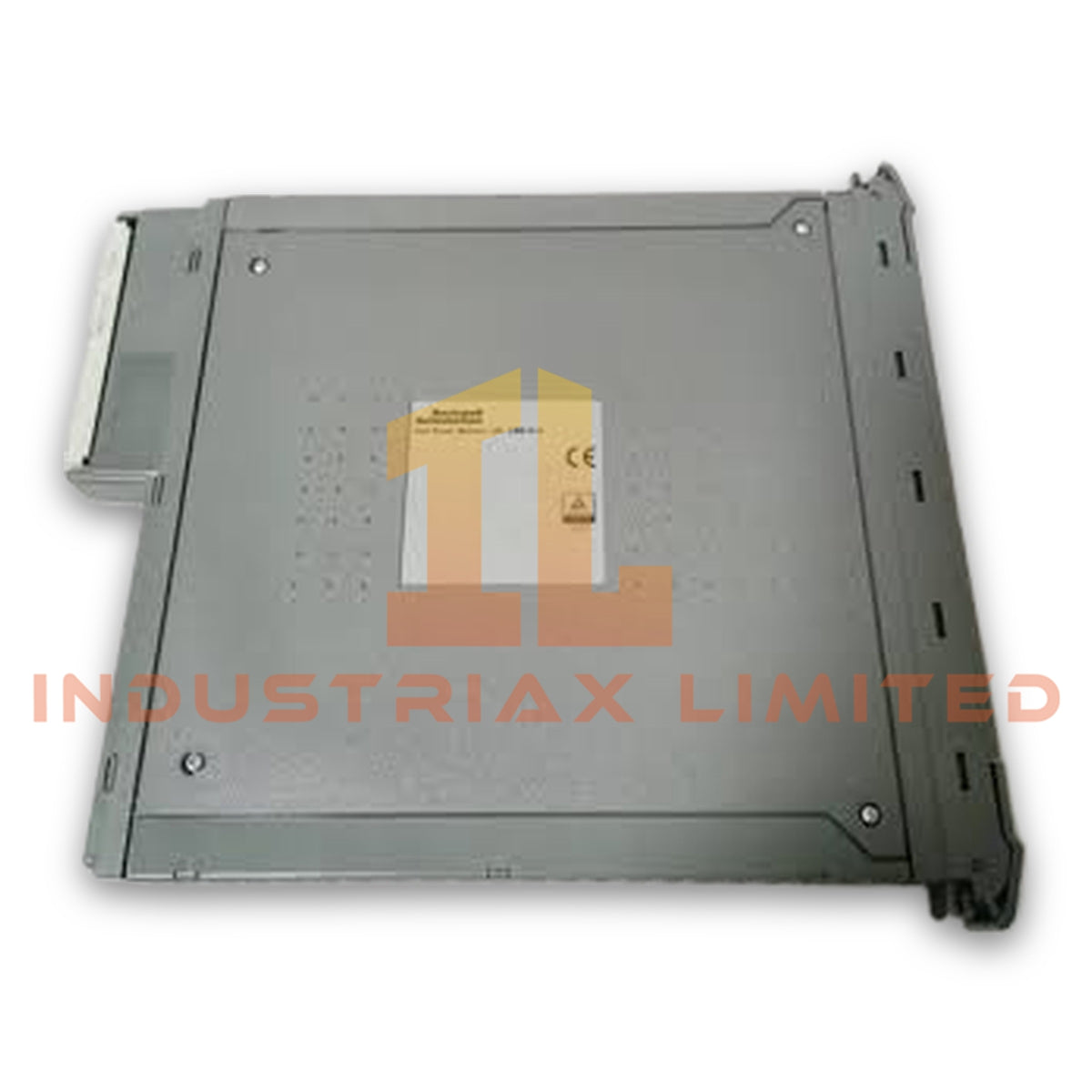

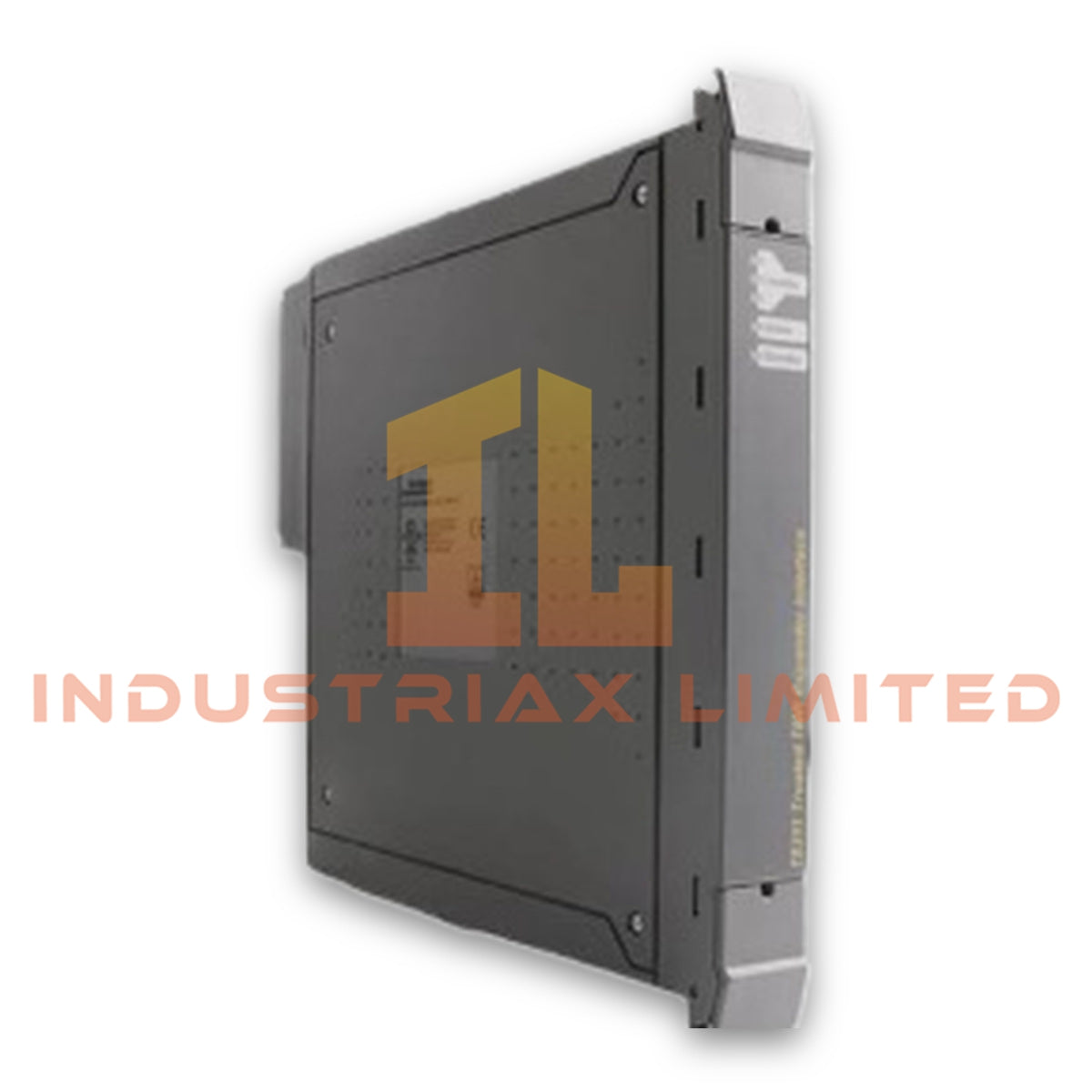

ICS Triplex T8513 Output Module

Configured for 24 VDC output switching in the Trusted safety control architecture, the ICS Triplex T8513 (T8513 Output Module) provides direct electrical execution for connected field circuits.

Hardware Specifications

Parameter	Specification
Model	T8513
Brand	ICS Triplex
Product Type	Output Module
Origin	USA
Weight	Approx. 0.8 kg - 1.0 kg
Dimensions	Approx. 16 cm x 16 cm x 12 cm
Operating Temp	0 deg C to 55 deg C
Storage Temp	-20 deg C to 70 deg C
Relative Humidity	5% to 95%, non-condensing
Output Voltage	24 VDC
Output Current	1 A
Isolation	500 V

TMR Safety Architecture and Electrical Isolation

The ICS Triplex T8513 operates within safety control architectures that use fault-tolerant processing and I/O arrangements. The supplied data specifies 500 V isolation and a 24 VDC output with a 1 A current rating. Therefore, system designers should verify the installed chassis configuration, field wiring arrangement, and applicable TMR architecture before commissioning.

The module applies electrical isolation between the output circuit and associated control electronics. In addition, the 24 VDC output rating defines the stated field-side operating voltage, while the 1 A rating defines the supplied maximum output current in the provided specifications.

Frequently Asked Questions (FAQ)

Q: What output voltage does the T8513 provide?
A: The supplied specifications identify a 24 VDC output with a stated 1 A output current rating.

Q: What isolation value does the T8513 specification provide?
A: The supplied data specifies 500 V isolation.

Q: What environmental temperature range is specified for operation?
A: The supplied operating range is 0 deg C to 55 deg C.

Field Installation Guidelines

• Install the module in the designated ICS Triplex system chassis and follow the applicable chassis installation documentation.
• Verify that the field supply voltage matches the specified 24 VDC output configuration before connecting field loads.
• Keep power wiring separated from high-level communication and low-level signal wiring where the installation permits.
• Route field conductors securely and prevent mechanical stress at terminal or connector interfaces.
• Use appropriate protective measures for external wiring, including overcurrent protection where required by the system design.
• Maintain proper protective and functional grounding according to the system installation standard.
• Inspect connector seating and module alignment before energizing the chassis.
• Verify field polarity and load requirements before applying power.
• Confirm the installed hardware configuration and system compatibility before placing the module into service.
